LT1804 - LT1804是Single/Dual/Quad 100V/μs, 85MHz, Rail-to-Rail Input and Output Op Amps

LT1804是LINEAR凌力尔特公司的一款高速放大器产品，LT1804是LT1804是Single/Dual/Quad 100V/μs, 85MHz, Rail-to-Rail Input and Output Op Amps，本站介绍了LT1804的封装应用图解、特点和优点、功能等，并给出了与LT1804相关的LINEAR元器件型号供参考。

LT1804 - LT1804是Single/Dual/Quad 100V/μs, 85MHz, Rail-to-Rail Input and Output Op Amps - 高速放大器 - 信号调理 - 凌力尔特

LT1804 - Single/Dual/Quad 100V/μs, 85MHz, Rail-to-Rail Input and Output Op Amps

LT1804 - Single/Dual/Quad 100V/μs, 85MHz, Rail-to-Rail Input and Output Op Amps - Linear Technology（凌力尔特）

功能描述

The LT?1803/LT1804/LT1805 are single/dual/quad, lowpower, high speed rail-to-rail input and output operationalamplifiers with excellent DC performance. The LT1803/LT1804/LT1805 feature reduced supply current, lowerinput offset voltage, lower input bias current and higherDC gain than other devices with comparable bandwidthand slew rate.

Typically, the LT1803/LT1804/LT1805 have an input offsetvoltage of 350μV, an input bias current of 125nA andan open-loop gain of 60V/mV.

The LT1803/LT1804/LT1805 have an input range thatincludes both supply rails and an output that swings within20mV of either supply rail to maximize the signal dynamicrange in low supply applications.

The LT1803/LT1804/LT1805 are specified at 3V, 5V and±5V supplies and typically maintain their performance forsupplies from 2.3V to 12.6V. The inputs can be drivenbeyond the supplies without damage or phase reversal ofthe output.

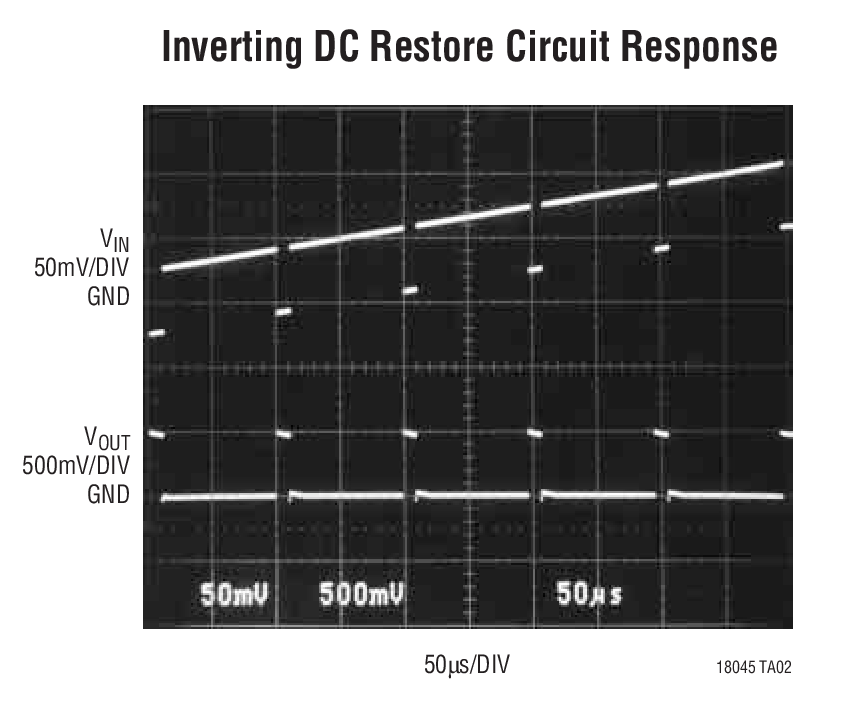

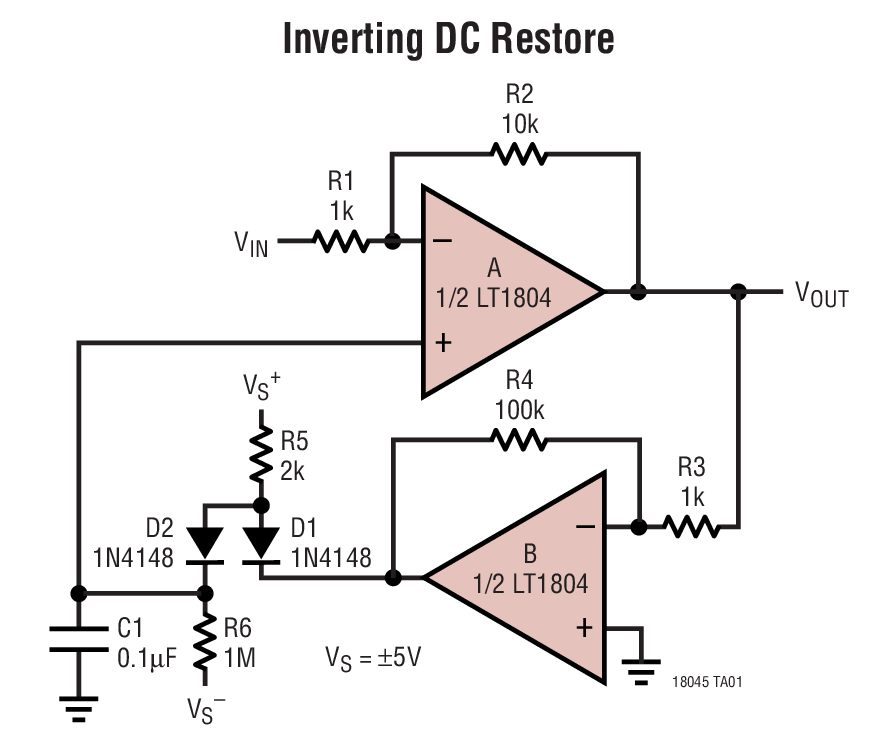

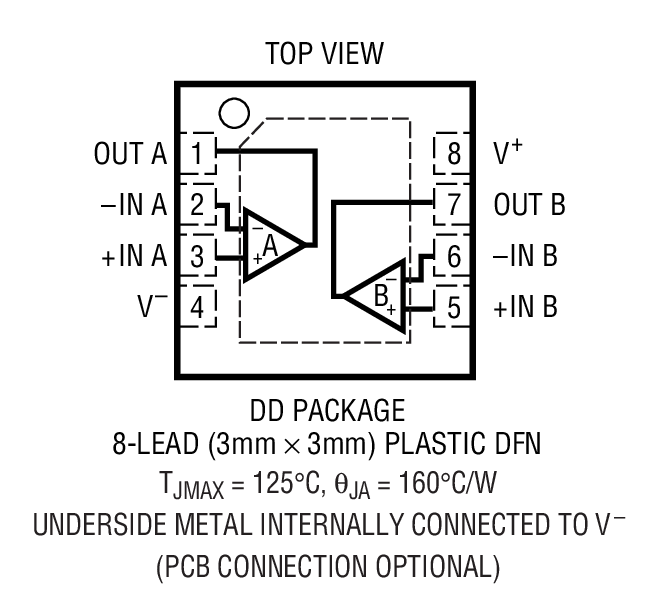

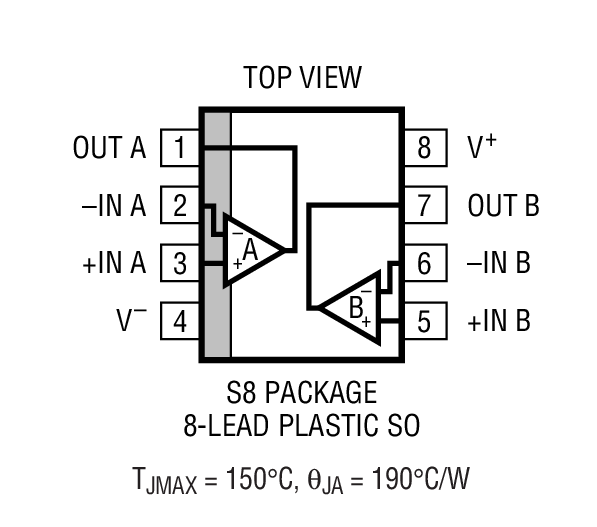

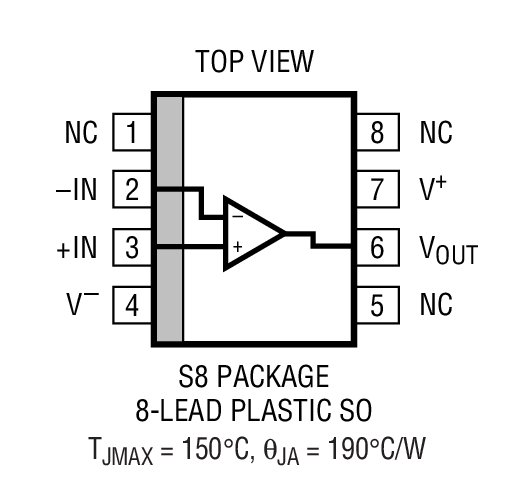

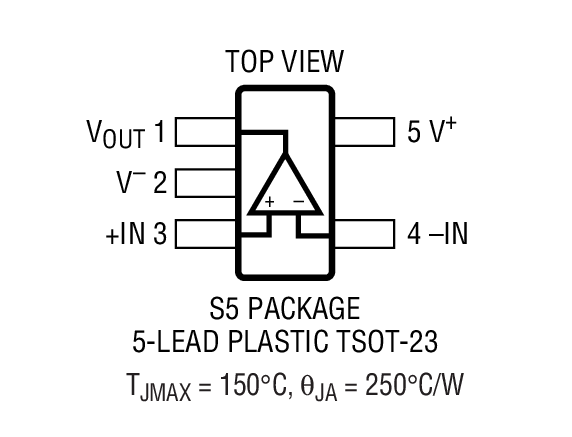

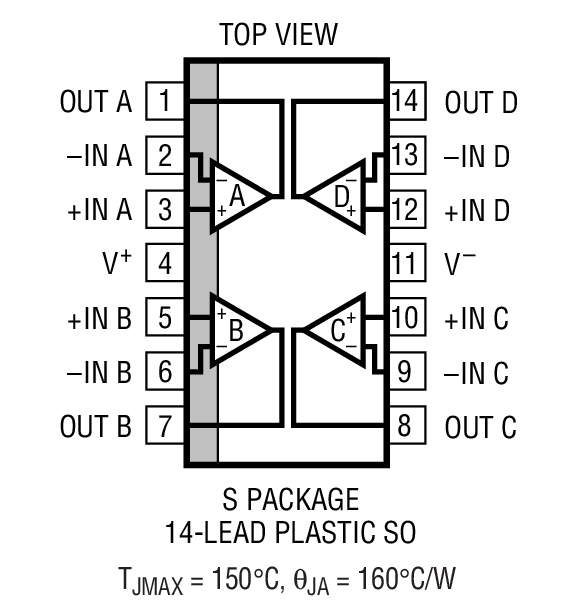

The LT1803 is available in the 8-pin SO package with thestandard op amp pinout and in the 5-pin SOT-23 package.The LT1804 is available in 8-pin DFN and SO packageswith the standard op amp pinouts. The LT1805 featuresthe standard quad op amp configuration and is available ina 14-pin plastic SO package.

特点

Slew Rate: 100V/µs

Gain Bandwidth Product: 85MHz

Input Common Mode Range Includes Both Rails

Output Swings Rail-toRail

Low Quiescent Current: 3mA Max per Amplifier

Large Output Current: 42mA

Voltage Noise: 21nV/rtHz

Power Supply Rejection: 90dB

Open-Loop Gain: 60V/mV

Operating Temperature Range: -40°C to 85°C

Single Available in the 8-Pin SO and 5-Pin Low Profile (1mm) SOT-23 (ThinSOT™) Package

Dual Available in 8-Lead DFN and SO Packages

Quad Available in the 14-Pin Narrow SO Package

应用

Low Voltage, High Frequency Signal Processing

Driving A/D Converters

Rail-to-Rail Buffer Amplifiers

Active Filters

Video Line Driver

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LT1804CDD	3x3 DFN-8	C	$2.55	$2.15
LT1804CDD#PBF	3x3 DFN-8	C	$2.55	$2.15
LT1804CDD#TR	3x3 DFN-8	C		$2.20
LT1804CDD#TRPBF	3x3 DFN-8	C		$2.20
LT1804CS8	SO-8	C	$2.35	$1.95
LT1804CS8#PBF	SO-8	C	$2.35	$1.95
LT1804CS8#TR	SO-8	C		$2.01
LT1804CS8#TRPBF	SO-8	C		$2.01
LT1804IDD	3x3 DFN-8	I	$3.05	$2.55
LT1804IDD#PBF	3x3 DFN-8	I	$3.05	$2.55
LT1804IDD#TR	3x3 DFN-8	I		$2.60
LT1804IDD#TRPBF	3x3 DFN-8	I		$2.60
LT1804IS8	SO-8	I	$2.85	$2.35
LT1804IS8#PBF	SO-8	I	$2.85	$2.35
LT1804IS8#TR	SO-8	I		$2.41
LT1804IS8#TRPBF	SO-8	I		$2.41
