LTC1450L技术文档下载：

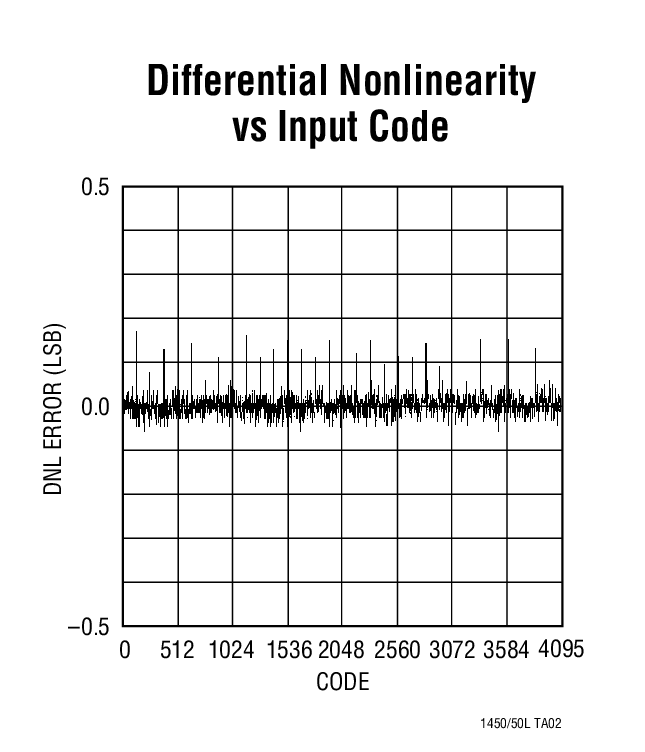

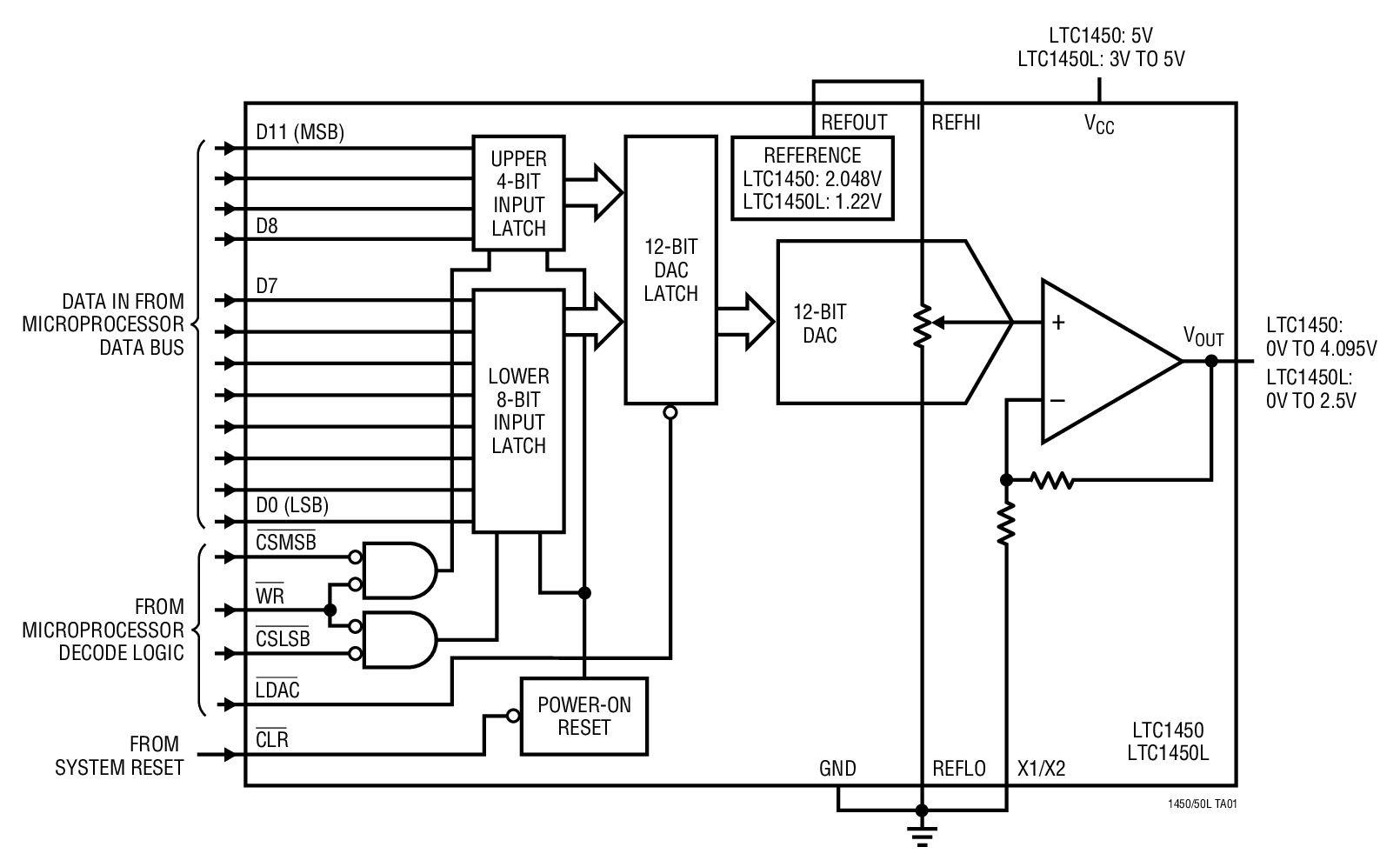

LTC1450L - 典型应用图例：

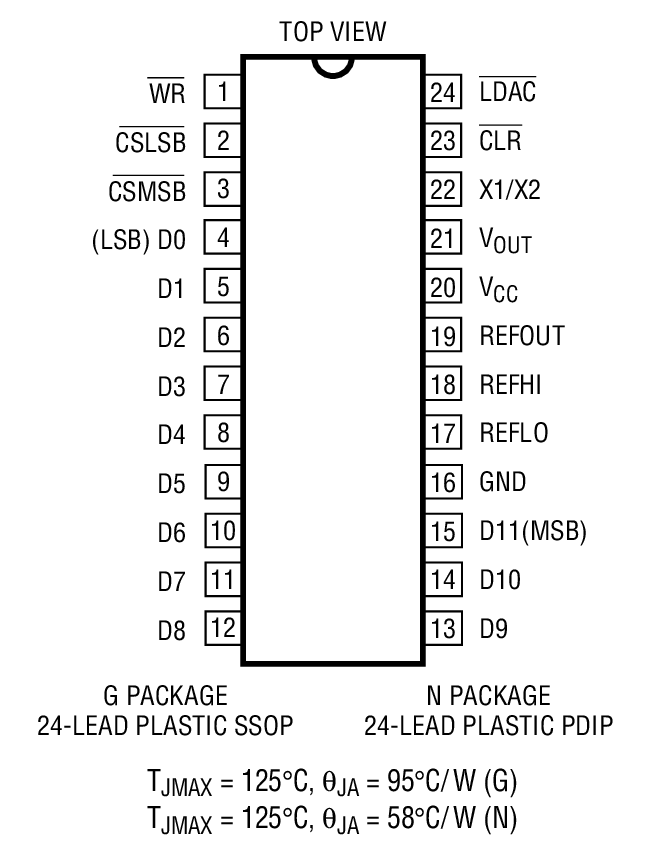

LTC1450L - 封装图解：
LTC1450L - LTC1450L是Parallel Input, 12-Bit Rail-to-Rail Micropower DACs in SSOP
LTC1450L是Linear公司的一款电压输出 DAC产品，LTC1450L是Parallel Input, 12-Bit Rail-to-Rail Micropower DACs in SSOP，本站介绍了LTC1450L的封装应用图解、特点和优点、功能等，并给出了与LTC1450L相关的凌力尔特元器件型号供参考。
LTC1450L - Parallel Input, 12-Bit Rail-to-Rail Micropower DACs in SSOP
LTC1450 - Parallel Input, 12-Bit Rail-to-Rail Micropower DACs in SSOP - Linear Technology（凌力尔特）
功能描述
The LTC1450/LTC1450L are complete single supply, rail-to-rail voltage output, 12-bit digital-to-analog converters (DACs) in a 24-pin SSOP or PDIP package. They include an output buffer amplifier, reference and a double buffered parallel digital interface. The LTC1450 operates from a 4.5V to 5.5V supply. The output can be pin strapped for 4.095V or 2.048V full-scale. It has a 2.048V internal reference. The LTC1450L operates from a 2.7V to 5.5V supply. The output can be pin strapped for 2.5V or 1.22V full-scale. It has a 1.22V internal reference. The LTC1450/LTC1450L offer true stand-alone performance. In addition, the reference output, high and low reference inputs and gain setting resistor are brought to pins for maximum flexibility.特点
应用
以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
|---|---|---|---|---|
| LTC1450CG | SSOP-24 | C | $7.10 | $5.65 |
| LTC1450CG#PBF | SSOP-24 | C | $7.10 | $5.65 |
| LTC1450CG#TR | SSOP-24 | C | $5.75 | |
| LTC1450CG#TRPBF | SSOP-24 | C | $5.75 | |
| LTC1450CN | N-24 | C | $6.90 | $5.35 |
| LTC1450CN#PBF | N-24 | C | $6.90 | $5.35 |
| LTC1450IG | SSOP-24 | I | $9.00 | $7.10 |
| LTC1450IG#PBF | SSOP-24 | I | $9.00 | $7.10 |
| LTC1450IG#TR | SSOP-24 | I | $7.20 | |
| LTC1450IG#TRPBF | SSOP-24 | I | $7.20 | |
| LTC1450IN | N-24 | I | $8.35 | $6.70 |
| LTC1450IN#PBF | N-24 | I | $8.35 | $6.70 |
| LTC1450LCG | SSOP-24 | C | $7.50 | $6.00 |
| LTC1450LCG#PBF | SSOP-24 | C | $7.50 | $6.00 |
| LTC1450LCG#TR | SSOP-24 | C | $6.10 | |
| LTC1450LCG#TRPBF | SSOP-24 | C | $6.10 | |
| LTC1450LCN | N-24 | C | $7.15 | $5.70 |
| LTC1450LCN#PBF | N-24 | C | $7.15 | $5.70 |
| LTC1450LIG#PBF | SSOP-24 | I | $9.65 | $7.65 |
| LTC1450LIG#TRPBF | SSOP-24 | I | $7.75 | |
| LTC1450LIN | N-24 | I | $9.00 | $7.15 |
| LTC1450LIN#PBF | N-24 | I | $9.00 | $7.15 |
