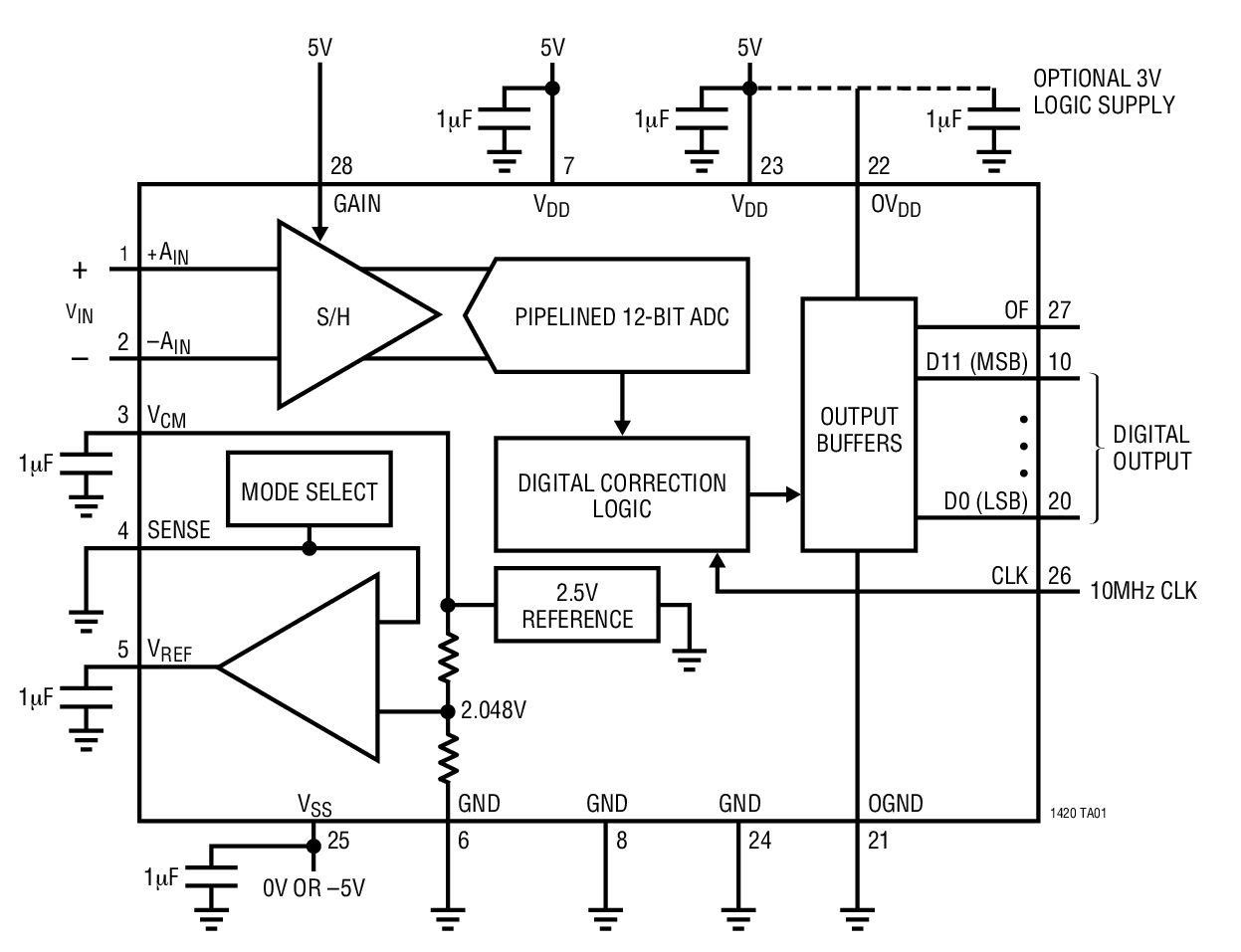

LTC1420典型应用图例一

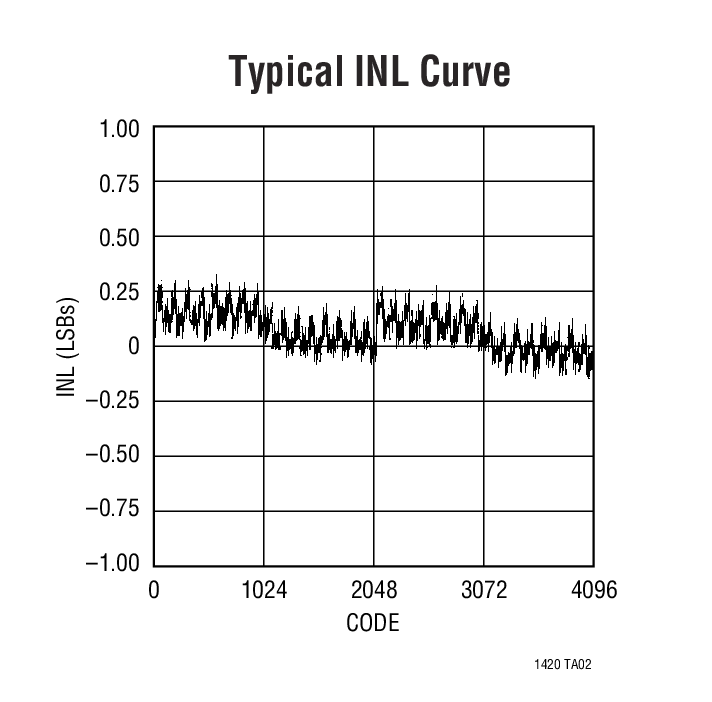

LTC1420典型应用图例二
LTC1420 - 封装图解：

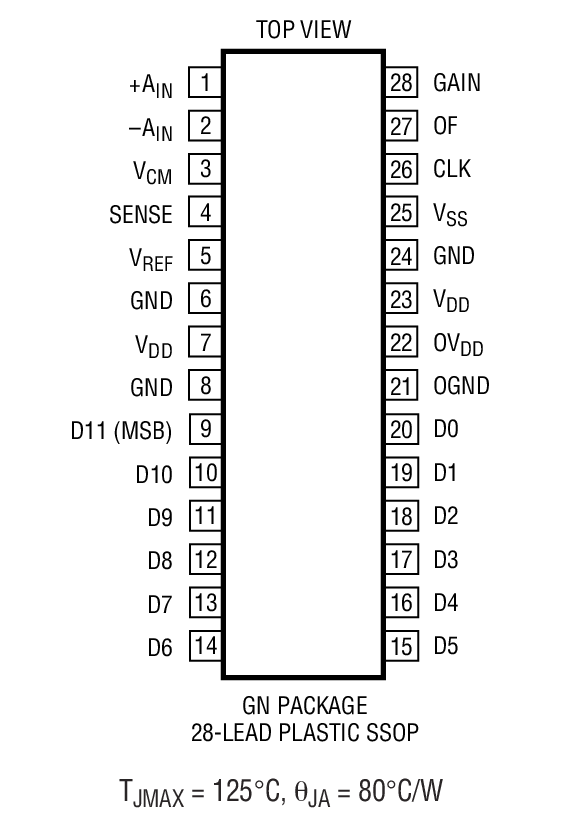

LTC1420封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1420介绍

LTC1420 - LTC1420是12-Bit, 10Msps,Sampling ADC

LTC1420是LINEAR凌力尔特公司的一款高速 ADC产品，LTC1420是LTC1420是12-Bit, 10Msps,Sampling ADC，本站介绍了LTC1420的封装应用图解、特点和优点、功能等，并给出了与LTC1420相关的LINEAR元器件型号供参考。

LTC1420 - LTC1420是12-Bit, 10Msps,Sampling ADC - 高速 ADC - 数据转换 - 凌力尔特

LTC1420 - 12-Bit, 10Msps,Sampling ADC

LTC1420 - 12-Bit, 10Msps,Sampling ADC - Linear Technology（凌力尔特）

功能描述
The LTC1420 is a 10Msps, 12-bit sampling A/D converter that draws only 250mW from either single 5V or dual ±5V supplies. This easy-to-use device includes a high dynamic range sample-and-hold, a precision reference and a PGA input circuit. The LTC1420 has a flexible input circuit that allows full-scale input ranges of ±2.048V ±1.024V and ±0.512V. The input common mode voltage is arbitrary, though a 2.5V reference is provided for single supply applications. The input PGA has a digitally selectable 1x or 2x gain. Maximum DC specs include ±1LSB INL and ±1LSB DNL over temperature. Outstanding AC performance includes 71dB S/(N + D) and 83dB SFDR at the Nyquist input frequency of 5MHz. The unique differential input sample-and-hold can acquire single-ended or differential input signals up to its 100MHz bandwidth. The 75dB common mode rejection allows users to eliminate ground loops and common mode noise by measuring signals differentially from the source. A separate output logic supply allows direct connection to 3V components.

特点
  • 10Msps Sample Rate
  • Single 5V Supply or ±5V Supplies
  • Integral Nonlinearity Error <0.35LSB
  • Differential Nonlinearity <0.25LSB
  • 71dB S/(N + D) and 83dB SFDR at Nyquist
  • 100MHz Full-Power Bandwidth Sampling
  • ±2.048V, ±1.024V and ±0.512V Bipolar Input Range
  • Input PGA
  • Out-of-Range Indicator
  • True Differential Inputs with 75dB CMRR
  • Power Dissipation: 250mW
  • 28-Pin Narrow SSOP Package
    • 应用
  • Telecommunications
  • Digital Signal Processing
  • Multiplexed Data Acquisition Systems
  • High Speed Data Acquisition
  • Spectral Analysis
  • Imaging Systems
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1420CGN SSOP-28 C $8.50 $5.95
    LTC1420CGN#PBF SSOP-28 C $8.50 $5.95
    LTC1420CGN#TR SSOP-28 C $6.01
    LTC1420CGN#TRPBF SSOP-28 C $6.01
    LTC1420IGN SSOP-28 I $9.29 $6.50
    LTC1420IGN#PBF SSOP-28 I $9.29 $6.50
    LTC1420IGN#TR SSOP-28 I $6.56
    LTC1420IGN#TRPBF SSOP-28 I $6.56
