    当前位置：Linear公司 > > 凌力尔特芯片 >> LTC6905-133
    LTC6905-133技术文档下载：
    LTC6905-133技术文档产品手册下载
    LTC6905-133 - 典型应用图例：

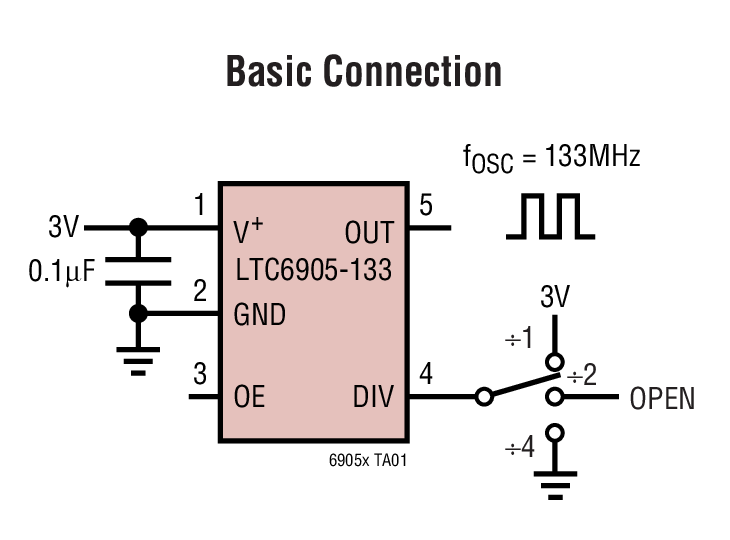

    LTC6905-133典型应用图例一

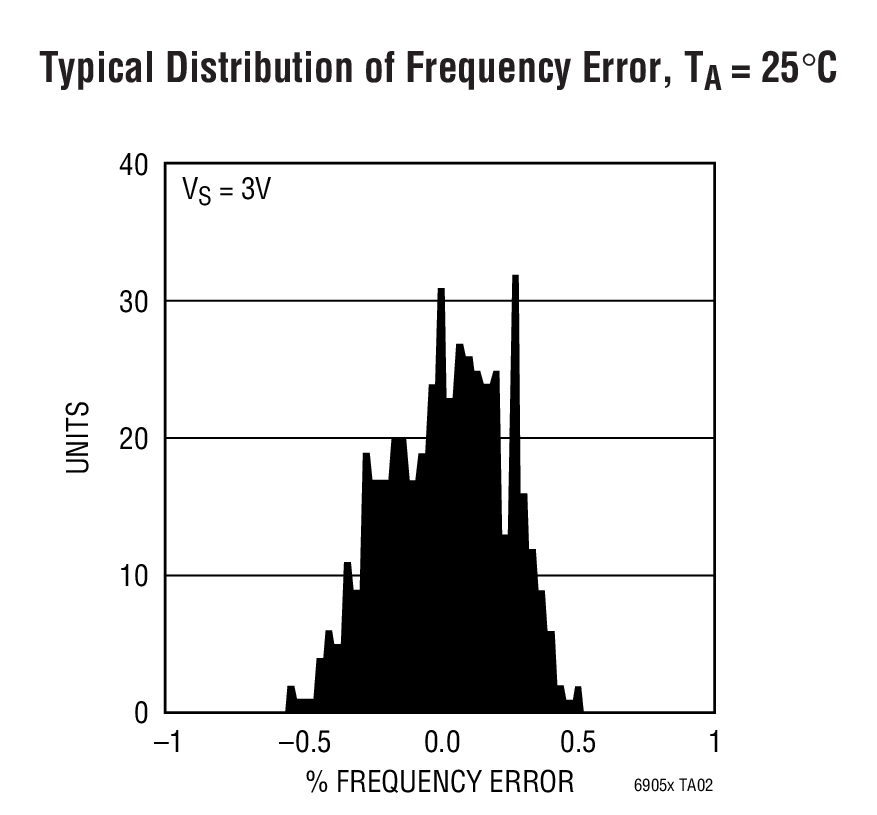

    LTC6905-133典型应用图例二
    LTC6905-133 - 封装图解：

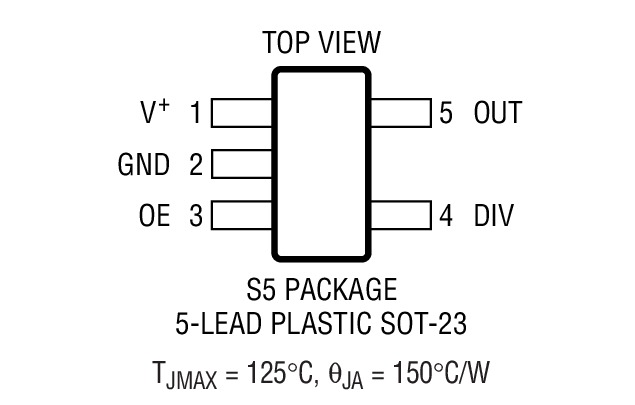

    LTC6905-133封装图解一
    承诺原装正品
    专营Linear，真正优化您的供应链
    Linear产品 - LTC6905-133介绍
    LTC6905-133 - LTC6905-133是固定频率 SOT-23 封装振荡器

    LTC6905-133是Linear公司的一款硅振荡器产品，LTC6905-133是固定频率 SOT-23 封装振荡器，本站介绍了LTC6905-133的封装应用图解、特点和优点、功能等，并给出了与LTC6905-133相关的凌力尔特元器件型号供参考。

    LTC6905-133 - 固定频率 SOT-23 封装振荡器

    LTC6905-133 - 固定频率 SOT-23 封装振荡器 - Linear Technology（凌力尔特）

    功能描述
    The LTC6905-XXX series of parts are precision, fixed frequency, silicon oscillators designed to minimize board space while maximizing accuracy and ease of use.

    Programmed at the factory to a fixed frequency, the LTC6905-XXX series of parts need no external trim components. An internal three-state divider allows for division of the master clock by 1, 2 or 4, providing 3 frequencies (for each device).

    The LTC6905-XXX series operate with a single 2.7V to 5.5V power supply and provide a rail-to-rail, 50% duty cycle, square wave output. The OE pin will disable the output when brought low and synchronously enable the output when brought high, avoiding pulse slivers.

    The four products of the LTC6905-XXX family are:

    • LTC6905-133: fOSC = 133MHz, 66.7MHz, 33.3MHz
    • LTC6905-100: fOSC = 100MHz, 50MHz, 25MHz
    • LTC6905-96: fOSC = 96MHz, 48MHz, 24MHz
    • LTC6905-80: fOSC = 80MHz, 40MHz, 20MHz

    The LTC6905-XXX series of parts are designed with a factory trim option to modify the divider ratios from 1, 2, 4 to 8, 16, 32. A second trim option allows for additional master clock frequencies. For the alternate divider ratios and unlisted frequencies, contact LTC marketing.

    Protected by U.S. Patents, including 6614313, 6342817.

    特点
  • No External Components to Set Frequency
  • Frequency Error ±0.5% Typical
  • Fast Start-Up Time: 100μs Typical
  • ±20ppm/°C Temperature Stability
  • Includes Output Enable
  • Includes Divide by 1, 2 or 4
  • Rise Time: 0.5ns, CL = 5pF
  • Timing Jitter: <0.8% Typical
  • Duty Cycle: 50% ±2.5%
  • IS = 8mA Typical (fOSC = 100MHz, CL = 5pF)
  • CMOS Output Drives 600 Ohm Load
  • Single Supply 2.7V to 5.5V
  • Low Profile (1mm) ThinSOTTM Package
    • 应用
  • Data Clocks for High Reliability Applications
  • High Vibration, High Acceleration Environments
  • Replacement for Fixed Crystal and Ceramic Oscillators
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC6905CS5-100 SOT-23 C $1.71
    LTC6905CS5-100#PBF SOT-23 C $1.71
    LTC6905CS5-100#TR SOT-23 C $1.71 $1.15
    LTC6905CS5-100#TRM SOT-23 C $1.71 $1.17
    LTC6905CS5-100#TRMPBF SOT-23 C $1.71 $1.17
    LTC6905CS5-100#TRPBF SOT-23 C $1.71 $1.15
    LTC6905CS5-133 SOT-23 C $1.71
    LTC6905CS5-133#PBF SOT-23 C $1.71
    LTC6905CS5-133#TR SOT-23 C $1.71 $1.15
    LTC6905CS5-133#TRM SOT-23 C $1.71 $1.17
    LTC6905CS5-133#TRMPBF SOT-23 C $1.71 $1.17
    LTC6905CS5-133#TRPBF SOT-23 C $1.71 $1.15
    LTC6905CS5-80 SOT-23 C $1.71
    LTC6905CS5-80#PBF SOT-23 C $1.71
    LTC6905CS5-80#TR SOT-23 C $1.71 $1.15
    LTC6905CS5-80#TRM SOT-23 C $1.71 $1.17
    LTC6905CS5-80#TRMPBF SOT-23 C $1.71 $1.17
    LTC6905CS5-80#TRPBF SOT-23 C $1.71 $1.15
    LTC6905CS5-96 SOT-23 C $1.71
    LTC6905CS5-96#PBF SOT-23 C $1.71
    LTC6905CS5-96#TR SOT-23 C $1.71 $1.15
    LTC6905CS5-96#TRM SOT-23 C $1.71 $1.17
    LTC6905CS5-96#TRMPBF SOT-23 C $1.71 $1.17
    LTC6905CS5-96#TRPBF SOT-23 C $1.71 $1.15
    LTC6905HS5-100 SOT-23 H $2.45 $1.67
    LTC6905HS5-100#PBF SOT-23 H $2.45
    LTC6905HS5-100#TR SOT-23 H $2.45 $1.73
    LTC6905HS5-100#TRM SOT-23 H $2.45 $1.75
    LTC6905HS5-100#TRMPBF SOT-23 H $2.45 $1.75
    LTC6905HS5-100#TRPBF SOT-23 H $2.45 $1.73
    LTC6905HS5-133 SOT-23 H $2.45
    LTC6905HS5-133#PBF SOT-23 H $2.45
    LTC6905HS5-133#TR SOT-23 H $2.45 $1.73
    LTC6905HS5-133#TRM SOT-23 H $2.45 $1.75
    LTC6905HS5-133#TRMPBF SOT-23 H $2.45 $1.75
    LTC6905HS5-133#TRPBF SOT-23 H $2.45 $1.73
    LTC6905HS5-80 SOT-23 H $2.45
    LTC6905HS5-80#PBF SOT-23 H $2.45
    LTC6905HS5-80#TR SOT-23 H $2.45 $1.73
    LTC6905HS5-80#TRM SOT-23 H $2.45 $1.75
    LTC6905HS5-80#TRMPBF SOT-23 H $2.45 $1.75
    LTC6905HS5-80#TRPBF SOT-23 H $2.45 $1.73
    LTC6905HS5-96 SOT-23 H $2.45
    LTC6905HS5-96#PBF SOT-23 H $2.45
    LTC6905HS5-96#TR SOT-23 H $2.45 $1.73
    LTC6905HS5-96#TRM SOT-23 H $2.45 $1.75
    LTC6905HS5-96#TRMPBF SOT-23 H $2.45 $1.75
    LTC6905HS5-96#TRPBF SOT-23 H $2.45 $1.73
    LTC6905IS5-100 SOT-23 I $2.04
    LTC6905IS5-100#PBF SOT-23 I $2.04
    LTC6905IS5-100#TR SOT-23 I $2.04 $1.44
    LTC6905IS5-100#TRM SOT-23 I $2.04 $1.46
    LTC6905IS5-100#TRMPBF SOT-23 I $2.04 $1.46
    LTC6905IS5-100#TRPBF SOT-23 I $2.04 $1.44
    LTC6905IS5-133 SOT-23 I $2.04
    LTC6905IS5-133#PBF SOT-23 I $2.04
    LTC6905IS5-133#TR SOT-23 I $2.04 $1.44
    LTC6905IS5-133#TRM SOT-23 I $2.04 $1.46
    LTC6905IS5-133#TRMPBF SOT-23 I $2.04 $1.46
    LTC6905IS5-133#TRPBF SOT-23 I $2.04 $1.44
    LTC6905IS5-80 SOT-23 I $2.04
    LTC6905IS5-80#PBF SOT-23 I $2.04
    LTC6905IS5-80#TR SOT-23 I $2.04 $1.44
    LTC6905IS5-80#TRM SOT-23 I $2.04 $1.46
    LTC6905IS5-80#TRMPBF SOT-23 I $2.04 $1.46
    LTC6905IS5-80#TRPBF SOT-23 I $2.04 $1.44
    LTC6905IS5-96 SOT-23 I $2.04
    LTC6905IS5-96#PBF SOT-23 I $2.04
    LTC6905IS5-96#TR SOT-23 I $2.04 $1.44
    LTC6905IS5-96#TRM SOT-23 I $2.04 $1.46
    LTC6905IS5-96#TRMPBF SOT-23 I $2.04 $1.46
    LTC6905IS5-96#TRPBF SOT-23 I $2.04 $1.44
