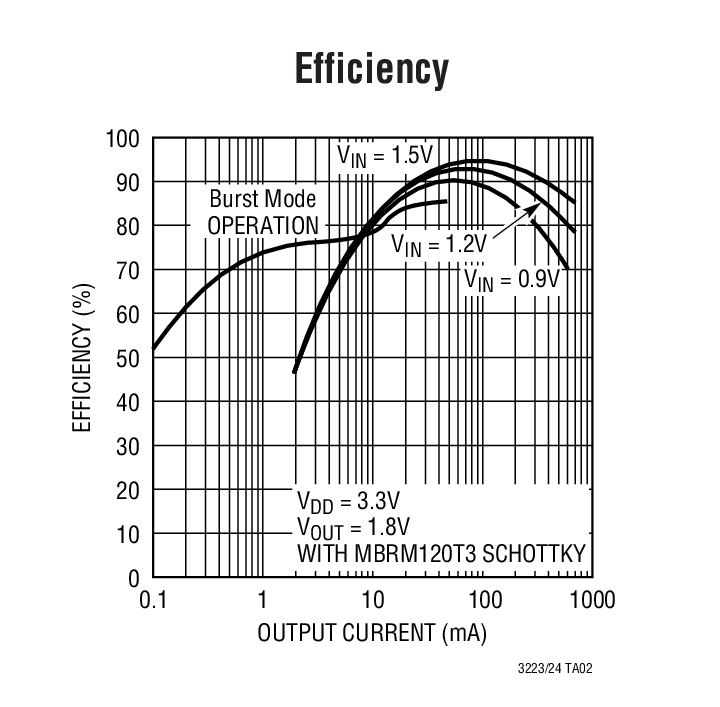

LTC3424典型应用图例一

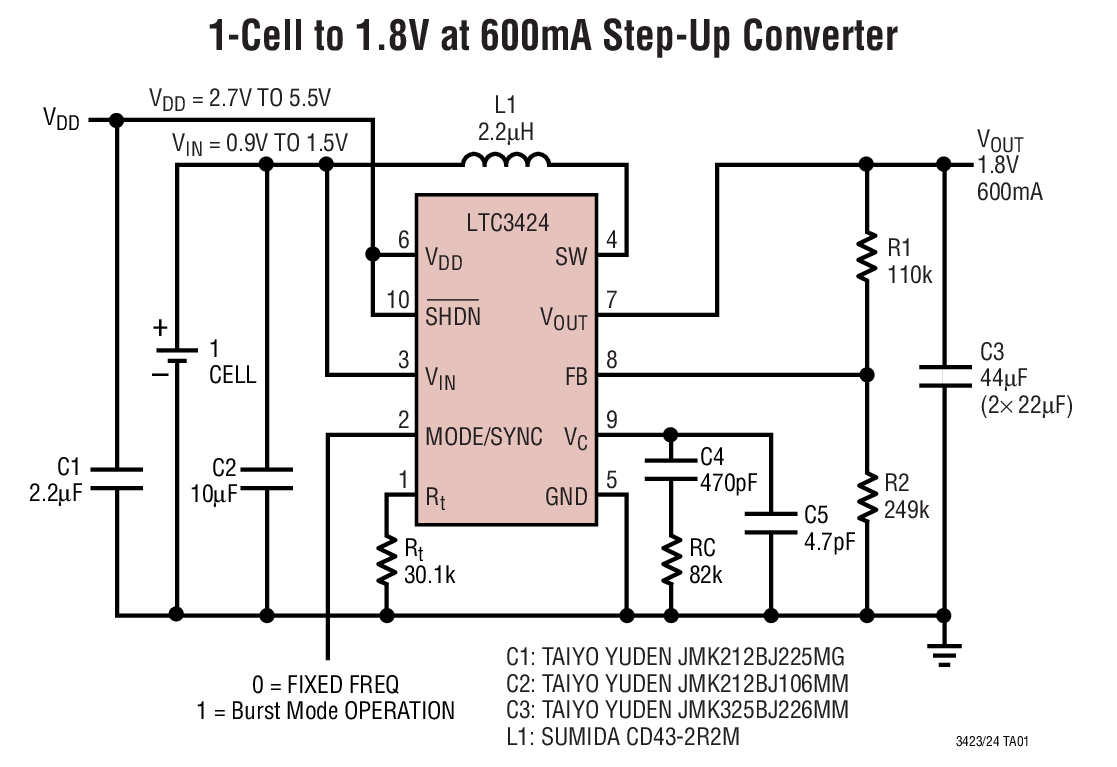

LTC3424典型应用图例二
LTC3424 - 封装图解:
LTC3424封装图解一
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LTC3424介绍
LTC3424 - LTC3424是Low Output Voltage, 3MHz Micropower Synchronous Boost Converters

LTC3424是Linear公司的一款微功率升压产品,LTC3424是Low Output Voltage, 3MHz Micropower Synchronous Boost Converters,本站介绍了LTC3424的封装应用图解、特点和优点、功能等,并给出了与LTC3424相关的凌力尔特元器件型号供参考。

LTC3424 - Low Output Voltage, 3MHz Micropower Synchronous Boost Converters

LTC3424 - Low Output Voltage, 3MHz Micropower Synchronous Boost Converters - Linear Technology(凌力尔特)

功能描述

The LTC?3423 and LTC3424 are high efficiency, fixed frequency, step-up DC/DC converters that can regulateoutput voltages as low as 1.5V from a single cell. An applied voltage of at least 2.7V to the VDD pin is required to power the internal control circuitry.

The devices include a 0.16 Ohms N-channel MOSFET switch and a 0.21 Ohms P-channel synchronous rectifier. The LTC3423 is intended for applications requiring less than 0.75W of output power and the LTC3424 for 1.5W or less. Switching frequencies up to 3MHz are programmed with an external timing resistor and the oscillator can be synchronized to an external clock.

Quiescent current is only 38μA in Burst Mode operation, maximizing battery life in portable applications. Burst Mode operation is user controlled and can be enabled by driving the MODE/SYNC pin high. If the MODE/SYNC pin has either a clock or is driven low then the operation is at constant fixed frequency.

Other features include a 1μA shutdown, thermal shutdown and current limit. The LTC3423 and LTC3424 are available in the 10-lead MSOP package. For applications requiring an output voltage greater than 2.6V, the LTC3401 and LTC3402 are recommended without the need of a separate voltage for the VDD pin.

特点
  • 1.5V to 5.5V Adjustable Output Voltage
  • Synchronous Rectification: Up to 95% Efficiency
  • 1A Switch Current (LTC3423) or2A Switch Current (LTC3424)
  • Fixed Frequency Operation Up to 3MHz
  • Wide Input Range: 0.5V to 5.5V (Operating)
  • Very Low Quiescent Current: 38μA (Burst Mode’ Operation)
  • No External Schottky Diode Required
  • Synchronizable Switching Frequency
  • Burst Mode Enable Control
  • OPTI-LOOP™ Compensation
  • Very Low Shutdown Current: <1µA
  • Small 10-Pin MSOP Package
  • 应用
  • Pagers
  • Handheld Instruments
  • Cordless Phones
  • Wireless Handsets
  • GPS Receivers
  • Battery Backup
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC3424EMS MS-10 E $4.14 $3.50
    LTC3424EMS#PBF MS-10 E $4.14 $3.50
    LTC3424EMS#TR MS-10 E $3.56
    LTC3424EMS#TRPBF MS-10 E $3.56
