当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LT6013
LT6013技术文档下载：
LT6013技术文档产品手册下载
LT6013 - 典型应用图例：

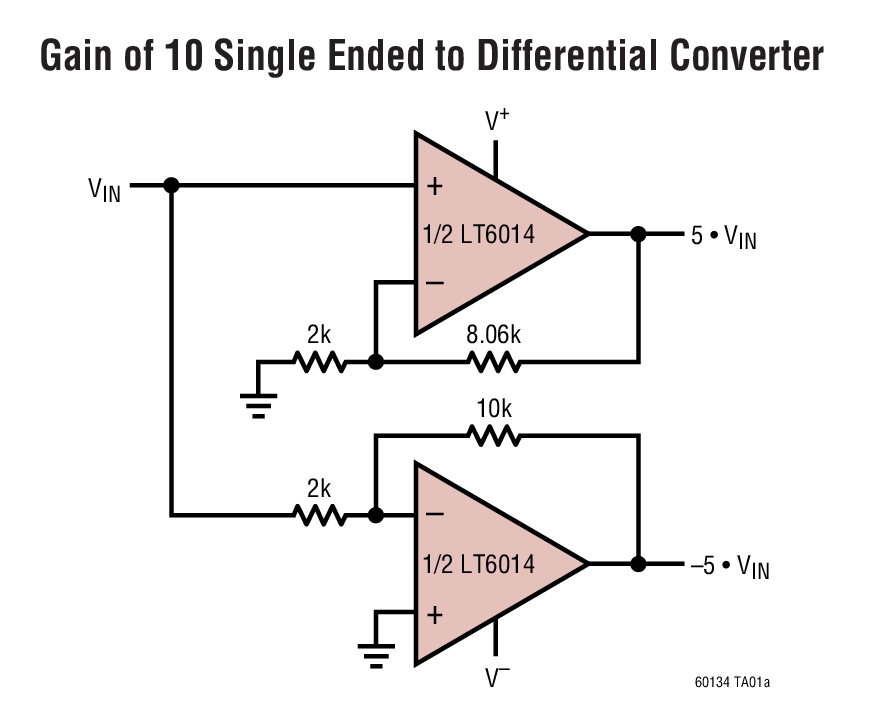

LT6013典型应用图例一

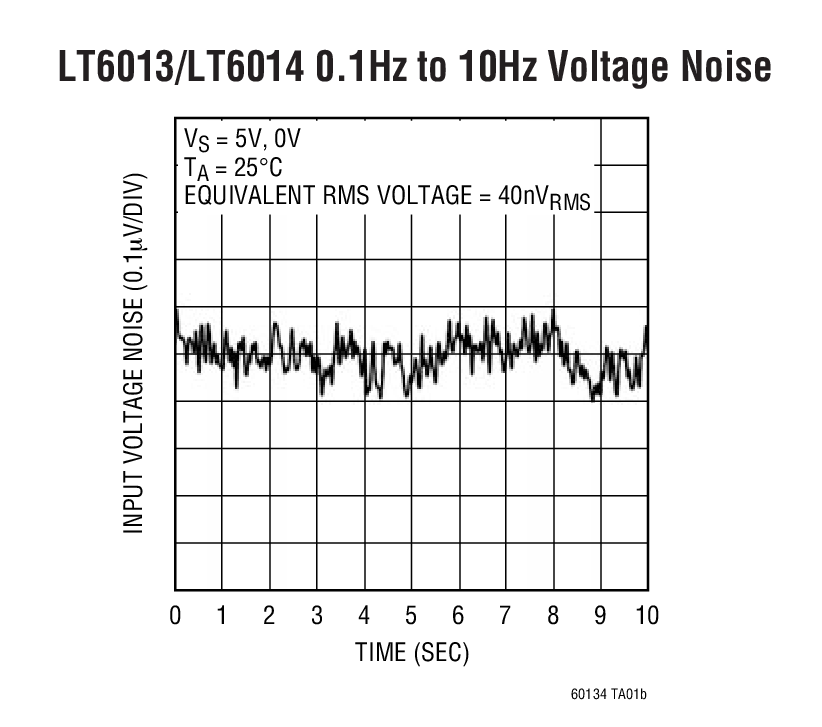

LT6013典型应用图例二
LT6013 - 封装图解：

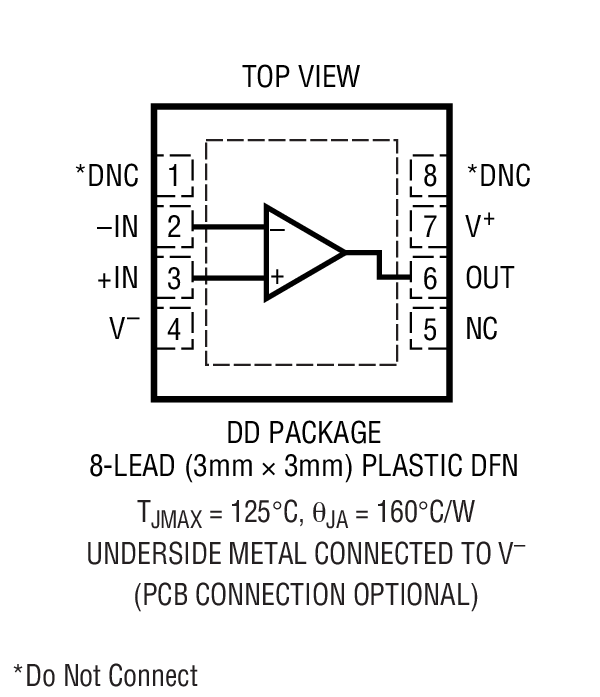

LT6013封装图解一

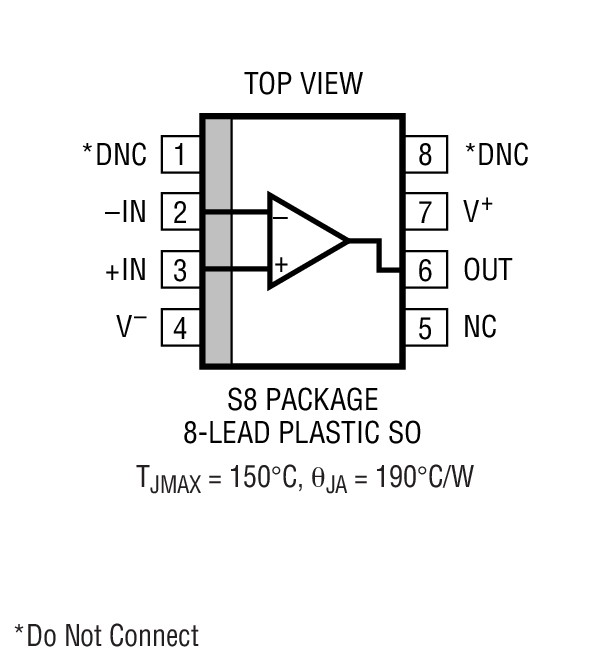

LT6013封装图解二

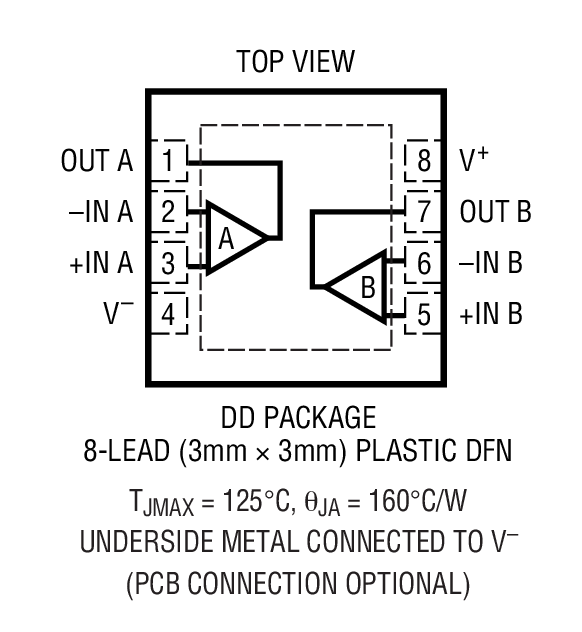

LT6013封装图解三

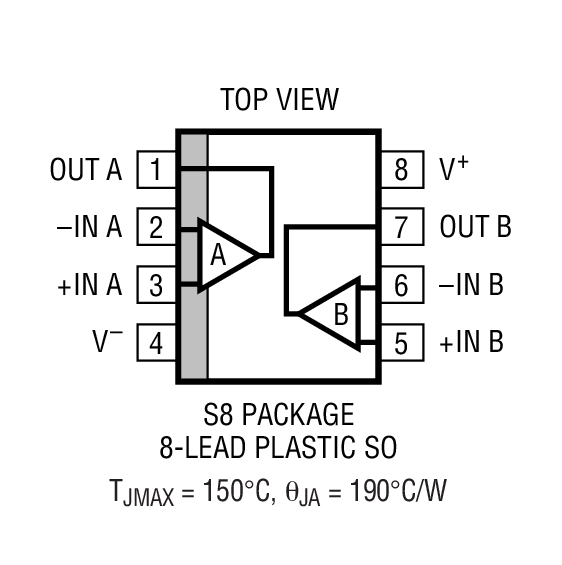

LT6013封装图解四
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT6013介绍

LT6013 - LT6013是Single/Dual 145μA, 9.5nV/rtHz, AV >=5, Rail-to-Rail Output Precision Op Amps

LT6013是LINEAR凌力尔特公司的一款低功率放大器产品，LT6013是LT6013是Single/Dual 145μA, 9.5nV/rtHz, AV >=5, Rail-to-Rail Output Precision Op Amps，本站介绍了LT6013的封装应用图解、特点和优点、功能等，并给出了与LT6013相关的LINEAR元器件型号供参考。

LT6013 - LT6013是Single/Dual 145μA, 9.5nV/rtHz, AV >=5, Rail-to-Rail Output Precision Op Amps - 低功率放大器 - 信号调理 - 凌力尔特

LT6013 - Single/Dual 145μA, 9.5nV/rtHz, AV >=5, Rail-to-Rail Output Precision Op Amps

LT6013 - Single/Dual 145μA, 9.5nV/rtHz, AV >=5, Rail-to-Rail Output Precision Op Amps - Linear Technology（凌力尔特）

功能描述

The LT6013 and LT6014 op amps combine low noise and high precision input performance with low power consumption and rail-to-rail output swing. The amplifiers are stable in a gain of 5 or more and feature greatly improved CMRR and PSRR versus frequency compared to other precision op amps.

Input offset voltage is factory-trimmed to less than 35μV. The low drift and excellent long-term stability ensure a high accuracy over temperature and time. The 250pA maximum input bias current and 120dB minimum voltage gain further maintain this precision over operating conditions.

The LT6013 and LT6014 operate from any supply voltage from 2.7V to 36V and draw only 145μA of supply current per amplifier on a 5V supply. The output swings to within 40mV of either supply rail, making the amplifiers very useful for low voltage single supply operation.

The amplifiers are fully specified at 5V and ±15V supplies and from -40°C to 85°C. The single LT6013 and dual LT6014 are both available in SO-8 and space saving 3mm × 3mm DFN packages. For unity gain stable versions, refer to the LT6010 and LT6011 data sheets.

特点
  • 35μV Maximum Offset Voltage (LT6013A)
  • Low 1/f Noise: 200nVP-P (0.1Hz to 10Hz)
    • ?40nVRMS (0.1Hz to 10Hz)
  • Low White Noise: 9.5nV/rtHz (1kHz)
  • Rail-to-Rail Output Swing
  • 145μA Supply Current per Amplifier
  • 250pA Maximum Input Bias Current (LT6013A)
  • AV >=5 Stable; Up to 500pF CLOAD
  • 0.2V/μs Slew Rate
  • 1.4MHz Gain Bandwidth Product
  • 120dB Minimum Voltage Gain, VS = ±15V
  • 0.8μV/°C Maximum VOS Drift
  • 2.7V to ±18V Supply Voltage Operation
  • Operating Temperature Range: -40°C to 85°C
  • Available in SO-8 and Space Saving 3mm × 3mm DFN Packages
    • 应用
  • Thermocouple Amplifiers
  • Precision Photodiode Amplifiers
  • Instrumentation Amplifiers
  • Battery-Powered Precision Systems
  • Low-Voltage Precision Systems
  • Micro-Power Sensor Interface
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT6013ACDD 3x3 DFN-8 C $2.20 $1.80
    LT6013ACDD#PBF 3x3 DFN-8 C $2.20 $1.80
    LT6013ACDD#TR 3x3 DFN-8 C $1.86
    LT6013ACDD#TRPBF 3x3 DFN-8 C $1.86
    LT6013ACS8 SO-8 C $2.00 $1.65
    LT6013ACS8#PBF SO-8 C $2.00 $1.65
    LT6013ACS8#TR SO-8 C $1.71
    LT6013ACS8#TRPBF SO-8 C $1.71
    LT6013AIDD 3x3 DFN-8 I $2.65 $2.20
    LT6013AIDD#PBF 3x3 DFN-8 I $2.65 $2.20
    LT6013AIDD#TR 3x3 DFN-8 I $2.26
    LT6013AIDD#TRPBF 3x3 DFN-8 I $2.26
    LT6013AIS8 SO-8 I $2.40 $1.95
    LT6013AIS8#PBF SO-8 I $2.40 $1.95
    LT6013AIS8#TR SO-8 I $2.01
    LT6013AIS8#TRPBF SO-8 I $2.01
    LT6013CDD 3x3 DFN-8 C $1.65 $1.30
    LT6013CDD#PBF 3x3 DFN-8 C $1.65 $1.30
    LT6013CDD#TR 3x3 DFN-8 C $1.36
    LT6013CDD#TRPBF 3x3 DFN-8 C $1.36
    LT6013CS8 SO-8 C $1.45 $1.10
    LT6013CS8#PBF SO-8 C $1.45 $1.10
    LT6013CS8#TR SO-8 C $1.16
    LT6013CS8#TRPBF SO-8 C $1.16
    LT6013IDD 3x3 DFN-8 I $1.95 $1.60
    LT6013IDD#PBF 3x3 DFN-8 I $1.95 $1.60
    LT6013IDD#TR 3x3 DFN-8 I $1.66
    LT6013IDD#TRPBF 3x3 DFN-8 I $1.66
    LT6013IS8 SO-8 I $1.70 $1.35
    LT6013IS8#PBF SO-8 I $1.70 $1.35
    LT6013IS8#TR SO-8 I $1.41
    LT6013IS8#TRPBF SO-8 I $1.41
