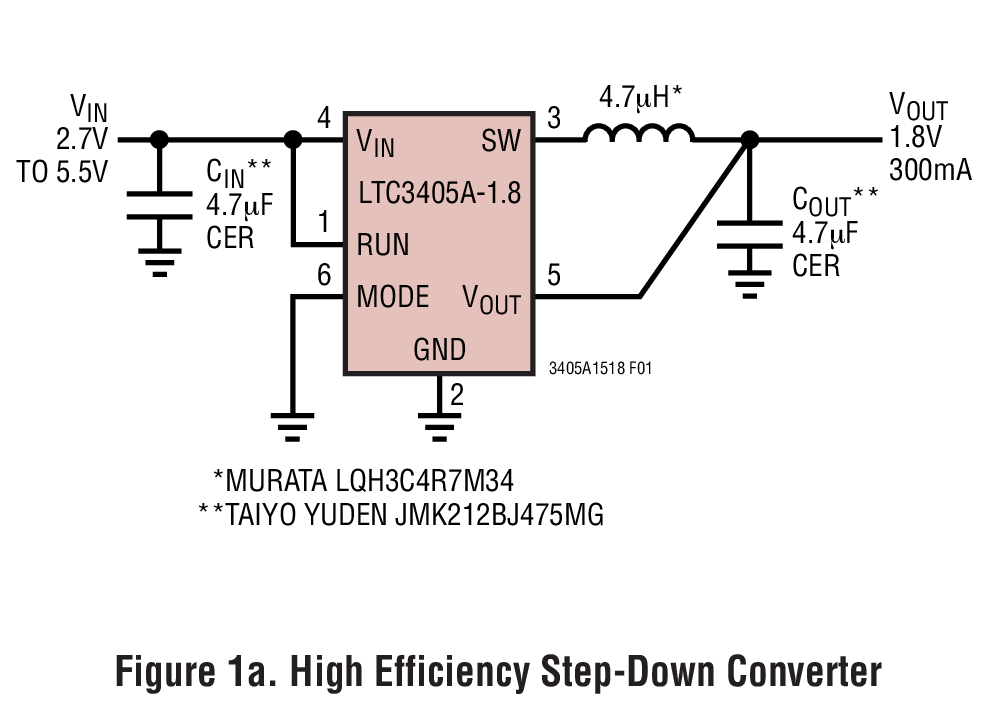

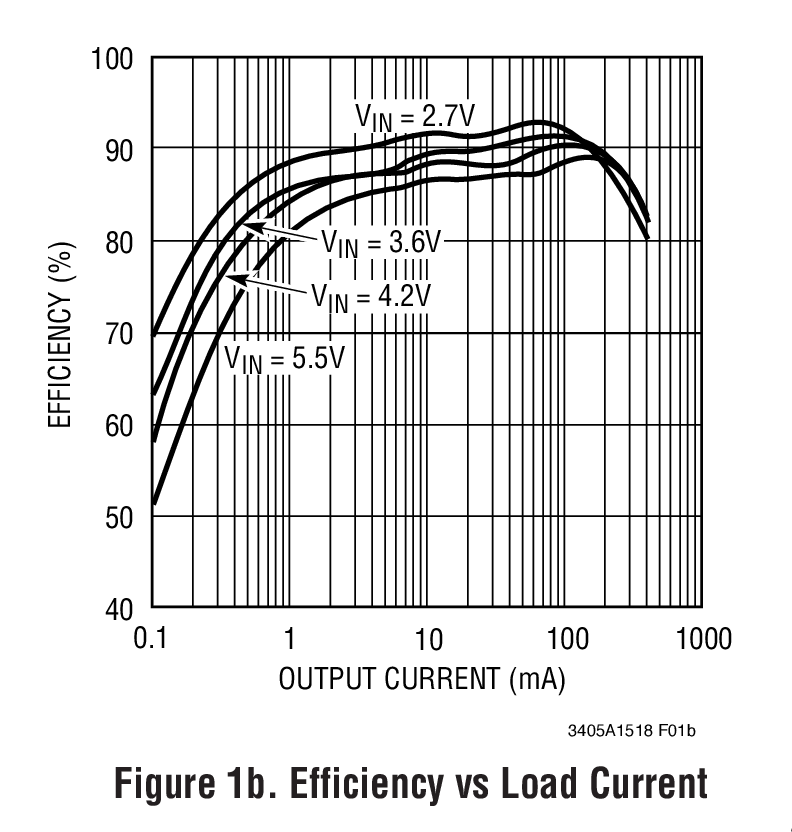

LTC3405A-1.5 - 典型应用图例：

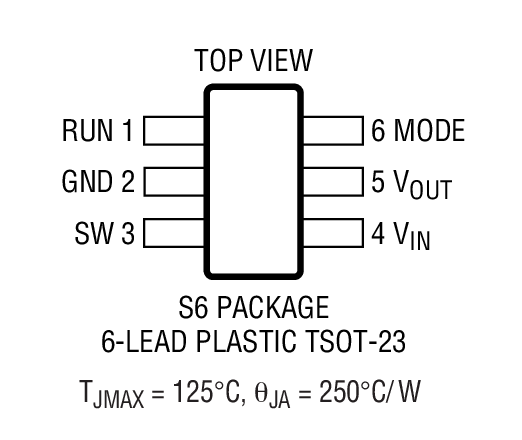

LTC3405A-1.5 - 封装图解：

LTC3405A-1.5 - LTC3405A-1.5是1.5V, 1.8V, 1.5MHz, 300mA Synchronous Step-Down Regulators in ThinSOT

LTC3405A-1.5是Linear公司的一款微功率降压产品，LTC3405A-1.5是1.5V, 1.8V, 1.5MHz, 300mA Synchronous Step-Down Regulators in ThinSOT，本站介绍了LTC3405A-1.5的封装应用图解、特点和优点、功能等，并给出了与LTC3405A-1.5相关的凌力尔特元器件型号供参考。

LTC3405A-1.5 - 1.5V, 1.8V, 1.5MHz, 300mA Synchronous Step-Down Regulators in ThinSOT

LTC3405A-1.5 - 1.5V, 1.8V, 1.5MHz, 300mA Synchronous Step-Down Regulators in ThinSOT - Linear Technology（凌力尔特）

功能描述

The LTC®3405A-1.5/LTC3405A-1.8 are high efficiencymonolithic synchronous buck regulators using a constantfrequency, current mode architecture. Supply currentduring operation is only 20μA and drops to <1µA inshutdown. The 2.5V to 5.5V input voltage range makes theLTC3405A-1.5/LTC3405A-1.8 ideally suited for singleLi-Ion battery-powered applications. 100% duty cycleprovides low dropout operation, extending battery life inportable systems.

Switching frequency is internally set at 1.5MHz, allowingthe use of small surface mount inductors and capacitors.

The LTC3405A-1.5/LTC3405A-1.8 are specifically designedto work well with ceramic output capacitors, achievingvery low output voltage ripple and a small PCB footprint.

The internal synchronous switch increases efficiency andeliminates the need for an external Schottky diode. TheLTC3405A-1.5/LTC3405A-1.8 are available in a low profile(1mm) ThinSOT package.

For adjustable output voltage, refer to the LTC3405A datasheet.

Protected by U.S. Patents, including 6580258, 5481178.

特点

High Efficiency: Up to 93%

Very Low Quiescent Current: Only 20µA During Operation

300mA Output Current at VIN = 3V

2.5V to 5.5V Input Voltage Range

1.5MHz Constant Frequency Operation

No Schottky Diode Required

Low Dropout Operation: 100% Duty Cycle

Stable with Ceramic Capacitors

Shutdown Mode Draws <1µA Supply Current

?3% Output Voltage Accuracy

Current Mode Operation for Excellent Line and Load Transient Response

Overtemperature Protected

Low Profile (1mm) ThinSOT™ Package

应用

Cellular Telephones

Personal Information Appliances

Wireless and DSL Modems

Digital Still Cameras

MP3 Players

Portable Instruments

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC3405AES6-1.5	SOT-23	E	$2.37
LTC3405AES6-1.5#PBF	SOT-23	E	$2.37
LTC3405AES6-1.5#TR	SOT-23	E	$2.37	$1.67
LTC3405AES6-1.5#TRM	SOT-23	E	$2.37	$1.69
LTC3405AES6-1.5#TRMPBF	SOT-23	E	$2.37	$1.69
LTC3405AES6-1.5#TRPBF	SOT-23	E	$2.37	$1.67
