LT1024 - LT1024是Dual, Matched Picoampere, Microvolt Input, Low Noise Op Amp

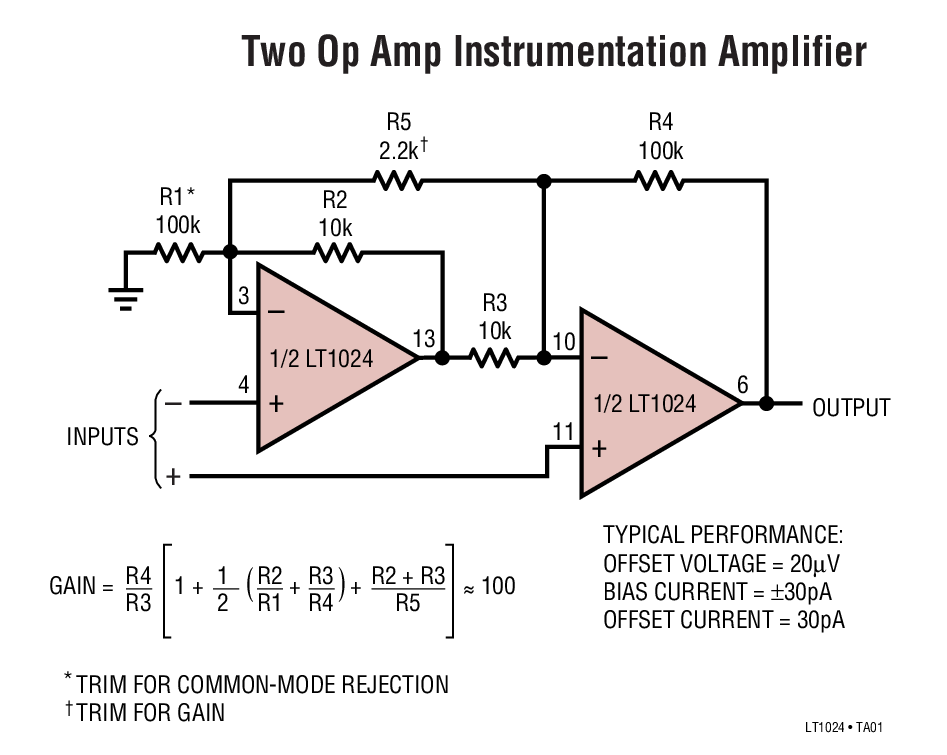

LT1024是LINEAR凌力尔特公司的一款精准放大器产品，LT1024是LT1024是Dual, Matched Picoampere, Microvolt Input, Low Noise Op Amp，本站介绍了LT1024的封装应用图解、特点和优点、功能等，并给出了与LT1024相关的LINEAR元器件型号供参考。

LT1024 - LT1024是Dual, Matched Picoampere, Microvolt Input, Low Noise Op Amp - 精准放大器 - 信号调理 - 凌力尔特

LT1024 - Dual, Matched Picoampere, Microvolt Input, Low Noise Op Amp

LT1024 - Dual, Matched Picoampere, Microvolt Input, Low Noise Op Amp - Linear Technology（凌力尔特）

功能描述

The LT?1024 dual, matched internally compensated universal precision operational amplifier can be used inpractically all precision applications requiring multiple op amps. The LT1024 combines picoampere bias currents(which are maintained over the full ?55°C to 125°C temperature range), microvolt offset voltage(and low drift with time and temperature), low voltage and current noise and low power dissipation. Extremely high common mode and power supply rejection ratios, practically immeasurable warm-up drift, and the ability to deliver 5mA load current with a voltage gain of a million, round out the LT1024μs superb precision specifications.

Tight matching is guaranteed on offset voltage, noninverting bias currents and common mode and power supply rejections.

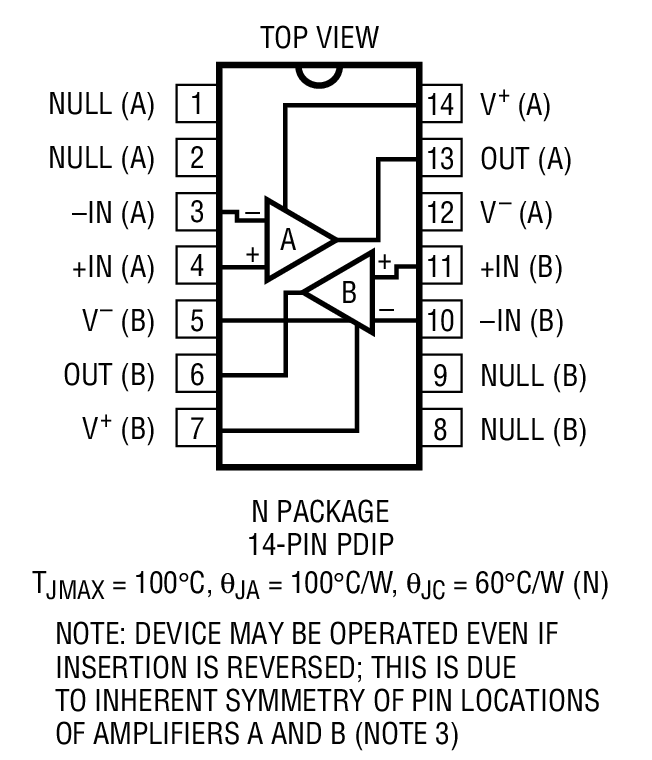

The all-around excellence of the LT1024 eliminates the necessity of the time-consuming error analysis procedure of precision system design in many dual applications; the LT1024 can be stocked as the universal dual op amp in then 14-pin DIP configuration.

For a single op amp with similar specifications, see the LT1012 data sheet; for a single supply dual precision op amp in the 8-pin configuration, see the LT1013 datasheet.

特点

Guaranteed Offset Voltage: 50μV Max.

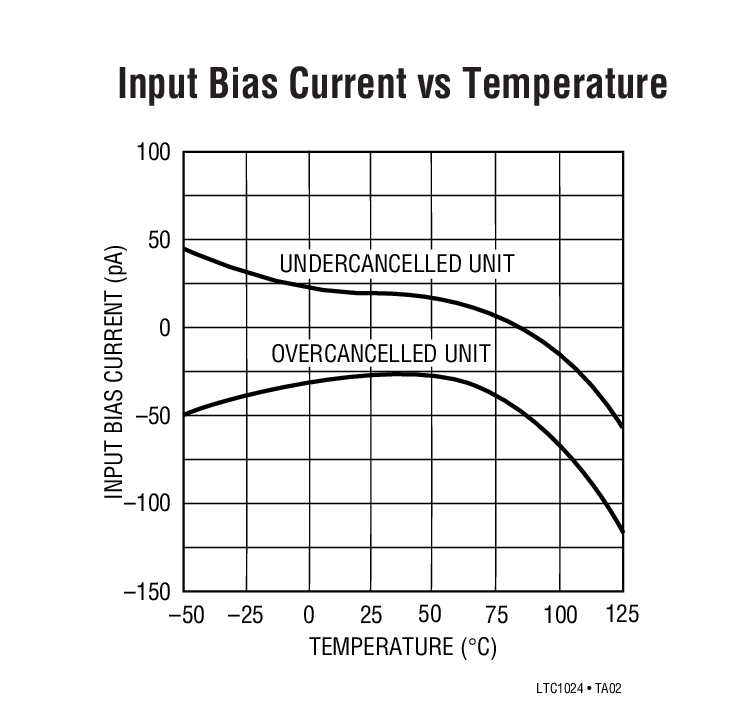

Guaranteed Bias Current:

25°C: 120pA Max.

-55°C to 125°C 700pA Max.

Guaranteed Drift 1.5μV/°C Max.

Low Noise, 0.1Hz to 10Hz 0.5µVp-p

Guaranteed Supply Current: 600μA Max.

Guaranteed CMRR: 112dB Min.

Guaranteed PSRR: 112dB Min.

Guaranteed Voltage Gain with 5mA Load Current

Guaranteed Matching Characteristics
