LTC1385 - LTC1385是3.3V Low Power EIA/TIA-562 Transceiver

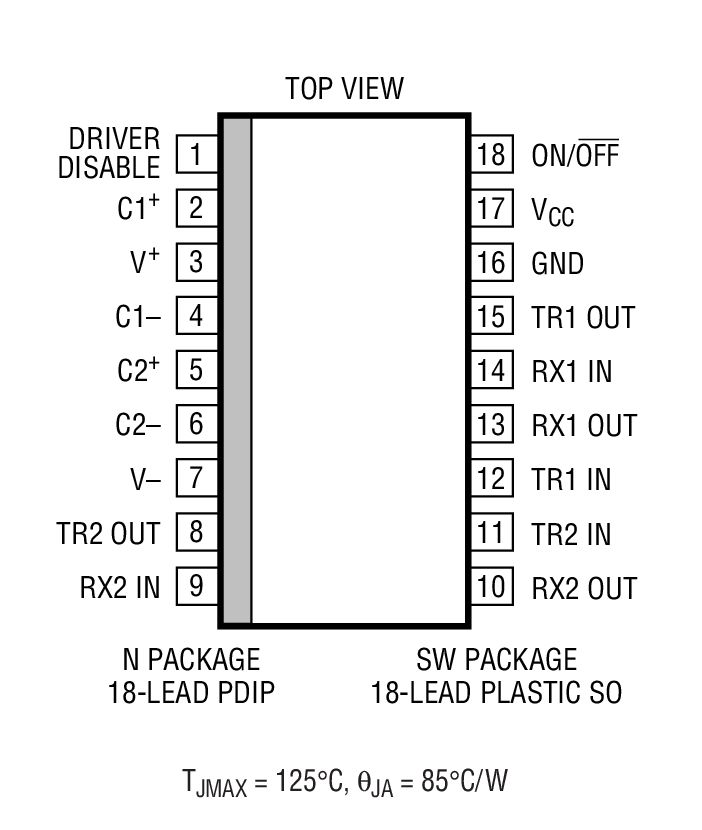

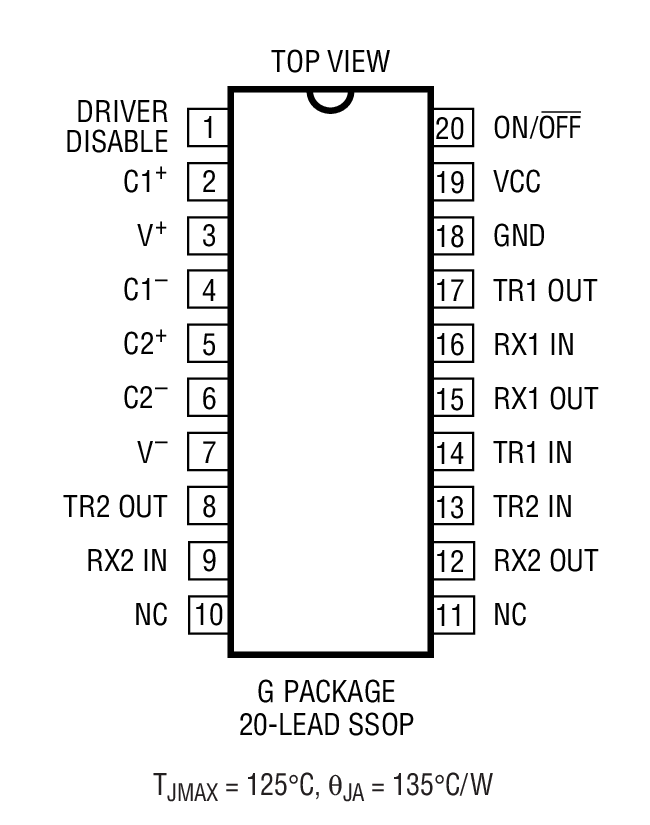

LTC1385是LINEAR凌力尔特公司的一款RS232 / RS562 收发器产品，LTC1385是LTC1385是3.3V Low Power EIA/TIA-562 Transceiver，本站介绍了LTC1385的封装应用图解、特点和优点、功能等，并给出了与LTC1385相关的LINEAR元器件型号供参考。

LTC1385 - LTC1385是3.3V Low Power EIA/TIA-562 Transceiver - RS232 / RS562 收发器 - 接口器件 - 凌力尔特

LTC1385 - 3.3V Low Power EIA/TIA-562 Transceiver

LTC1385 - 3.3V Low Power EIA/TIA-562 Transceiver - Linear Technology（凌力尔特）

功能描述

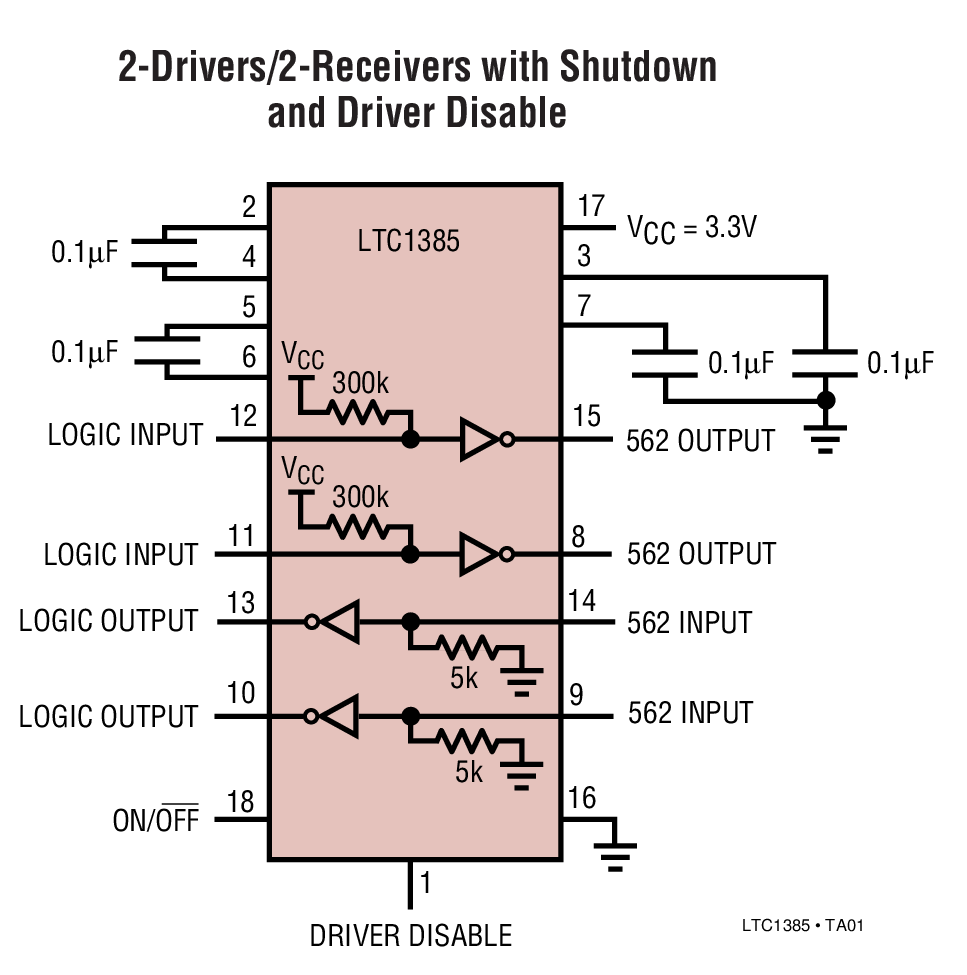

The LTC®1385 is an ultra-low power, 2-driver/2-receiverEIA / TIA-562 transceiver which operates from a single3.3V supply. The charge pump requires only four spacesaving0.1µF capacitors.

The transceiver operates in one of three modes: Normal,Driver Disable or Shutdown. In the Normal mode, ICC isonly 200µA in the unloaded condition. In the Driver Disablemode, the charge pump is turned off, the driver outputsare forced into three-state, both receivers are kept active,and ICC drops to 35µA. In the Shutdown mode, everythingis turned off and ICC drops to 0.2µA.

The LTC1385 is fully compliant with all data rate andovervoltage EIA/ TIA-562 specifications. The transceivercan operate up to 120kbaud with a 1000pF, 3k Ohm load.Both driver outputs and receiver inputs can be forced to±25V without damage, and can survive multiple ±10kVESD strikes.

特点

Operates from a Single 3.3V Supply

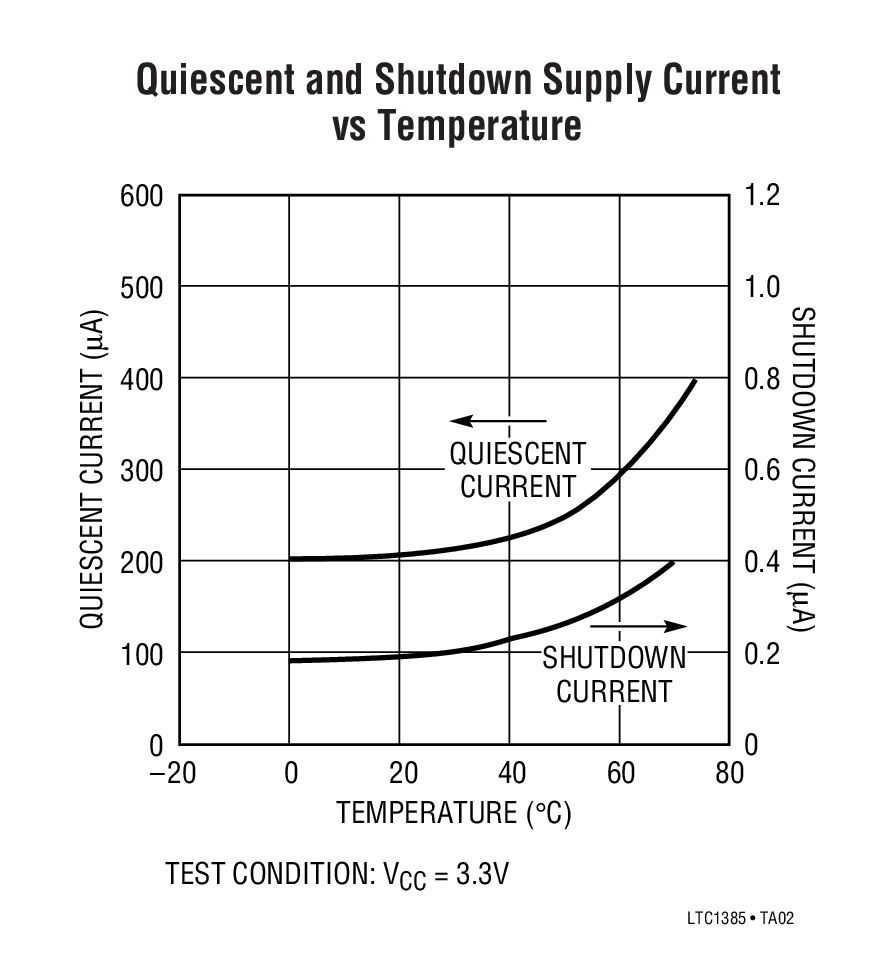

Low Supply Current: ICC = 200µA

ICC = 35µA in Driver Disable Mode

ICC = 0.2µA in Shutdown Mode

ESD Protection Over ±10kV

Uses Small Capacitors: 0.1µF

Operates to 120kBaud

Output Overvoltage Does Not Force Current Back into Supplies

EIA/TIA-562 I/O Lines Can Be Forced to ±25V Without Damage

Pin Compatible with LT 1180A

应用

Notebook Computers

Palmtop Computers

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1385CG	SSOP-20	C	$4.85	$3.80
LTC1385CG#PBF	SSOP-20	C	$4.85	$3.80
LTC1385CG#TR	SSOP-20	C		$3.90
LTC1385CG#TRPBF	SSOP-20	C		$3.90
LTC1385CN	N-18	C	$4.35	$3.40
LTC1385CN#PBF	N-18	C	$4.35	$3.40
LTC1385CSW	SW-18	C	$4.35	$3.40
LTC1385CSW#PBF	SW-18	C	$4.35	$3.40
LTC1385CSW#TR	SW-18	C		$3.50
LTC1385CSW#TRPBF	SW-18	C		$3.50
LTC1385IG	SSOP-20	I	$5.60	$4.35
LTC1385IG#PBF	SSOP-20	I	$5.60	$4.35
LTC1385IG#TR	SSOP-20	I		$4.45
LTC1385IG#TRPBF	SSOP-20	I		$4.45
LTC1385IN	N-18	I	$5.00	$3.90
LTC1385IN#PBF	N-18	I	$5.00	$3.90
LTC1385ISW	SW-18	I	$5.00	$3.90
LTC1385ISW#PBF	SW-18	I	$5.00	$3.90
LTC1385ISW#TR	SW-18	I		$4.00
LTC1385ISW#TRPBF	SW-18	I		$4.00
