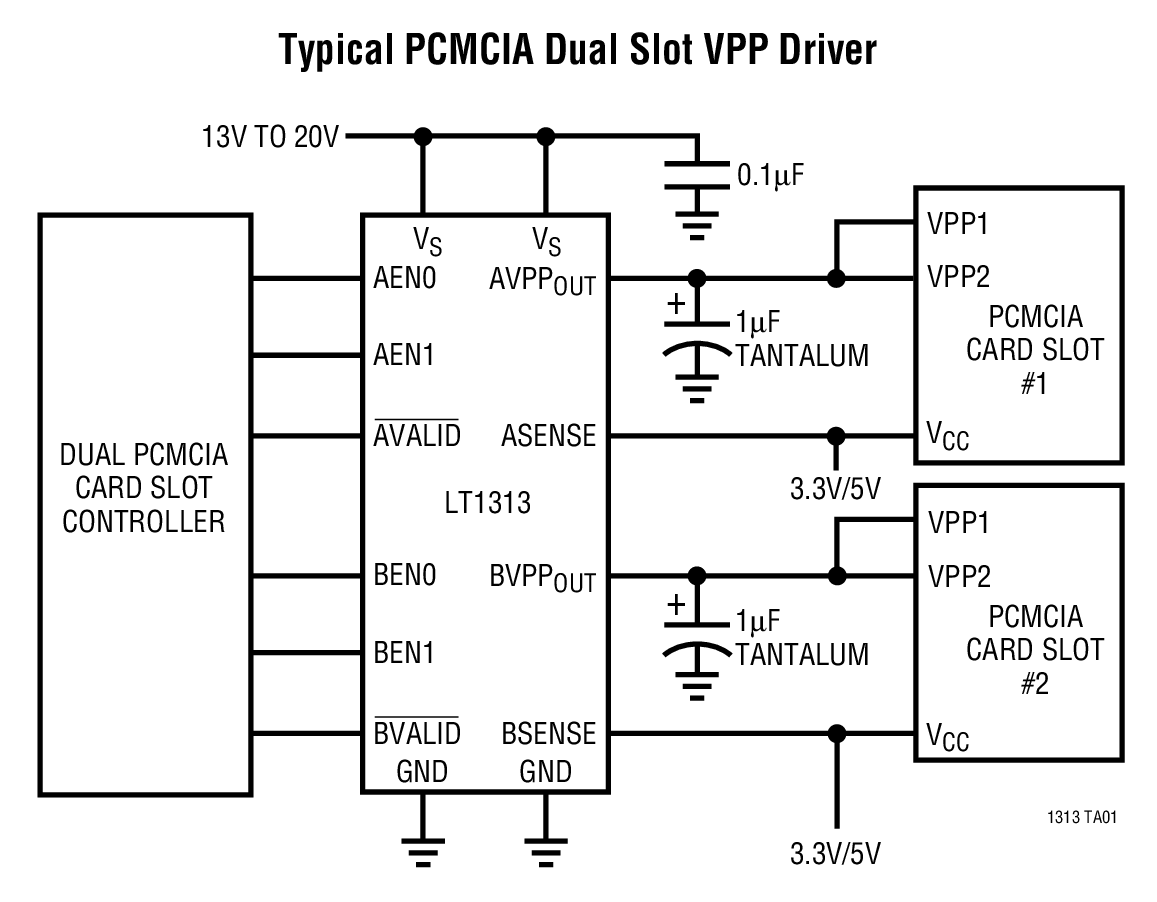

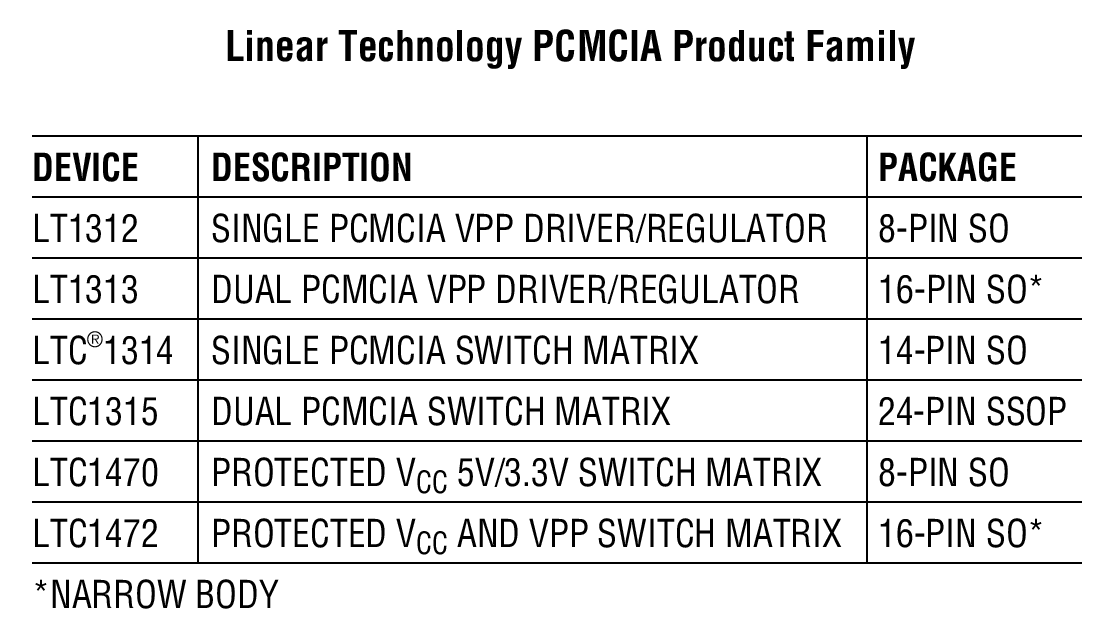

LT1313 - 典型应用图例：

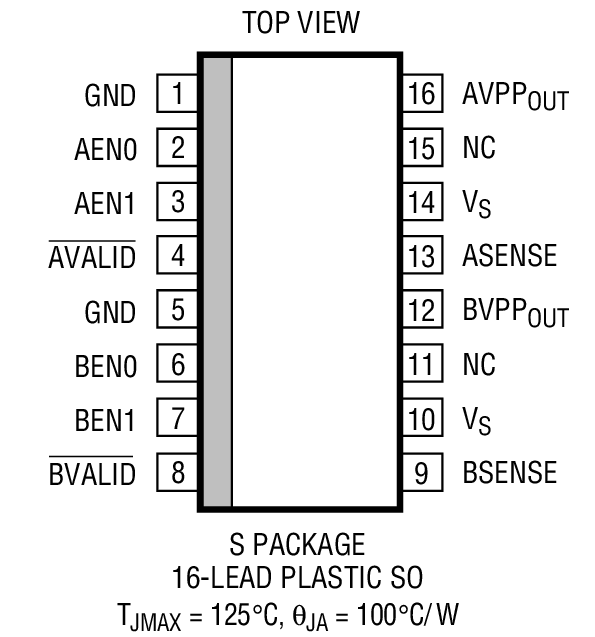

LT1313 - 封装图解：

LT1313 - LT1313是Dual PCMCIA VPP Driver/Regulator

LT1313是Linear公司的一款PCMCIA 开关和驱动器产品，LT1313是Dual PCMCIA VPP Driver/Regulator，本站介绍了LT1313的封装应用图解、特点和优点、功能等，并给出了与LT1313相关的凌力尔特元器件型号供参考。

LT1313 - Dual PCMCIA VPP Driver/Regulator

LT1313 - Dual PCMCIA VPP Driver/Regulator - Linear Technology（凌力尔特）

功能描述

The LT®1313 is a member of Linear Technology Corporation’s PCMCIA driver/regulator family. It provides 0V, 3.3V, 5V, 12V and Hi-Z regulated power to the VPP pins of two PCMCIA card slots from a single unregulated 13V to 20V supply. When used in conjunction with a PC Card Interface Controller, the LT1313 forms a complete minimum component-count interface for palmtop, pen-based and notebook computers. The two VPP output voltages are independently selected by four logic compatible digital inputs which interface directly with industry standard PC Card Interface Controllers. Automatic 3.3V to 5V switching is provided by two independent comparators which continuously monitor each PC card Vcc supply voltage and automatically adjust the VPP output to match the associated Vcc pin voltage when the VPP = Vcc mode is selected. Two open-collector VPP VALID outputs are provided to indicate when the VPP outputs are in regulation at 12V.The LT1313 is available in 16-pin SO packaging.

特点

Digital Selection of 0V, VCC, 12V or Hi-Z

Output Current Capability: 120mA

Internal Current Limiting and Thermal Shutdown

Automatic Switching from 3.3V to 5V

Powered from Unregulated 13V to 20V Supply

Logic Compatible with Standard PCMCIA Controllers

Output Capacitors: 1µF

Quiescent Current in Hi-Z or 0V Mode: 60µA

Independent VPP Valid Status Feedback Signals

应用

Notebook Computers
