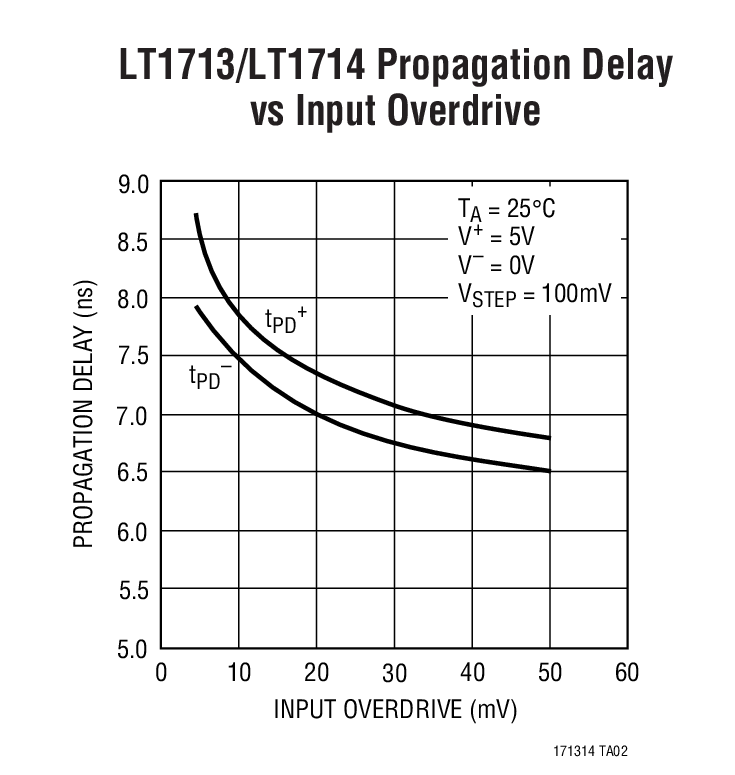

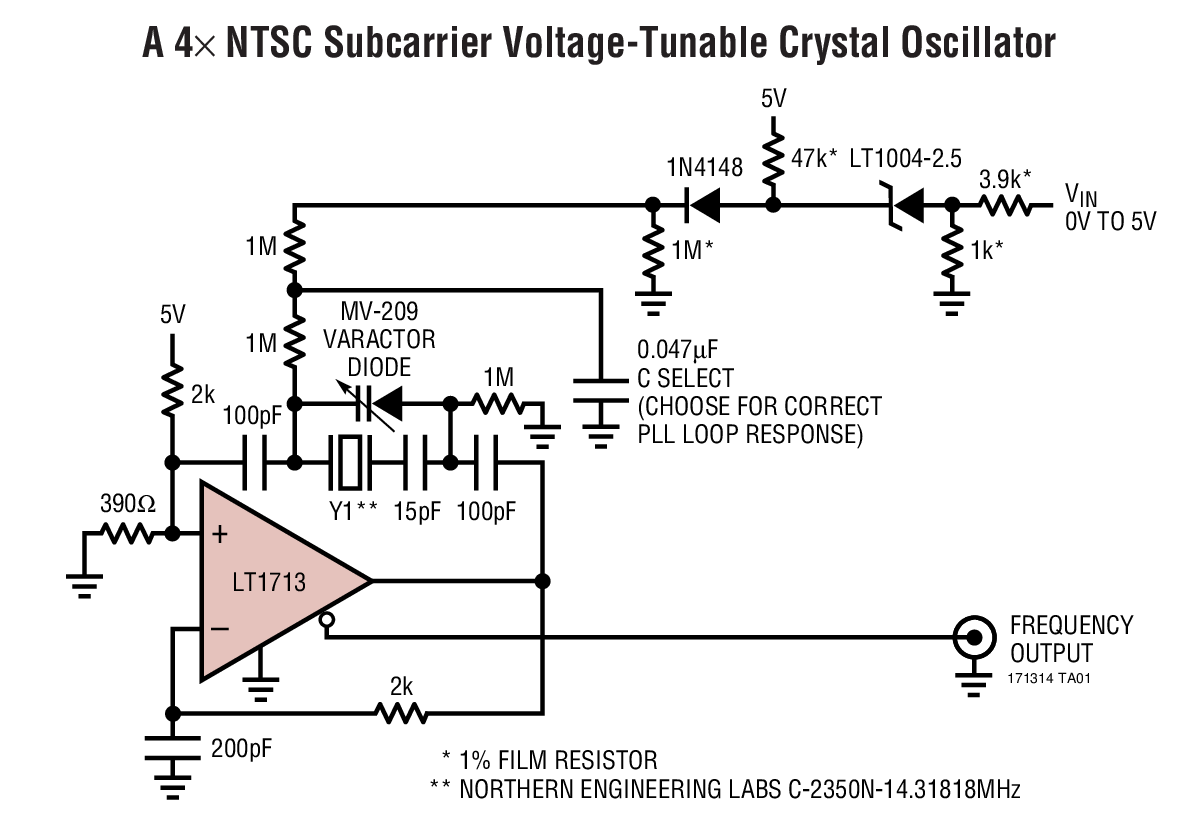

LT1713 - 典型应用图例：
LT1713典型应用图例一
LT1713典型应用图例二

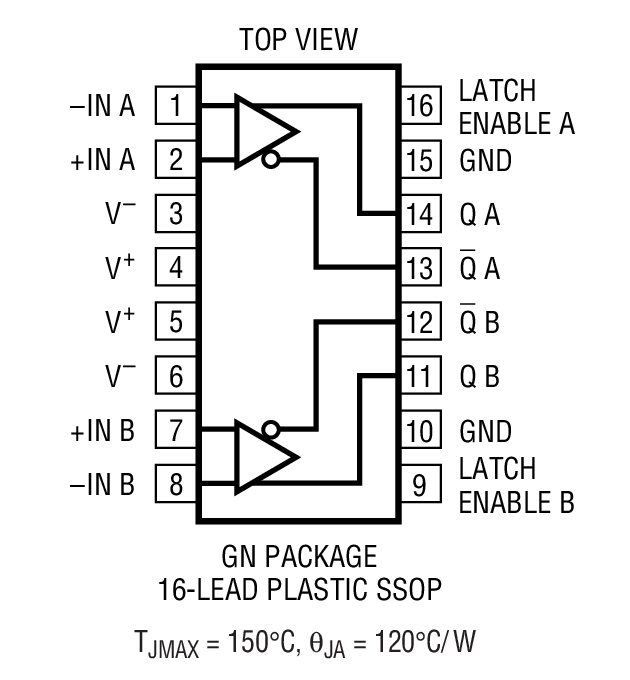

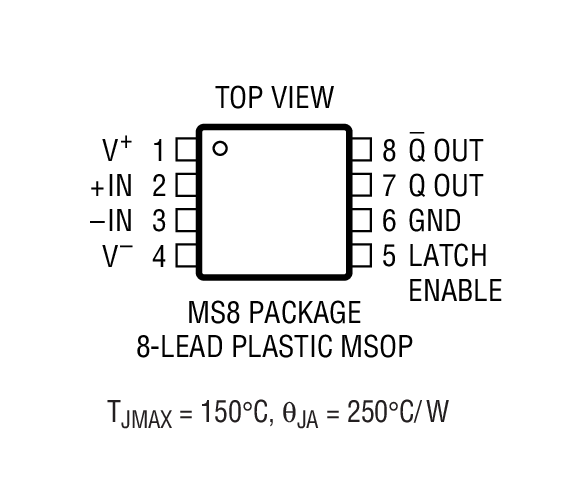

LT1713 - 封装图解：
LT1713封装图解一
LT1713封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1713介绍

LT1713 - LT1713是Single/Dual, 7ns, Low Power, 3V/5V/±5V Rail-to-Rail Comparators

LT1713是LINEAR凌力尔特公司的一款高速比较器产品，LT1713是LT1713是Single/Dual, 7ns, Low Power, 3V/5V/±5V Rail-to-Rail Comparators，本站介绍了LT1713的封装应用图解、特点和优点、功能等，并给出了与LT1713相关的LINEAR元器件型号供参考。

LT1713 - LT1713是Single/Dual, 7ns, Low Power, 3V/5V/±5V Rail-to-Rail Comparators - 高速比较器 - 信号调理 - 凌力尔特

LT1713 - Single/Dual, 7ns, Low Power, 3V/5V/±5V Rail-to-Rail Comparators

LT1713 - Single/Dual, 7ns, Low Power, 3V/5V/±5V Rail-to-Rail Comparators - Linear Technology（凌力尔特）

功能描述
The LT?1713/LT1714 are UltraFastTM 7ns, single/dualcomparators featuring rail-to-rail inputs, rail-to-railcomplementary outputs and an output latch. Optimizedfor 3V and 5V power supplies, they operate over a singlesupply voltage range from 2.4V to 12V or from ?2.4V to?6V dual supplies.

The LT1713/LT1714 are designed for ease of use in avariety of systems. In addition to wide supply voltageflexibility, rail-to-rail input common mode range extends100mV beyond both supply rails and the outputs areprotected against phase reversal for inputs extendingfurther beyond the rails. Also,the rail-to-rail inputs maybetaken to opposite rails with no significant increase in inputcurrent. The rail-to-rail matched complementary outputsinterface directly to TTL or CMOS logic and can sink 10mAto within 0.5V of GND or source 10mA to within 0.7V of V+ .

The LT1713/LT1714 have internal TTL/CMOS compatiblelatches for retaining data at the outputs. Each latch holdsdata as long as its latch pin is held high. Latch pinhysteresis provides protection against slow moving ornoisy latch signals. The LT1713 is available in the 8-leadMSOP package. The LT1714 is available in the 16-leadnarrow SSOP package.

特点
  • Ultrafast: 7ns at 20mV Overdrive8.5ns at 5mV Overdrive
  • Rail-to-Rail Inputs
  • Rail-to-Rail Complementary Outputs(TTL/CMOS Compatible)
  • Specified at 2.7V, 5V and ±5V Supplies
  • Low Power (Per Comparator): 5mA
  • Output Latch
  • Inputs Can Exceed Supplies Without Phase Reversal
  • LT1713: 8-Lead MSOP Package
  • LT1714: 16-Lead Narrow SSOP Package
    • 应用
  • High Speed Automatic Test Equipment
  • Current Sense for Switching Regulators
  • Crystal Oscillator Circuits
  • High Speed Sampling Circuits
  • High Speed A/D Converters
  • Pulse Width Modulators
  • Window Comparators
  • Extended Range V/F Converters
  • Fast Pulse Height/Width Discriminators
  • Line Receivers
  • High Speed Triggers
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1713CMS8 MS-8 C $2.35 $1.95
    LT1713CMS8#PBF MS-8 C $2.35 $1.95
    LT1713CMS8#TR MS-8 C $2.01
    LT1713CMS8#TRPBF MS-8 C $2.01
    LT1713IMS8 MS-8 I $2.55 $2.15
    LT1713IMS8#PBF MS-8 I $2.55 $2.15
    LT1713IMS8#TR MS-8 I $2.21
    LT1713IMS8#TRPBF MS-8 I $2.21
