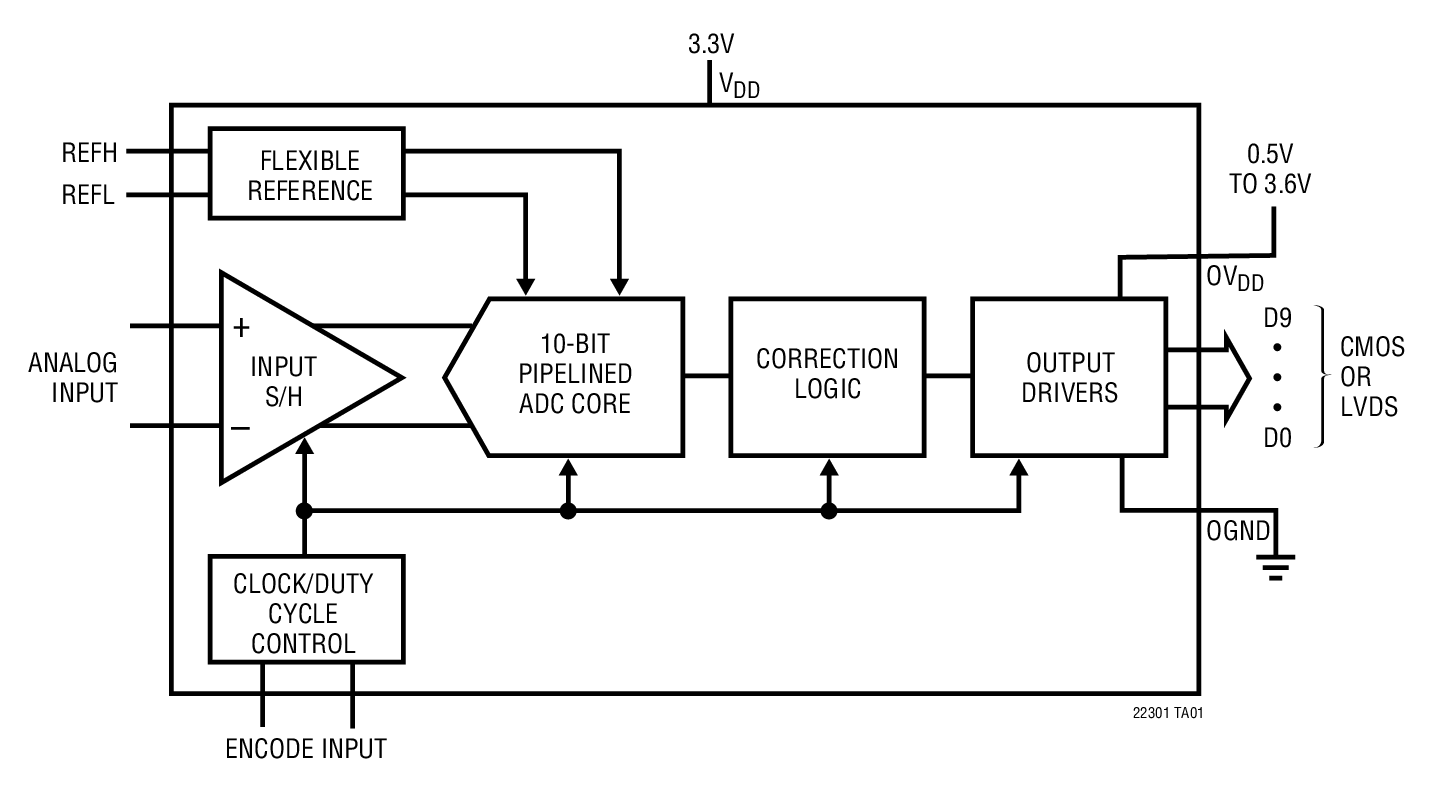

LTC2231典型应用图例一

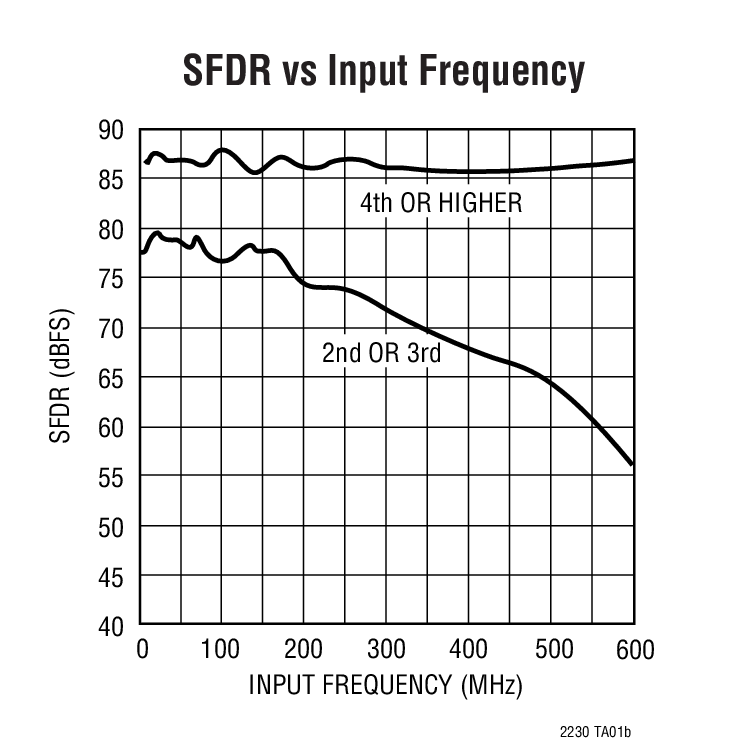

LTC2231典型应用图例二
LTC2231 - 封装图解：

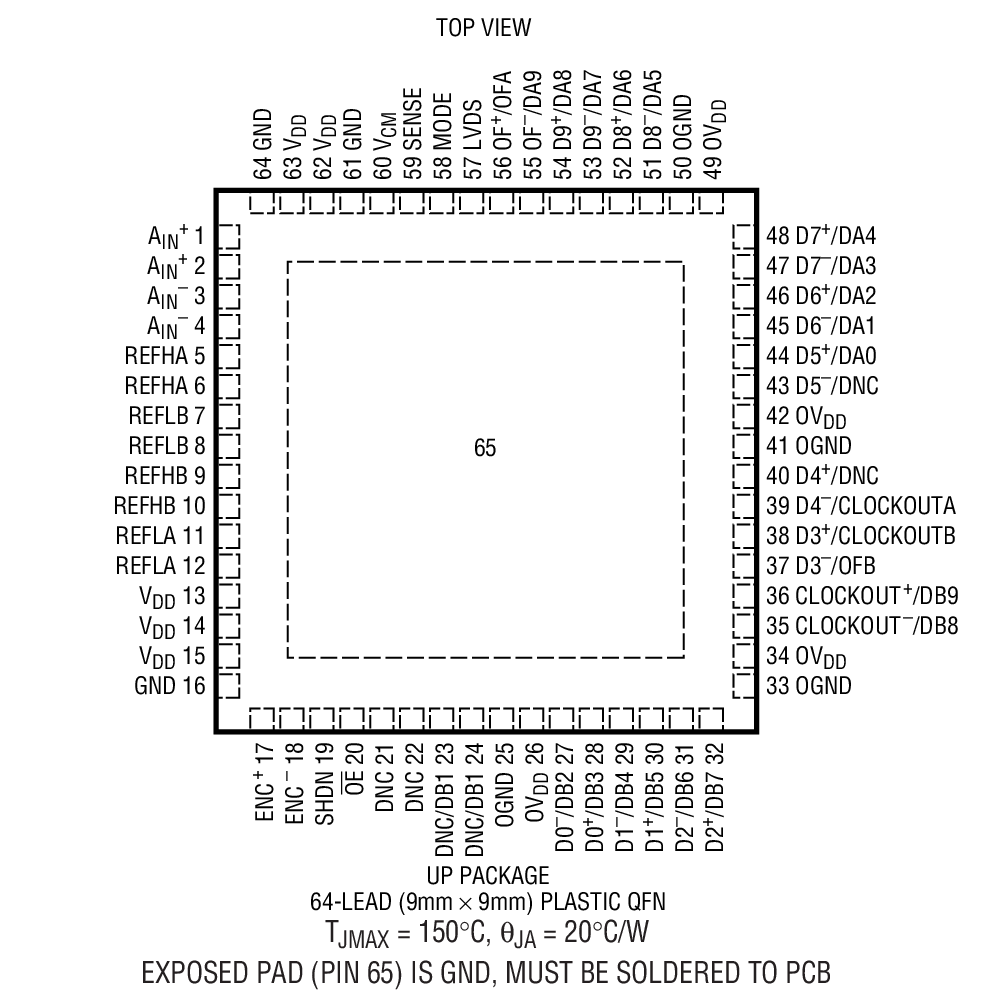

LTC2231封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC2231介绍

LTC2231 - LTC2231是10-Bit, 135Msps ADC

LTC2231是LINEAR凌力尔特公司的一款高速 ADC产品，LTC2231是LTC2231是10-Bit, 135Msps ADC，本站介绍了LTC2231的封装应用图解、特点和优点、功能等，并给出了与LTC2231相关的LINEAR元器件型号供参考。

LTC2231 - LTC2231是10-Bit, 135Msps ADC - 高速 ADC - 数据转换 - 凌力尔特

LTC2231 - 10-Bit, 135Msps ADC

LTC2231 - 10-Bit, 135Msps ADC - Linear Technology（凌力尔特）

功能描述

The LTC2230 and LTC2231 are 170Msps/135Msps, sampling 10-bit A/D converters designed for digitizing high frequency, wide dynamic range signals. The LTC2230/LTC2231 are perfect for demanding communications applications with AC performance that includes 61dB SNR and 75dB spurious free dynamic range for signals up to 200MHz. Ultralow jitter of 0.15psRMS allows undersampling of IF frequencies with excellent noise performance.

DC specs include ±0.2LSB INL (typ), ±0.1LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 0.12LSBRMS.

The digital outputs can be either differential LVDS, or single-ended CMOS. There are three format options for the CMOS outputs: a single bus running at the full data rate or two demultiplexed buses running at half data rate with either interleaved or simultaneous update. A separate output power supply allows the CMOS output swing to range from 0.5V to 3.6V.

The ENC+ and ENC inputs may be driven differentially or single ended with a sine wave, PECL, LVDS, TTL, or CMOS inputs. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.

特点
  • Sample Rate: 170Msps/135 Msps
  • 61dB SNR up to 140MHz Input
  • 75dB SFDR up to 200MHz Input
  • 775MHz Full Power Bandwidth S/H
  • Single 3.3V Supply
  • Low Power Dissipation: 890mW/660mW
  • LVDS, CMOS, or Demultiplexed CMOS Outputs
  • Selectable Input Ranges: ±0.5V or ±1V
  • No Missing Codes
  • Optional Clock Duty Cycle Stabilizer
  • Shutdown and Nap Modes
  • Data Ready Output Clock
  • Pin Compatible Family185Msps: LTC2220-1 (12-Bit)170Msps: LTC2220 (12-Bit), LTC2230 (10-Bit)135Msps: LTC2221 (12-Bit), LTC2231 (10-Bit)
  • 64-Pin 9mm x 9mm QFN Package
    • 应用
  • Wireless and Wired Broadband Communication
  • Cable Head-End Systems
  • Power Amplifier Linearization
  • Communications Test Equipment
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC2231CUP 9x9 QFN-64 C $27.67 $20.00
    LTC2231CUP#PBF 9x9 QFN-64 C $27.67 $20.00
    LTC2231CUP#TR 9x9 QFN-64 C $20.10
    LTC2231CUP#TRPBF 9x9 QFN-64 C $20.10
    LTC2231IUP 9x9 QFN-64 I $33.20 $24.00
    LTC2231IUP#PBF 9x9 QFN-64 I $33.20 $24.00
    LTC2231IUP#TR 9x9 QFN-64 I $24.10
    LTC2231IUP#TRPBF 9x9 QFN-64 I $24.10
