LTC2224 - LTC2224是12-Bit, 135Msps ADC
LTC2224是Linear公司的一款高速 ADC产品，LTC2224是12-Bit, 135Msps ADC，本站介绍了LTC2224的封装应用图解、特点和优点、功能等，并给出了与LTC2224相关的凌力尔特元器件型号供参考。
LTC2224 - 12-Bit, 135Msps ADC
LTC2224 - 12-Bit, 135Msps ADC - Linear Technology（凌力尔特）
功能描述

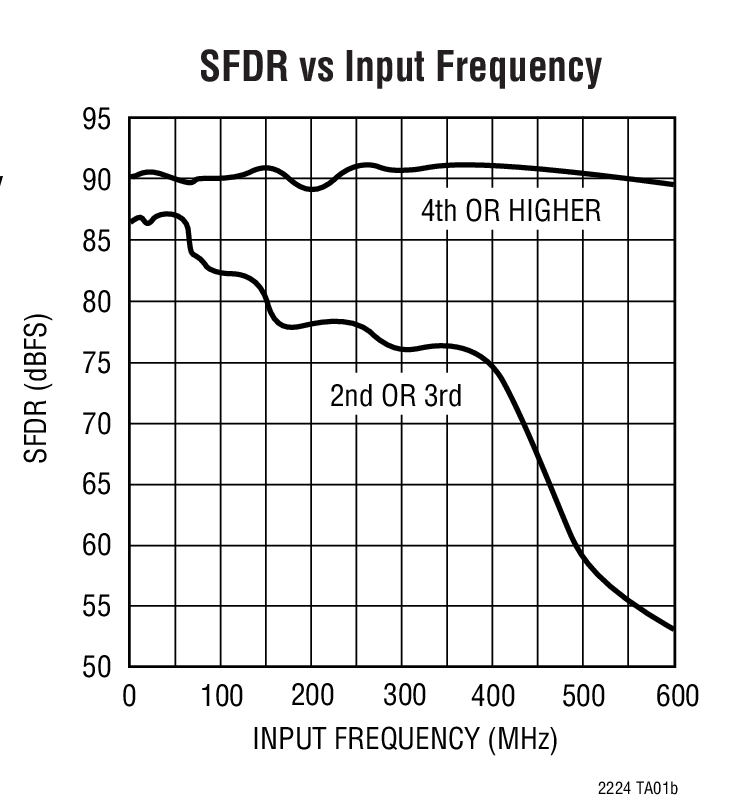

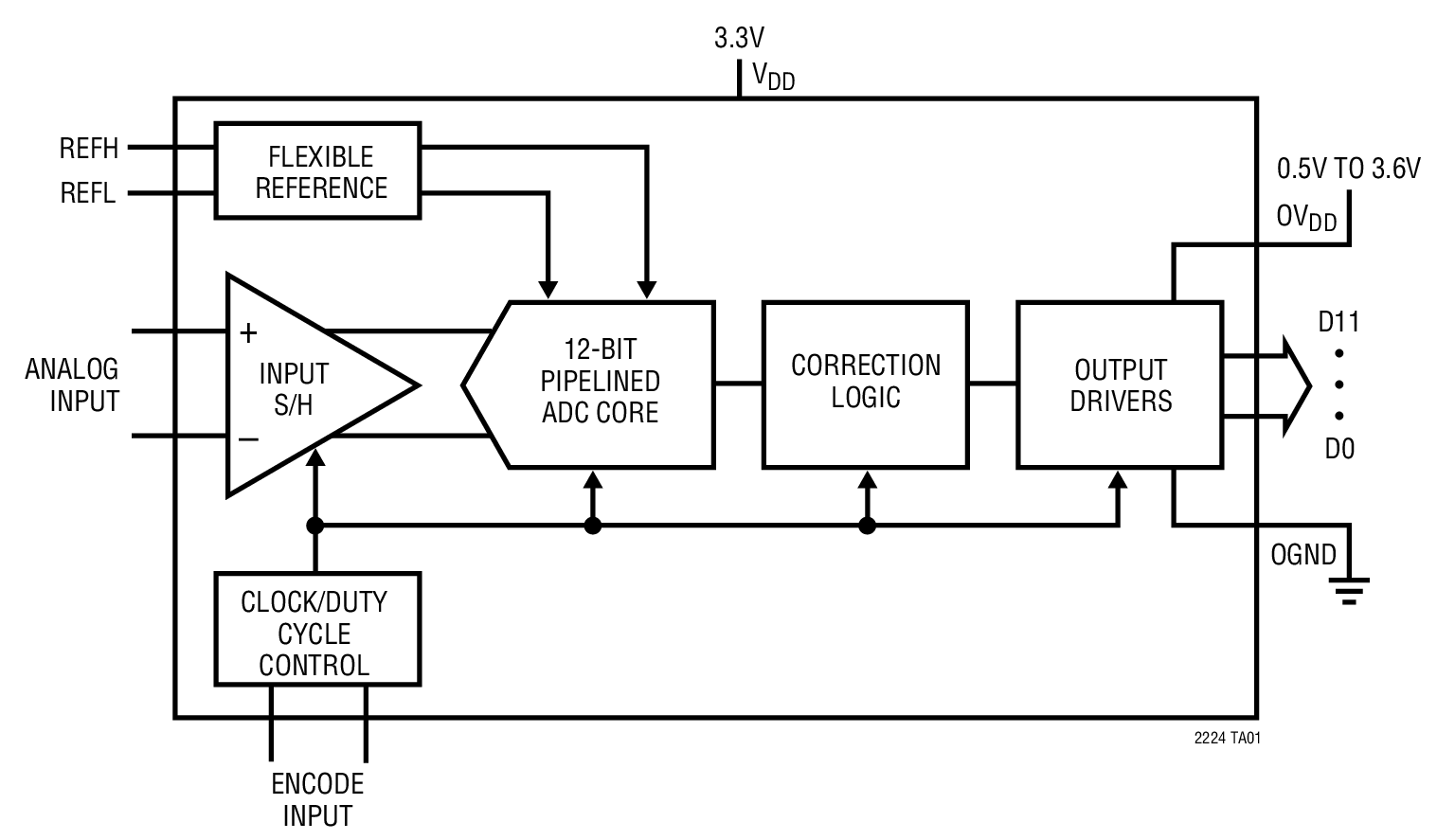

The LTC2224 is a 135Msps, sampling 12-bit A/D converter designed for digitizing high frequency, wide dynamic range signals. The LTC2224 is perfect for demanding communications applications with AC performance that includes 67.3dB SNR and 80dB spurious free dynamic range for signals up to 150MHz. Ultralow jitter of 0.15psRMS allows undersampling of IF frequencies with excellent noise performance.
DC specs include ±0.4LSB INL (typ), ±0.3LSB DNL (typ) and no missing codes over temperature. The transition noise is a low 0.5LSBRMS.
A separate output power supply allows the CMOS output swing to range from 0.5V to 3.6V.
The ENC+ and ENC– inputs may be driven differentially or single ended with a sine wave, PECL, LVDS, TTL, or CMOS inputs. An optional clock duty cycle stabilizer allows high performance at full speed for a wide range of clock duty cycles.
特点

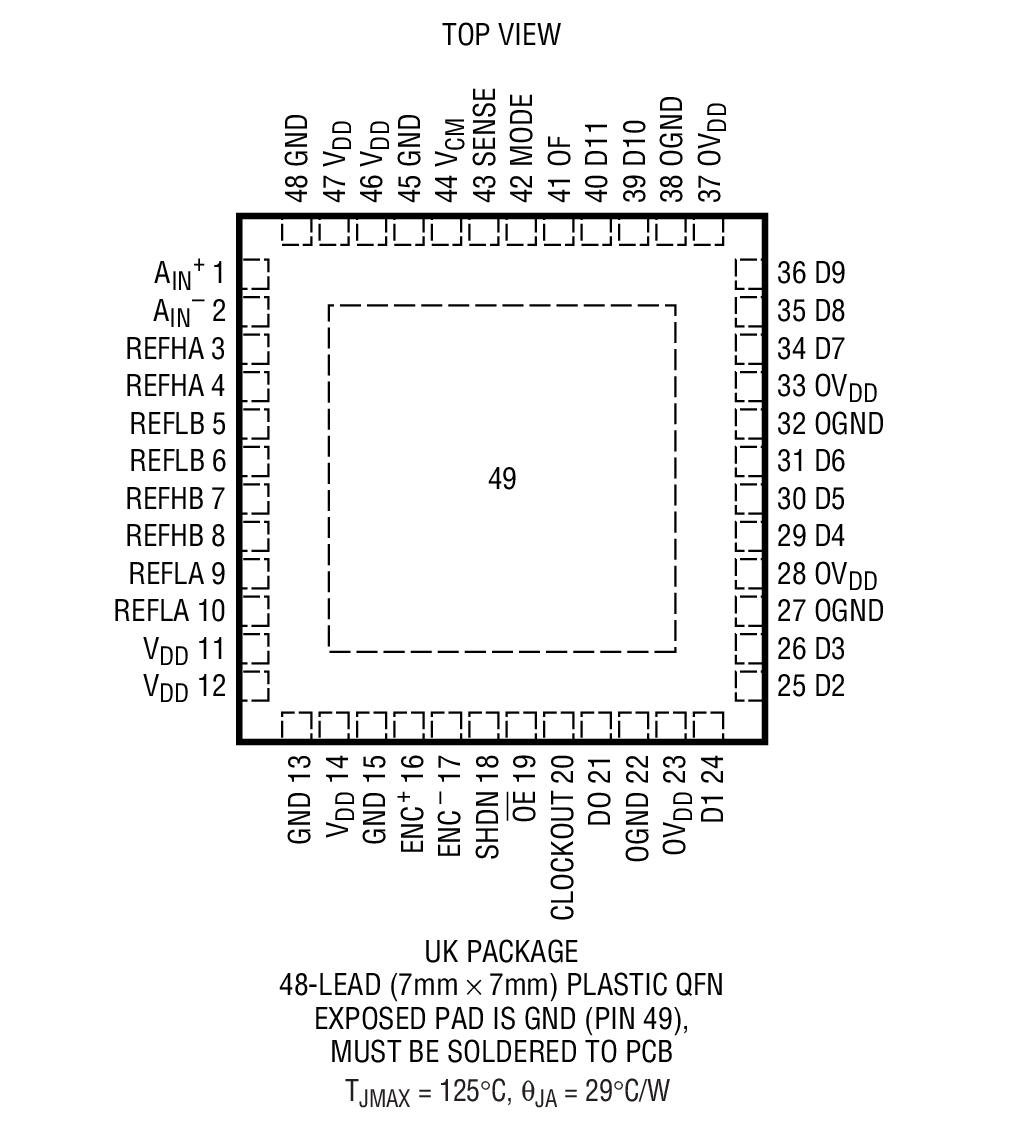

Sample Rate: 135Msps 67.3dB SNR up to 140MHz Input 80dB SFDR up to 150MHz Input 775MHz Full Power Bandwidth S/H Single 3.3V Supply Low Power Dissipation: 630mW CMOS Outputs Selectable Input Ranges: ±0.5V or ±1V No Missing Codes Optional Clock Duty Cycle Stabilizer Shutdown and Nap Modes Data Ready Output Clock Pin Compatible Family135Msps: LTC2224 (12-Bit), LTC2234 (10-Bit)105Msps: LTC2222 (12-Bit), LTC2232 (10-Bit)80Msps: LTC2223 (12-Bit), LTC2233 (10-Bit) 48-Pin 7mm × 7mm QFN Package应用
Wireless and Wired Broadband Communication Cable Head-End Systems Power Amplifier Linearization Communications Test Equipment以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
| LTC2224CUK | 7x7 QFN-48 | C | $46.92 | $33.92 |
| LTC2224CUK#PBF | 7x7 QFN-48 | C | $46.92 | $33.92 |
| LTC2224CUK#TR | 7x7 QFN-48 | C | | $34.02 |
| LTC2224CUK#TRPBF | 7x7 QFN-48 | C | | $34.02 |
| LTC2224IUK | 7x7 QFN-48 | I | $58.65 | $42.40 |
| LTC2224IUK#PBF | 7x7 QFN-48 | I | $58.65 | $42.40 |
| LTC2224IUK#TR | 7x7 QFN-48 | I | | $42.50 |
| LTC2224IUK#TRPBF | 7x7 QFN-48 | I | | $42.50 |
