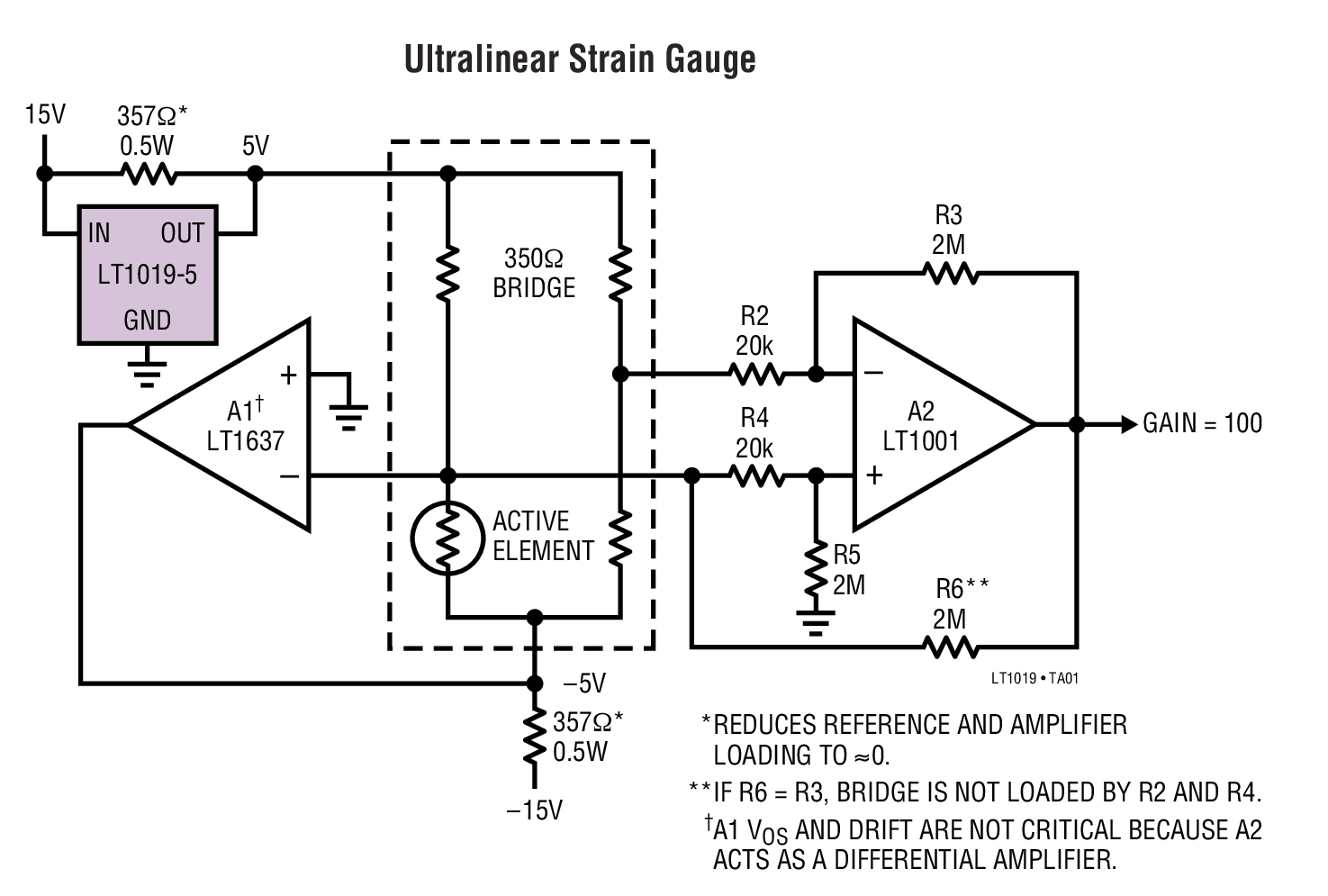

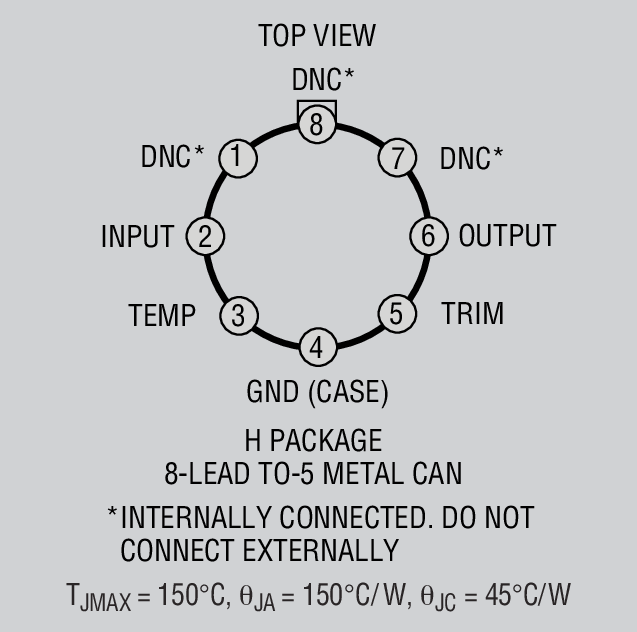

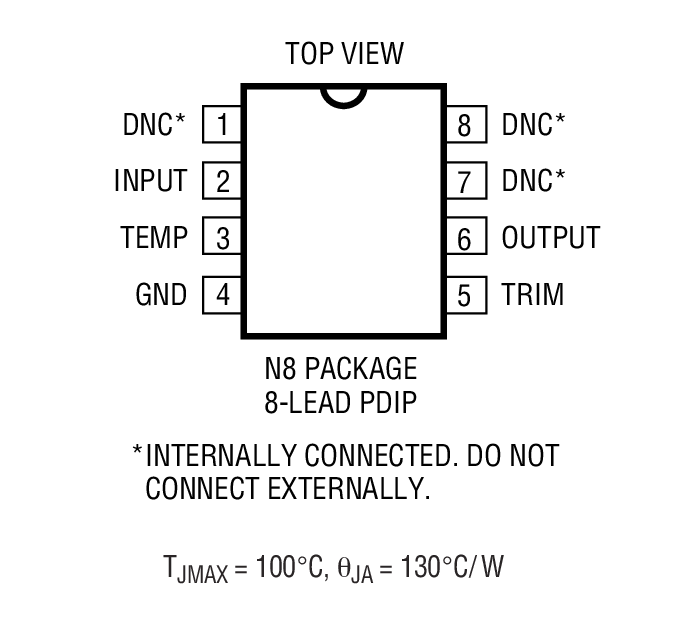

LT1019IN8-5是Linear公司的一款串联基准产品，LT1019IN8-5是Precision Reference，本站介绍了LT1019IN8-5的封装应用图解、特点和优点、功能等，并给出了与LT1019IN8-5相关的凌力尔特元器件型号供参考。
LT1019IN8-5 - Precision Reference
LT1019 - Precision Reference - Linear Technology（凌力尔特）

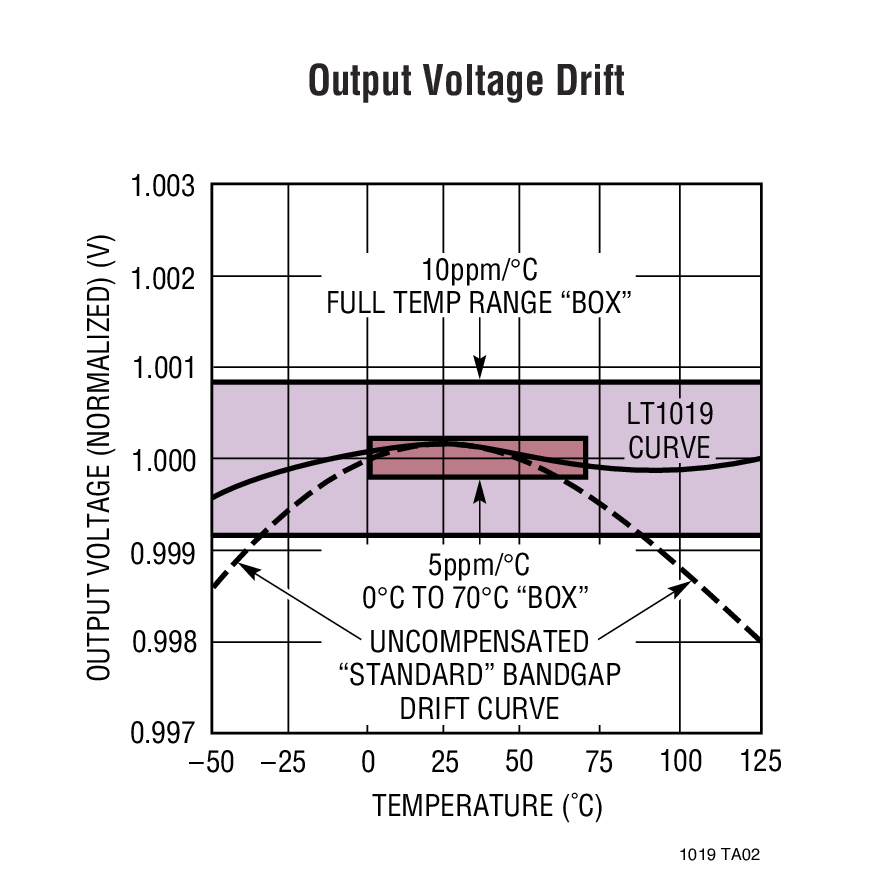

The LT1019 is a third generation bandgap voltage reference utilizing thin film technology and a greatly improved curvature correction technique. Wafer level trimming of both reference and output voltage combines to produce very low TC and tight initial output voltage tolerance.
The LT1019 can both sink and source up to 10mA and can be used in either the series or shunt mode, allowing the reference to operate with positive or negative output voltages without external components. Minimum input/ output voltage is less than 1V in the series mode, providing improved tolerance of low line conditions and excellent line regulation.
The LT1019 is available in four voltages: 2.5V, 4.5V, 5V and 10V. It is a direct replacement for most bandgap references presently available including AD580, AD581, REF-01, REF-02, MC1400, MC1404 and LM168.
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
|---|---|---|---|---|
| LT1019ACN8-10 | N-8 | C | $7.50 | $6.25 |
| LT1019ACN8-10#PBF | N-8 | C | $7.50 | $6.25 |
| LT1019ACN8-2.5 | N-8 | C | $7.50 | $6.25 |
| LT1019ACN8-2.5#PBF | N-8 | C | $7.50 | $6.25 |
| LT1019ACN8-4.5 | N-8 | C | $7.50 | $6.25 |
| LT1019ACN8-4.5#PBF | N-8 | C | $7.50 | $6.25 |
| LT1019ACN8-5 | N-8 | C | $7.50 | $6.25 |
| LT1019ACN8-5#PBF | N-8 | C | $7.50 | $6.25 |
| LT1019ACS8-2.5 | SO-8 | C | $7.50 | $5.40 |
| LT1019ACS8-2.5#PBF | SO-8 | C | $7.50 | $5.40 |
| LT1019ACS8-2.5#TR | SO-8 | C | $5.46 | |
| LT1019ACS8-2.5#TRPBF | SO-8 | C | $5.46 | |
| LT1019ACS8-5 | SO-8 | C | $7.50 | $5.40 |
| LT1019ACS8-5#PBF | SO-8 | C | $7.50 | $5.40 |
| LT1019ACS8-5#TR | SO-8 | C | $5.46 | |
| LT1019ACS8-5#TRPBF | SO-8 | C | $5.46 | |
| LT1019AIS8-2.5 | SO-8 | I | $6.60 | $5.65 |
| LT1019AIS8-2.5#PBF | SO-8 | I | $6.60 | $5.65 |
| LT1019AIS8-2.5#TR | SO-8 | I | $5.71 | |
| LT1019AIS8-2.5#TRPBF | SO-8 | I | $5.71 | |
| LT1019AIS8-5 | SO-8 | I | $6.60 | $5.65 |
| LT1019AIS8-5#PBF | SO-8 | I | $6.60 | $5.65 |
| LT1019AIS8-5#TR | SO-8 | I | $5.71 | |
| LT1019AIS8-5#TRPBF | SO-8 | I | $5.71 | |
| LT1019CN8-10 | N-8 | C | $4.58 | $3.70 |
| LT1019CN8-10#PBF | N-8 | C | $4.58 | $3.70 |
| LT1019CN8-2.5 | N-8 | C | $4.58 | $3.70 |
| LT1019CN8-2.5#PBF | N-8 | C | $4.58 | $3.70 |
| LT1019CN8-4.5 | N-8 | C | $4.58 | $3.70 |
| LT1019CN8-4.5#PBF | N-8 | C | $4.58 | $3.70 |
| LT1019CN8-5 | N-8 | C | $4.58 | $3.70 |
| LT1019CN8-5#PBF | N-8 | C | $4.58 | $3.70 |
| LT1019CS8-10 | SO-8 | C | $5.58 | $4.65 |
| LT1019CS8-10#PBF | SO-8 | C | $5.58 | $4.65 |
| LT1019CS8-10#TR | SO-8 | C | $4.71 | |
| LT1019CS8-10#TRPBF | SO-8 | C | $4.71 | |
| LT1019CS8-2.5 | SO-8 | C | $5.58 | $4.65 |
| LT1019CS8-2.5#PBF | SO-8 | C | $5.58 | $4.65 |
| LT1019CS8-2.5#TR | SO-8 | C | $4.71 | |
| LT1019CS8-2.5#TRPBF | SO-8 | C | $4.71 | |
| LT1019CS8-4.5 | SO-8 | C | $5.58 | $4.65 |
| LT1019CS8-4.5#PBF | SO-8 | C | $5.58 | $4.65 |
| LT1019CS8-4.5#TR | SO-8 | C | $4.71 | |
| LT1019CS8-4.5#TRPBF | SO-8 | C | $4.71 | |
| LT1019CS8-5 | SO-8 | C | $5.58 | $4.65 |
| LT1019CS8-5#PBF | SO-8 | C | $5.58 | $4.65 |
| LT1019CS8-5#TR | SO-8 | C | $4.71 | |
| LT1019CS8-5#TRPBF | SO-8 | C | $4.71 | |
| LT1019IN8-10 | N-8 | I | $5.75 | $4.75 |
| LT1019IN8-10#PBF | N-8 | I | $5.75 | $4.75 |
| LT1019IN8-2.5 | N-8 | I | $5.75 | $4.75 |
| LT1019IN8-2.5#PBF | N-8 | I | $5.75 | $4.75 |
| LT1019IN8-4.5 | N-8 | I | $5.75 | $4.75 |
| LT1019IN8-4.5#PBF | N-8 | I | $5.75 | $4.75 |
| LT1019IN8-5 | N-8 | I | $5.75 | $4.75 |
| LT1019IN8-5#PBF | N-8 | I | $5.75 | $4.75 |
| LT1019IS8-2.5 | SO-8 | I | $6.34 | $4.85 |
| LT1019IS8-2.5#PBF | SO-8 | I | $6.34 | $4.85 |
| LT1019IS8-2.5#TR | SO-8 | I | $4.91 | |
| LT1019IS8-2.5#TRPBF | SO-8 | I | $4.91 | |
| LT1019IS8-5 | SO-8 | I | $6.34 | $4.85 |
| LT1019IS8-5#PBF | SO-8 | I | $6.34 | $4.85 |
| LT1019IS8-5#TR | SO-8 | I | $4.91 | |
| LT1019IS8-5#TRPBF | SO-8 | I | $4.91 |
