当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LTC1053
LTC1053技术文档下载：
LTC1053技术文档产品手册下载
LTC1053 - 典型应用图例：

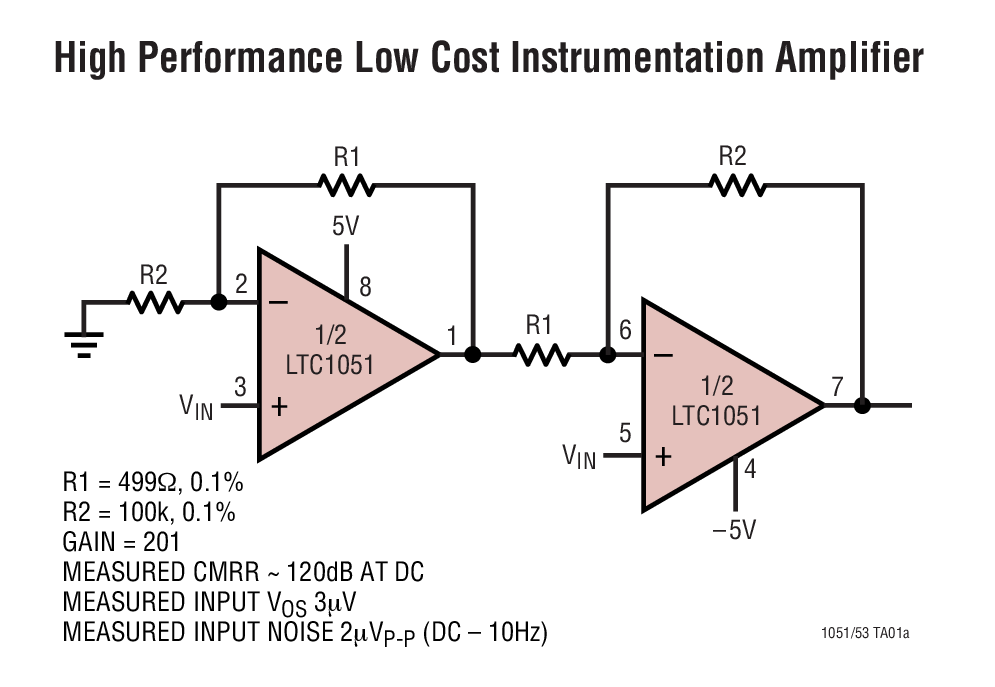

LTC1053典型应用图例一

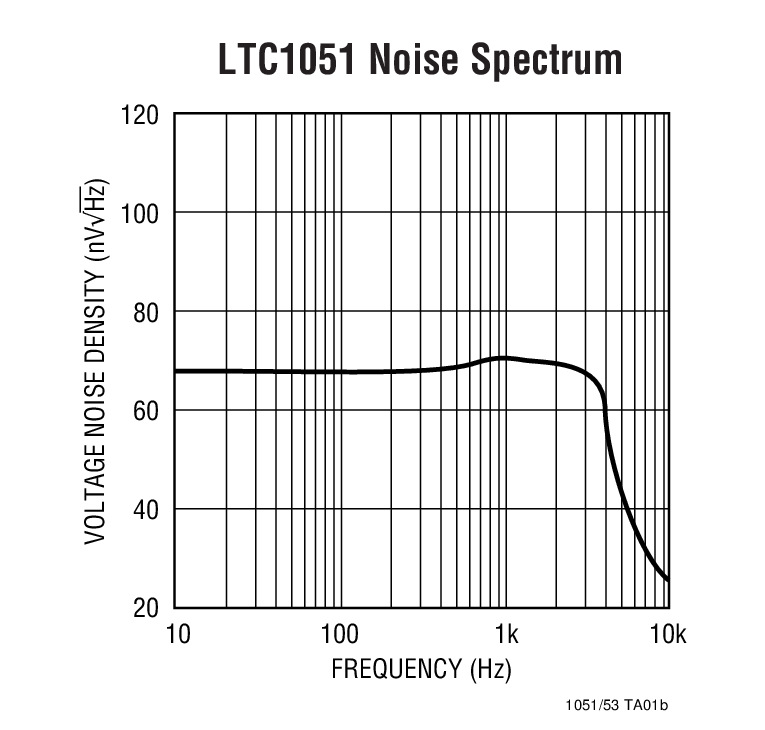

LTC1053典型应用图例二
LTC1053 - 封装图解：

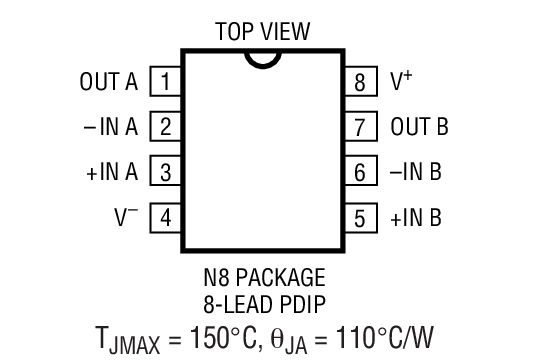

LTC1053封装图解一

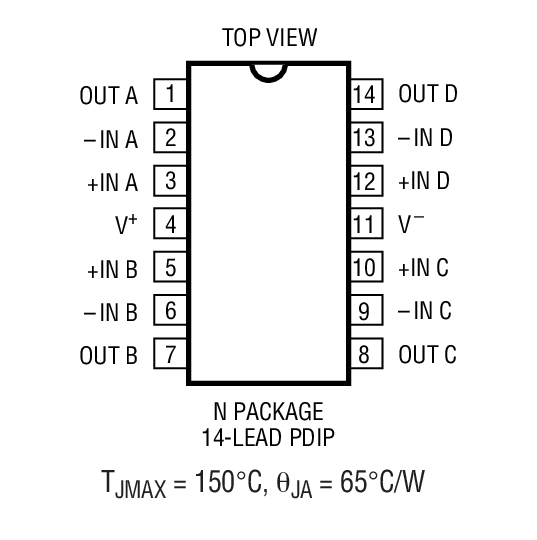

LTC1053封装图解二

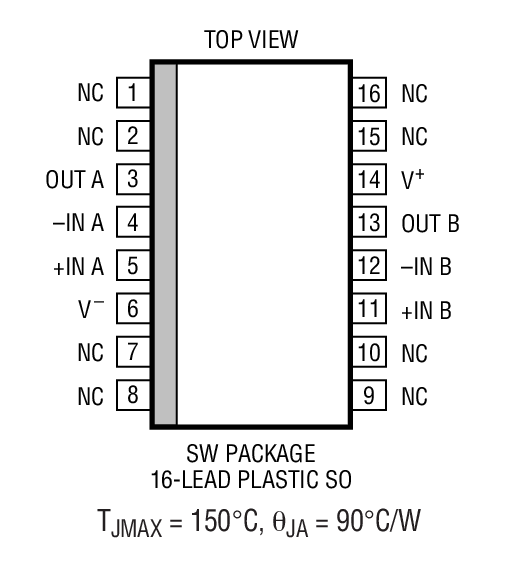

LTC1053封装图解三

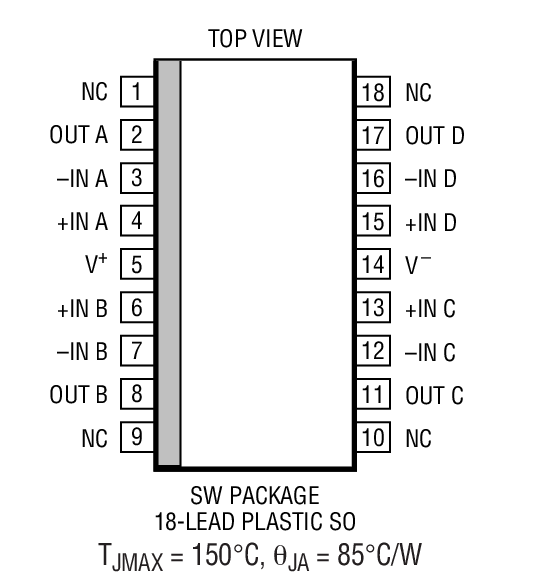

LTC1053封装图解四
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1053介绍

LTC1053 - LTC1053是Dual/Quad Precision Zero-Drift Operational Amplifiers With Internal Capacitors

LTC1053是LINEAR凌力尔特公司的一款精准放大器产品，LTC1053是LTC1053是Dual/Quad Precision Zero-Drift Operational Amplifiers With Internal Capacitors，本站介绍了LTC1053的封装应用图解、特点和优点、功能等，并给出了与LTC1053相关的LINEAR元器件型号供参考。

LTC1053 - LTC1053是Dual/Quad Precision Zero-Drift Operational Amplifiers With Internal Capacitors - 精准放大器 - 信号调理 - 凌力尔特

LTC1053 - Dual/Quad Precision Zero-Drift Operational Amplifiers With Internal Capacitors

LTC1053 - Dual/Quad Precision Zero-Drift Operational Amplifiers With Internal Capacitors - Linear Technology（凌力尔特）

功能描述

The LTC?1051/LTC1053 are high performance, low cost dual/quad zero-drift operational amplifiers. The unique achievement of the LTC1051/LTC1053 is that they integrate on chip the sample-and-hold capacitors usually required externally by other chopper amplifiers. Further, the LTC1051/LTC1053 offer better combined overall DC and AC performance than is available from other chopper stabilized amplifiers with or without internal sample/hold capacitors.

The LTC1051/LTC1053 have an offset voltage of 0.5μV, drift of 0.01μV/°C, DC to 10Hz, input noise voltage typically 1.5μVP-P and typical voltage gain of 140dB. The slew rate of 4V/μs and gain bandwidth product of 2.5MHz are achieved with only 1mA of supply current per op amp.

Overload recover times from positive and negative saturation conditions are 1.5ms and 3ms respectively,about a 100 or more times improvement over chopper amplifiers using external capacitors.

The LTC1051 is available in an 8-lead standard plastic dual-in-line package as well as a 16-pin SW package. The LTC1053 is available in a standard 14-pin plastic package and an 18-pin SO. The LTC1051/LTC1053 are plug in replacements for most standard dual/quad op amps with improved performance.

特点
  • Dual/Quad Low Cost Precision Op Amp
  • No External Components Required
  • Maximum offset Voltage 5µV
  • Maximum Offset Voltage Drift 0.05µV/°C
  • Low Noise 1.5µVp-p (0.1Hz to 10Hz)
  • Minimum Voltage Gain, 120dB
  • Minimum PSRR, 120dB
  • Minimum CMRR, 114dB
  • Low Supply Current 1mA/Op Amp
  • Single Supply Operation 4.75V to 16V
  • Input Common Mode Range Includes Ground
  • Output Swings to Ground
  • Typical Overload Recovery Time 3ms
  • Pin Compatible with Industry Standard Dual and Quad Op Amps
    • 应用
  • Thermocouple Amplifiers
  • Electronic Scales
  • Medical Instrumentation
  • Strain Gauge Amplifiers
  • High Resolution Data Acquistion
  • DC Accurate R, C Active Filters
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1053CN N-14 C $9.00 $7.50
    LTC1053CN#PBF N-14 C $9.00 $7.50
    LTC1053CSW SW-18 C $10.75 $8.60
    LTC1053CSW#PBF SW-18 C $10.75 $8.60
    LTC1053CSW#TR SW-18 C $8.70
    LTC1053CSW#TRPBF SW-18 C $8.70
