当前位置:Linear公司 > > 凌力尔特芯片 >> LTC1050
LTC1050技术文档下载:
LTC1050技术文档产品手册下载
LTC1050 - 典型应用图例:

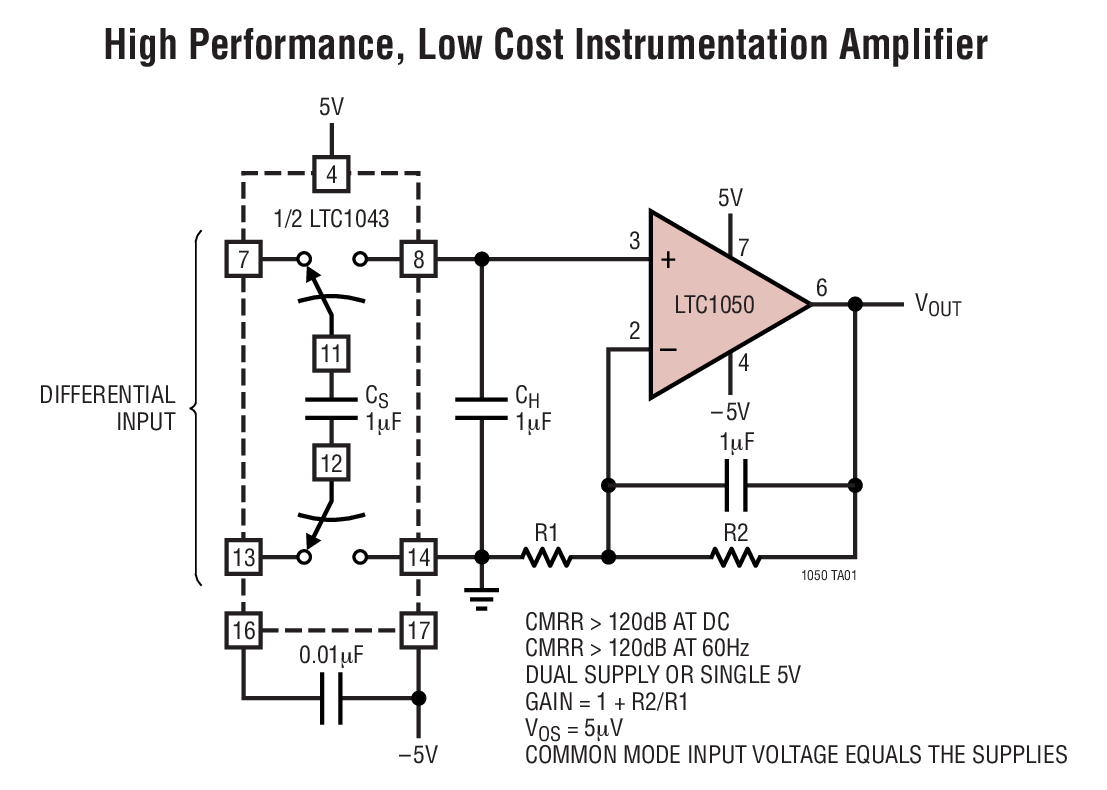

LTC1050典型应用图例一

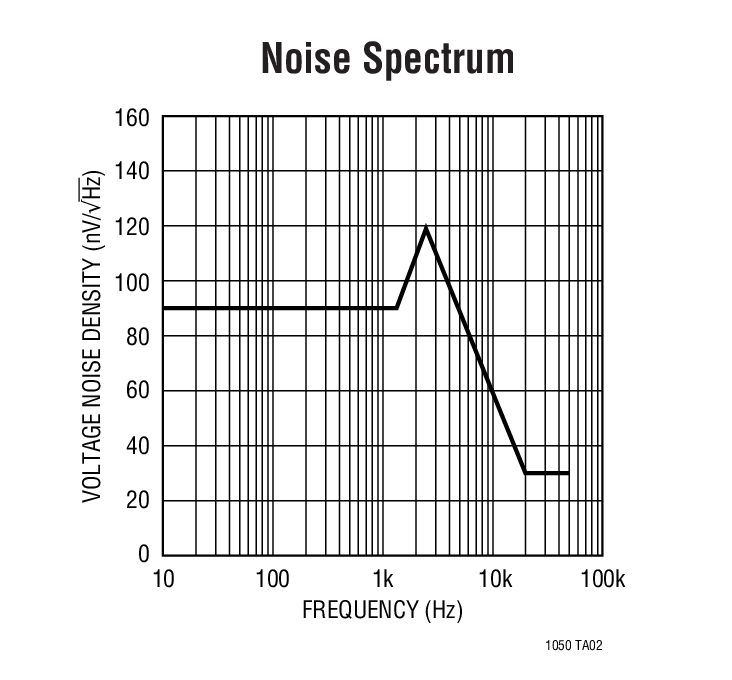

LTC1050典型应用图例二
LTC1050 - 封装图解:

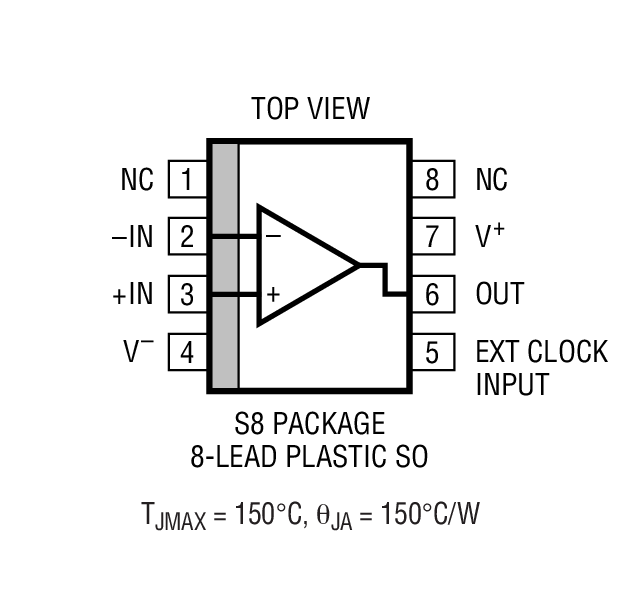

LTC1050封装图解一

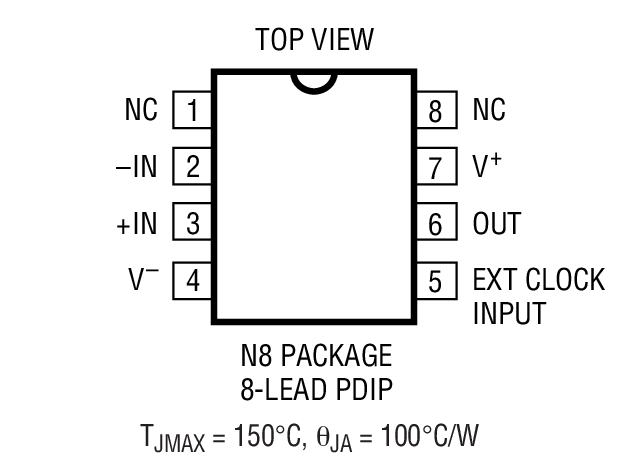

LTC1050封装图解二
LTC1050LTC1050
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LTC1050介绍
LTC1050 - LTC1050是Precision Zero-Drift Operational Amplifier with Internal Capacitors

LTC1050是Linear公司的一款精准放大器产品,LTC1050是Precision Zero-Drift Operational Amplifier with Internal Capacitors,本站介绍了LTC1050的封装应用图解、特点和优点、功能等,并给出了与LTC1050相关的凌力尔特元器件型号供参考。

LTC1050 - Precision Zero-Drift Operational Amplifier with Internal Capacitors

LTC1050 - Precision Zero-Drift Operational Amplifier with Internal Capacitors - Linear Technology(凌力尔特)

功能描述

The LTC1050 is a high performance, low cost zero-drift operational amplifier. The unique achievement of the LTC1050 is that it integrates on-chip the two sample-and-hold capacitors usually required externally by other chopper amplifiers. Further, the LTC1050 offers better combined overall DC and AC performance than is available from other chopper stabilized amplifiers with or without internal sample-and-hold capacitors.

The LTC1050 has an offset voltage of 0.5µV, drift of 0.01µV/°C, DC to 10Hz, input noise voltage of 1.6µVP-P and a typical voltage gain of 160dB. The slew rate of 4V/µs and a gain bandwidth product of 2.5MHz are achieved with only 1mA of supply current.

Overload recovery times from positive and negative saturation conditions are 1.5ms and 3ms respectively, which represents an improvement of about 100 times over chopper amplifiers using external capacitors. Pin 5 is an optional external clock input, useful for synchronization purposes.

The LTC1050 is available in standard 8-pin metal can, plastic and ceramic dual-in-line packages as well as an SO-8 package. The LTC1050 can be an improved plug-in replacement for most standard op amps.

特点
  • No External Components Required
  • Noise Tested and Guaranteed
  • Low Aliasing Errors
  • Maximum Offset Voltage 5µV
  • Maximum Offset Voltage Drift 0.5µV/°C
  • Low Noise 1.6µVp-p (0.1Hz to 10Hz)
  • Minimum Voltage Gain, 130dB
  • Minimum PSRR, 125dB
  • Minimum CMRR, 120dB
  • Low Supply Current 1mA
  • Single Supply Operation 4.75V to 16V
  • Input Common Mode Range Includes Ground
  • Output Swings to Ground
  • Typical Overload Recovery Time 3ms
  • 应用
  • Thermocouple Amplifiers
  • Electronic Scales
  • Medical Instrumentation
  • Strain Gauge Amplifiers
  • High Resolution Data Acquisition
  • DC Accurate R, C Active Filters
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1050ACN8 N-8 C $4.60 $3.75
    LTC1050ACN8#PBF N-8 C $4.60 $3.75
    LTC1050CN N-14 C $2.70 $2.15
    LTC1050CN#PBF N-14 C $2.70 $2.15
    LTC1050CN8 N-8 C $2.70 $2.15
    LTC1050CN8#PBF N-8 C $2.70 $2.15
    LTC1050CS8 SO-8 C $3.35 $2.70
    LTC1050CS8#PBF SO-8 C $3.35 $2.70
    LTC1050CS8#TR SO-8 C $2.76
    LTC1050CS8#TRPBF SO-8 C $2.76
    LTC1050HS8 SO-8 H $4.00 $3.24
    LTC1050HS8#PBF SO-8 H $4.00 $3.24
    LTC1050HS8#TR SO-8 H $3.30
    LTC1050HS8#TRPBF SO-8 H $3.30
