MSK5973RHL技术文档下载:
MSK5973RHL技术文档产品手册下载
MSK5973RHL - 典型应用图例:

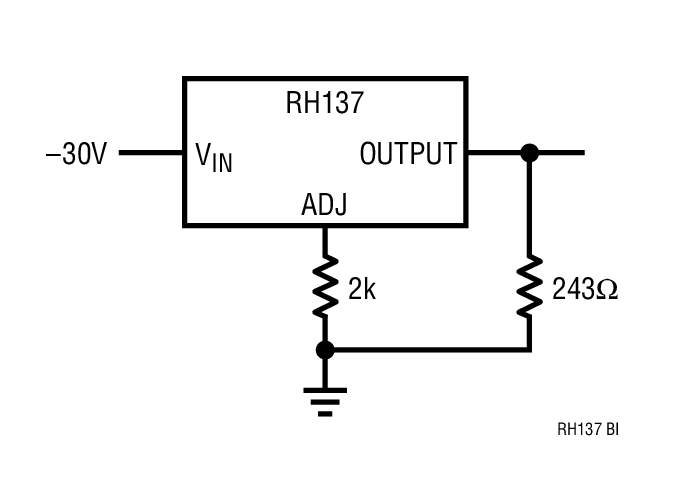

MSK5973RHL典型应用图例一
MSK5973RHL - 封装图解:

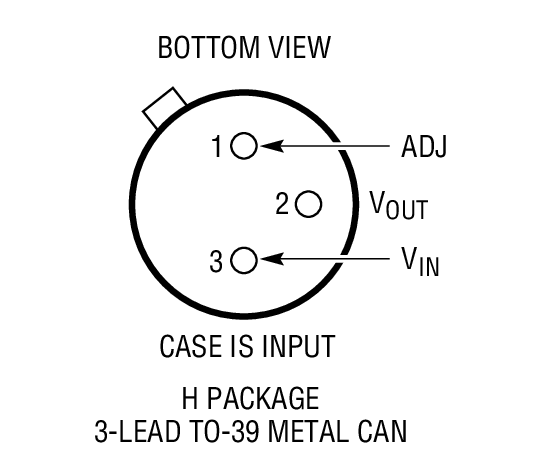

MSK5973RHL封装图解一

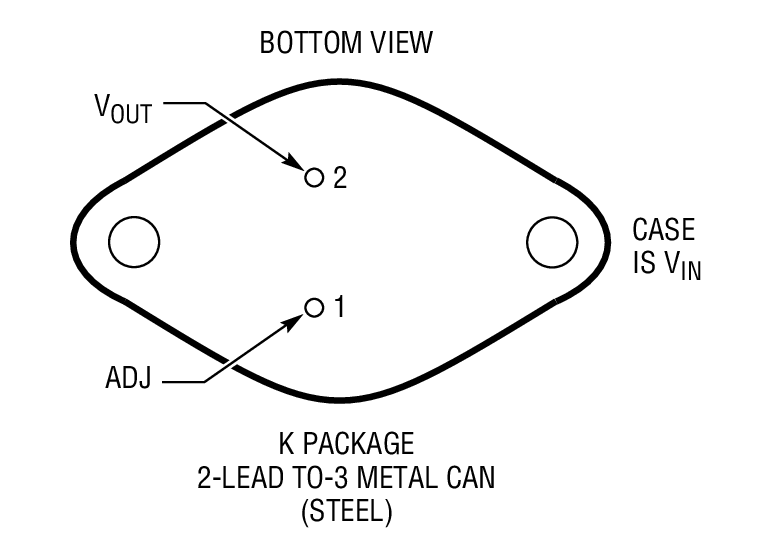

MSK5973RHL封装图解二
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - MSK5973RHL介绍
MSK5973RHL - MSK5973RHL是Negative Adjustable Regulator

MSK5973RHL是Linear公司的一款合乎航天使用要求的线性稳压器产品,MSK5973RHL是Negative Adjustable Regulator,本站介绍了MSK5973RHL的封装应用图解、特点和优点、功能等,并给出了与MSK5973RHL相关的凌力尔特元器件型号供参考。

MSK5973RHL - Negative Adjustable Regulator

RH137 - Negative Adjustable Regulator - Linear Technology(凌力尔特)

功能描述

The RH137 negative adjustable regulator will deliver up to 1.5A output current over an output voltage range of -1.2V to -22V.

Every effort has been made to make these devices easy to use and difficult to damage. Internal current and power limiting coupled with true thermal limiting prevents device damage due to overloads or shorts, even if the regulator is not fastened to a heat sink.

Maximum reliability is attained with Linear Technology's advanced processing techniques combined with a 100% burn-in in the thermal limit mode. This assures that all device protection circuits are working and eliminates field failures experienced with other regulators that receive only standard electrical testing.

The wafer lots are processed to Linear Technology's inhouse Class S flow to yield circuits usable in stringent military applications.

特点
  • ABSOLUTE MAXIMUM RATINGS
  • Power Dissipation..........Internally Limited
  • Input-to-Output Voltage Differential..........30V
  • Operating Junction Temperature Range
  • –55°C to 150°C
  • Storage Temperature Range
  • –65°C to 150°C
  • Lead Temperature
  • (Soldering, 10 sec).....300°C
  • 应用
    以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
