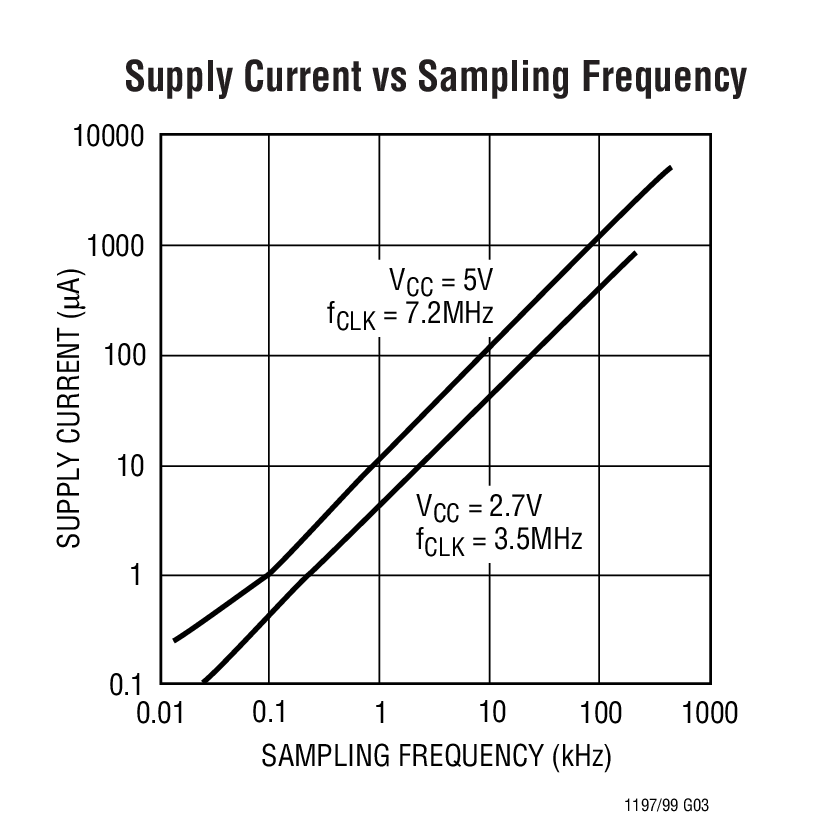

LTC1197典型应用图例一

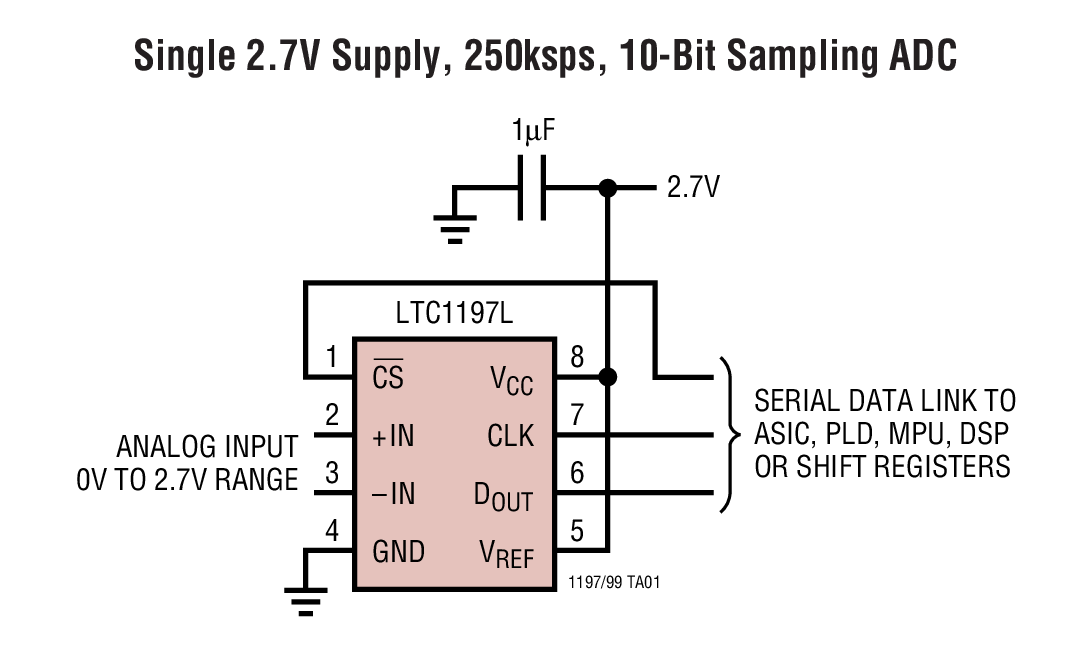

LTC1197典型应用图例二

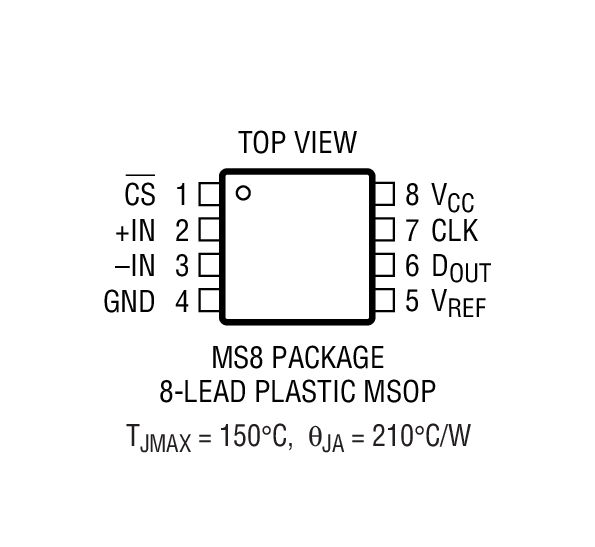

LTC1197 - 封装图解：

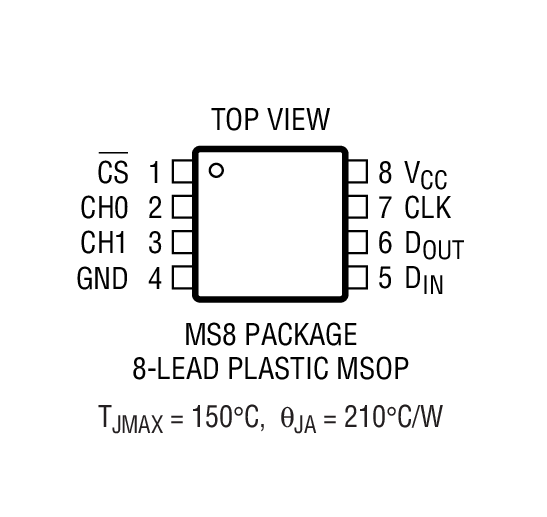

LTC1197封装图解一

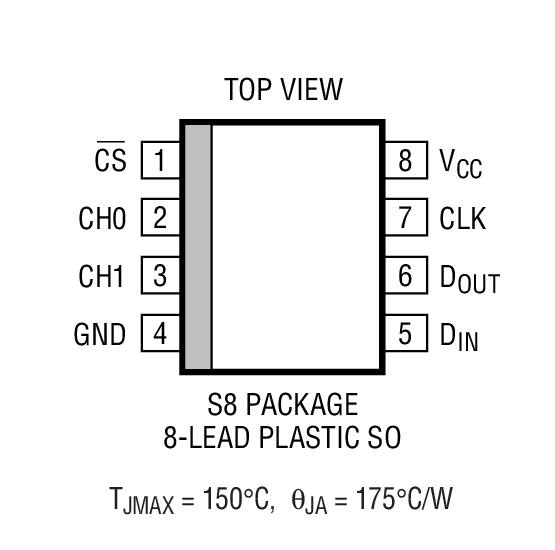

LTC1197封装图解二

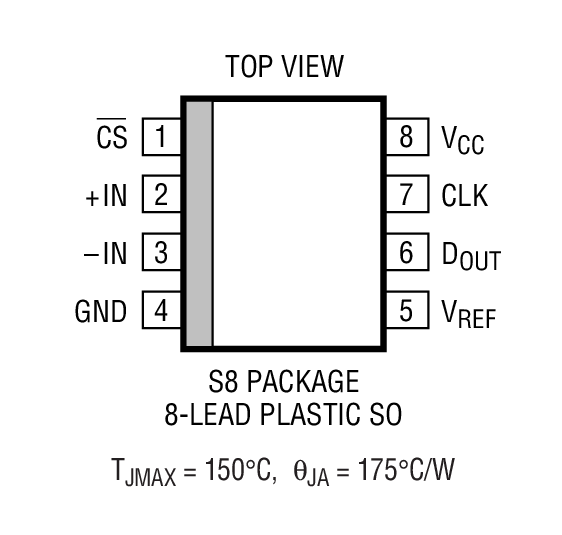

LTC1197封装图解三
LTC1197封装图解四
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1197介绍

LTC1197 - LTC1197是10-Bit, 500ksps ADCs in MSOP with Auto Shutdown

LTC1197是LINEAR凌力尔特公司的一款通用型 SAR ADC产品，LTC1197是LTC1197是10-Bit, 500ksps ADCs in MSOP with Auto Shutdown，本站介绍了LTC1197的封装应用图解、特点和优点、功能等，并给出了与LTC1197相关的LINEAR元器件型号供参考。

LTC1197 - LTC1197是10-Bit, 500ksps ADCs in MSOP with Auto Shutdown - 通用型 SAR ADC - 数据转换 - 凌力尔特

LTC1197 - 10-Bit, 500ksps ADCs in MSOP with Auto Shutdown

LTC1197 - 10-Bit, 500ksps ADCs in MSOP with Auto Shutdown - Linear Technology（凌力尔特）

功能描述
The LTC?1197/LTC1197L/LTC1199/LTC1199L are 10-bit A/D converters with sampling rates up to 500kHz. They have 2.7V (L) and 5V versions and are offered in 8-pin MSOP and SO packages. Power dissipation is typically only 2.2mW at 2.7V (25mW at 5V) during full speed operation. The automatic power down reduces supply current linearly as sample rate is reduced. These 10-bit, switched-capacitor, successive approximation ADCs include a sample-and-hold. The LTC1197/LTC1197L have a differential analog input with an adjustable reference pin. The LTC1199/LTC1199L offer a software-selectable 2-channel MUX.

The 3-wire serial I/O, MSOP and SO-8 packages, 2.7V operation and extremely high sample rate-to-power ration make these ADCs ideal choices for compact, low power high speed systems.

These circuits can be used in ratiometric applications or with external references. The high impedance analog inputs and the ability to operate with reduced spans below 1V full scale (LTC1197/LTC1197L) allow direct connection to signal sources in may applications, eliminating the need for gain stages.

特点
  • 8-Pin MSOP and SO Packages
  • 10-Bit Resolution at 500ksps
  • Single Supply: 5V or 3V
  • Low Power at Full Speed: 25mW Typ at 5V 2.2mW Typ at 2.7V
  • Auto Shutdown Reduces Power Linearly at Lower Sample Rates
  • 10-Bit Upgrade to 8-Bit LTC1196/LTC1198
  • SPI and MICROWIRETM Compatible Serial I/O
  • Low Cost
    • 应用
  • High Speed Data Acquisition
  • Portable or Compact Instrumentation
  • Low Power or Battery-Operated Instrumentation
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1197CMS8 MS-8 C $3.40 $2.75
    LTC1197CMS8#PBF MS-8 C $3.40 $2.75
    LTC1197CMS8#TR MS-8 C $2.81
    LTC1197CMS8#TRPBF MS-8 C $2.81
    LTC1197CS8 SO-8 C $3.00 $2.45
    LTC1197CS8#PBF SO-8 C $3.00 $2.45
    LTC1197CS8#TR SO-8 C $2.51
    LTC1197CS8#TRPBF SO-8 C $2.51
    LTC1197IMS8 MS-8 I $3.75 $3.05
    LTC1197IMS8#PBF MS-8 I $3.75 $3.05
    LTC1197IMS8#TR MS-8 I $3.11
    LTC1197IMS8#TRPBF MS-8 I $3.11
    LTC1197IS8 SO-8 I $3.25 $2.60
    LTC1197IS8#PBF SO-8 I $3.25 $2.60
    LTC1197IS8#TR SO-8 I $2.66
    LTC1197IS8#TRPBF SO-8 I $2.66
    LTC1197LCMS8 MS-8 C $3.40 $2.75
    LTC1197LCMS8#PBF MS-8 C $3.40 $2.75
    LTC1197LCMS8#TR MS-8 C $2.81
    LTC1197LCMS8#TRPBF MS-8 C $2.81
    LTC1197LCS8 SO-8 C $3.00 $2.45
    LTC1197LCS8#PBF SO-8 C $3.00 $2.45
    LTC1197LCS8#TR SO-8 C $2.51
    LTC1197LCS8#TRPBF SO-8 C $2.51
    LTC1197LIMS8 MS-8 I $3.75 $3.05
    LTC1197LIMS8#PBF MS-8 I $3.75 $3.05
    LTC1197LIMS8#TR MS-8 I $3.11
    LTC1197LIMS8#TRPBF MS-8 I $3.11
    LTC1197LIS8 SO-8 I $3.25 $2.60
    LTC1197LIS8#PBF SO-8 I $3.25 $2.60
    LTC1197LIS8#TR SO-8 I $2.66
    LTC1197LIS8#TRPBF SO-8 I $2.66
