当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LTC1052
LTC1052技术文档下载：
LTC1052技术文档产品手册下载
LTC1052 - 典型应用图例：

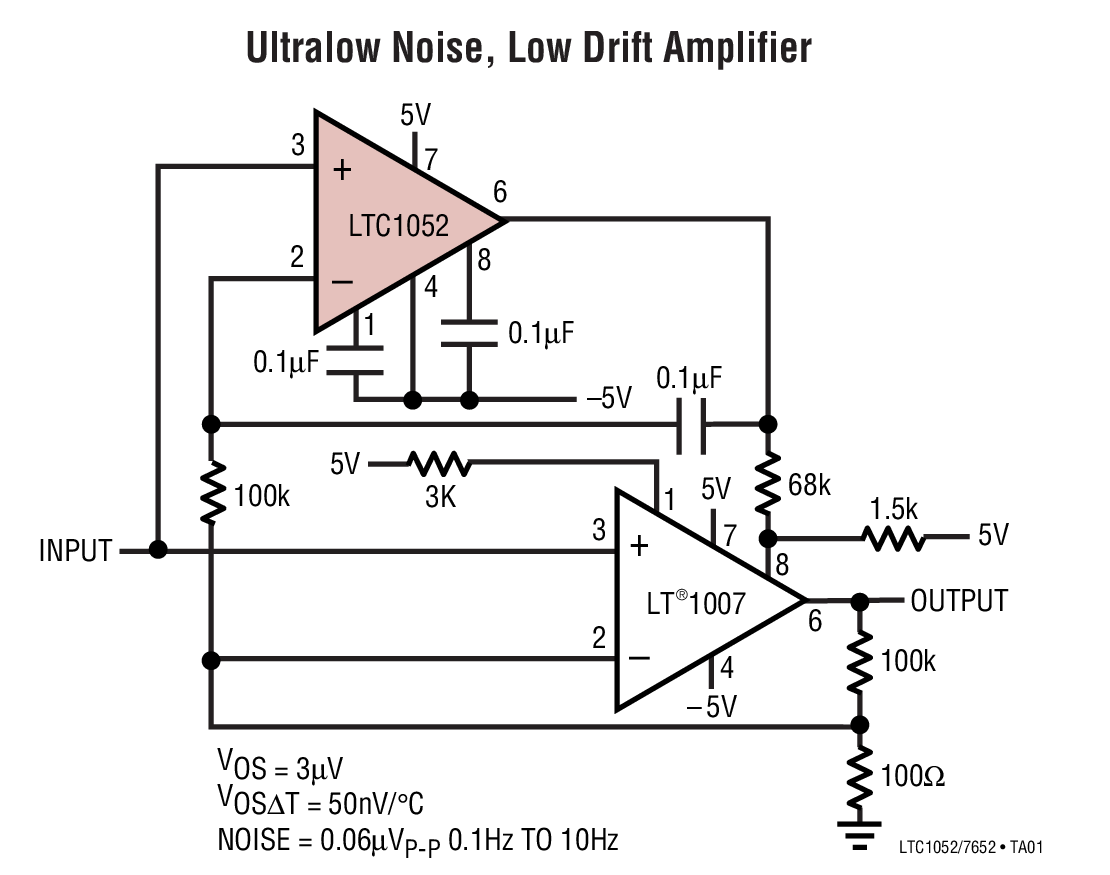

LTC1052典型应用图例一

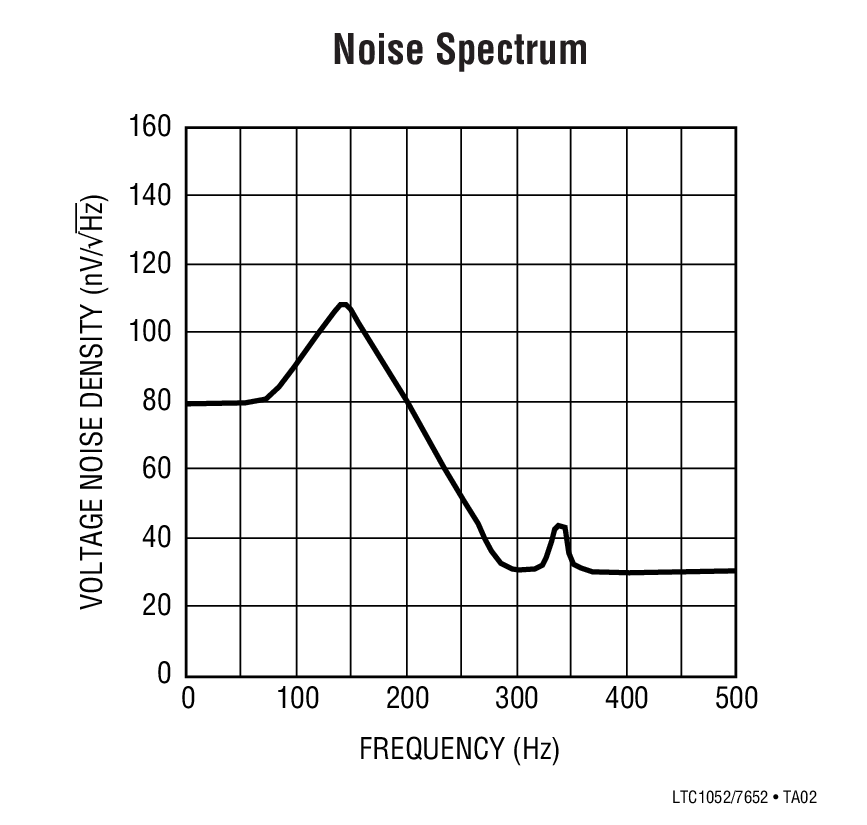

LTC1052典型应用图例二
LTC1052 - 封装图解：

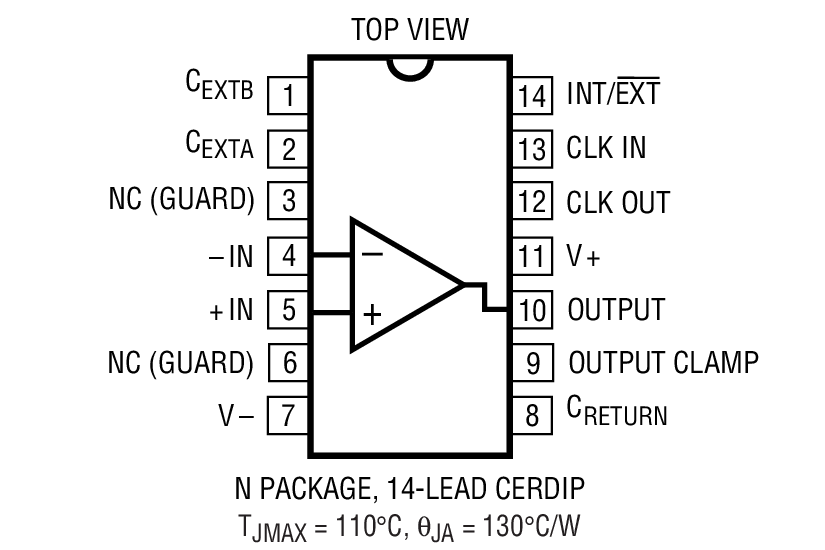

LTC1052封装图解一

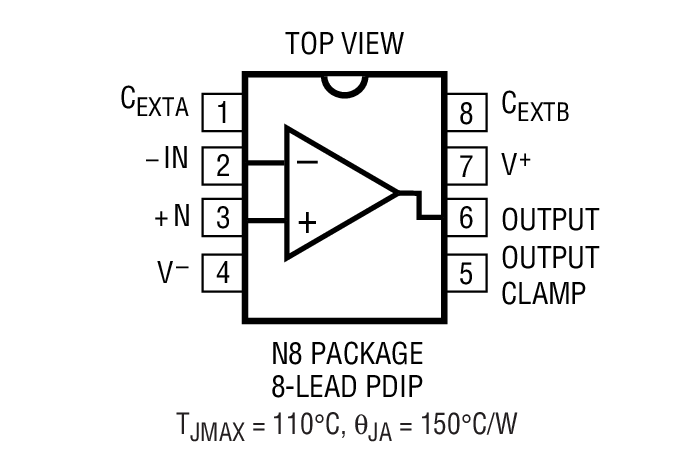

LTC1052封装图解二
LTC1052LTC1052
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1052介绍

LTC1052 - LTC1052是Zero-Drift Operational Amplifier

LTC1052是LINEAR凌力尔特公司的一款精准放大器产品，LTC1052是LTC1052是Zero-Drift Operational Amplifier，本站介绍了LTC1052的封装应用图解、特点和优点、功能等，并给出了与LTC1052相关的LINEAR元器件型号供参考。

LTC1052 - LTC1052是Zero-Drift Operational Amplifier - 精准放大器 - 信号调理 - 凌力尔特

LTC1052 - Zero-Drift Operational Amplifier

LTC1052 - Zero-Drift Operational Amplifier - Linear Technology（凌力尔特）

功能描述

The LTC?1052 and LTC7652 are low noise zero-drift op amps manufactured using Linear Technology’s enhanced LTCMOS silicon gate process. Chopper-stabilization constantly corrects offset voltage errors. Both initial offset and changes in the offset due to time, temperature and common mode voltage are corrected. This, coupled with picoampere input currents, gives these amplifiers unmatched performance.

Low frequency (1/f) noise is also improved by the chopping technique. Instead of increasing continuouslyat a 3dB/octave rate,the internal chopping causes noise to decrease at low frequencies.

The chopper circuitry is entirely internal and completely transparent to the user. Only two external capacitors are required to alternately sample-and-hold the offset correction voltage and the amplified input signal. Control circuitry is brought out on the 14-pin and 16-pin versions to allow the sampling of the LTC1052 to be synchronized with an external frequency source.

特点
  • Guaranteed Max. Offset 5µV
  • Guaranteed Max. Offset Drift 0.05μV/°C
  • Typ. Offset Drift 0.01µV/°C
  • Excellent Long Term Stability 100nV/ rt Month
  • Guaranteed Max. Input Bias Current 30pA
  • Over Operating Temperature RangeGuaranteed Min Gain: 120dBGuaranteed Min CMRR: 120dBGuaranteedM
  • Guaranteed Min. Gain 120dB
  • Guaranteed Min. CMRR 120dB
  • Guaranteed Min. PSRR 120dB
  • Single Supply Operation 4.75V to 16V
  • (Input Voltage Range Extends to Ground)
  • External Capacitors can be Returned to V- with No Noise Degradation
    • 应用
  • Thermocouple Amplifiers
  • Strain Gauge Amplifiers
  • Low Level Signal Processing
  • Medical Instrumentation
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1052CN N-14 C $5.42 $4.45
    LTC1052CN#PBF N-14 C $5.42 $4.45
    LTC1052CN8 N-8 C $5.00 $4.10
    LTC1052CN8#PBF N-8 C $5.00 $4.10
    LTC1052CSW SW-16 C $6.15 $5.25
    LTC1052CSW#PBF SW-16 C $6.15 $5.25
    LTC1052CSW#TR SW-16 C $5.31
    LTC1052CSW#TRPBF SW-16 C $5.31
