当前位置:Linear公司 > > 凌力尔特芯片 >> LT1363
LT1363技术文档下载:
LT1363技术文档产品手册下载
LT1363 - 典型应用图例:
LT1363典型应用图例一

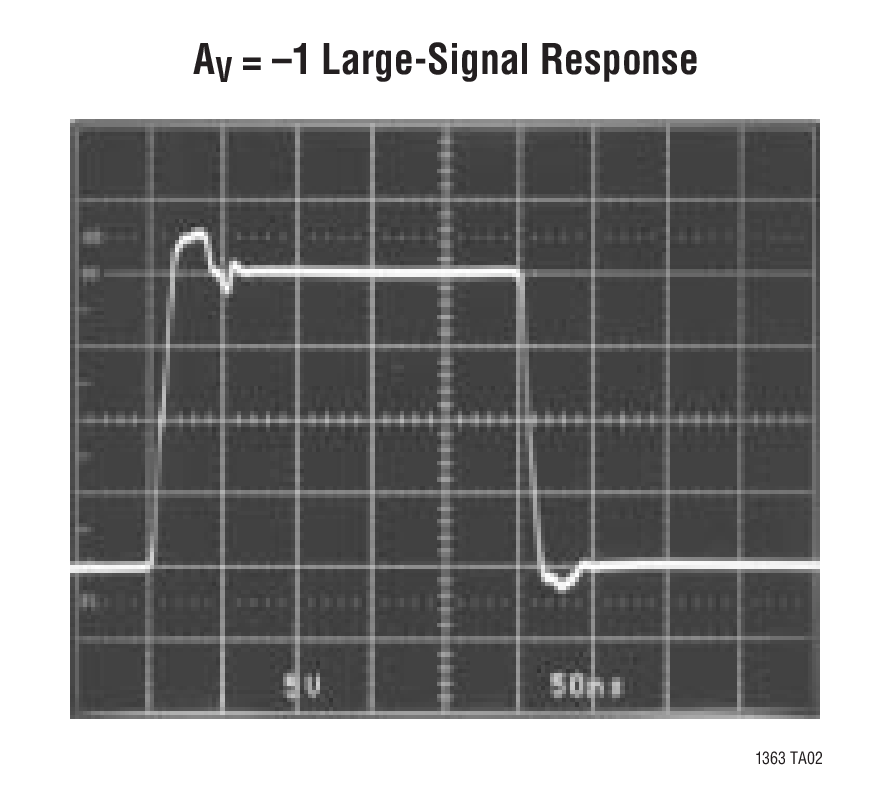

LT1363典型应用图例二
LT1363 - 封装图解:

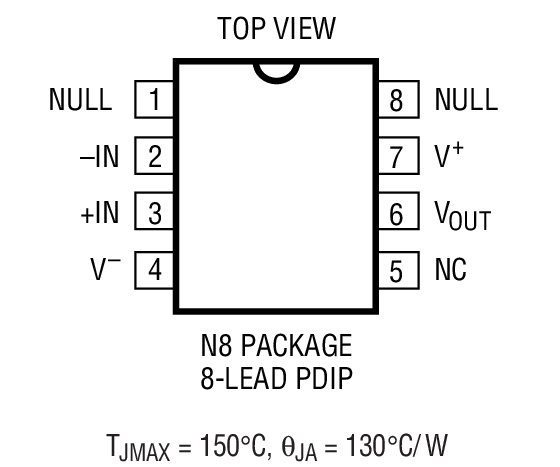

LT1363封装图解一

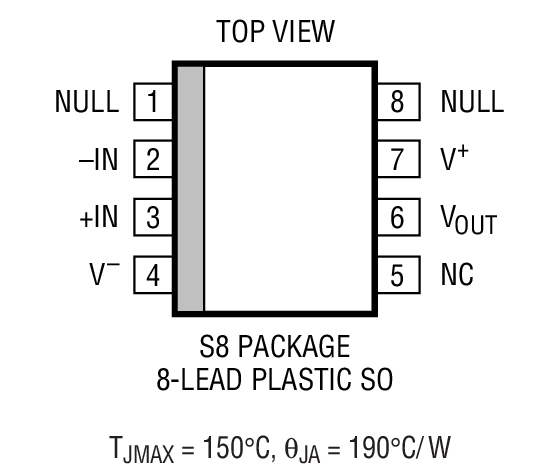

LT1363封装图解二
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LT1363介绍
LT1363 - LT1363是70MHz, 1000V/μs Op Amp

LT1363是Linear公司的一款高速放大器产品,LT1363是70MHz, 1000V/μs Op Amp,本站介绍了LT1363的封装应用图解、特点和优点、功能等,并给出了与LT1363相关的凌力尔特元器件型号供参考。

LT1363 - 70MHz, 1000V/μs Op Amp

LT1363 - 70MHz, 1000V/μs Op Amp - Linear Technology(凌力尔特)

功能描述

The LT1363 is a high speed, very high slew rate operational amplifier with excellent DC performance. The LT1363 features reduced supply current, lower input offset voltage, lower input bias current and higher DC gain than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with the slewing characteristics of a current feedback amplifier. The amplifier is a single gain stage with outstanding settling characteristics which makes the circuit an ideal choice for data acquisition systems. The output drives a 150 Ohms load to ±7.5V with ±15V supplies and to ±3.4V on ±5V supplies. The amplifier is also capable of driving any capacitive load which makes it useful in buffer or cable driver applications. The LT1363 is a member of a family of fast, high performance amplifiers using this unique topology and employing Linear Technology Corporation's advanced bipolar complementary processing. For dual and quad amplifier versions of the LT1363 see the LT1364/1365 data sheet. For 50MHz amplifiers with 4mA of supply current per amplifier see the LT1360 and LT1361/1362 data sheets. For lower supply current amplifiers with bandwidths of 12MHz and 25MHz see the LT1354 through LT1359 data sheets. Singles, duals, and quads of each amplifier are available.

特点
  • 70MHz Gain-Bandwidth
  • 1000V/μs Slew Rate
  • 7.5mA Maximum Supply Current
  • 9nV/ rt Hz Input Noise Voltage
  • Unity Gain Stable
  • C-LoadTM Op Amp Drives All Capacitive Loads
  • 1.5mV Maximum Input Offset Voltage
  • 2μA Maximum Input Bias Current
  • 350nA Maximum Input Offset Current
  • 50mA Minimum Output Current
  • ±7.5V Minimum Output Swing into 150 ohms
  • 4.5V/mV Minimum DC Gain, RL=1k
  • 50ns Settling Time to 0.1%, 10V Step
  • 0.06% Differential Gain, AV=2, RL=150 ohms
  • 0.04° Differential Phase, AV=2, RL=150 ohms
  • Specified at ±2.5V, ±5V, and ±15V
  • 应用
  • Wideband Amplifiers
  • Buffers
  • Active Filters
  • Video and RF Amplification
  • Cable Drivers
  • Data Acquisition Systems
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1363CN8 N-8 C $3.00 $2.40
    LT1363CN8#PBF N-8 C $3.00 $2.40
    LT1363CS8 SO-8 C $3.33 $2.65
    LT1363CS8#PBF SO-8 C $3.33 $2.65
    LT1363CS8#TR SO-8 C $2.71
    LT1363CS8#TRPBF SO-8 C $2.71
