LT1115技术文档下载：

LT1115 - 典型应用图例：

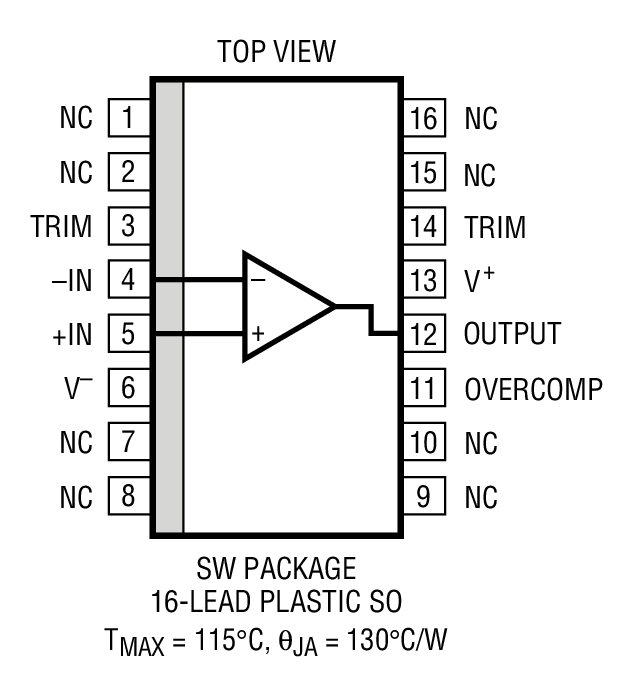

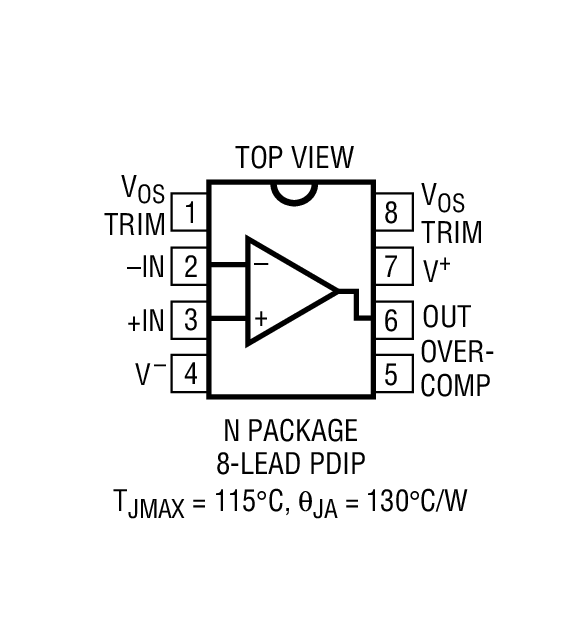

LT1115 - 封装图解：

LT1115 - LT1115是Ultra-Low Noise, Low Distortion, Audio Op Amp

LT1115是Linear公司的一款精准放大器产品，LT1115是Ultra-Low Noise, Low Distortion, Audio Op Amp，本站介绍了LT1115的封装应用图解、特点和优点、功能等，并给出了与LT1115相关的凌力尔特元器件型号供参考。

LT1115 - Ultra-Low Noise, Low Distortion, Audio Op Amp

LT1115 - Ultra-Low Noise, Low Distortion, Audio Op Amp - Linear Technology（凌力尔特）

功能描述

The LT1115 is the lowest noise audio operational amplifier available. This ultralow noise performance (0.9nV/rtHz at 1kHz) is combined with high slew rates (>15V/µs) and very low distortion specifications.

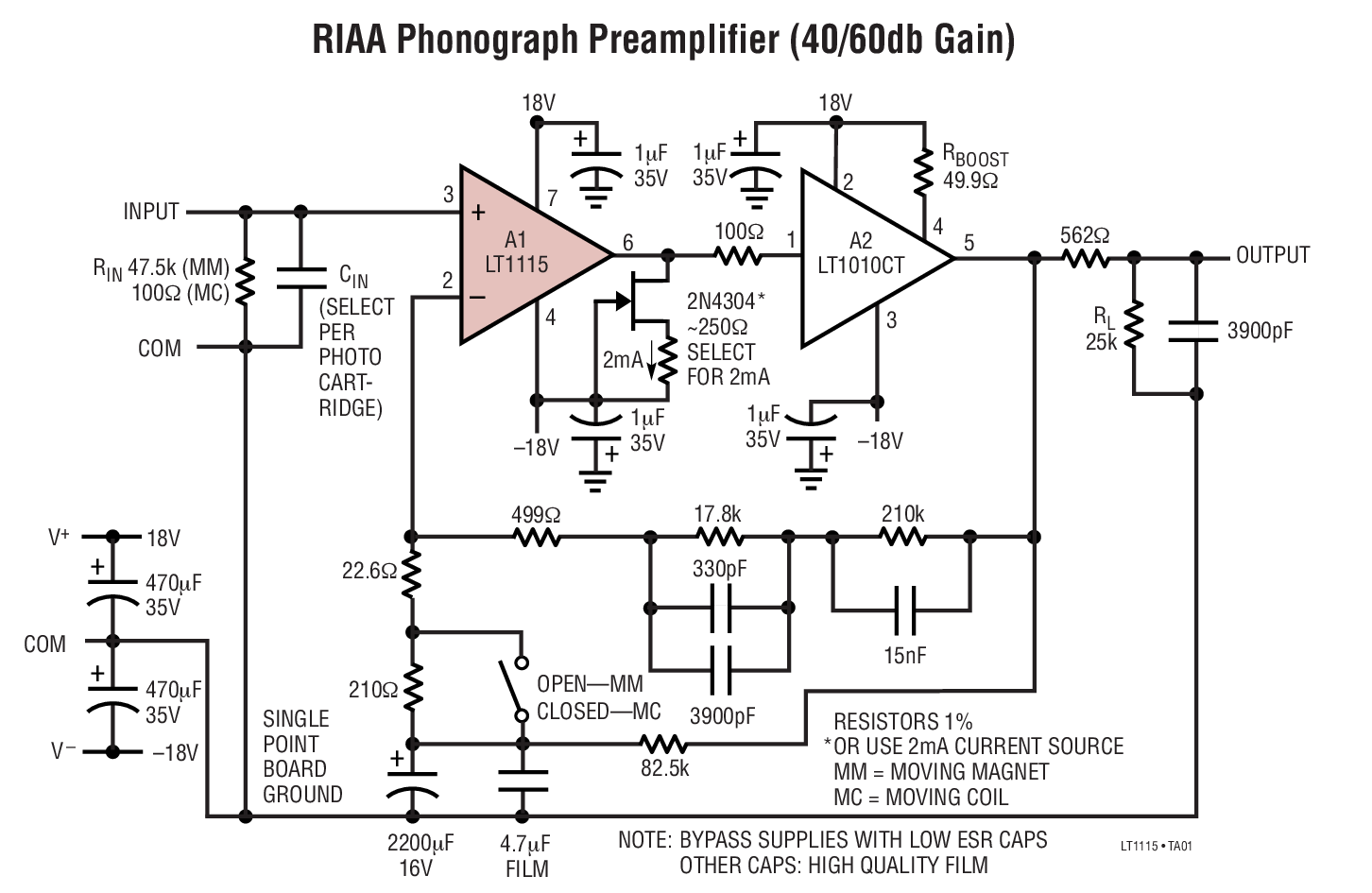

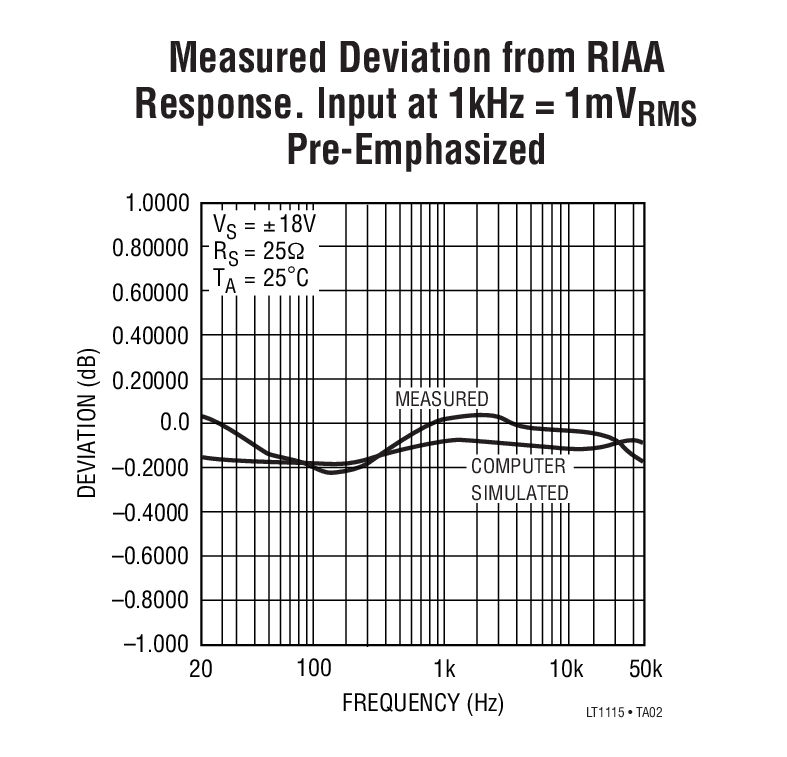

The RIAA circuit shown below using the LT1115 has very low distortion and little deviation from ideal RIAA response (see graph).

特点

Voltage Noise 1.2nV/ rtHz Max at 1kHz

0.9nV/ rtHz Typ at 1kHz

Voltage and Current Noise 100% Tested

Gain-Bandwidth Product 40MHz Min

Slew Rate 10V/µs Min

Voltage Gain 2 Million Min

Low THD@10kHz, AV= -10, RL=600ohms 0.002% VO=7VRMS

Low IMD, CCIF Method, AV= +10: 0.002%, RL=600ohms ,VO=7VRMS

应用

High Quality Audio Preamplifiers

Low Noise Microphone Preamplifiers

Very Low Noise Instrumentation Amplifiers

Low Noise Frequency Synthesizers

Infrared Detector Amplifiers

Hydrophone Amplifiers

Low Distortion Oscillators

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LT1115CN8	N-8	C	$3.57	$2.90
LT1115CN8#PBF	N-8	C	$3.57	$2.90
LT1115CSW	SW-16	C	$4.67	$3.70
LT1115CSW#PBF	SW-16	C	$4.67	$3.70
LT1115CSW#TR	SW-16	C		$3.76
LT1115CSW#TRPBF	SW-16	C		$3.76
