LT1360 - LT1360是50MHz, 800V/μs Op Amp

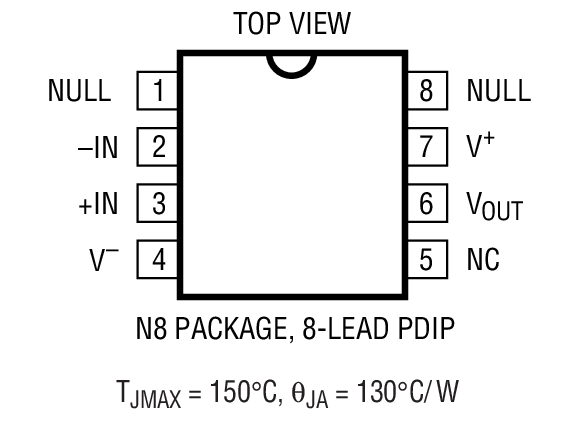

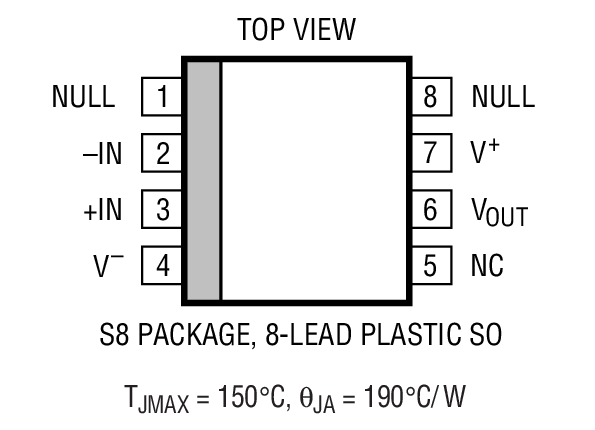

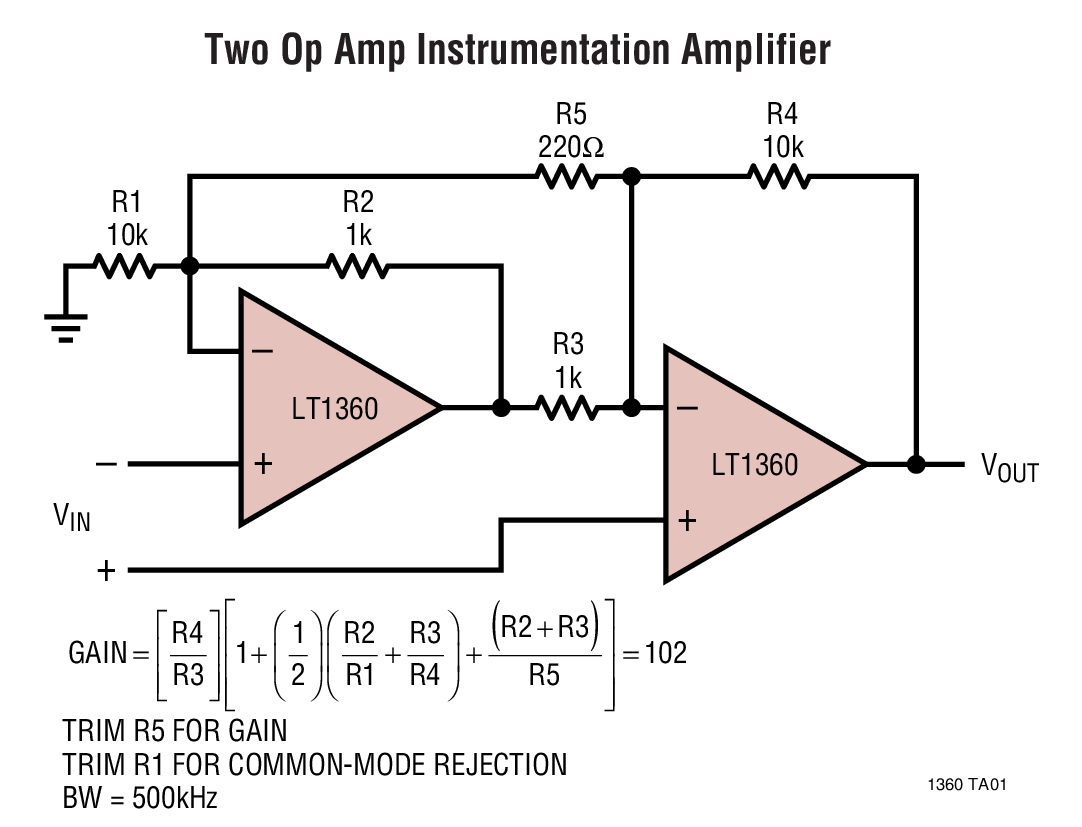

LT1360是Linear公司的一款高速放大器产品，LT1360是50MHz, 800V/μs Op Amp，本站介绍了LT1360的封装应用图解、特点和优点、功能等，并给出了与LT1360相关的凌力尔特元器件型号供参考。
LT1360 - 50MHz, 800V/μs Op Amp
LT1360 - 50MHz, 800V/μs Op Amp - Linear Technology（凌力尔特）
功能描述
The LT1360 is a high speed, very high slew rate operational amplifier with excellent DC performance. The LT1360 features reduced supply current, lower input offset voltage, lower input bias current and higher DC gain than devices with comparable bandwidth. The circuit topology is a voltage feedback amplifier with the slewing characteristics of a current feedback amplifier. The amplifier is a single gain stage with outstanding settling characteristics which makes the circuit an ideal choice for data acquisition systems. The output drives a 500 Ohms load to ±13V with ±15V supplies and a 150 Ohms load to ±3.2V on ±5V supplies. The amplifier is also capable of driving any capacitive load which makes it useful in buffer or cable driver applications. The LT1360 is a member of a family of fast, high performance amplifiers using this unique topology and employing Linear Technology Corporation’s advanced bipolar complementary processing. For dual and quad amplifier versions of the LT1360 see the LT1361/LT1362 data sheet. For 70MHz amplifiers with 6mA of supply current per amplifier see the LT1363 and LT1364/LT1365 data sheets. For lower supply current amplifiers with bandwidths of 12MHz and 25MHz see the LT1354 through LT1359 data sheets. Singles, duals and quads of each amplifier are available.
特点
50MHz Gain-Bandwidth 800V/μs Slew Rate 5mA Maximum Supply Current 9nV/rt Hz Input Noise Voltage Unity Gain Stable C-LoadTM Op Amp Drives All Capacitive Loads 1mV Maximum Input Offset Voltage 1μA Maximum Input Bias Current 250nA Maximum Input Offset Current ±13V Minimum Output Swing into 500 ohms ±3.2V Minimum Output Swing into 150 ohms 4.5V/mV Minimum DC Gain, RL=1k 60ns Settling Time to 0.1%, 10V Step 0.2% Differential Gain, AV=2, RL=150Ohms 0.3° Differential Phase, AV=2, RL=150Ohms Specified at ±2.5V, ±5V, and ±15V应用
Wideband Amplifiers Buffers Active Filters Video and RF Amplification Cable Drivers Data Acquisition Systems以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
| LT1360CN8 | N-8 | C | $2.75 | $2.20 |
| LT1360CN8#PBF | N-8 | C | $2.75 | $2.20 |
| LT1360CS8 | SO-8 | C | $3.08 | $2.45 |
| LT1360CS8#PBF | SO-8 | C | $3.08 | $2.45 |
| LT1360CS8#TR | SO-8 | C | | $2.51 |
| LT1360CS8#TRPBF | SO-8 | C | | $2.51 |
