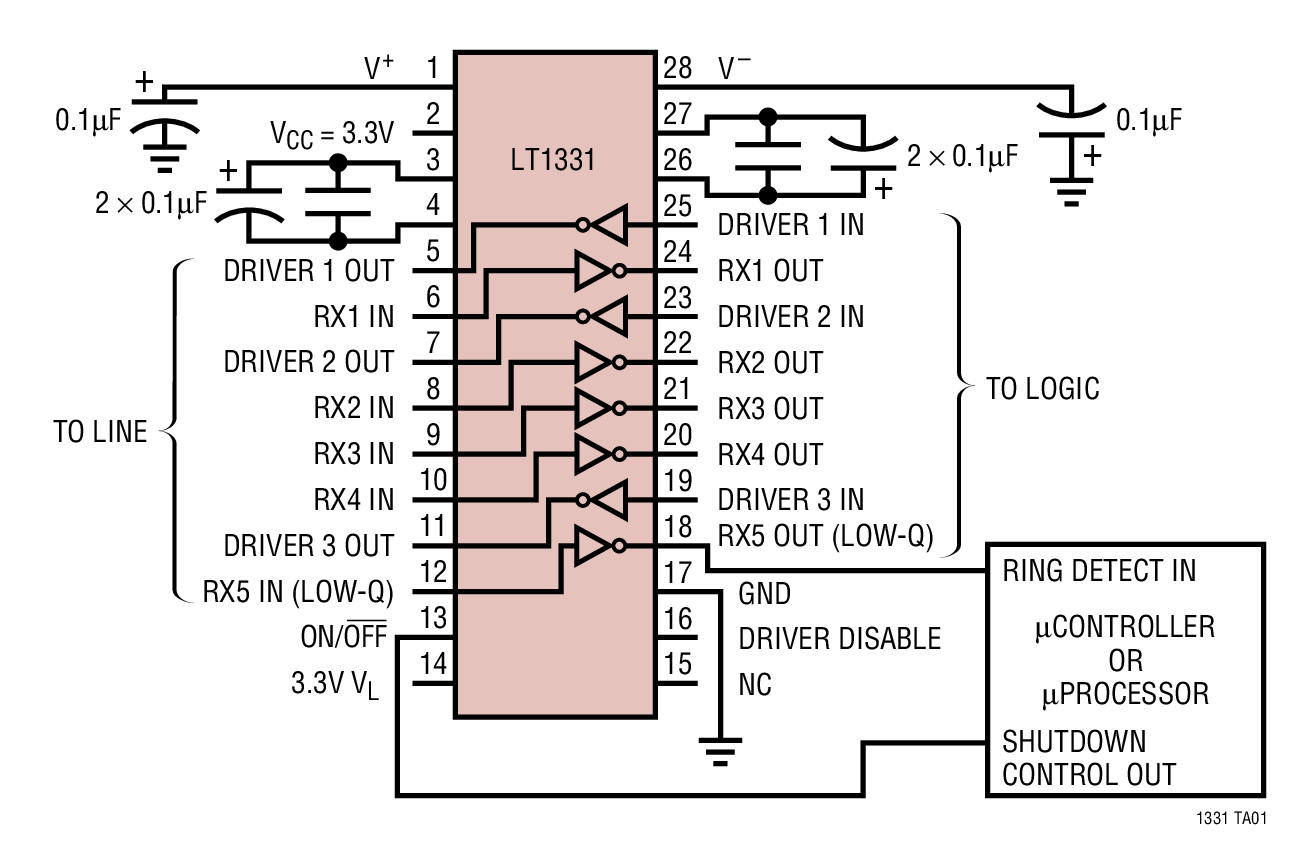

LT1331典型应用图例一

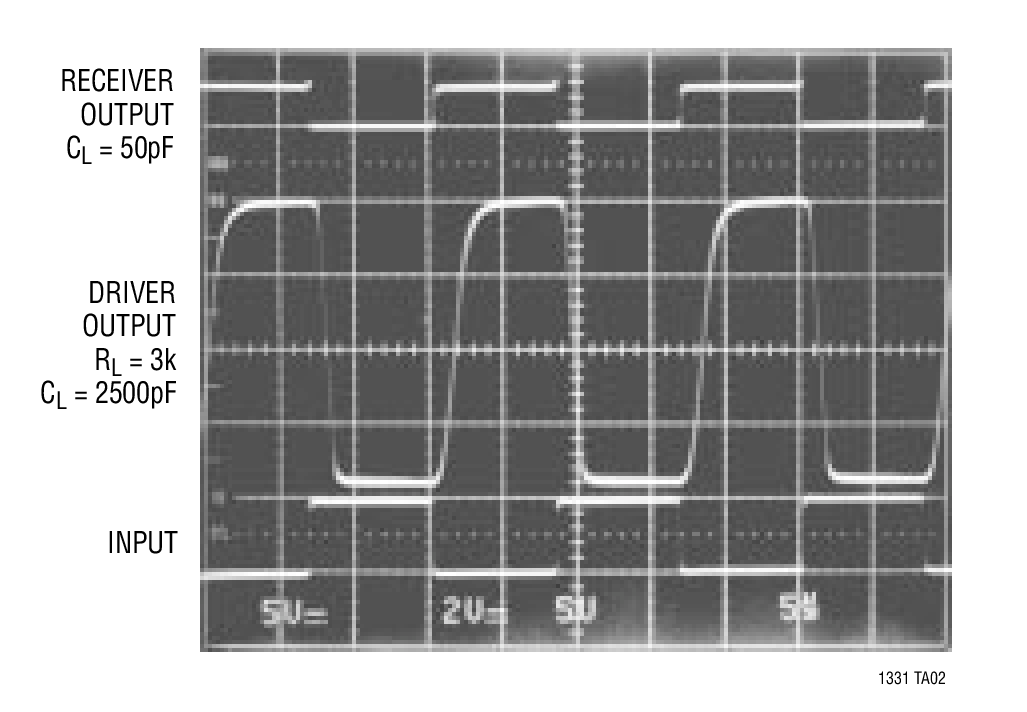

LT1331典型应用图例二
LT1331 - 封装图解：

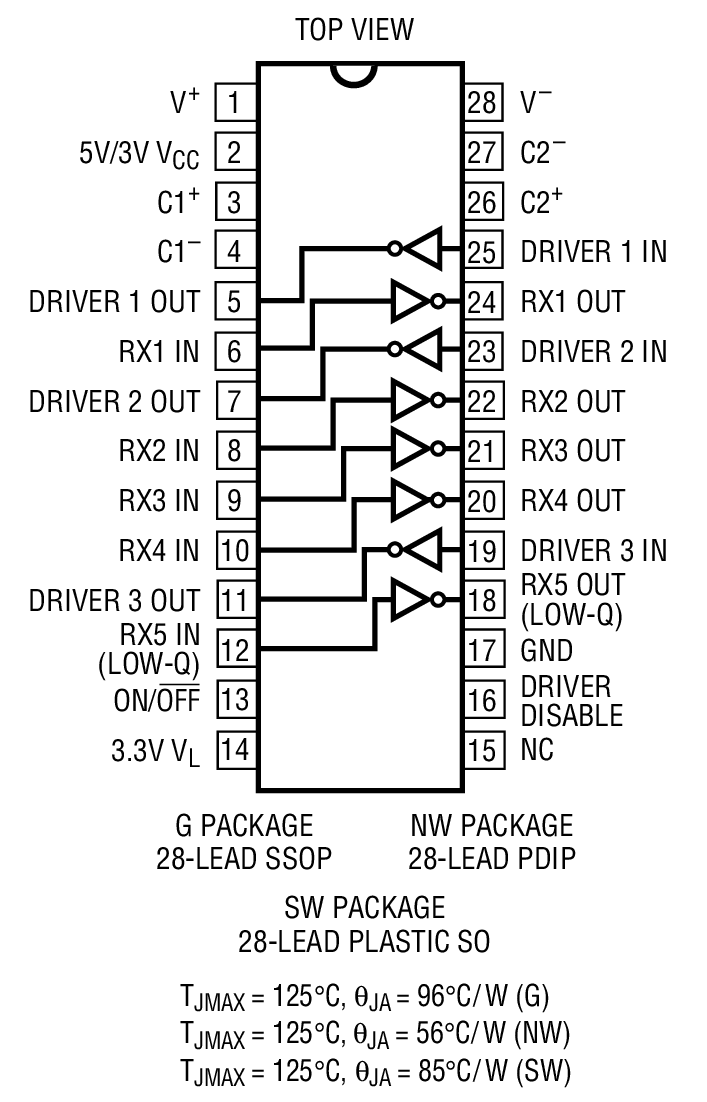

LT1331封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1331介绍

LT1331 - LT1331是3V RS562 or 5V/3V RS232 Transceiver with One Receiver Active in Shutdown

LT1331是LINEAR凌力尔特公司的一款RS232 / RS562 收发器产品，LT1331是LT1331是3V RS562 or 5V/3V RS232 Transceiver with One Receiver Active in Shutdown，本站介绍了LT1331的封装应用图解、特点和优点、功能等，并给出了与LT1331相关的LINEAR元器件型号供参考。

LT1331 - LT1331是3V RS562 or 5V/3V RS232 Transceiver with One Receiver Active in Shutdown - RS232 / RS562 收发器 - 接口器件 - 凌力尔特

LT1331 - 3V RS562 or 5V/3V RS232 Transceiver with One Receiver Active in Shutdown

LT1331 - 3V RS562 or 5V/3V RS232 Transceiver with One Receiver Active in Shutdown - Linear Technology（凌力尔特）

功能描述
The LT®1331 is a 3-driver, 5-receiver RS232 transceiver designed for 3V and mixed 3V/5V systems. Receivers operate from 3V logic supply VL, while the onboard charge pump and drivers operate from 5V or 3V supply VCC.The transceiver has two shutdown modes. One mode disables the drivers and the charge pump, the other shuts down all circuitry except for one low power receiver which can be used for ring detection. The VCC supply may be shut down while in ring detection mode. While shut down, the drivers and receivers assume high impedance output states.The LT1331 is fully compliant with all EIA-RS232 specifications when VCC = 5V. If VCC = 3V, output drive levels are compatible with all known interface circuits. Special bipolar construction techniques protect the drivers and receivers beyond the fault conditions stipulated for RS232. The RS232 I/O pins are resilient to multiple ±10kV ESD strikes. An advanced driver output stage operates up to 120kbaud while driving heavy capacitive loads.
特点
  • RS232 Compatible 3V Operation
  • 3V Logic Interface
  • ESD Protection Over ±10kV
  • 120kbaud Operation for RL = 3k, CL = 2500pF
  • 250kbaud Operation for RL = 3k, CL = 1000pF
  • One Low Power Receiver Remains Active While in Shutdown
  • 60µA Supply Current in Shutdown
  • Low Power Driver Disable Mode
  • Uses Small Capacitors: 0.1µF, 0.2µF
  • CMOS Comparable Low Power: 60mW
  • Easy PC Layout: Flowthrough Architecture
  • Rugged Bipolar Design
  • Outputs Assume a High Impedance State When Off or Powered Down
    • 应用
  • Notebook Computers
  • Palmtop Computers
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1331CG SSOP-28 C $5.42 $4.20
    LT1331CG#PBF SSOP-28 C $5.42 $4.20
    LT1331CG#TR SSOP-28 C $4.30
    LT1331CG#TRPBF SSOP-28 C $4.30
    LT1331CNW NW-28 C $4.92 $3.90
    LT1331CNW#PBF NW-28 C $4.92 $3.90
    LT1331CSW SW-28 C $4.92 $3.90
    LT1331CSW#PBF SW-28 C $4.92 $3.90
    LT1331CSW#TR SW-28 C $4.00
    LT1331CSW#TRPBF SW-28 C $4.00
