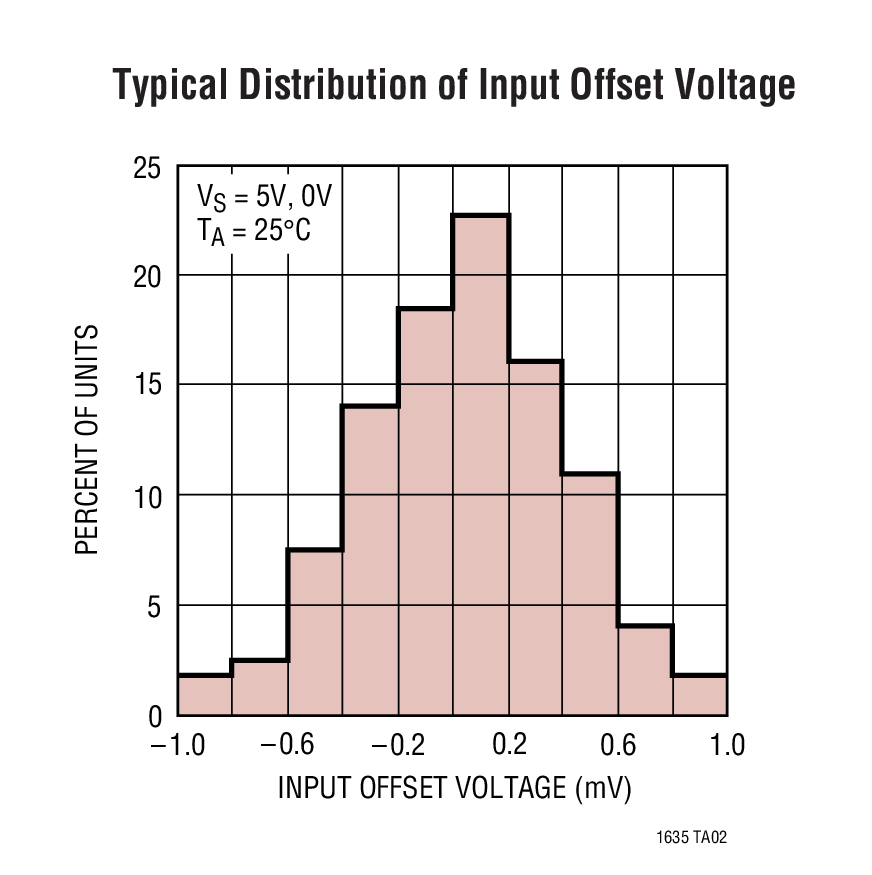

LT1635典型应用图例二
LT1635 - 封装图解：

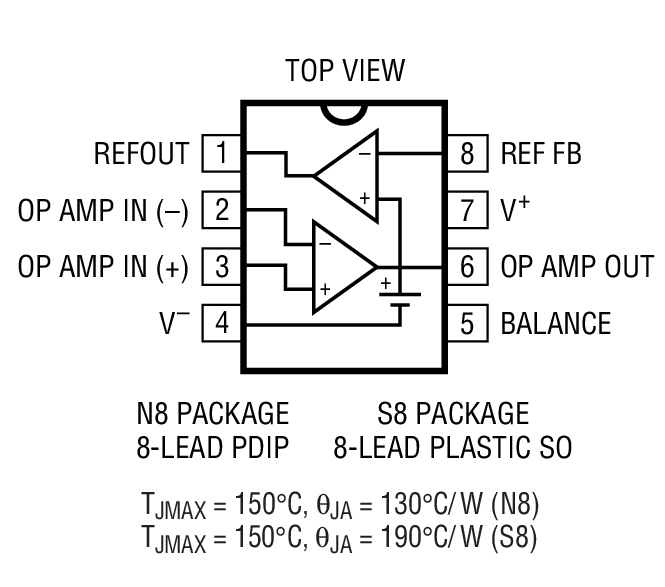

LT1635封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1635介绍

LT1635 - LT1635是Micropower Rail-to-Rail Op Amp and Reference

LT1635是LINEAR凌力尔特公司的一款低功率放大器产品，LT1635是LT1635是Micropower Rail-to-Rail Op Amp and Reference，本站介绍了LT1635的封装应用图解、特点和优点、功能等，并给出了与LT1635相关的LINEAR元器件型号供参考。

LT1635 - LT1635是Micropower Rail-to-Rail Op Amp and Reference - 低功率放大器 - 信号调理 - 凌力尔特

LT1635 - Micropower Rail-to-Rail Op Amp and Reference

LT1635 - Micropower Rail-to-Rail Op Amp and Reference - Linear Technology（凌力尔特）

功能描述
The LT?1635 is a new analog building block that includes arail-to-rail output opamp,a precision reference and referencebuffer. The device operates from supplies as low as a single1.2V or up to ±5V, yet it consumes only 130μA of supplycurrent.

The input common mode range of the op amp includesground and incorporates phase reversal protection to preventfalse outputs from occurring when the input is belowthe negative supply. The rail-to-rail output stage can swing towithin 15mV of each rail with no load and can swing to within250mV of each rail while delivering 10mA of output current.The gain bandwidth of the op amp is 175kHz and it is unity-gainstable with up to 1000pF load capacitance.

The 0.2V reference is referred to V? and includes a bufferamplifier to enhance flexibility. The reference and buffercombine to achieve a drift of 30ppm/°C, a line regulation of20ppm/ V and a load regulation of 150ppm/mA.

The LT1635 is available in 8-pin PDIP and SOpackages,andhas the industry standard LM10 pinout.

特点
  • Guaranteed Operation at 1.2V
  • Op Amp and Reference on Single Chip
  • Micropower: 130µA Supply Current
  • Industrial Temperature Range SO-8 Packages
  • Rail-to-Rail Output
  • High Output Current: 20mA Min
  • Output Drives 1000pF
  • Capable of Floating Mode Operation
  • Specified for 5V and ±5V Supplies
  • Low Reference Drift: 30ppm/°C
  • Industry Standard LM10 Pinout
    • 应用
  • Battery- or Solar-Powered Systems Portable Instrumentation Sensor Conditioning
  • Precision Current Regulators
  • Precision Voltage Regulators
  • Battery Level Indicator
  • Thermocouple Transmitter
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1635CN8 N-8 C $2.15 $1.75
    LT1635CN8#PBF N-8 C $2.15 $1.75
    LT1635CS8 SO-8 C $2.40 $1.95
    LT1635CS8#PBF SO-8 C $2.40 $1.95
    LT1635CS8#TR SO-8 C $2.01
    LT1635CS8#TRPBF SO-8 C $2.01
    LT1635IN8 N-8 I $2.65 $2.15
    LT1635IN8#PBF N-8 I $2.65 $2.15
    LT1635IS8 SO-8 I $3.00 $2.40
    LT1635IS8#PBF SO-8 I $3.00 $2.40
    LT1635IS8#TR SO-8 I $2.46
    LT1635IS8#TRPBF SO-8 I $2.46
