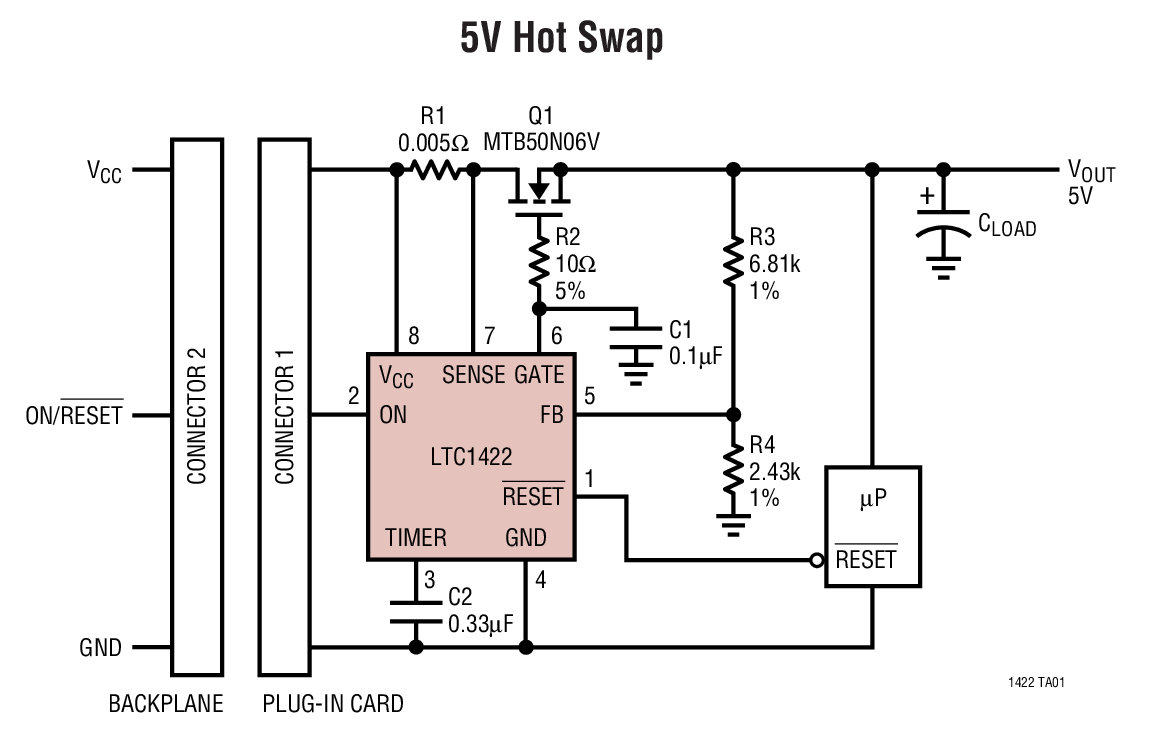

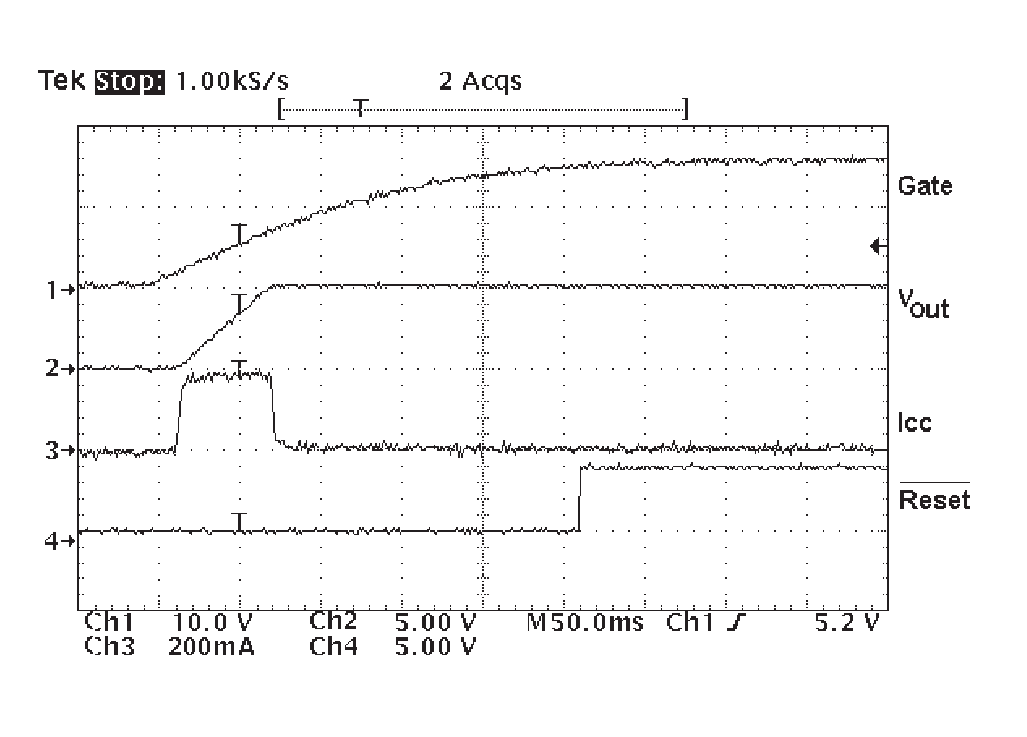

LTC1422 - 典型应用图例：

LTC1422 - 封装图解：

LTC1422 - LTC1422是Hot Swap Controller

LTC1422是Linear公司的一款低电压热插拔控制器产品，LTC1422是Hot Swap Controller，本站介绍了LTC1422的封装应用图解、特点和优点、功能等，并给出了与LTC1422相关的凌力尔特元器件型号供参考。

LTC1422 - Hot Swap Controller

LTC1422 - Hot Swap Controller - Linear Technology（凌力尔特）

功能描述

The LTC1422 is an 8-pin Hot Swap™ controller that allows a board to be safely inserted and removed from a live backplane. Using an external N-channel pass transistor, the board supply voltage can be ramped up at a programmable rate. A high side switch driver controls the N-channel gate for supply voltages ranging from 2.7V to 12V.

A programmable electronic circuit breaker protects against shorts. The RESET output can be used to generate a system reset when the supply voltage falls below a programmable voltage. The ON pin can be used to cycle the board power or to generate a soft reset.

The LTC1422 is available in 8-pin PDIP and SO packages.

特点

Allows Safe Board Insertion and Removal from a Live Backplane

System Reset Output with Programmable Delay

Programmable Electronic Circuit Breaker

User-Programmable Supply Voltage Power-Up Rate

High Side Driver for an External N-Channel FET

Controls Supply Voltages from 2.7V to 12V

Undervoltage Lockout

Soft Reset Input

Glitch Filter on RESET

应用

Hot Board Insertion

Electronic Circuit Breaker

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1422CN8	N-8	C	$2.95	$2.50
LTC1422CN8#PBF	N-8	C	$2.95	$2.50
LTC1422CS8	SO-8	C	$3.50	$2.75
LTC1422CS8#PBF	SO-8	C	$3.50	$2.75
LTC1422CS8#TR	SO-8	C		$2.81
LTC1422CS8#TRPBF	SO-8	C		$2.81
LTC1422IN8	N-8	I	$3.35	$2.85
LTC1422IN8#PBF	N-8	I	$3.35	$2.85
LTC1422IS8	SO-8	I	$4.00	$3.15
LTC1422IS8#PBF	SO-8	I	$4.00	$3.15
LTC1422IS8#TR	SO-8	I		$3.21
LTC1422IS8#TRPBF	SO-8	I		$3.21
