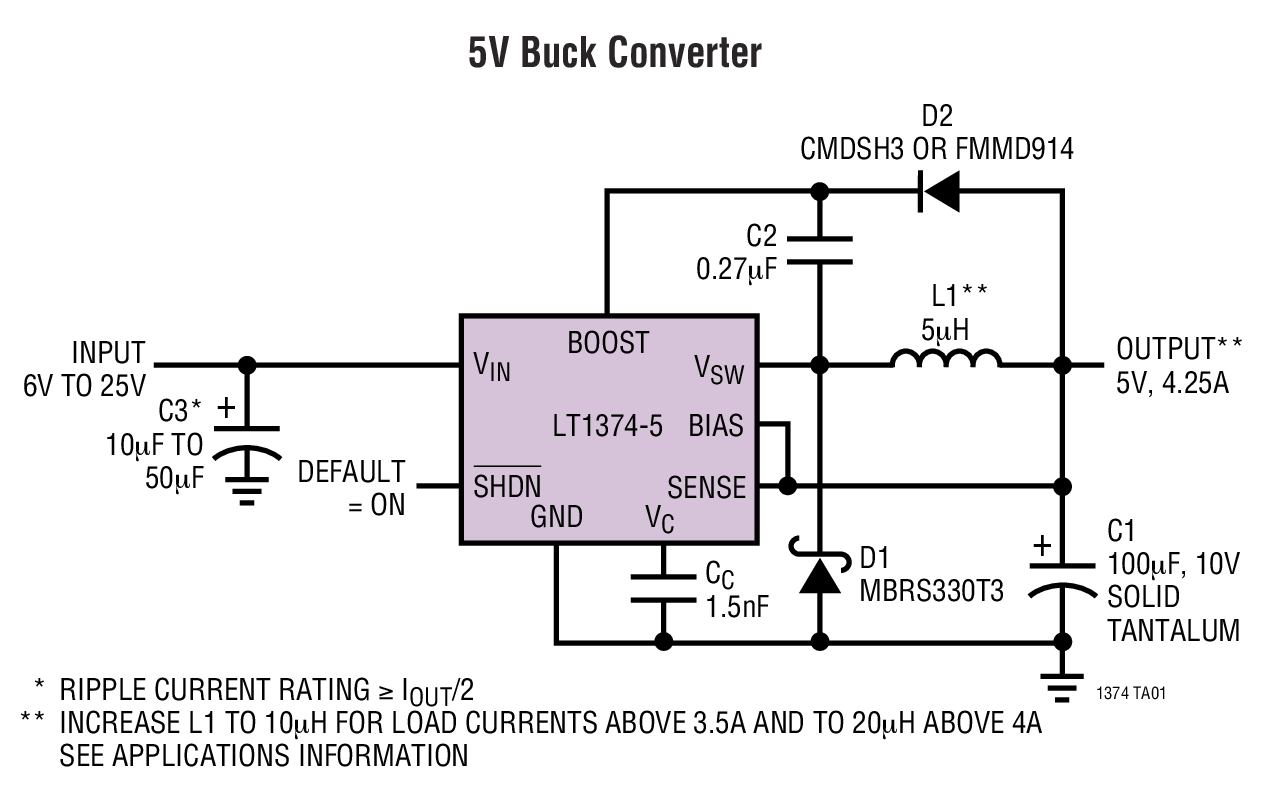

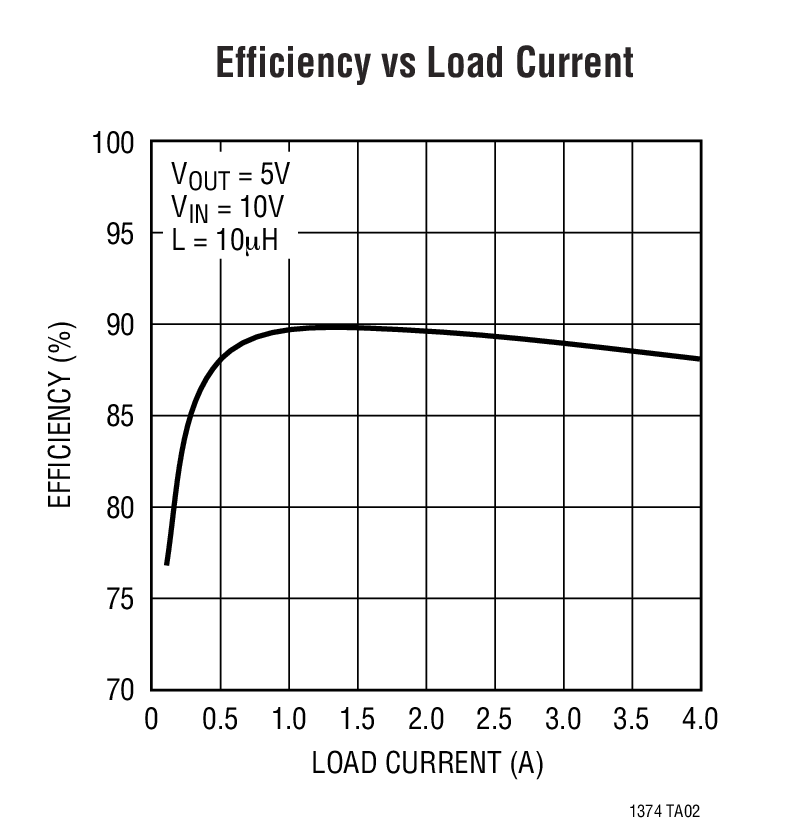

LT1374HV - 典型应用图例：
LT1374HV典型应用图例一
LT1374HV典型应用图例二

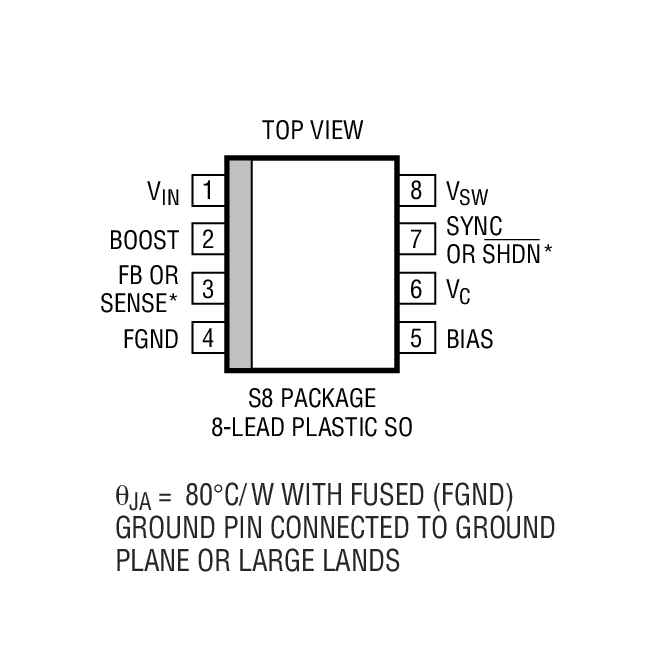

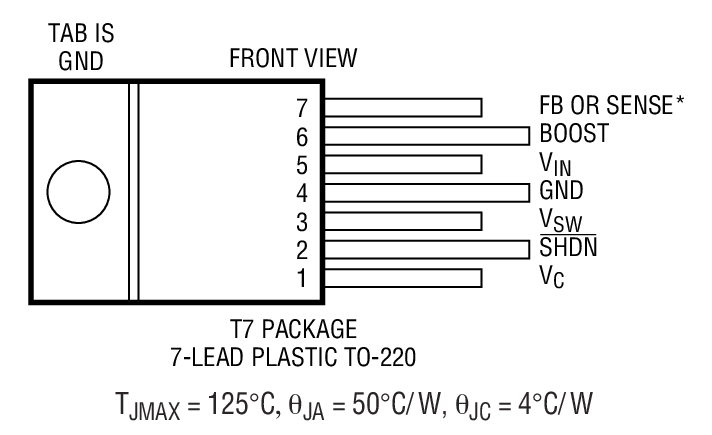

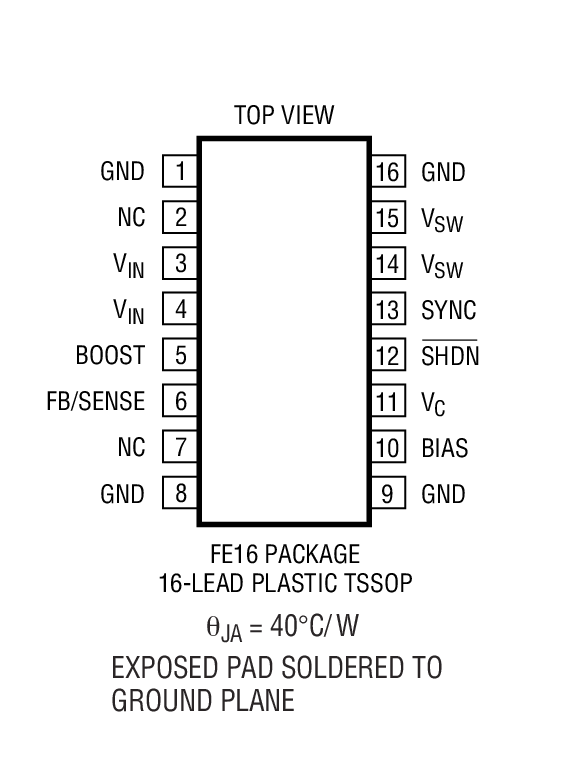

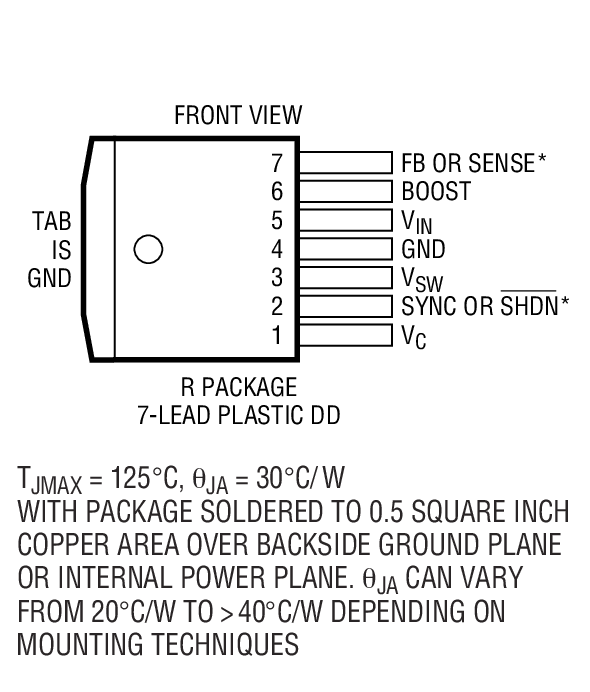

LT1374HV - 封装图解：
LT1374HV封装图解一
LT1374HV封装图解二
LT1374HV封装图解三
LT1374HV封装图解四
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1374HV介绍

LT1374HV - LT1374HV是4.5A, 500kHz Step-Down Switching Regulator

LT1374HV是LINEAR凌力尔特公司的一款SEPIC 稳压器产品，LT1374HV是LT1374HV是4.5A, 500kHz Step-Down Switching Regulator，本站介绍了LT1374HV的封装应用图解、特点和优点、功能等，并给出了与LT1374HV相关的LINEAR元器件型号供参考。

LT1374HV - LT1374HV是4.5A, 500kHz Step-Down Switching Regulator - SEPIC 稳压器 - 电源管理 - 凌力尔特

LT1374HV - 4.5A, 500kHz Step-Down Switching Regulator

LT1374 - 4.5A, 500kHz Step-Down Switching Regulator - Linear Technology（凌力尔特）

功能描述

The LT1374 is a 500kHz monolithic buck mode switching regulator. A 4.5A switch is included on the die along with all the necessary oscillator, control and logic circuitry. High switching frequency allows a considerable reduction in the size of external components. The topology is current mode for fast transient response and good loop stability. Both fixed output voltage and adjustable parts are available.

A special high speed bipolar process and new design techniques achieve high efficiency at high switching frequency. Efficiency is maintained over a wide output current range by using the output to bias the circuitry and by utilizing a supply boost capacitor to saturate the power switch.

The LT1374 is available in standard 7-pin DD, TO-220, fused lead SO-8 and 16-pin exposed pad TSSOP packages. Full cycle-by-cycle short-circuit protection and thermal shutdown are provided. Standard surface mount external parts may be used, including the inductor and capacitors. There is the optional function of shutdown or synchronization. A shutdown signal reduces supply current to 20µA. Synchronization allows an external logic level signal to increase the internal oscillator from 580kHz to 1MHz.

Protected by U.S. Patents, Including 6111439, 5668493, 5656965

特点
  • Constant 500kHz Switching Frequency
  • High Power 16-Pin TSSOP Package Available
  • Uses All Surface Mount Components
  • Inductor Size Reduced to 1.8µH
  • Saturating Switch Design: 0.07Ω
  • Effective Supply Current: 2.5mA
  • Shutdown Current: 20µA
  • Cycle-by-Cycle Current Limiting
  • Easily Synchronizable
    • 应用
  • Portable Computers
  • Battery-Powered Systems
  • Battery Chargers
  • Distributed Power
