当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LTC2903-A1
LTC2903-A1技术文档下载：
LTC2903-A1技术文档产品手册下载
LTC2903-A1 - 典型应用图例：

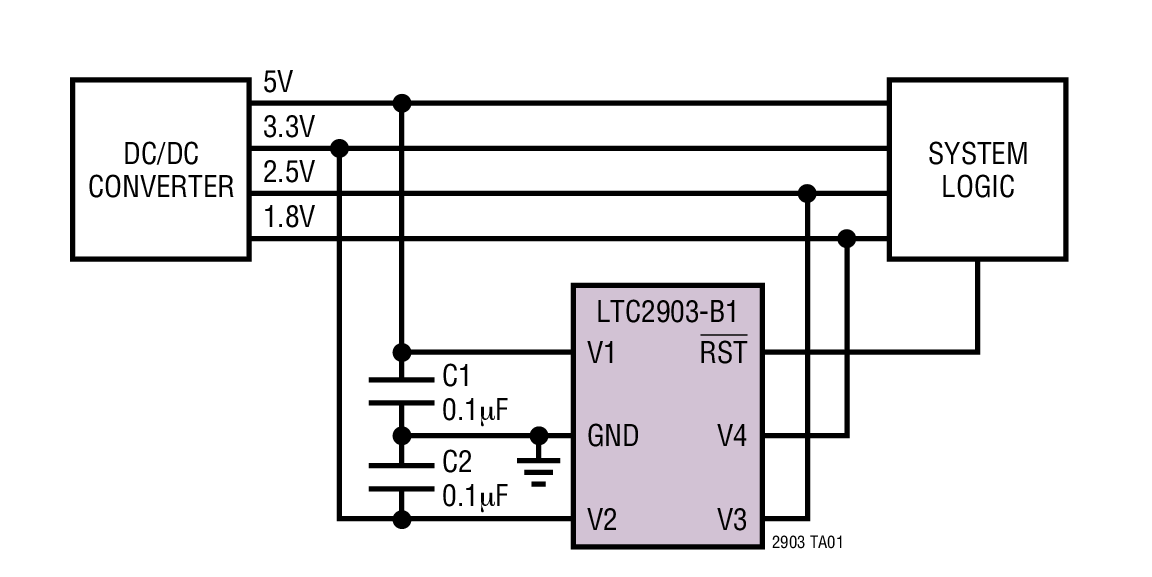

LTC2903-A1典型应用图例一

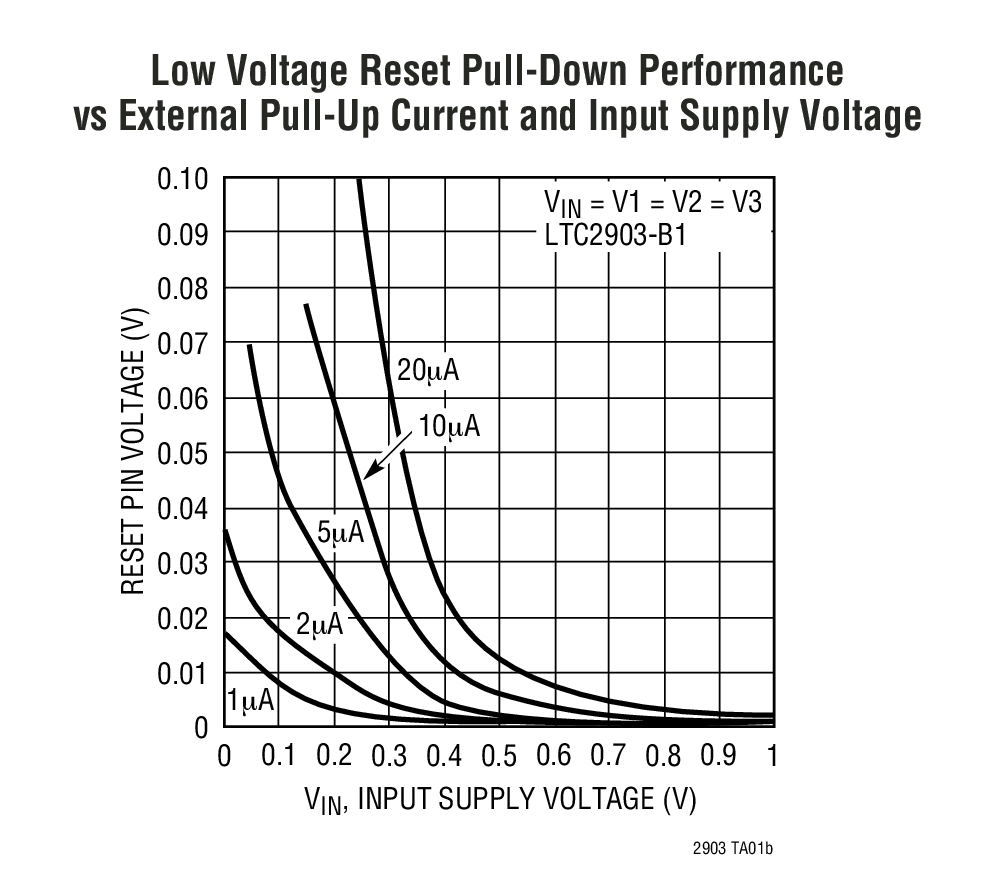

LTC2903-A1典型应用图例二
LTC2903-A1 - 封装图解：
LTC2903-A1封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC2903-A1介绍

LTC2903-A1 - LTC2903-A1是Precision Quad Supply Monitor in 6-Lead SOT-23

LTC2903-A1是LINEAR凌力尔特公司的一款四或更多电源监视器产品，LTC2903-A1是LTC2903-A1是Precision Quad Supply Monitor in 6-Lead SOT-23，本站介绍了LTC2903-A1的封装应用图解、特点和优点、功能等，并给出了与LTC2903-A1相关的LINEAR元器件型号供参考。

LTC2903-A1 - LTC2903-A1是Precision Quad Supply Monitor in 6-Lead SOT-23 - 四或更多电源监视器 - 监视、控制和保护 - 凌力尔特

LTC2903-A1 - Precision Quad Supply Monitor in 6-Lead SOT-23

LTC2903-A1 - Precision Quad Supply Monitor in 6-Lead SOT-23 - Linear Technology（凌力尔特）

功能描述

The LTC2903-1 monitors up to four supply voltages. The common reset output remains low until all four inputs have been in compliance for 200ms. Voltage thresholds maintain ±1.5% accuracy over temperature (with respect to the monitored voltage). The LTC2903-1 features an open-drain RST output with a weak internal pullup.

Internal supply voltage (VCC) is generated from the greater voltage on the V1, V2 inputs. VCC = V1 for LTC2903-D1 and LTC2903-E1. The RST output is guaranteed to sink at least 5µA (VOL = 0.15V) for VCC down to 0.5V and will typically conduct current down to 0V. Quiescent current is 20µA typical, making the LTC2903-1 ideal for power conscious systems. The LTC2903-1 is available in a 6-lead low profile (1mm) SOT-23 package.

特点
  • Ultralow Voltage Reset: VCC = 0.5V Guaranteed
  • Monitor Four Inputs Simultaneously3.3V, 2.5V, 1.8V, ADJ (LTC2903-A1)5V, 3.3V, 2.5V, 1.8V (LTC2903-B1)5V, 3.3V, 1.8V, –5.2V (LTC2903-C1)3.3V, ADJ, ADJ, ADJ (LTC2903-D1)5V, ADJ, ADJ, ADJ (LTC2903-E1)
  • Guaranteed Threshold Accuracy: ±1.5% of Monitored Voltage over Temperature
  • 10% (A1, B1, C1) and 5% (D1, E1) Undervoltage Monitoring
  • Low Supply Current: 20µA Typical
  • 200ms Reset Time Delay
  • Active Low Open-Drain RST Output
  • Power Supply Glitch Immunity
  • Low Profile (1mm) SOT-23 (ThinSOTTM) Package
    • 应用
  • Multivoltage Systems
  • Optical Networking Systems
  • Cell Phone Base Stations
  • Network Servers
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC2903CS6-A1 SOT-23 C $2.48
    LTC2903CS6-A1#PBF SOT-23 C $2.48
    LTC2903CS6-A1#TR SOT-23 C $2.48 $1.71
    LTC2903CS6-A1#TRM SOT-23 C $2.48 $1.76
    LTC2903CS6-A1#TRMPBF SOT-23 C $2.48 $1.76
    LTC2903CS6-A1#TRPBF SOT-23 C $2.48 $1.71
    LTC2903CS6-B1 SOT-23 C $2.48
    LTC2903CS6-B1#PBF SOT-23 C $2.48
    LTC2903CS6-B1#TR SOT-23 C $2.48 $1.71
    LTC2903CS6-B1#TRM SOT-23 C $2.48 $1.76
    LTC2903CS6-B1#TRMPBF SOT-23 C $2.48 $1.76
    LTC2903CS6-B1#TRPBF SOT-23 C $2.48 $1.71
    LTC2903CS6-C1 SOT-23 C $2.66
    LTC2903CS6-C1#PBF SOT-23 C $2.66
    LTC2903CS6-C1#TR SOT-23 C $2.66 $1.81
    LTC2903CS6-C1#TRM SOT-23 C $2.66 $1.86
    LTC2903CS6-C1#TRMPBF SOT-23 C $2.66 $1.86
    LTC2903CS6-C1#TRPBF SOT-23 C $2.66 $1.81
    LTC2903CS6-D1 SOT-23 C $2.48
    LTC2903CS6-D1#PBF SOT-23 C $2.48
    LTC2903CS6-D1#TR SOT-23 C $2.48 $1.71
    LTC2903CS6-D1#TRM SOT-23 C $2.48 $1.76
    LTC2903CS6-D1#TRMPBF SOT-23 C $2.48 $1.76
    LTC2903CS6-D1#TRPBF SOT-23 C $2.48 $1.71
    LTC2903CS6-E1 SOT-23 C $2.48
    LTC2903CS6-E1#PBF SOT-23 C $2.48
    LTC2903CS6-E1#TR SOT-23 C $2.48 $1.71
    LTC2903CS6-E1#TRM SOT-23 C $2.48 $1.76
    LTC2903CS6-E1#TRMPBF SOT-23 C $2.48 $1.76
    LTC2903CS6-E1#TRPBF SOT-23 C $2.48 $1.71
    LTC2903IS6-A1 SOT-23 I $2.84
    LTC2903IS6-A1#PBF SOT-23 I $2.84
    LTC2903IS6-A1#TR SOT-23 I $2.84 $1.96
    LTC2903IS6-A1#TRM SOT-23 I $2.84 $2.01
    LTC2903IS6-A1#TRMPBF SOT-23 I $2.84 $2.01
    LTC2903IS6-A1#TRPBF SOT-23 I $2.84 $1.96
    LTC2903IS6-B1 SOT-23 I $2.84
    LTC2903IS6-B1#PBF SOT-23 I $2.84
    LTC2903IS6-B1#TR SOT-23 I $2.84 $1.96
    LTC2903IS6-B1#TRM SOT-23 I $2.84 $2.01
    LTC2903IS6-B1#TRMPBF SOT-23 I $2.84 $2.01
    LTC2903IS6-B1#TRPBF SOT-23 I $2.84 $1.96
    LTC2903IS6-C1 SOT-23 I $2.36
    LTC2903IS6-C1#PBF SOT-23 I $2.36
    LTC2903IS6-C1#TR SOT-23 I $2.36 $2.06
    LTC2903IS6-C1#TRM SOT-23 I $2.36 $2.11
    LTC2903IS6-C1#TRMPBF SOT-23 I $2.36 $2.11
    LTC2903IS6-C1#TRPBF SOT-23 I $2.36 $2.06
    LTC2903IS6-D1 SOT-23 I $2.84
    LTC2903IS6-D1#PBF SOT-23 I $2.84
    LTC2903IS6-D1#TR SOT-23 I $2.84 $1.96
    LTC2903IS6-D1#TRMPBF SOT-23 I $2.84 $2.01
    LTC2903IS6-D1#TRPBF SOT-23 I $2.84 $1.96
    LTC2903IS6-E1 SOT-23 I $2.84
    LTC2903IS6-E1#PBF SOT-23 I $2.84
    LTC2903IS6-E1#TR SOT-23 I $2.84 $1.96
    LTC2903IS6-E1#TRM SOT-23 I $2.84 $2.01
    LTC2903IS6-E1#TRMPBF SOT-23 I $2.84 $2.01
    LTC2903IS6-E1#TRPBF SOT-23 I $2.84 $1.96
