当前位置:Linear公司 > > 凌力尔特芯片 >> LTC1392
LTC1392技术文档下载:
LTC1392技术文档产品手册下载
LTC1392 - 典型应用图例:

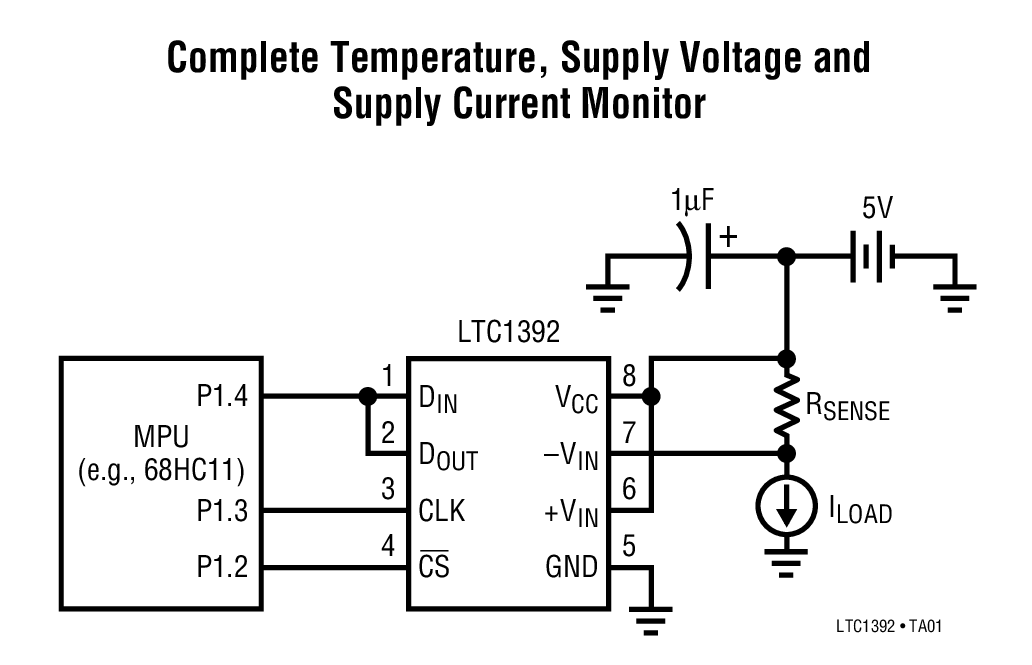

LTC1392典型应用图例一

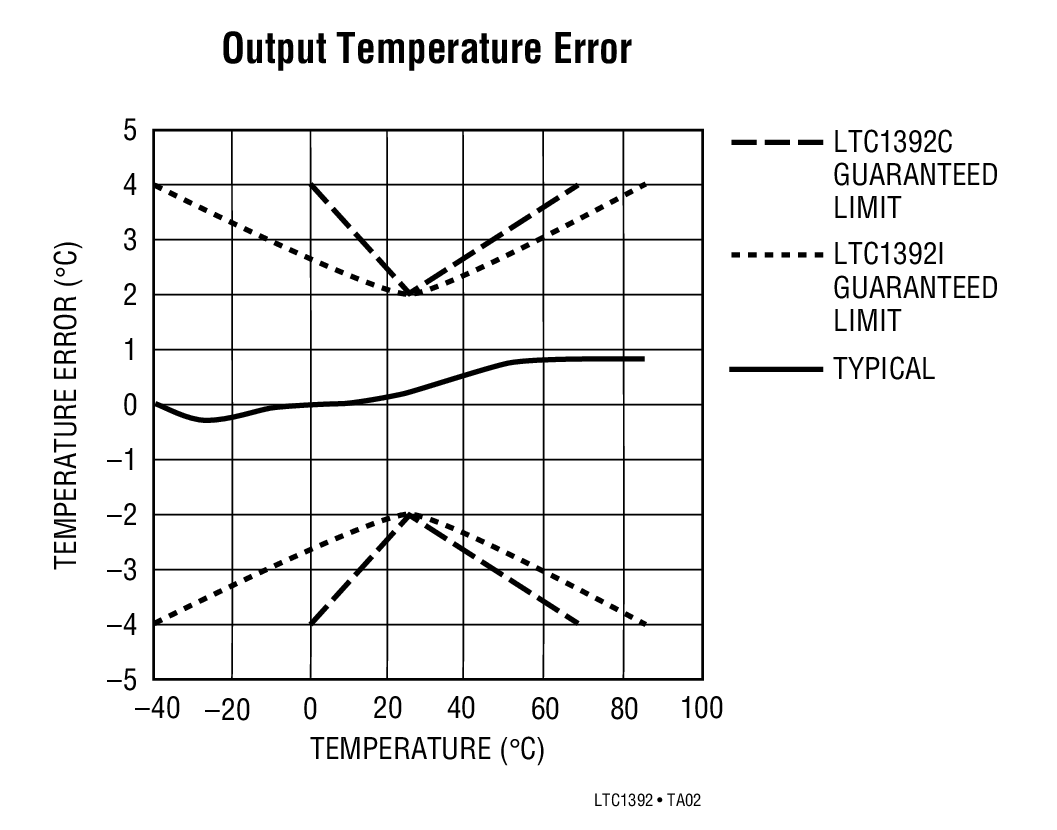

LTC1392典型应用图例二
LTC1392 - 封装图解:

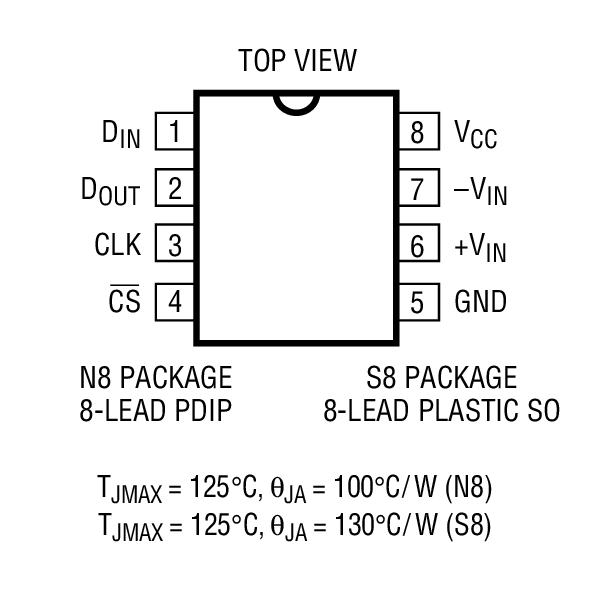

LTC1392封装图解一
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LTC1392介绍
LTC1392 - LTC1392是Micropower Temperature, Power Supply and Differential Voltage Monitor

LTC1392是Linear公司的一款电源监视器产品,LTC1392是Micropower Temperature, Power Supply and Differential Voltage Monitor,本站介绍了LTC1392的封装应用图解、特点和优点、功能等,并给出了与LTC1392相关的凌力尔特元器件型号供参考。

LTC1392 - Micropower Temperature, Power Supply and Differential Voltage Monitor

LTC1392 - Micropower Temperature, Power Supply and Differential Voltage Monitor - Linear Technology(凌力尔特)

功能描述
The LTC?1392 is a micropower data acquisition system designed to measure temperature, on-chip supply voltage and a differential voltage. The differential inputs feature rail-to-rail common mode input voltage range. The LTC1392 contains a temperature sensor, a 10-bit A/D converter with sample-and-hold, a high accuracy bandgap reference and a 3-wire half-duplex serial interface.The LTC1392 can be programmed to measure ambient temperature, power supply voltage and an external voltage at the differential input pins, that can also be used for current measurement using an external sense resistor. When measuring temperature, the output code of the A/D converter is linearly proportional to the temperature in °C. Production trimming achieves ?2°C initial accuracy at room temperature and ?4°C over the full ?40°C to 85°C temperature range.The on-chip serial port allows efficient data transfer to a wide range of MPUs over three or four wires. This, coupled with low power consumption, makes remote location sensing possible and facilitates transmitting data through isolation barriers.

特点
  • Complete Ambient Temperature Sensor Onboard
  • System Power Supply Monitor
  • 10-Bit Resolution Rail-to-Rail Common-Mode Differential Voltage Input
  • Available in 8-Pin SO and PDIP
  • 0.2µA Supply Current When Idle
  • 700µA Supply Current When Sampling at Maximum Rate
  • Single Supply Voltage: 4.5V to 6V
  • 3-Wire Half-Duplex Serial I/O
  • Communicates with Most MPU Serial Ports and All MPU Parallel I/O Ports
  • 应用
  • Temperature Measurement
  • Power Supply Measurement
  • Current Measurement
  • Remote Data Acquisition
  • Environment Monitoring
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1392CN8 N-8 C $5.00 $3.95
    LTC1392CN8#PBF N-8 C $5.00 $3.95
    LTC1392CS8 SO-8 C $5.10 $4.05
    LTC1392CS8#PBF SO-8 C $5.10 $4.05
    LTC1392CS8#TR SO-8 C $4.11
    LTC1392CS8#TRPBF SO-8 C $4.11
    LTC1392IN8 N-8 I $5.90 $4.70
    LTC1392IN8#PBF N-8 I $5.90 $4.70
    LTC1392IS8 SO-8 I $6.25 $4.95
    LTC1392IS8#PBF SO-8 I $6.25 $4.95
    LTC1392IS8#TR SO-8 I $5.01
    LTC1392IS8#TRPBF SO-8 I $5.01
