LTC5533 - 300MHz to 11GHz Precision Dual RF Power Detector

LTC5533 - 300MHz to 11GHz Precision Dual RF Power Detector - Linear Technology（凌力尔特）

功能描述

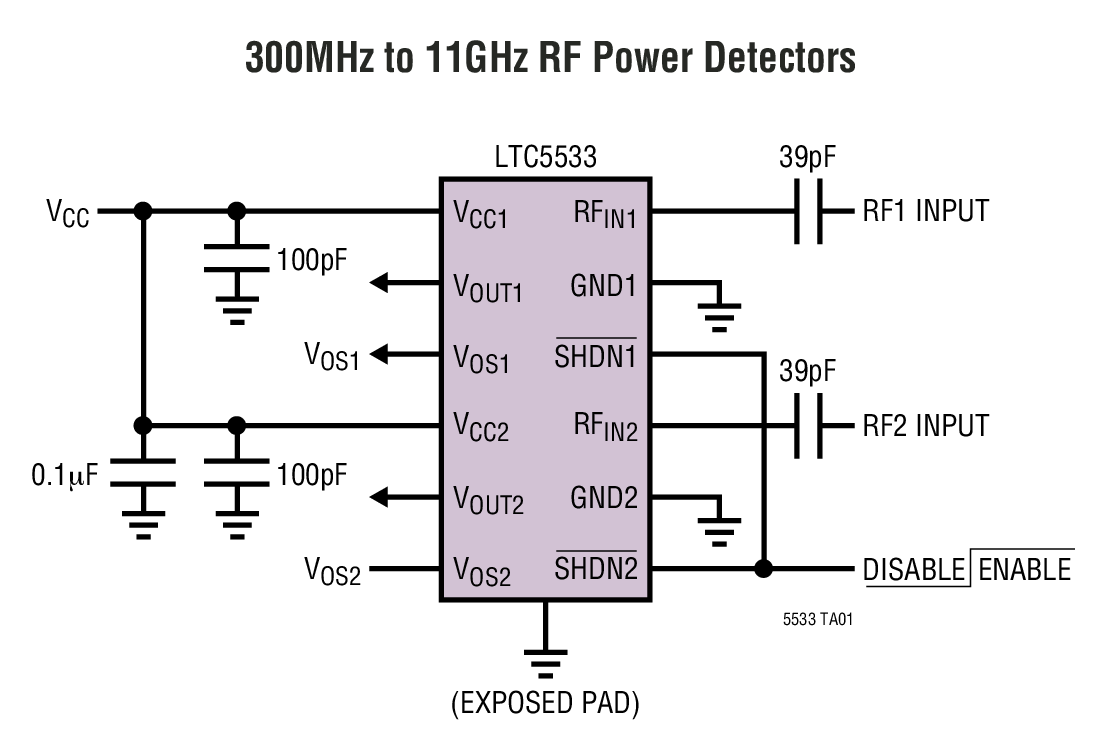

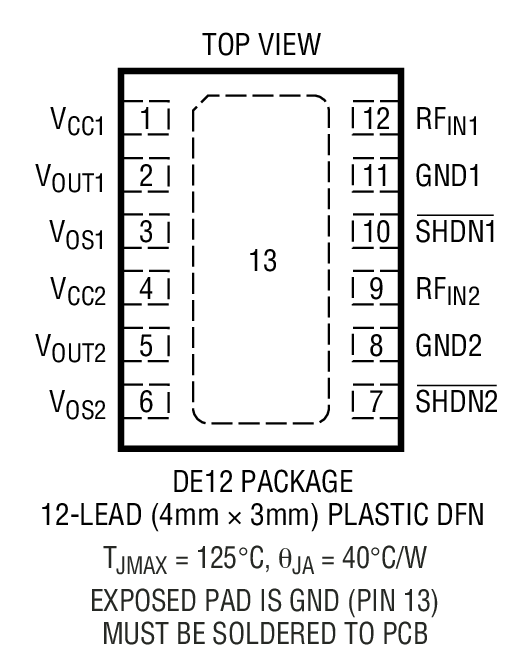

The LTC5533 is a dual channel RF power detector for RF applications operating in the 300MHz to 11GHz range. Two independent temperature compensated Schottky diode peak detectors and buffer amplifiers are combined in a small 4mm × 3mm DFN package.

The RF input voltage is peak detected using on-chip Schottky diodes. The detected voltage is buffered and supplied to the VOUT pins. A power saving shutdown mode reduces current to less than 2µA/channel. The initial output starting voltages can be precisely adjusted using the VOS pins.

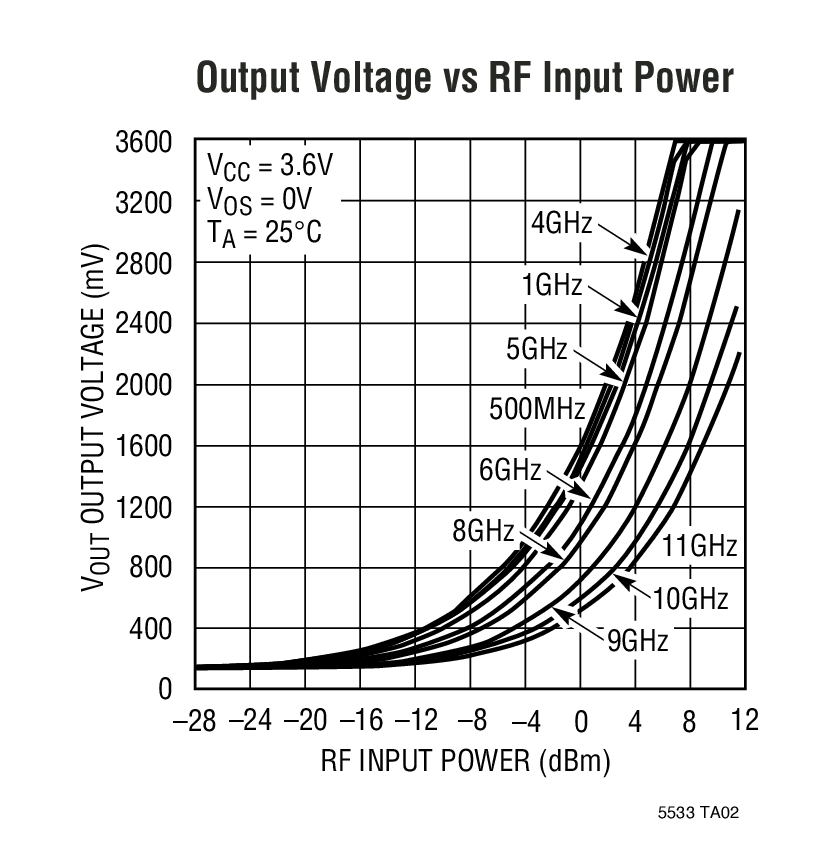

The LTC5533 operates with input power levels from -32dBm to 12dBm.

*Higher frequency operation is achievable with reduced performance. Consult factory for more information.

特点

Two Independent Temperature Compensated Schottky Diode RF Peak Detectors

45dB Channel-to-Channel Isolation at 2GHz

Wide Input Frequency Range: 300MHz to 11GHz*

Wide Input Power Range: -32dBm to 12dBm

Buffered Detector Outputs with Gain of 2x

Adjustable VOUT Starting Voltage

Wide VCC Range of 2.7V to 6V

Low Operating Current: <500µA/Channel

Low Shutdown Current: <2µA/Channel
