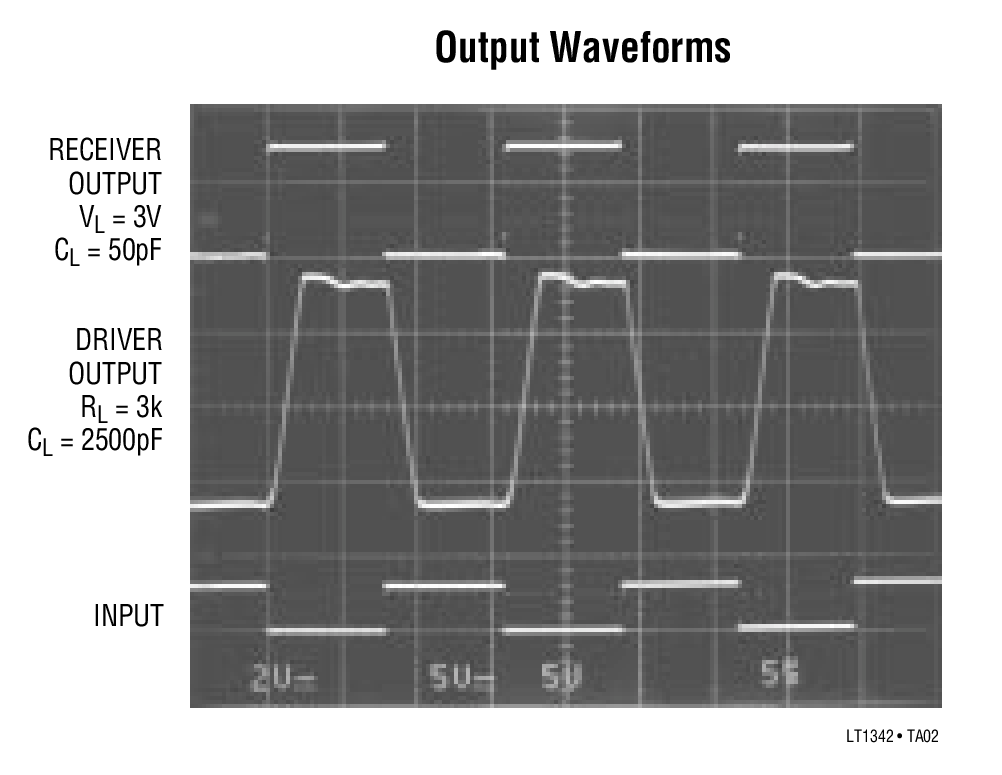

LT1342典型应用图例一

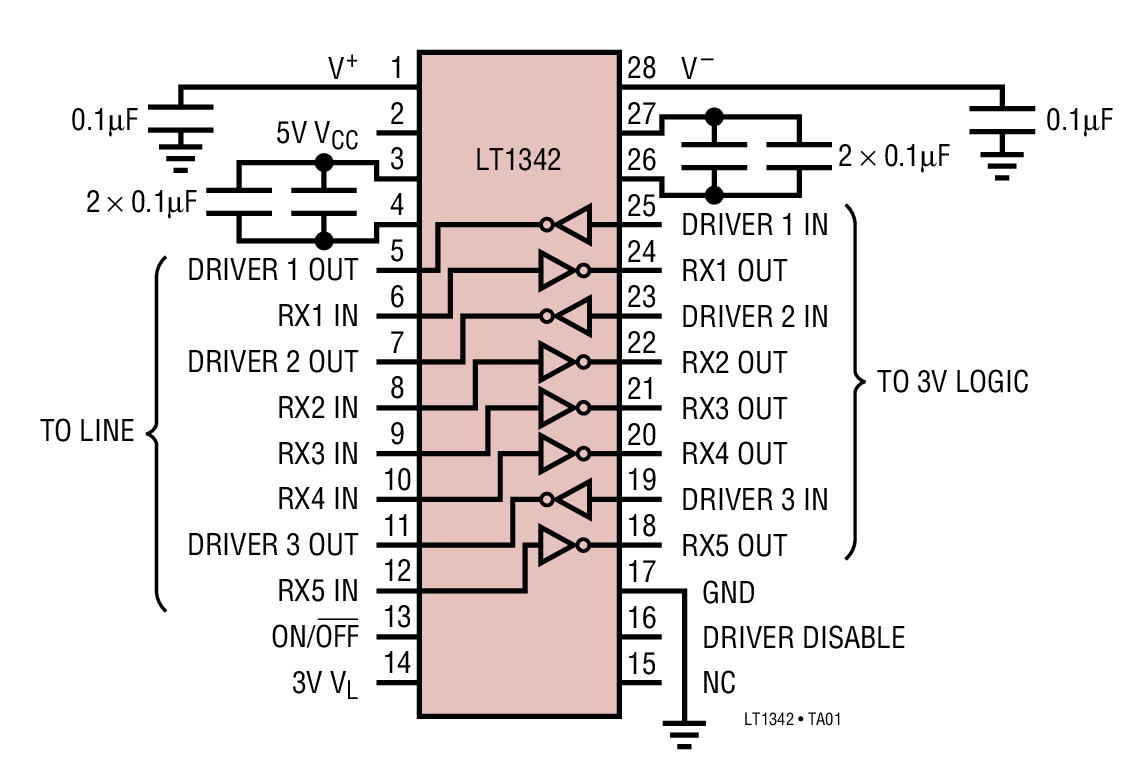

LT1342典型应用图例二
LT1342 - 封装图解:

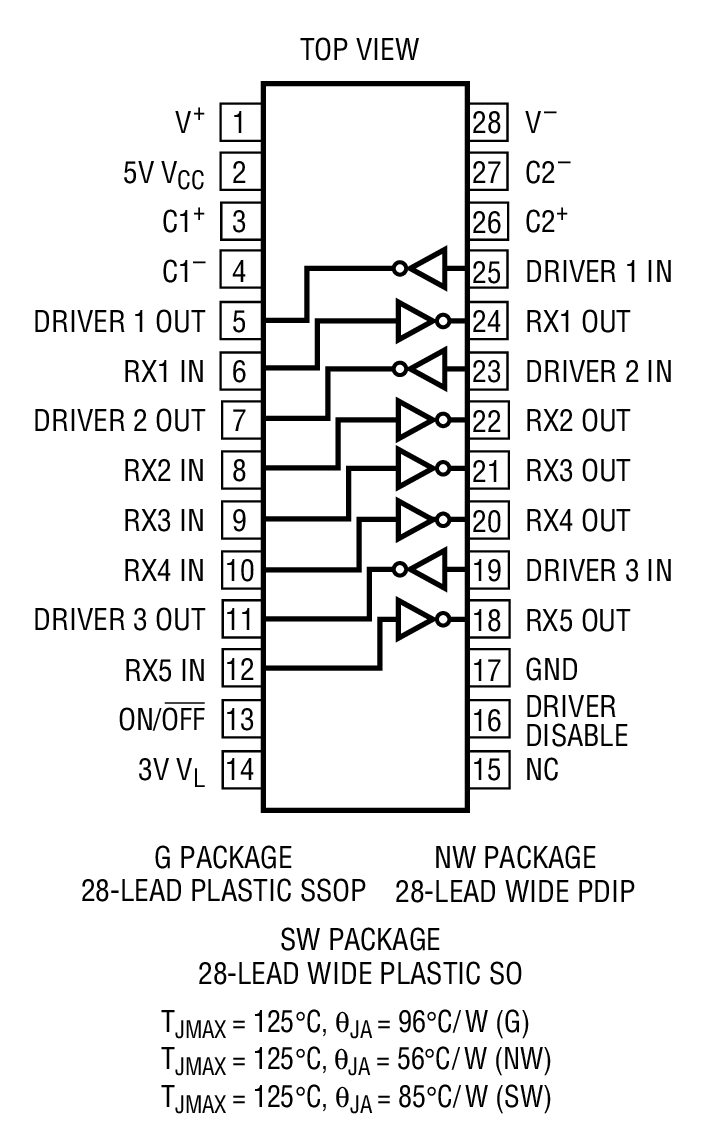

LT1342封装图解一
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LT1342介绍
LT1342 - LT1342是5V RS232 Transceiver with 3V Logic Interface

LT1342是Linear公司的一款RS232 / RS562 收发器产品,LT1342是5V RS232 Transceiver with 3V Logic Interface,本站介绍了LT1342的封装应用图解、特点和优点、功能等,并给出了与LT1342相关的凌力尔特元器件型号供参考。

LT1342 - 5V RS232 Transceiver with 3V Logic Interface

LT1342 - 5V RS232 Transceiver with 3V Logic Interface - Linear Technology(凌力尔特)

功能描述
The LT®1342 is an advanced low power three-driver, five-receiver RS232 transceiver. The LT1342 operates from a 5V supply and a 3V logic supply. Receiver outputs can interface directly to 3V logic circuits. Included on the chip is a shutdown pin for reducing supply current to near zero. All receivers and drivers assume high impedance states during shutdown.The driver disable function provides additional control of operating mode. When driver disable is high the charge pump and drivers turn off. Receivers continue to operate during driver disable.New ESD structures on the chip allow the LT1342 to survive multiple ±10kV strikes, eliminating the need for costly TransZorbs® on the RS232 line pins.The LT1342 is fully compliant with all EIA RS232 specifications and operates in excess of 120kbaud even driving heavy capacitive loads.
特点
  • ESD Protection Over ±10kV
  • 3V Logic Interface
  • Uses Small Capacitors: 0.1µF, 0.2µF
  • 1µA Supply Current in Shutdown
  • Low Power Driver Disable Operating Mode
  • Pin Compatible with LT1137A
  • 120kBaud Operation for RL = 3k, CL = 2500pF
  • 250kBaud Operation for RL = 3k, CL = 1000pF
  • CMOS Comparable Low Power: 60mW
  • Easy PC Layout: Flowthrough Architecture
  • Rugged Bipolar Design
  • Outputs Assume a High Impedance State When Off or Powered Down
  • Absolutely No Latch-Up
  • 应用
  • Notebook Computers
  • Palmtop Computers
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1342CG SSOP-28 C $5.17 $4.10
    LT1342CG#PBF SSOP-28 C $5.17 $4.10
    LT1342CG#TR SSOP-28 C $4.20
    LT1342CG#TRPBF SSOP-28 C $4.20
    LT1342CNW NW-28 C $4.75 $3.75
    LT1342CNW#PBF NW-28 C $4.75 $3.75
    LT1342CSW SW-28 C $4.75 $3.75
    LT1342CSW#PBF SW-28 C $4.75 $3.75
    LT1342CSW#TR SW-28 C $3.85
    LT1342CSW#TRPBF SW-28 C $3.85
