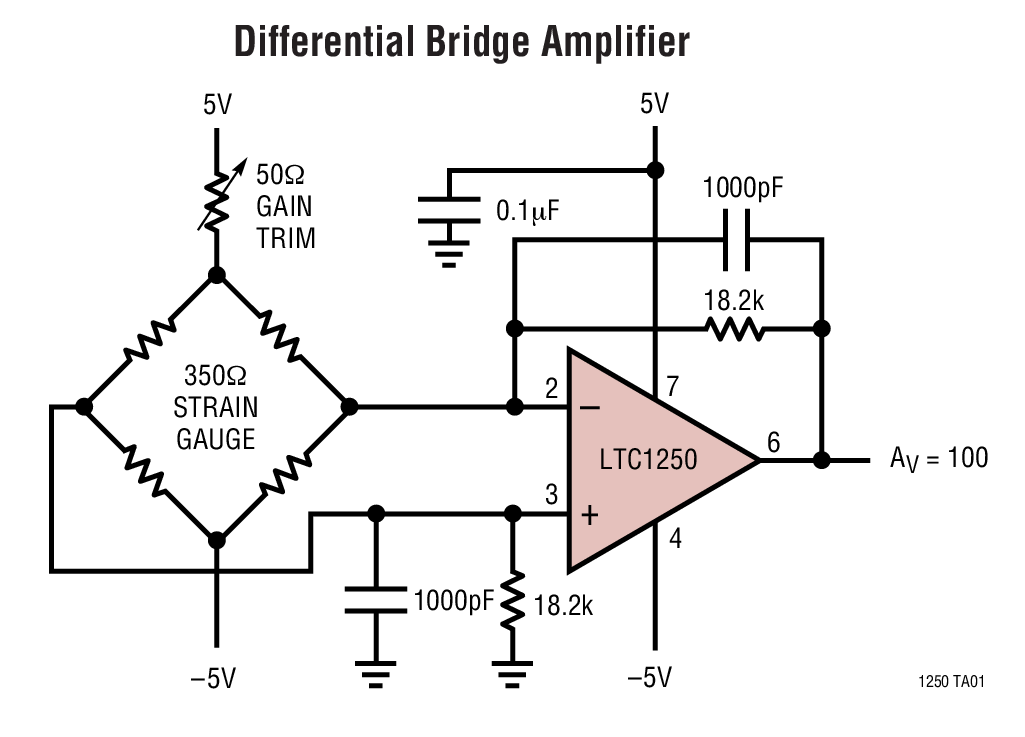

LTC1250典型应用图例一

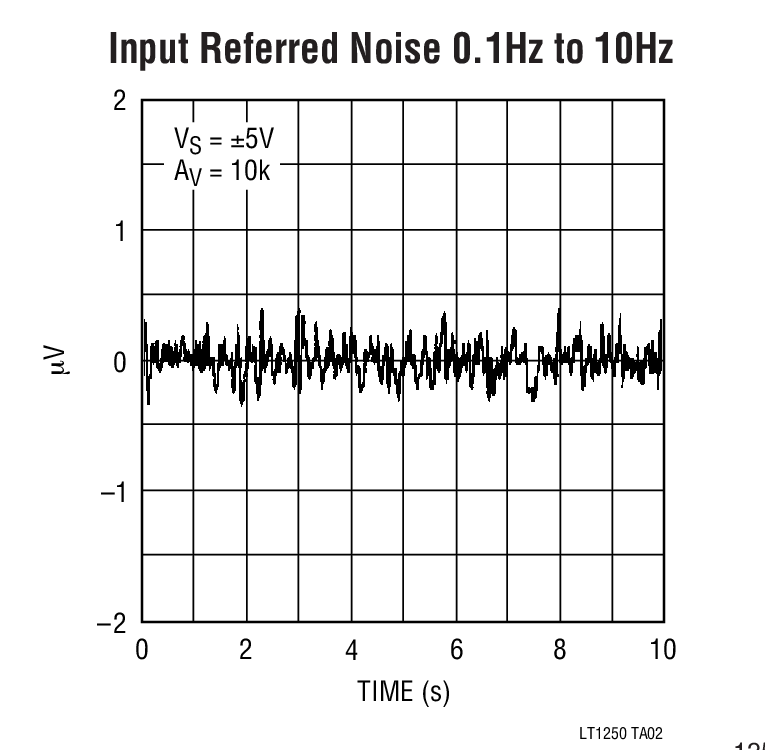

LTC1250典型应用图例二
LTC1250 - 封装图解：

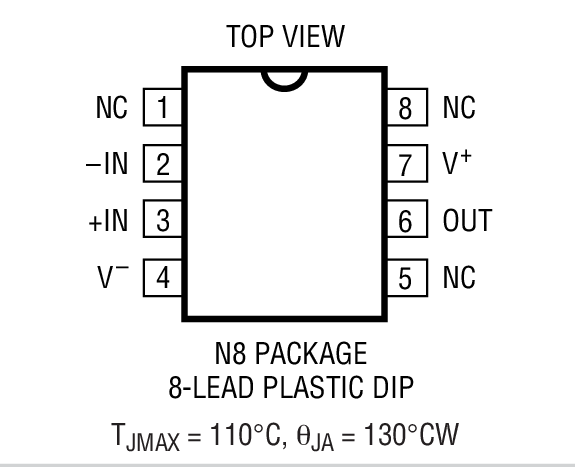

LTC1250封装图解一

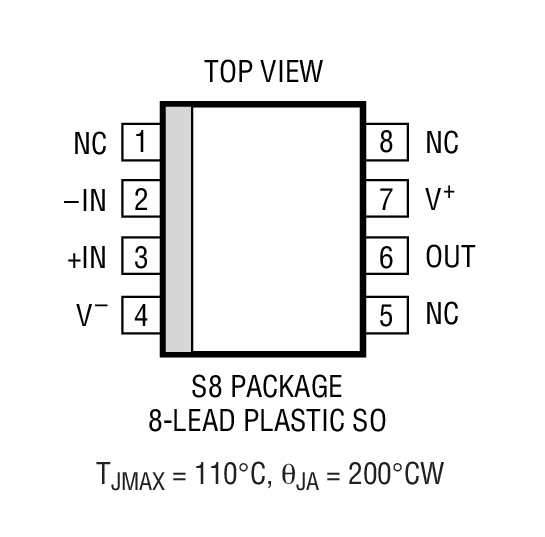

LTC1250封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1250介绍

LTC1250 - LTC1250是Very Low Noise Zero-Drift Bridge Amplifier

LTC1250是LINEAR凌力尔特公司的一款低偏置电流放大器产品，LTC1250是LTC1250是Very Low Noise Zero-Drift Bridge Amplifier，本站介绍了LTC1250的封装应用图解、特点和优点、功能等，并给出了与LTC1250相关的LINEAR元器件型号供参考。

LTC1250 - LTC1250是Very Low Noise Zero-Drift Bridge Amplifier - 低偏置电流放大器 - 信号调理 - 凌力尔特

LTC1250 - Very Low Noise Zero-Drift Bridge Amplifier

LTC1250 - Very Low Noise Zero-Drift Bridge Amplifier - Linear Technology（凌力尔特）

功能描述
The LTC1250 is a high performance, very low noise zerodrift operational amplifier. The LTC1250's combination of low front-end noise and DC precision makes it ideal for use with low impedance bridge transducers. The LTC1250 features typical input noise of 0.75μVP-P from 0.1Hz to 10Hz, and 0.2μVP-P from 0.1Hz to 1Hz. The LTC1250 has DC to 1Hz noise of 0.35μVP-P, surpassing that of low noise bipolar parts including the OP-07, OP-77, and LT1012. The LTC1250 uses the industry-standard single op amp pinout, and requires no external components or nulling signals, allowing it to be a plug-in replacement for bipolar op amps.

The LTC1250 incorporates an improved output stage capable of driving 4.3V into a 1k load with a single 5V supply; it will swing
±4.9V into 5k with ±5V supplies. The input common mode range includes ground with single power supply voltages above 12V. Supply current is 3mA with a ±5V supply, and overload recovery times from positive and negative saturation are 0.5ms and 1.5ms, respectively. The internal nulling clock is set at 5kHz for optimum low frequency noise and offset drift; no external connections are necessary.

The LTC1250 is available in a standard 8-pin plastic DIP and 8-pin SO packages.

Protected by U.S. Patents including 4933642.

特点
  • Very Low Noise: 0.75μVP-P Typ, 0.1Hz to 10Hz
  • DC to 1Hz Noise Lower Than OP-07
  • Full Output Swing into 1k Load
  • Offset Voltage: 10μV Max
  • Offset Voltage Drift: 50nV/oC Max
  • Common Mode Rejection Ratio: 110dB Min
  • Power Supply Rejection Ratio: 115dB Min
  • No External Components Required
  • Pin Compatible with Standard 8-Pin Op Amps
  • Available in Standard 8-Pin Plastic DIP and 8-Pin SO Packages
    • 应用
  • Electronic Scales
  • Strain Gauge Amplifiers
  • Thermocouple Amplifiers
  • High Resolution Data Acquisition
  • Low Noise Transducers
  • Instrumentation Amplifiers
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1250CN8 N-8 C $3.70 $2.85
    LTC1250CN8#PBF N-8 C $3.70 $2.85
    LTC1250CS8 SO-8 C $4.20 $3.25
    LTC1250CS8#PBF SO-8 C $4.20 $3.25
    LTC1250CS8#TR SO-8 C $3.31
    LTC1250CS8#TRPBF SO-8 C $3.31
