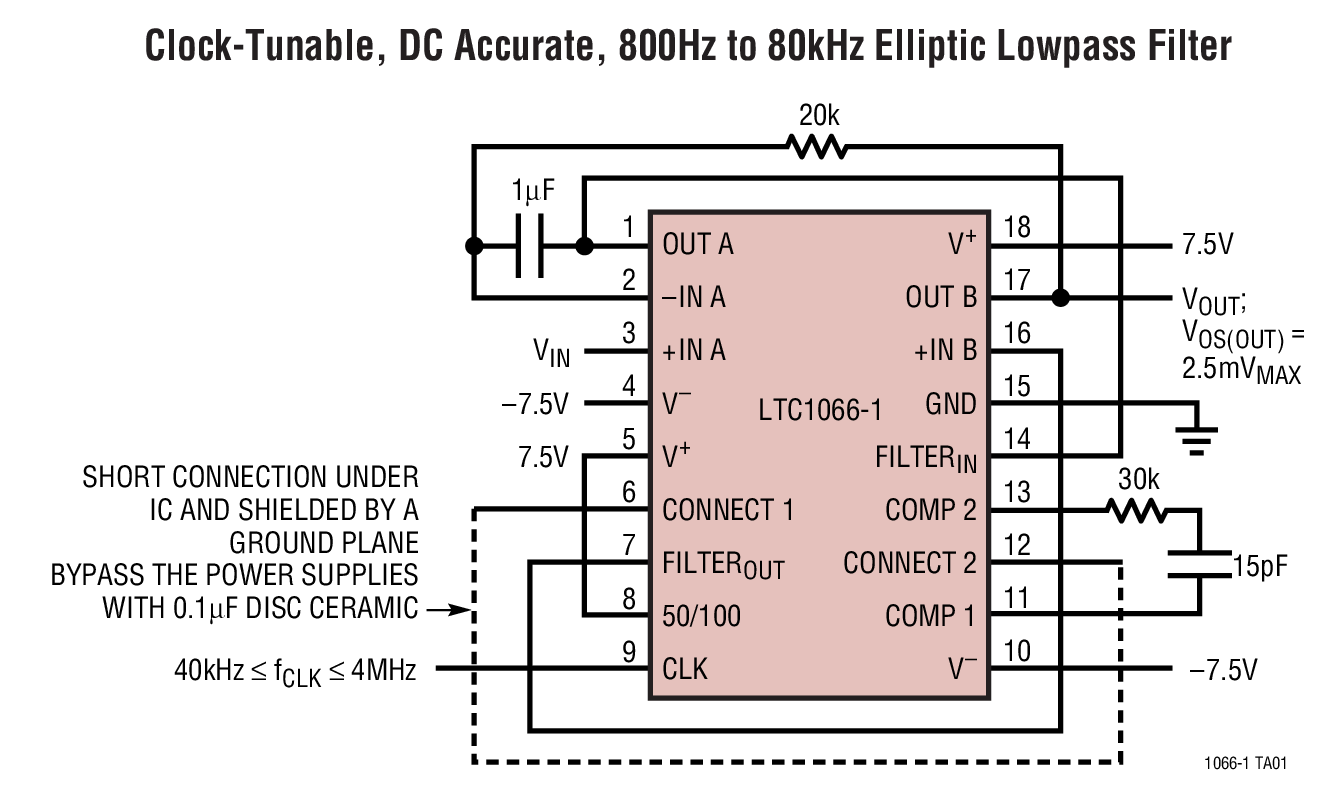

LTC1066-1典型应用图例一

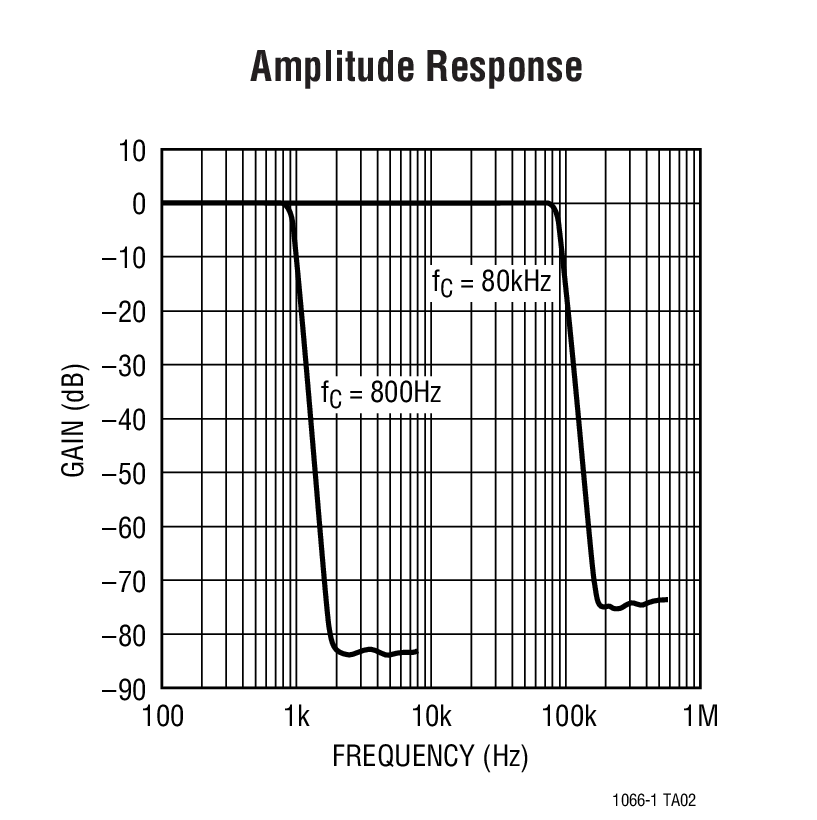

LTC1066-1典型应用图例二
LTC1066-1 - 封装图解:

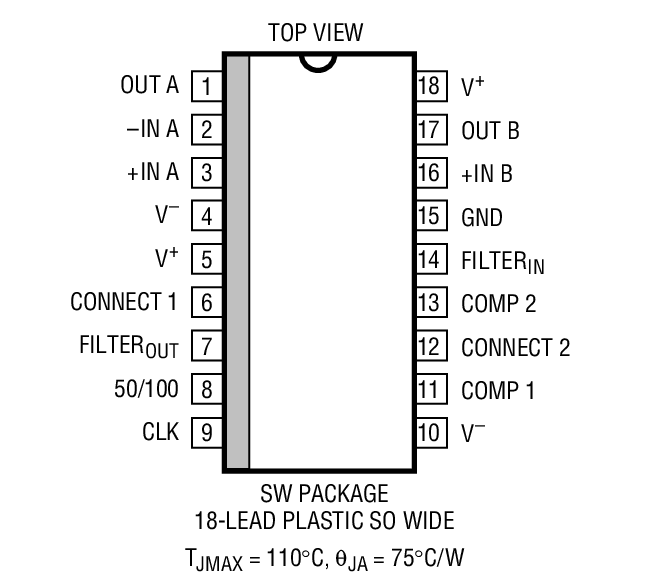

LTC1066-1封装图解一
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LTC1066-1介绍
LTC1066-1 - LTC1066-1是14-Bit DC Accurate Clock-Tunable, 8th Order Elliptic or Linear Phase Lowpass Filter

LTC1066-1是Linear公司的一款低通滤波器产品,LTC1066-1是14-Bit DC Accurate Clock-Tunable, 8th Order Elliptic or Linear Phase Lowpass Filter,本站介绍了LTC1066-1的封装应用图解、特点和优点、功能等,并给出了与LTC1066-1相关的凌力尔特元器件型号供参考。

LTC1066-1 - 14-Bit DC Accurate Clock-Tunable, 8th Order Elliptic or Linear Phase Lowpass Filter

LTC1066-1 - 14-Bit DC Accurate Clock-Tunable, 8th Order Elliptic or Linear Phase Lowpass Filter - Linear Technology(凌力尔特)

功能描述

The LTC1066-1 is an 8th order elliptic lowpass filter which simultaneously provides clock-tunability and DC accuracy. The unique and proprietary architecture of the filter allows 14 bits of DC gain linearity and a maximum of 1.5mV DC offset. An external RC is required for DC accurate operation. With ±7.5V supplies, a 20k resistor and a 1μF capacitor, the cutoff frequency can be tuned from 800Hz to 100kHz. A clock-tunable 10Hz to 100kHz operation can also be achieved (see Typical Application section).

The filter does not require any external active components such as input/output buffers. The input/output impedance is 500Mohms/0.1ohms and the output of the filter can source or sink 40mA. When pin 8 is connected to V + , the clock-to-cutoff frequency ratio is 50:1 and the input signal is sampled twice per clock cycle to lower the risk of aliasing. For frequencies up to 0.75fCUTOFF , the passband ripple is μ0.15dB. The gain at fCUTOFF is -1dB and the filter’s stopband attenuation is 80dB at 2.3fCUTOFF . Linear phase operation is also available with a clock-to-cutoff frequency ratio of 100:1 when pin 8 is connected to ground.

The LTC1066-1 is available in an 18-pin SO Wide package..

?

特点
  • DC Gain Linearity: 14 Bits
  • Maximum DC Offset: ±1.5mV
  • DC Offset TempCo: 7μV/°C
  • Device Fully Tested at fCUTOFF = 80kHz
  • Maximum Cutoff Frequency: 120kHz (VS = ±8V)
  • Drives 1k ohms Load with 0.02% THD or Better
  • Signal-to-Noise Ratio: 90dB
  • Input Impedance: 500Mohms
  • Selectable Elliptic or Linear Phase Response
  • Operates from Single 5V up to ±8V Power Supplies
  • Available in an 18-Pin SO Wide Package
  • 应用
  • Instrumentation
  • Data Acquisition Systems
  • Anti-Aliasing Filters
  • Smoothing Filters
  • Audio Signal Processing
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1066-1CSW SW-18 C $21.65 $17.10
    LTC1066-1CSW#PBF SW-18 C $21.65 $17.10
    LTC1066-1CSW#TR SW-18 C $17.20
    LTC1066-1CSW#TRPBF SW-18 C $17.20
