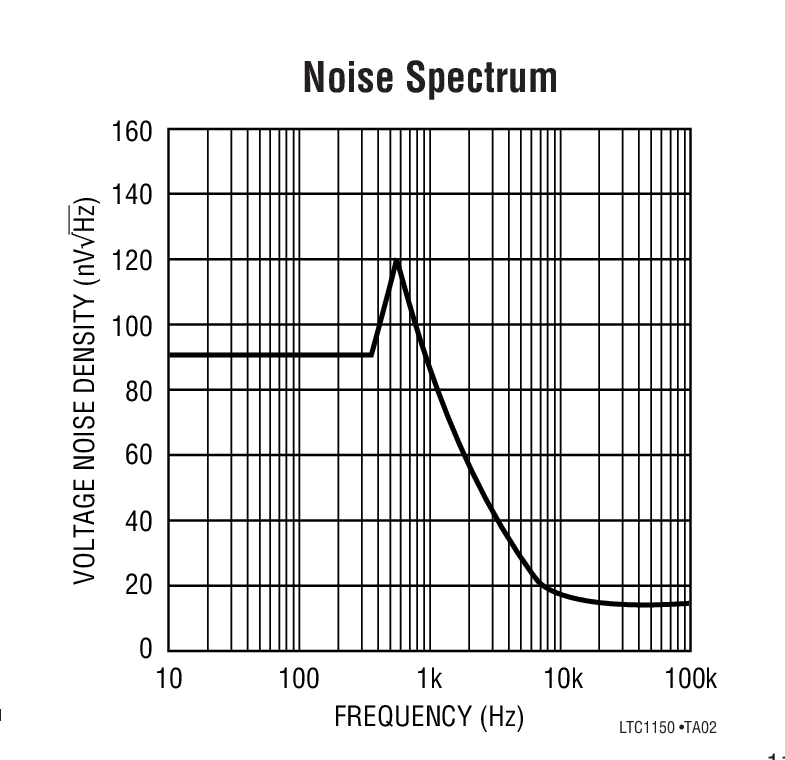

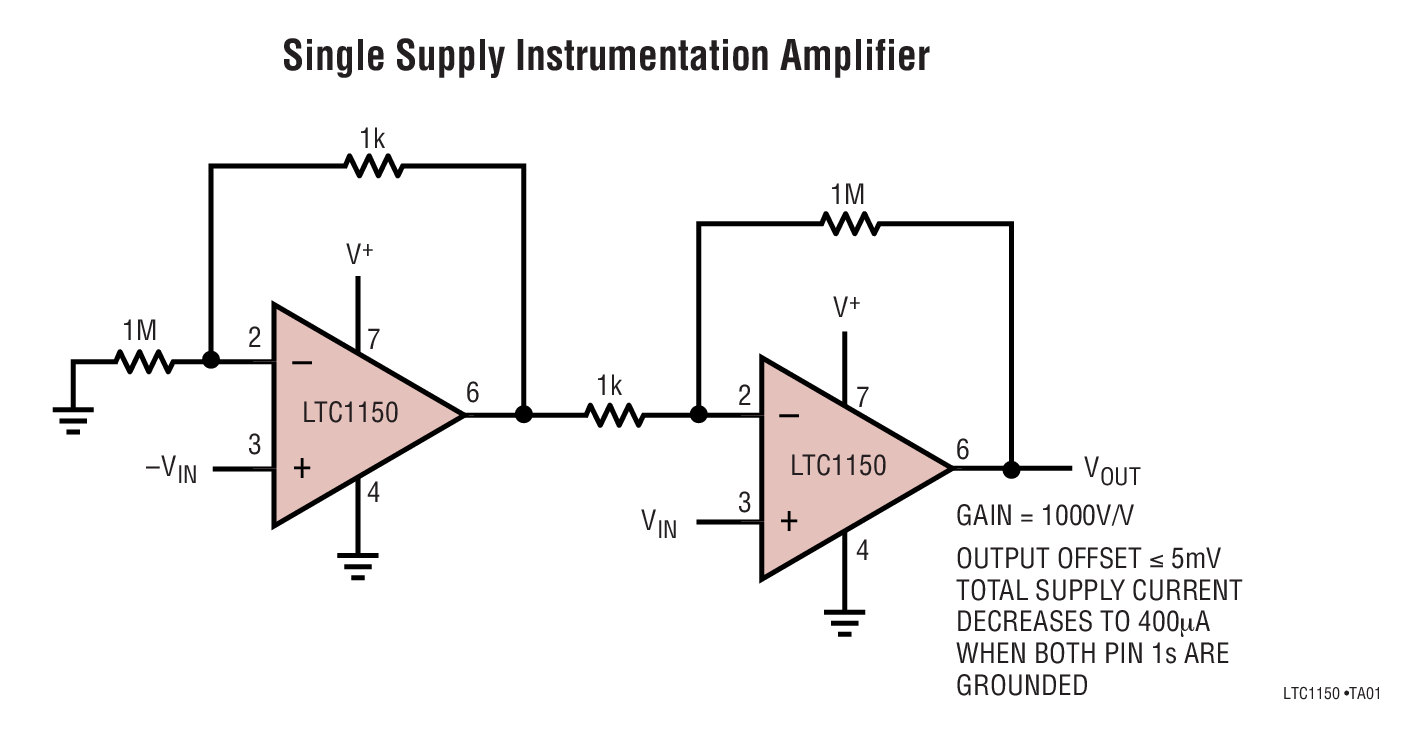

LTC1150典型应用图例一
LTC1150典型应用图例二
LTC1150 - 封装图解：

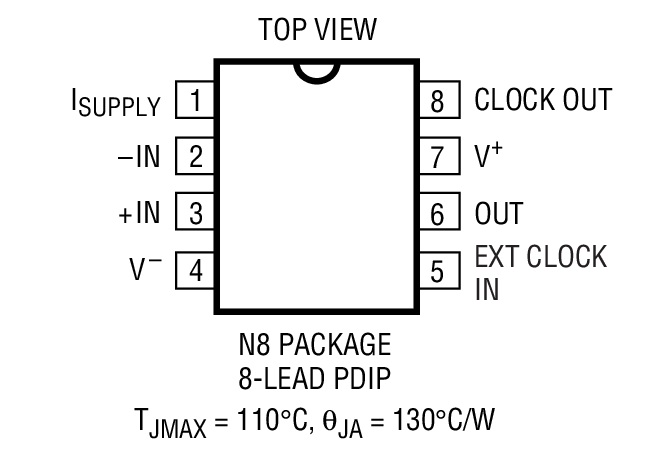

LTC1150封装图解一

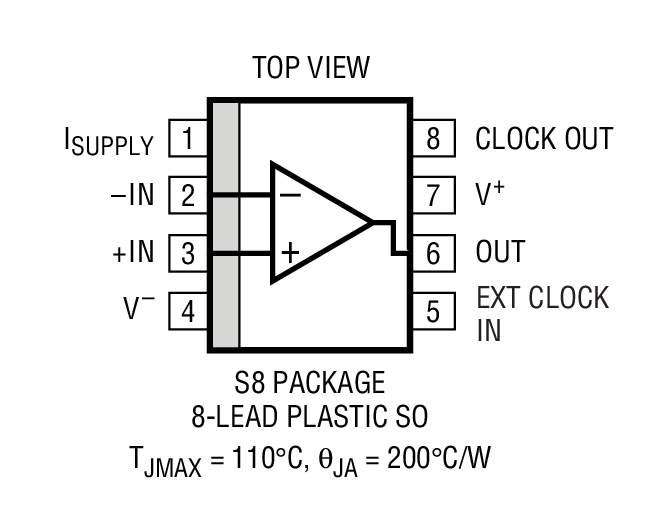

LTC1150封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1150介绍

LTC1150 - LTC1150是±15V Zero-Drift Operational Amplifier with Internal Capacitors

LTC1150是LINEAR凌力尔特公司的一款精准放大器产品，LTC1150是LTC1150是±15V Zero-Drift Operational Amplifier with Internal Capacitors，本站介绍了LTC1150的封装应用图解、特点和优点、功能等，并给出了与LTC1150相关的LINEAR元器件型号供参考。

LTC1150 - LTC1150是±15V Zero-Drift Operational Amplifier with Internal Capacitors - 精准放大器 - 信号调理 - 凌力尔特

LTC1150 - ±15V Zero-Drift Operational Amplifier with Internal Capacitors

LTC1150 - ±15V Zero-Drift Operational Amplifier with Internal Capacitors - Linear Technology（凌力尔特）

功能描述

The LTC1150 is a high-voltage, high-performance zero-drift operational amplifier. The two sample-and-hold capacitors usually required externally by other chopper amplifiers are integrated on-chip. Further, LTC’s proprietary high-voltage CMOS structures allow the LTC1150 to operate at up to 32V total supply voltage.

The LTC1150 has an offset voltage of 0.5µV, drift of 0.01µV/°C, 0.1Hz to 10Hz input noise voltage of 1.8µVP-P and a typical voltage gain of 180dB. The slew rate of 3V/µs and a gain bandwidth productof 2.5MHz are achieved with 0.8mA of supply current. Overload recovery times from positive and negative saturation conditions are 3ms and 20ms, respectively.

For applications demanding low power consumption, Pin 1 can be used to program the supply current. Pin 5 is an optional AC-coupled clock input, useful for synchronization.

The LTC1150 is available in standard 8-lead, plastic dual-in-line package, as well as an 8-lead SO package. The LTC1150 can be a plug-in replacement for most standard bipolar op amps with significant improvement in DC performance.

特点
  • High Voltage Operation, ±16V
  • No External Components Required
  • Maximum Offset Voltage 10µV
  • Maximum Offset Voltage Drift 0.05µV/°C
  • Low Noise 1.8µVp-p (0.1Hz to 10Hz)
  • Minimum Voltage Gain 135dB
  • Minimum PSRR 120dB
  • Minimum CMRR 110dB
  • Low Supply Current 0.8mA
  • Single Supply Operation 4.75V to 36V
  • Input Common Mode Range Includes Ground
  • 200µA Supply Current with Pin 1 Grounded
  • Typical Overload Recovery Time 20ms
    • 应用
  • Strain Gauge Amplifiers
  • Electronic Scales
  • Medical Instrumentation
  • Thermocouple Amplifiers
  • High Resolution Data Acquisition
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1150CN8 N-8 C $4.60 $3.70
    LTC1150CN8#PBF N-8 C $4.60 $3.70
    LTC1150CS8 SO-8 C $5.40 $4.40
    LTC1150CS8#PBF SO-8 C $5.40 $4.40
    LTC1150CS8#TR SO-8 C $4.46
    LTC1150CS8#TRPBF SO-8 C $4.46
