LTC1865 - μPower, 16-Bit, 250ksps 1- and 2-Channel ADCs in MSOP

LTC1865 - μPower, 16-Bit, 250ksps 1- and 2-Channel ADCs in MSOP - Linear Technology（凌力尔特）

功能描述

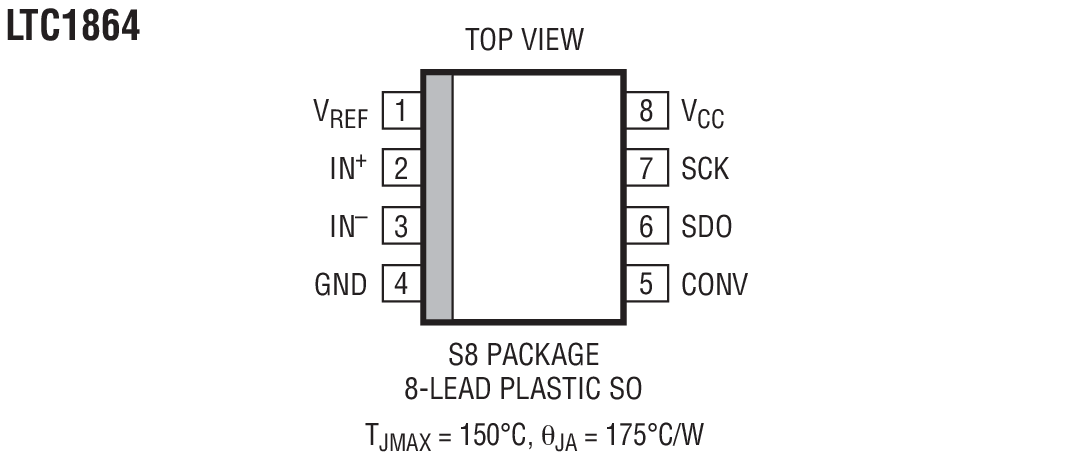

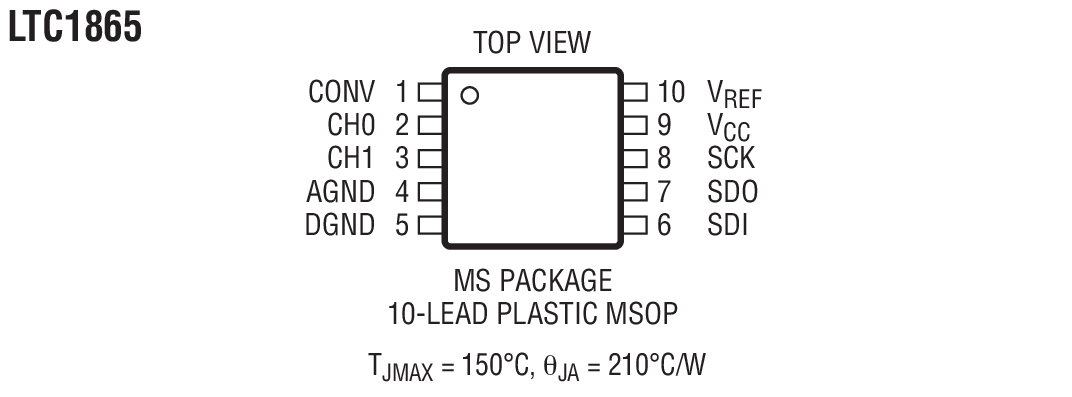

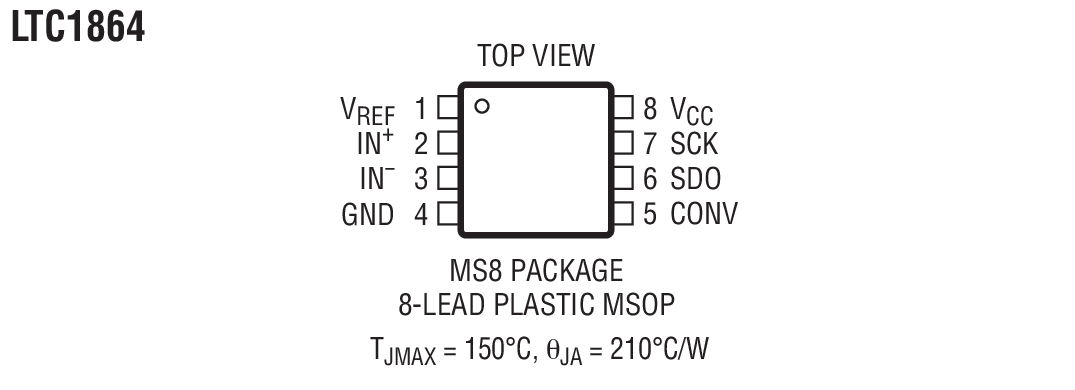

The LTC?1864/LTC1865 are 16-bit A/D converters that are offered in MSOP and SO-8 packages and operate on a single 5V supply. At 250ksps, the supply current is only 850μA. The supply current drops at lower speeds because the LTC1864/LTC1865 automatically power down between conversions. These 16-bit switched capacitor successive approximation ADCs include sample-and-holds. The LTC1864 has a differential analog input with an adjustable reference pin. The LTC1865 offers a software-selectable 2-channel MUX and an adjustable reference pin on the MSOP version.

The 3-wire, serial I/O, small MSOP or SO-8 package and extremely high sample rate-to-power ratio make these ADCs ideal choices for compact, low power, high speed systems.

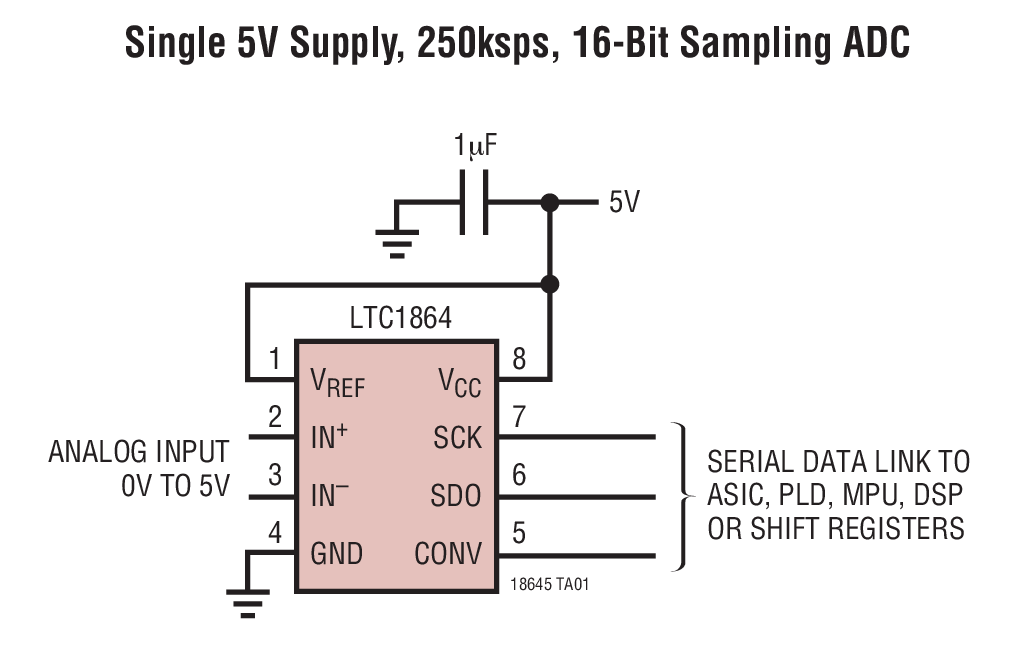

These ADCs can be used in ratiometric applications or with external references. The high impedance analoginputs and the ability to operate with reduced spans down to 1V full scale, allow direct connection to signal sources in many applications, eliminating the need for external gain stages.

特点

16-Bit 250ksps ADCs in MSOP Package

Single 5V Supply

Low Supply Current: 850µA (Typ)

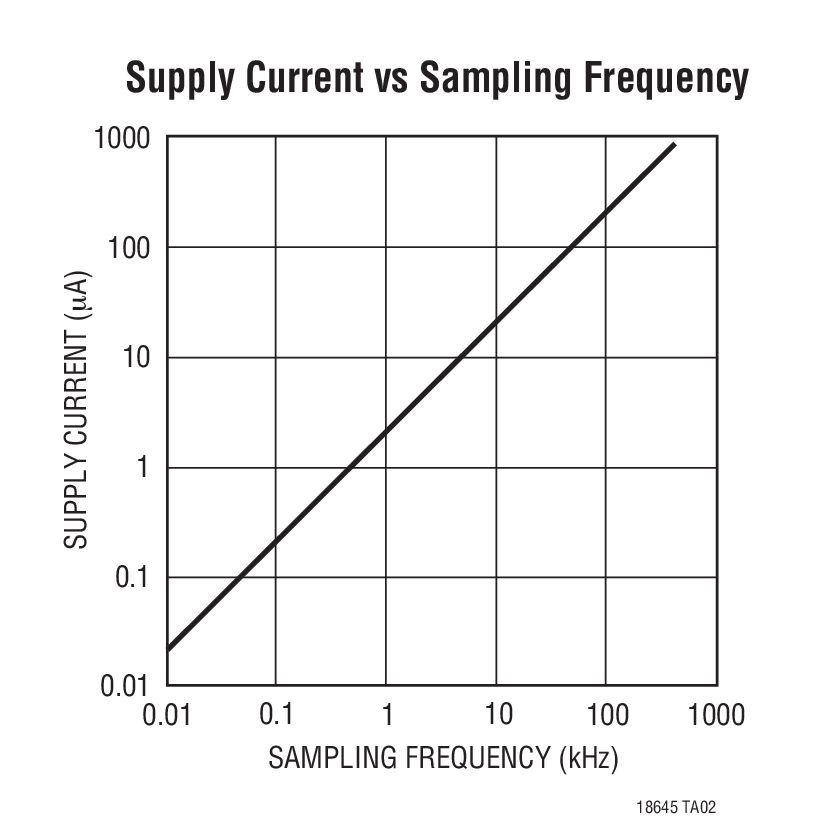

Auto Shutdown Reduces Supply Current to 2μA at 1ksps

True Differential Inputs

1-Channel (LTC1864) or 2-Channel (LTC1865) Versions

SPI/MICROWIRE™ Compatible Serial I/O

16-Bit Upgrade to 12-Bit LTC1286/LTC1298

Pin Compatible with 12-Bit LTC1860/LTC1861

应用

High Speed Data Acquisition

Portable or Compact Instrumentation

Low Power Battery-Operated Instrumentation

Isolated and/or Remote Data Acquisition

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1865ACMS	MS-10	C	$9.50	$7.70
LTC1865ACMS#PBF	MS-10	C	$9.50	$7.70
LTC1865ACMS#TR	MS-10	C		$7.76
LTC1865ACMS#TRPBF	MS-10	C		$7.76
LTC1865ACS8	SO-8	C	$9.10	$7.40
LTC1865ACS8#PBF	SO-8	C	$9.10	$7.40
LTC1865ACS8#TR	SO-8	C		$7.46
LTC1865ACS8#TRPBF	SO-8	C		$7.46
LTC1865AHMS#PBF	MS-10	H	$15.71	$8.80
LTC1865AHMS#TRPBF	MS-10	H		$8.86
LTC1865AIMS	MS-10	I	$9.90	$8.00
LTC1865AIMS#PBF	MS-10	I	$9.90	$8.00
LTC1865AIMS#TR	MS-10	I		$8.06
LTC1865AIMS#TRPBF	MS-10	I		$8.06
LTC1865AIS8	SO-8	I	$9.50	$7.70
LTC1865AIS8#PBF	SO-8	I	$9.50	$7.70
LTC1865AIS8#TR	SO-8	I		$7.76
LTC1865AIS8#TRPBF	SO-8	I		$7.76
LTC1865CMS	MS-10	C	$8.25	$6.70
LTC1865CMS#PBF	MS-10	C	$8.25	$6.70
LTC1865CMS#TR	MS-10	C		$6.76
LTC1865CMS#TRPBF	MS-10	C		$6.76
LTC1865CS8	SO-8	C	$7.95	$6.45
LTC1865CS8#PBF	SO-8	C	$7.95	$6.45
LTC1865CS8#TR	SO-8	C		$6.51
LTC1865CS8#TRPBF	SO-8	C		$6.51
LTC1865HMS#PBF	MS-10	H	$13.75	$7.70
LTC1865HMS#TRPBF	MS-10	H		$7.76
LTC1865IMS	MS-10	I	$8.65	$7.00
LTC1865IMS#PBF	MS-10	I	$8.65	$7.00
LTC1865IMS#TR	MS-10	I		$7.06
LTC1865IMS#TRPBF	MS-10	I		$7.06
LTC1865IS8	SO-8	I	$8.25	$6.70
LTC1865IS8#PBF	SO-8	I	$8.25	$6.70
LTC1865IS8#TR	SO-8	I		$6.76
LTC1865IS8#TRPBF	SO-8	I		$6.76
