LT1213MJ8技术文档下载:
LT1213MJ8技术文档产品手册下载
LT1213MJ8 - 典型应用图例:

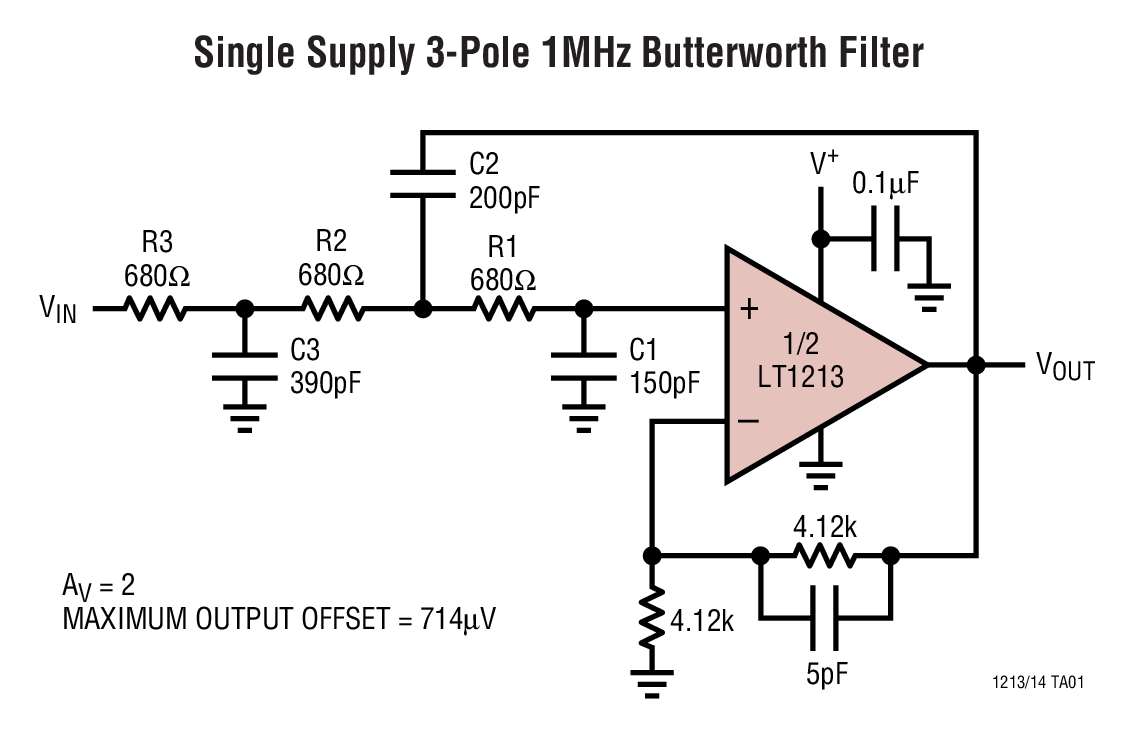

LT1213MJ8典型应用图例一

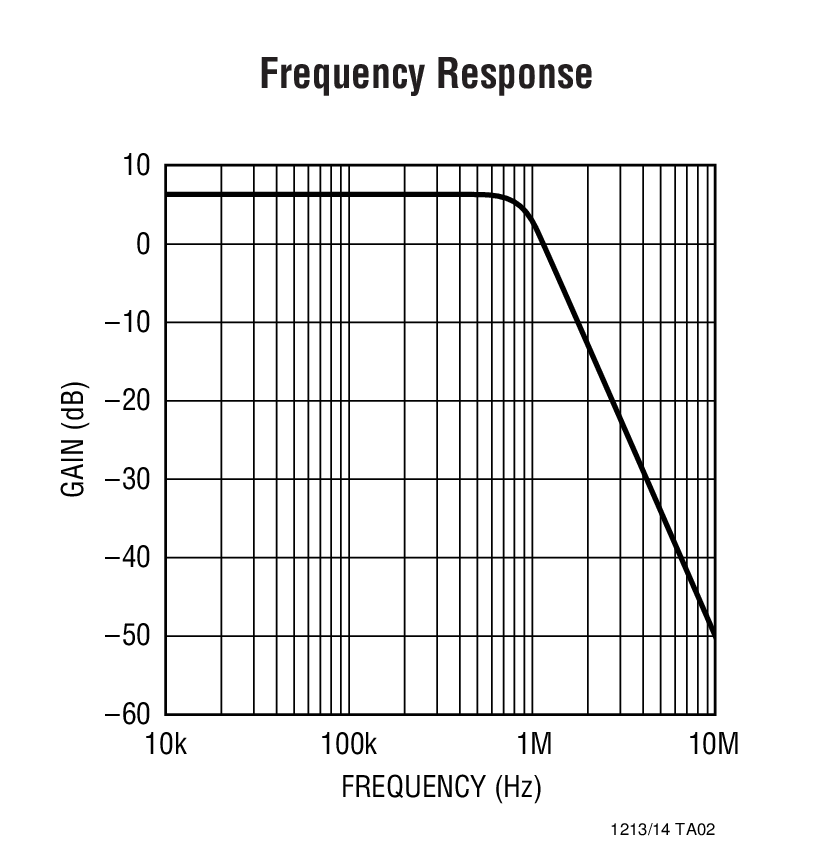

LT1213MJ8典型应用图例二
LT1213MJ8 - 封装图解:

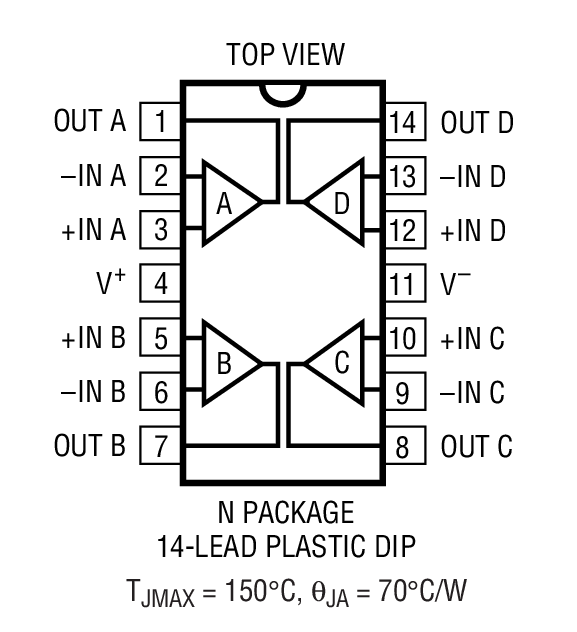

LT1213MJ8封装图解一
LT1213MJ8封装图解二
LT1213MJ8封装图解三
LT1213MJ8封装图解四
承诺原装正品
专营Linear,真正优化您的供应链
Linear产品 - LT1213MJ8介绍
LT1213MJ8 - LT1213MJ8是28MHz, 12V/μs, Single Supply Dual Precision Op Amps

LT1213MJ8是Linear公司的一款精准放大器产品,LT1213MJ8是28MHz, 12V/μs, Single Supply Dual Precision Op Amps,本站介绍了LT1213MJ8的封装应用图解、特点和优点、功能等,并给出了与LT1213MJ8相关的凌力尔特元器件型号供参考。

LT1213MJ8 - 28MHz, 12V/μs, Single Supply Dual Precision Op Amps

LT1213 - 28MHz, 12V/μs, Single Supply Dual Precision Op Amps - Linear Technology(凌力尔特)

功能描述

The H (Metal Can), J (Ceramic), and K (Metal Can) Packages From Linear Technology Are Now Obsolete

The LT1213 is a dual, single supply precision op amp with a 28MHz gain-bandwidth product and a 12V/µs slew rate. The LT1214 is a quad version of the same amplifier. The DC precision of the LT1213/LT1214 eliminates trims in most systems while providing high frequency performance not usually found in single supply amplifiers.

The LT1213/LT1214 will operate on any supply greater than 2.5V and less than 36V total. These amplifiers are specified at single 3.3V, single 5V and ±15V supplies, and only require 2.7mA of quiescent supply current per amplifier. The inputs can be driven beyond the supplies without damage or phase reversal of the output. The minimum output drive is 30mA, ideal for driving low impedance loads.

Note: For applications requiring higher slew rate, see the LT1215/LT1216 data sheet. For lower power and lower slew rate, see the LT1211/LT1212 data sheet.

特点
  • Slew Rate 12V/µs Typ
  • Gain-Bandwidth Product 28MHz Typ
  • Fast Settling to 0.01%2V Step to 200µV 500ns Typ10V Step to 1mV: 1.1µs Typ
  • Excellent DC Precision in All PackagesInput Offset Voltage 275µV MaxInput Offset Voltage Drift: 6µV/°C Max
  • Input Offset Current: 40nA MaxInput Bias Current: 200nA MaxOpen-Loop Gain: 1200V/mV Min
  • Single Supply OperationInput Voltage Range Includes GroundOutput Swings to Ground While Sinking Current
  • Low Input Noise Voltage: 10nV/rtHz Typ
  • Low Input Noise Current: 0.2pA/rtHz Typ
  • Specified at 3.3V, 5V and ±15V
  • Large Output Drive Current: 30mA Min
  • Low Supply Current per Amplifier: 3.5mA Max
  • Dual in 8-Pin DIP and SO-8
  • Quad in 14-Pin DIP and NARROW SO-16
  • 应用
  • LT1028 - 超低噪声、精准型高速运算放大器
  • LT1124 - 双路、低噪声、高速、精准运放
  • LT1215 - 23MHz, 50V/μs, Single Supply Dual and QuadPrecision Op Amps
  • LT1469 - 双通道、90MHz、22V/μs、准确度达16位的运算放大器
  • LT1210 - 1.1A、35MHz 电流反馈放大器
  • LT1126 - 双通道去补偿低噪声、高速精准型运算放大器
  • LT5400 - 四个匹配的电阻器
  • LT1211 - 14MHz, 7V/μs, Single Supply Dual and Quad Precision Op Amps
  • LT1010 - 快速 ±150mA 电源缓冲器
  • LT1128 - 超低噪声、精准型高速运算放大器
  • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格(美元)
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1213ACN8 N-8 C $5.75 $4.60
    LT1213ACN8#PBF N-8 C $5.75 $4.60
    LT1213CN8 N-8 C $3.25 $2.85
    LT1213CN8#PBF N-8 C $3.25 $2.85
    LT1213CS8 SO-8 C $3.45 $3.02
    LT1213CS8#PBF SO-8 C $3.45 $3.02
    LT1213CS8#TR SO-8 C $3.07
    LT1213CS8#TRPBF SO-8 C $3.07
    LT1213MJ8 CERDIP-8 M $54.30
