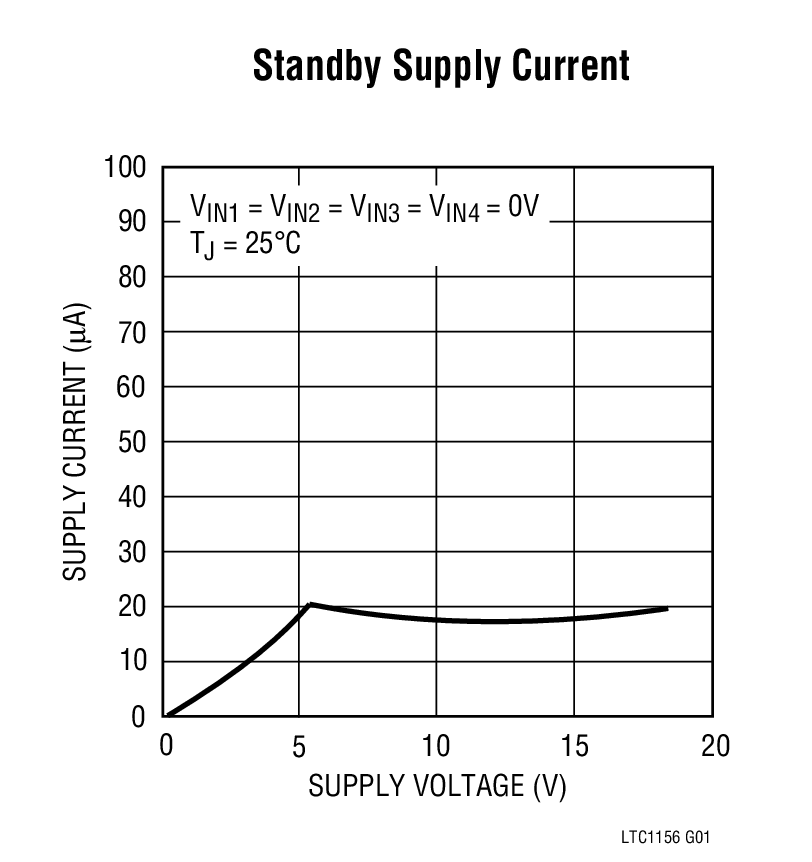

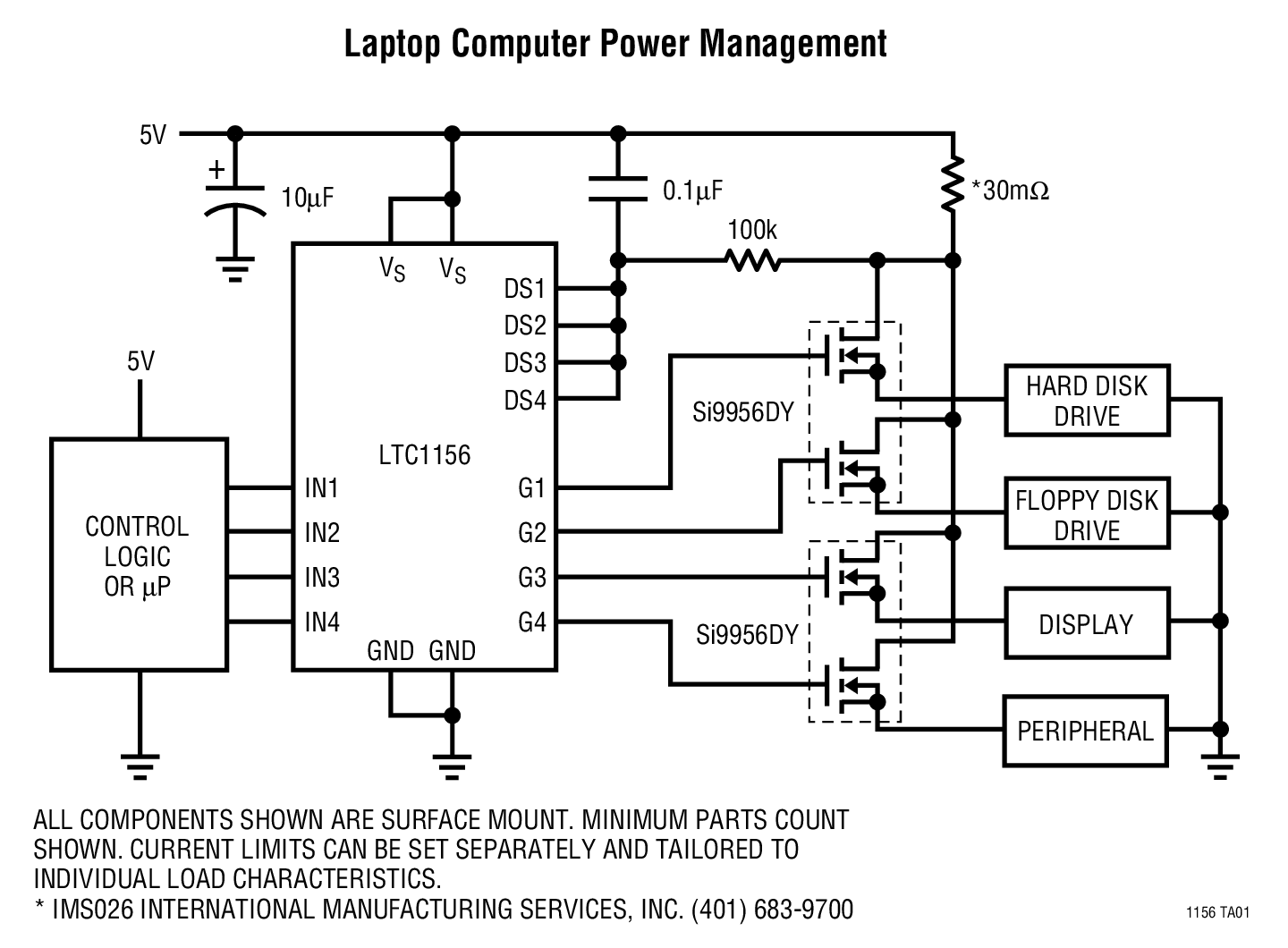

LTC1156 - 典型应用图例：
LTC1156典型应用图例一
LTC1156典型应用图例二

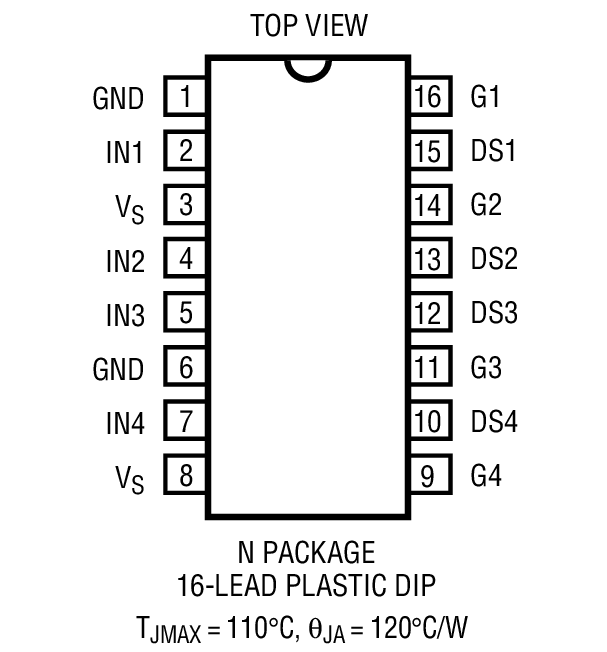

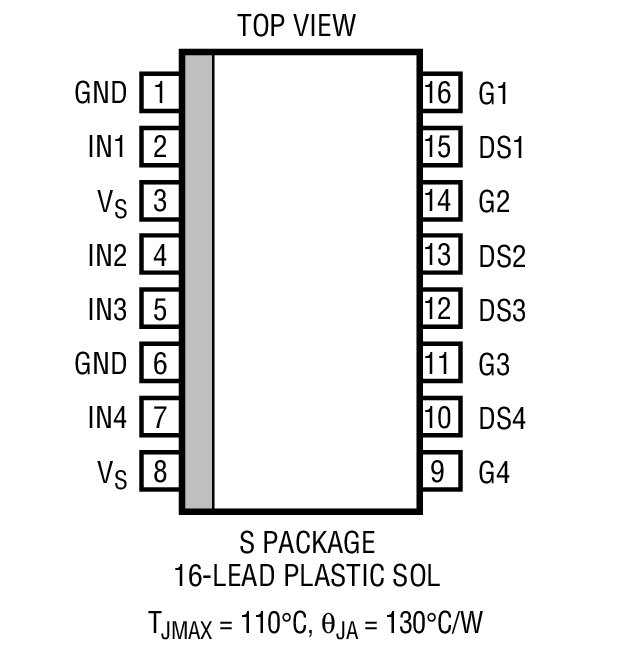

LTC1156 - 封装图解：
LTC1156封装图解一
LTC1156封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1156介绍

LTC1156 - LTC1156是Quad High Side Micropower MOSFET Driver with Internal Charge Pump

LTC1156是LINEAR凌力尔特公司的一款高压侧开关和 MOSFET 驱动器产品，LTC1156是LTC1156是Quad High Side Micropower MOSFET Driver with Internal Charge Pump，本站介绍了LTC1156的封装应用图解、特点和优点、功能等，并给出了与LTC1156相关的LINEAR元器件型号供参考。

LTC1156 - LTC1156是Quad High Side Micropower MOSFET Driver with Internal Charge Pump - 高压侧开关和 MOSFET 驱动器 - 监视、控制和保护 - 凌力尔特

LTC1156 - Quad High Side Micropower MOSFET Driver with Internal Charge Pump

LTC1156 - Quad High Side Micropower MOSFET Driver with Internal Charge Pump - Linear Technology（凌力尔特）

功能描述

The LTC1156 quad High side gate driver allows using low cost N-channel FETs for high side switching applications. An internal charge pump boosts the gate drive voltage above the positive rail, fully enhancing an N-channel MOS switch with no external components. Micropower opera-tion, with 16µA standby current and 95µA operating current, allows use in virtually all systems with maximum efficiency.

Included on chip is independent over-current sensing to provide automatic shutdown in case of short circuits. A time delay can be added to the current sense to prevent false triggering on high in-rush current loads.

The LTC1156 operates off of a 4.5V to 18V supply and is well suited for battery-powered applications, particularly where micropower "sleep" operation is required.

The LTC1156 is available in both 16-pin DIP and 16-pin SOL packages.

特点
  • No External Charge Pump Components
  • Fully Enhances N-Channel Power MOSFETs
  • 16 Microamps Standby Current
  • 95 Microamps ON Current
  • Wide Power Supply Range 4.5V to 18V
  • Controlled Switching ON and OFF Times
  • Replaces P-Channel High Side Switches
  • Compatible with Standard Logic Families
  • Available in 16-pin SOL Package
    • 应用
  • Laptop Computer Power Switching
  • SCSI Termination Power Switching
  • Cellular Telephone Power Management
  • P-Channel Switch Replacement
  • Battery Charging and Management
  • Low Frequency H-Bridge Driver
  • Stepper Motor and DC Motor Control
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1156CN N-16 C $5.80 $4.75
    LTC1156CN#PBF N-16 C $5.80 $4.75
    LTC1156CSW SW-16 C $6.25 $5.15
    LTC1156CSW#PBF SW-16 C $6.25 $5.15
    LTC1156CSW#TR SW-16 C $5.21
    LTC1156CSW#TRPBF SW-16 C $5.21
