LT1353 - Dual and Quad 250μA, 3MHz, 200V/μs Operational Amplifier

LT1353 - Dual and Quad 250μA, 3MHz, 200V/μs Operational Amplifier - Linear Technology（凌力尔特）

功能描述

The LT?1352/LT1353 are dual and quad, very low power,high speed operational amplifiers with outstanding ACand DC performance. The amplifiers feature much lowersupply current and higher slew rate than devices withcomparable bandwidth. The circuit combines the slewingperformance of a current feedback amplifier in a trueoperational amplifier with matched high impedanceinputs. The high slew rate ensures that the large-signalbandwidth is not degraded. Each output is capable ofdriving a 1k Ohm load to ?13V with ±15V supplies and a 500Wload to ?3.4V on ±5V supplies.

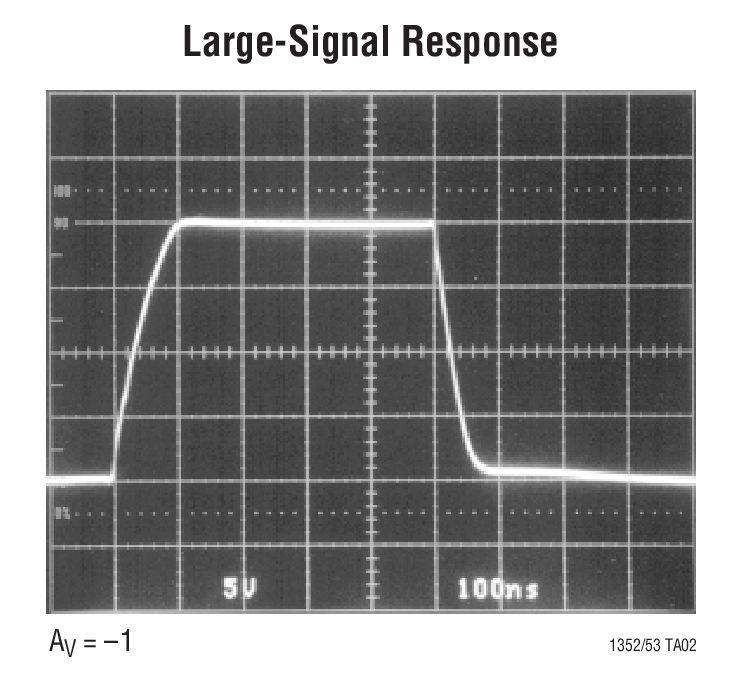

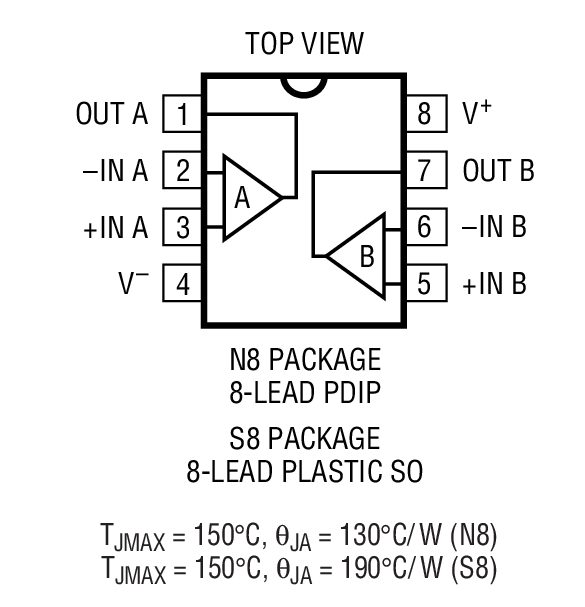

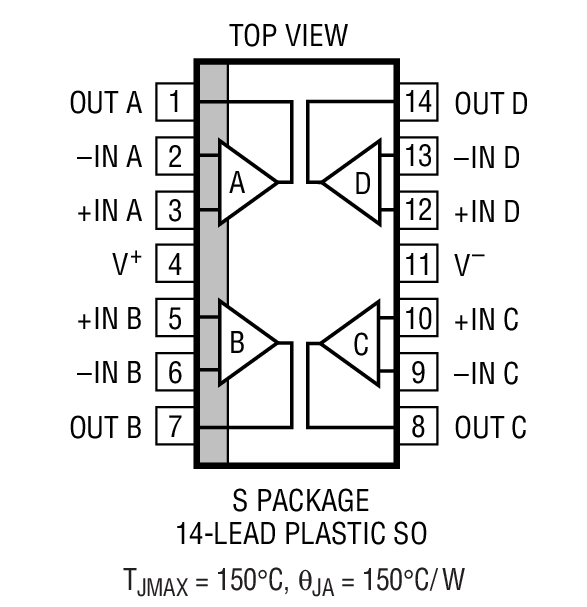

The LT1352/LT1353 are members of a family of fast, highperformance amplifiers using this unique topology andemploying Linear Technology Corporation’s advancedcomplementary bipolar processing. For higher bandwidthdevices with higher supply current see the LT1354 throughLT1365 data sheets. Bandwidths of 12MHz, 25MHz, 50MHzand 70MHz are available with 1mA, 2mA, 4mA and 6mA ofsupply current per amplifier. Singles, duals and quads ofeach amplifier are available. The LT1352 is available in an8-lead SO package. The LT1353 is offered in a 14-leadnarrow surface mount package.

特点

3MHz Gain Bandwidth

200V/µs Slew Rate

250µA Supply Current per Amplifier

C-Load™ Op Amp Drives All Capacitive Loads

Unity-Gain Stable

Maximum Input Offset Voltage: 600µV

Maximum Input Bias Current: 50nA

Maximum Input Offset Current: 15nA

Minimum DC Gain, RL = 2k: 30V/mV

Input Noise Voltage: 14nV/rt Hz

Settling Time to 0.1%, 10V Step: 700ns
