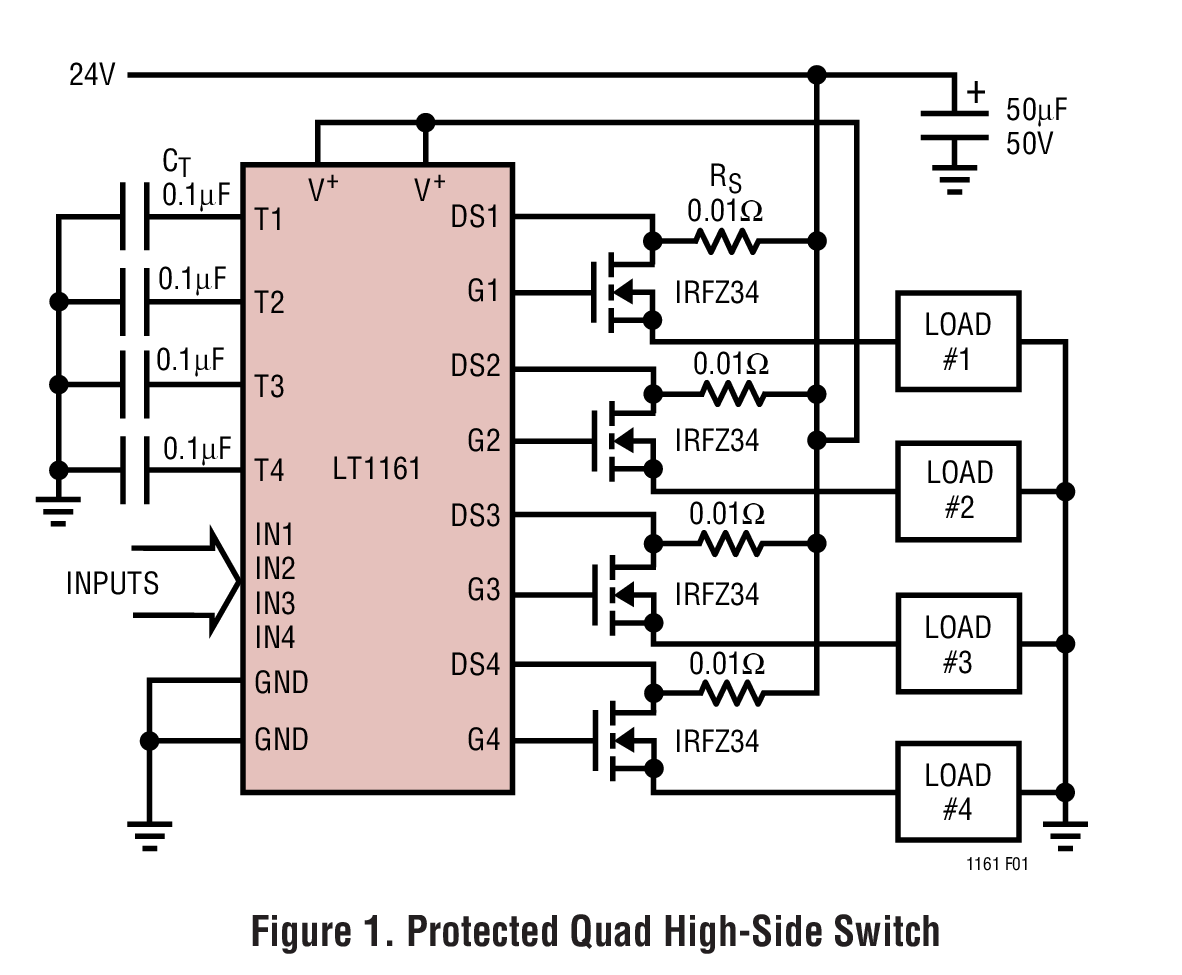

LT1161典型应用图例一

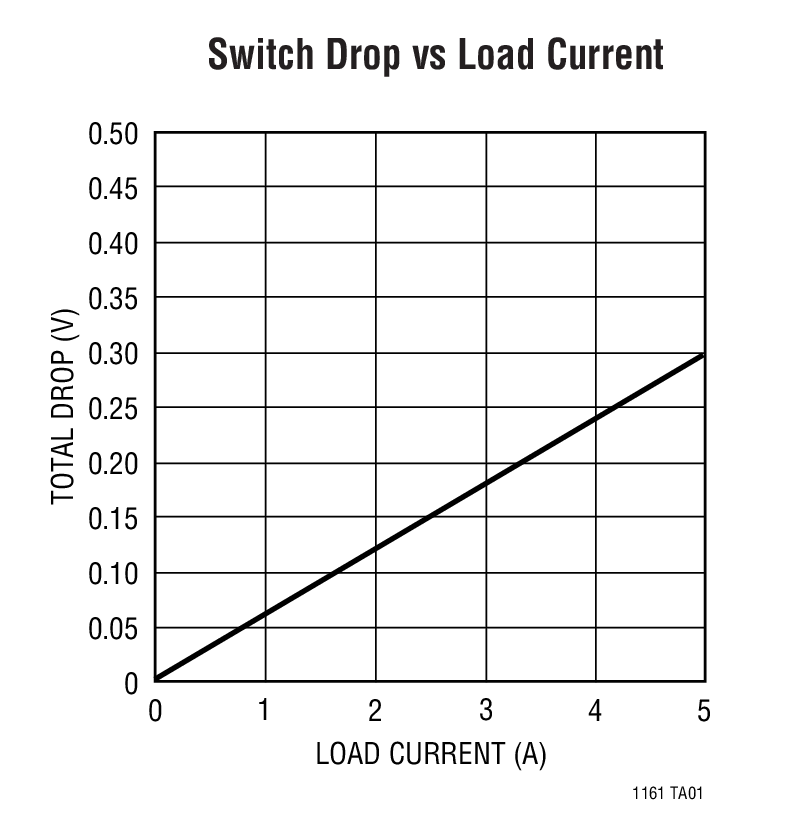

LT1161典型应用图例二
LT1161 - 封装图解：

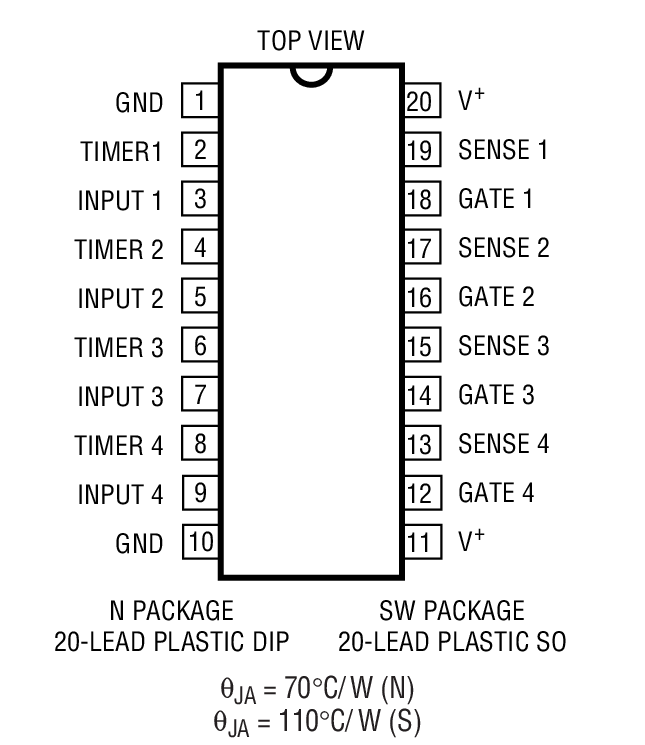

LT1161封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1161介绍

LT1161 - LT1161是Quad Protected High-Side MOSFET Driver

LT1161是LINEAR凌力尔特公司的一款高压侧开关和 MOSFET 驱动器产品，LT1161是LT1161是Quad Protected High-Side MOSFET Driver，本站介绍了LT1161的封装应用图解、特点和优点、功能等，并给出了与LT1161相关的LINEAR元器件型号供参考。

LT1161 - LT1161是Quad Protected High-Side MOSFET Driver - 高压侧开关和 MOSFET 驱动器 - 监视、控制和保护 - 凌力尔特

LT1161 - Quad Protected High-Side MOSFET Driver

LT1161 - Quad Protected High-Side MOSFET Driver - Linear Technology（凌力尔特）

功能描述
The LT1161 is a quad high-side gate driver allowing the use of low cost N-channel power MOSFETs for high-side switching applications. It has four independent switch channels, each containing a completely self-contained charge pump to fully enhance an N-channel MOSFET switch with no external components.

Also included in each switch channel is a drain sense comparator that is used to sense switch current. When preset current level is exceeded, the switch is turned off. The switch remains off for a period of time set by an external timing capacitor and then automatically attempts to restart. If the fault is still present, this cycle repeats until the fault is removed, thus protecting the MOSFET.

The LT1161 has been specifically designed for harsh operating environments such as industrial, avionics, and automotive applications where poor supply regulation and/or transients may be present. The device will not sustain damage from supply voltages of -15V to 60V.

特点
  • 8V to 48V Power Supply Range
  • Protected from -15V to 60V Supply Transients
  • Fully Enhances N-Channel MOSFET Switches
  • Individual Short-Circuit Protection
  • Individual Automatic Restart Timers
  • Programmable Current Limit, Delay Time, and Auto-Restart Period
  • Voltage-Limited Gate Drive
  • Defaults to OFF State with Open Input
  • Flowthrough Input to Output Pinout
  • Available in 20-Lead DIP or SOL Package
    • 应用
  • Industrial Control
  • Avionics Systems
  • Automotive Switches
  • Stepper Motor and DC Motor Control
  • Electronic Circuit Breaker
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1161CN N-20 C $4.00 $3.20
    LT1161CN#PBF N-20 C $4.00 $3.20
    LT1161CSW SW-20 C $4.30 $3.50
    LT1161CSW#PBF SW-20 C $4.30 $3.50
    LT1161CSW#TR SW-20 C $3.60
    LT1161CSW#TRPBF SW-20 C $3.60
    LT1161IN N-20 I $4.50 $3.60
    LT1161IN#PBF N-20 I $4.50 $3.60
    LT1161ISW SW-20 I $4.80 $3.90
    LT1161ISW#PBF SW-20 I $4.80 $3.90
    LT1161ISW#TR SW-20 I $4.00
    LT1161ISW#TRPBF SW-20 I $4.00
