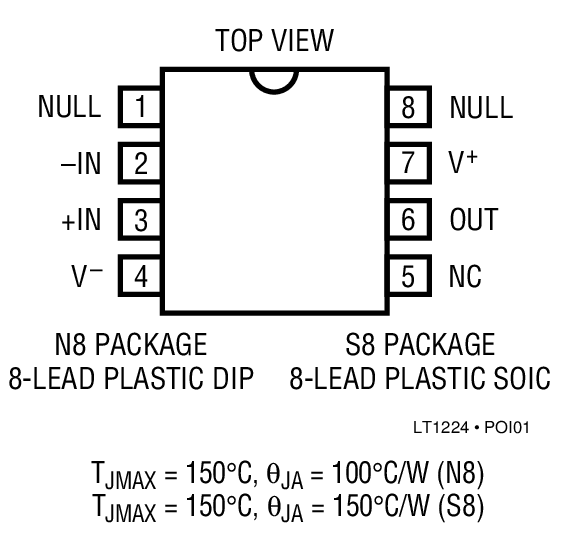

LT1224 - Very High Speed Operational Amplifier

LT1224 - Very High Speed Operational Amplifier - Linear Technology（凌力尔特）

功能描述

The LT1224 is a very high speed operational amplifier with excellent DC performance. The LT1224 features reduced input offset voltage and higher DC gain than devices with comparable bandwidth and slew rate. The circuit is a single gain stage with outstanding settling characteristics. The fast settling time makes the circuit an ideal choice for data acquisition systems. The output is capable of driving a 500 ohms load to ±12V with ±15V supplies and a 150 ohms load to ±3V on ±5V supplies. The circuit is also capable of driving large capacitive loads which makes it useful in buffer or cable driver applications.The LT1224 is a member of a family of fast, high performance amplifiers that employ Linear Technology Corporation’s advanced bipolar complementary processing.

特点

Unity-Gain Stable

45MHz Gain-Bandwidth

400V/µs Slew Rate

7V/mV DC Gain: RL = 500 ohms

Maximum Input Offset Voltage: 2mV

±12V Minimum Output Swing into 500 ohms

Wide Supply Range: ±2.5V to ±15V

7mA Supply Current

90ns Settling Time to 0.1%, 10V Step

Drives All Capacitive Loads

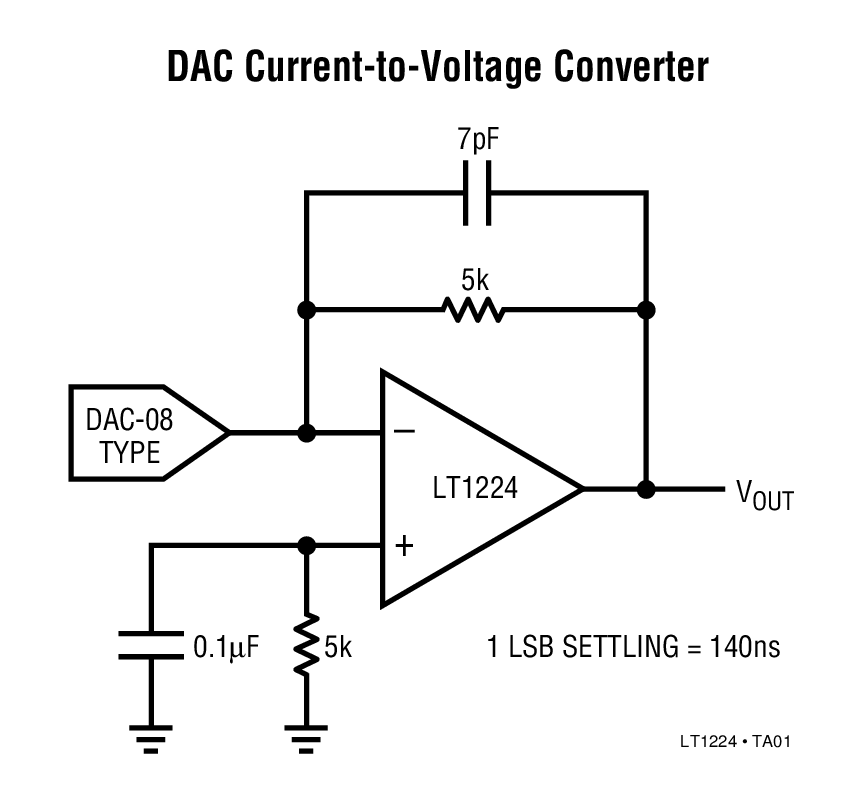

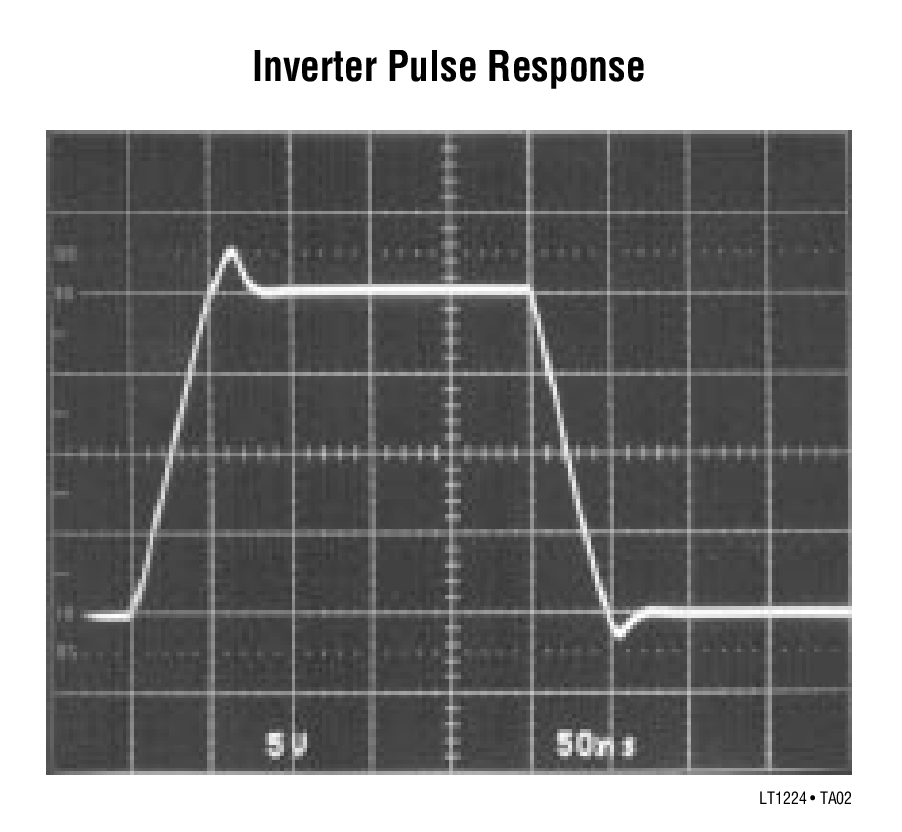

应用
