LT3430 - LT3430是High Voltage, 3A, 200kHz Step-Down Switching Regulator
LT3430是Linear公司的一款内部开关电源降压产品，LT3430是High Voltage, 3A, 200kHz Step-Down Switching Regulator，本站介绍了LT3430的封装应用图解、特点和优点、功能等，并给出了与LT3430相关的凌力尔特元器件型号供参考。
LT3430 - High Voltage, 3A, 200kHz Step-Down Switching Regulator
LT3430 - High Voltage, 3A, 200kHz Step-Down Switching Regulator - Linear Technology（凌力尔特）
功能描述

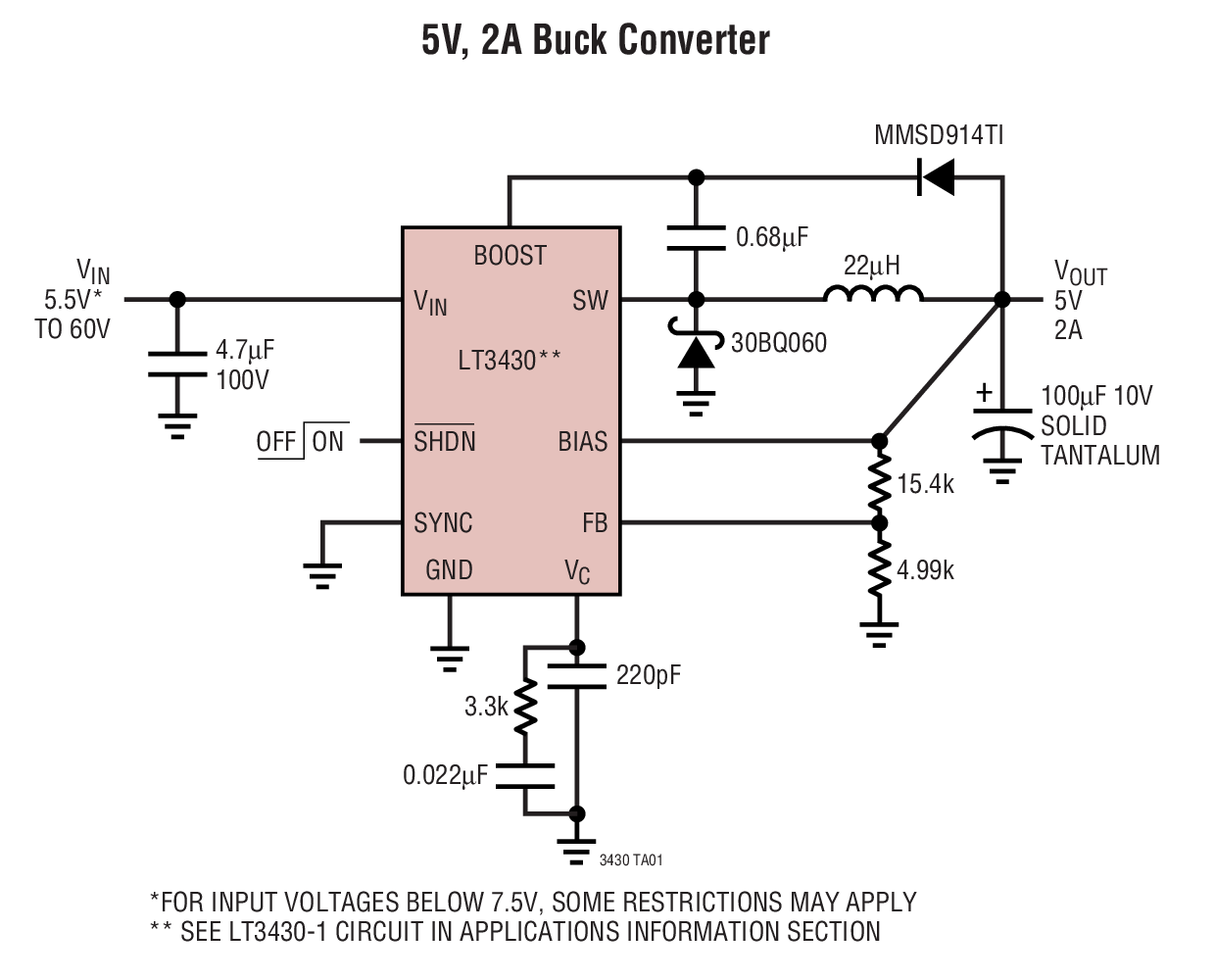

The LT3430/LT3430-1 are monolithic buck switching regulators that accept input voltages up to 60V. A high efficiency 3A, 0.1Ω switch is included on the die along with all the necessary oscillator, control and logic circuitry. A current mode architecture provides fast transient response and excellent loop stability.

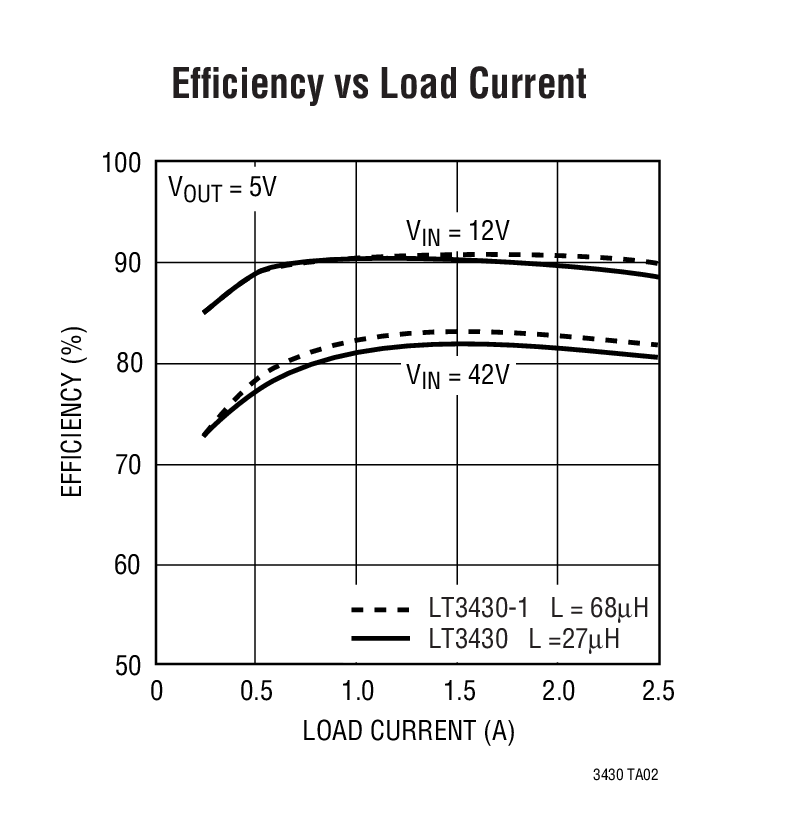

Special design techniques and a new high voltage process achieve high efficiency over a wide input range. Efficiency is maintained over a wide output current range by using the output to bias the circuity and by utilizing a supply boost capacitor to saturate the power switch. Patented circuity* maintains peak switch current over the full duty cycle range. A shutdown pin reduces supply current to 30μA and a SYNC pin can be externally synchronized with a logic level input from 228kHz to 700kHz for the LT3430 or from 125kHz to 250kHz for the LT3430-1.

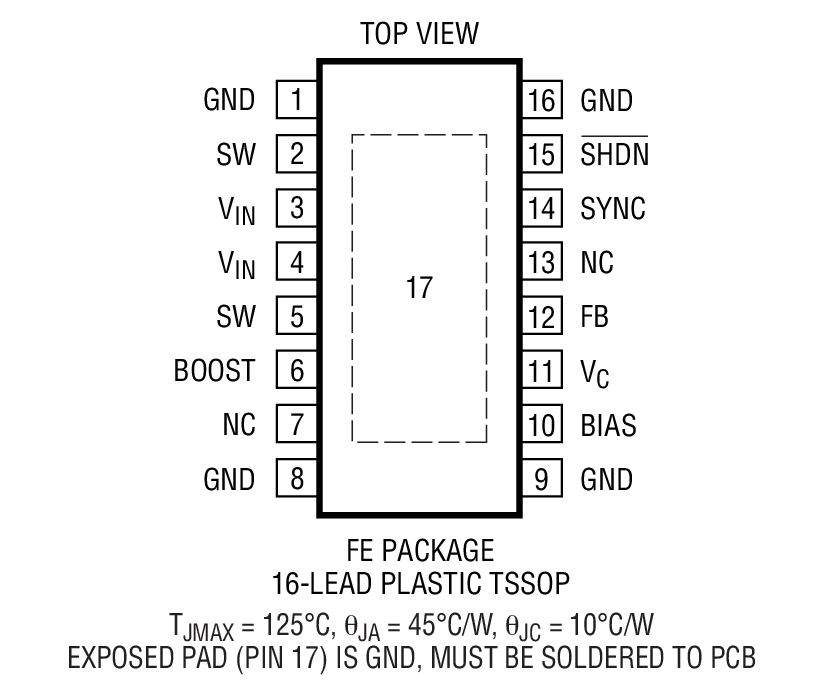

The LT3430/LT3430-1 are available in a thermally enhanced 16-pin TSSOP package.
特点
Wide Input Range: 5.5V to 60V 3A Peak Switch Current over All Duty Cycles Constant 200kHz Switching Frequency200kHz(LT3430)100kHz(LT3430-1) 0.1 Ω Switch Resistance Current Mode Effective Supply Current: 2.5mA Shutdown Current: 30μA 1.2V Feedback Reference Voltage Easily Synchronizable Cycle-by-Cycle Current Limiting Small, 16-Pin Thermally Enhanced TSSOP Package应用
Industrial and Automotive Power Supplies Portable Computers Battery Chargers Distributed Power Systems以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
| 器件型号 | 封装 | 温度 | 价格 (以 1 ~ 99 片为批量) | 价格 (以 1000 片为批量) |
| LT3430EFE | TSSOP-16 | E | $7.07 | $4.95 |
| LT3430EFE-1#PBF | TSSOP-16 | E | $7.07 | $4.95 |
| LT3430EFE-1#TRPBF | TSSOP-16 | E | | $5.07 |
| LT3430EFE#PBF | TSSOP-16 | E | $7.07 | $4.95 |
| LT3430EFE#TR | TSSOP-16 | E | | $5.07 |
| LT3430EFE#TRPBF | TSSOP-16 | E | | $5.07 |
| LT3430IFE | TSSOP-16 | I | $8.13 | $5.69 |
| LT3430IFE-1#PBF | TSSOP-16 | I | $8.13 | $5.69 |
| LT3430IFE-1#TRPBF | TSSOP-16 | I | | $5.81 |
| LT3430IFE#PBF | TSSOP-16 | I | $8.13 | $5.69 |
| LT3430IFE#TR | TSSOP-16 | I | | $5.81 |
| LT3430IFE#TRPBF | TSSOP-16 | I | | $5.81 |
