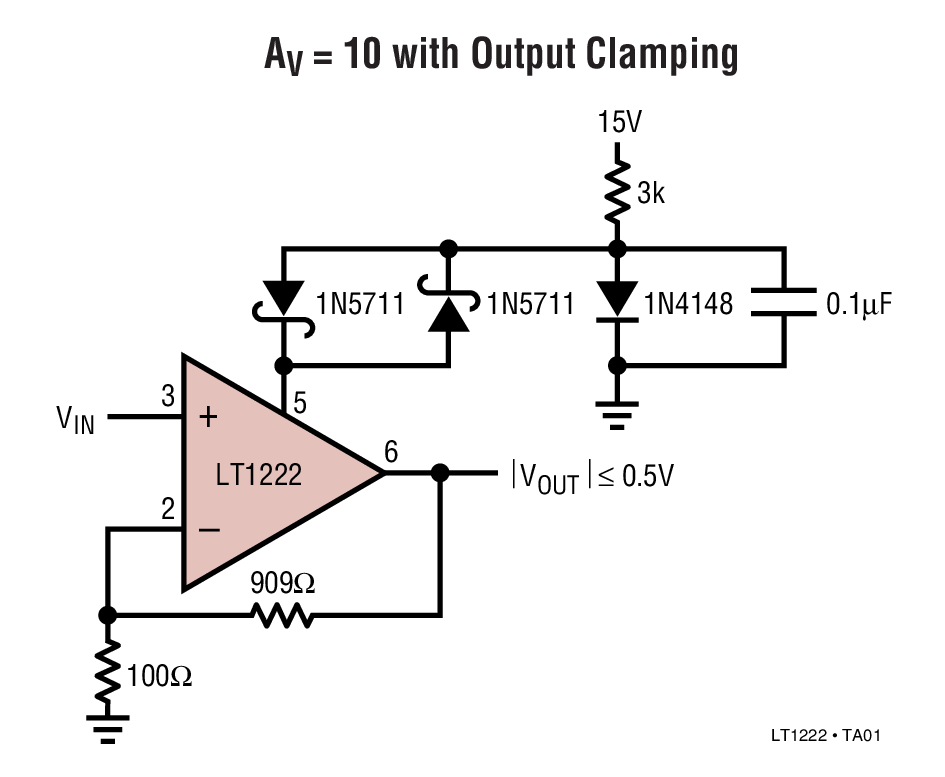

LT1222典型应用图例一

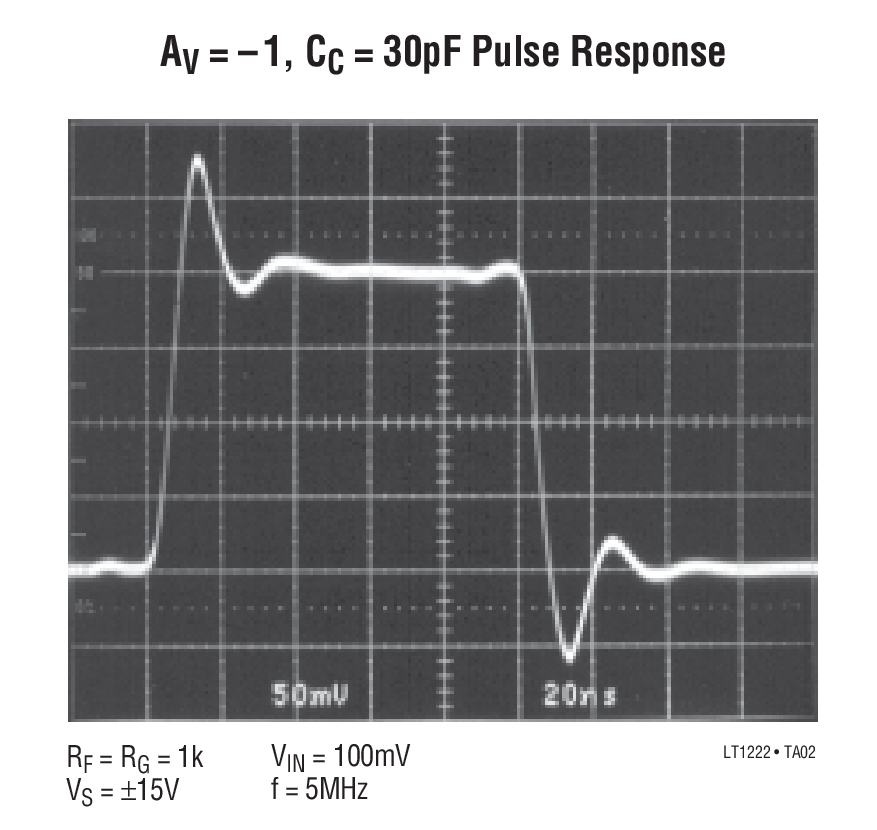

LT1222典型应用图例二
LT1222 - 封装图解：

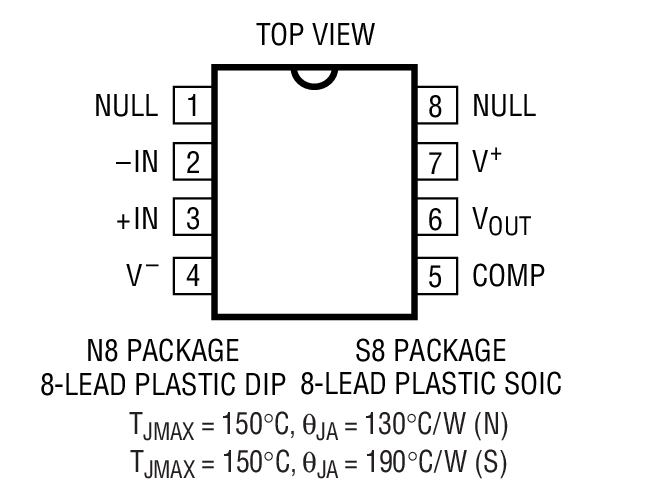

LT1222封装图解一
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1222介绍

LT1222 - LT1222是500MHz, 3nV/rtHz, AV <=10 Operational Amplifier

LT1222是LINEAR凌力尔特公司的一款精准放大器产品，LT1222是LT1222是500MHz, 3nV/rtHz, AV <=10 Operational Amplifier，本站介绍了LT1222的封装应用图解、特点和优点、功能等，并给出了与LT1222相关的LINEAR元器件型号供参考。

LT1222 - LT1222是500MHz, 3nV/rtHz, AV <=10 Operational Amplifier - 精准放大器 - 信号调理 - 凌力尔特

LT1222 - 500MHz, 3nV/rtHz, AV <=10 Operational Amplifier

LT1222 - 500MHz, 3nV/rtHz, AV <=10 Operational Amplifier - Linear Technology（凌力尔特）

功能描述

Most H (Metal Can), J (Ceramic), and K (Metal Can) Packages from Linear Technology Are Now Obsolete

The LT1222 is a low noise, very high speed operational amplifier with superior DC performance. The LT1222 is stable in a noise gain of 10 or greater without compensation, or the part can be externally compensated for lower closed-loop gain at the expense of lower bandwidth and slew rate. It features reduced input offset voltage, lower input bias currents, lower noise and higher DC gain than devices with comparable bandwidth and slew rate. The circuit is a single gain stage that includes proprietary DC gain enhancement circuitry to obtain precision with high speed. The high gain and fast settling time make the circuit an ideal choice for data acquisition systems. The circuit is also capable of driving capacitive loads which makes it useful in buffer or cable driver applications. The compensation node can also be used to clamp the output swing.

The LT1222 is a member of a family of fast, high performance amplifiers that employ Linear Technology Corporation’s advanced complementary bipolar processing. For unity-gain stable applications the LT1220 can be used, and for gains of 4 or greater the LT1221 can be used.

特点
  • Gain-Bandwidth: 500MHz
  • Gain of 10 Stable Uncompensated
  • Slew Rate: 200V/µs
  • Input Noise Voltage: 3nV/rtHz
  • C-Load™ Op Amp Drives Capacitive Loads
  • External Compensation Pin
  • Maximum Input Offset Voltage: 300µV
  • Maximum Input Bias Current: 300nA
  • Maximum Input Offset Current: 300nA
  • Minimum Output Swing Into 500 ohms: ±12V
  • Minimum DC Gain: 100V/mV, RL = 500 ohms
  • Settling Time to 0.1%: 75ns, 10V Step
  • Settling Time to 0.01%: 120ns, 10V Step
  • Differential Gain: 0.4%, AV = 2, RL = 150 ohms
  • Differential Phase: 0.1°, AV = 2, RL = 150 ohms
    • 应用
  • Wideband Amplifiers
  • Buffers
  • Active Filters
  • Video and RF Amplification
  • Cable Drivers
  • 8-, 10-, 12-Bit Data Acquisition Systems
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1222CN8 N-8 C $4.17 $3.40
    LT1222CN8#PBF N-8 C $4.17 $3.40
    LT1222CS8 SO-8 C $4.58 $3.65
    LT1222CS8#PBF SO-8 C $4.58 $3.65
    LT1222CS8#TR SO-8 C $3.71
    LT1222CS8#TRPBF SO-8 C $3.71
    LT1222IS8 SO-8 I $4.70 $3.95
    LT1222IS8#PBF SO-8 I $4.70 $3.95
    LT1222IS8#TR SO-8 I $4.01
    LT1222IS8#TRPBF SO-8 I $4.01
