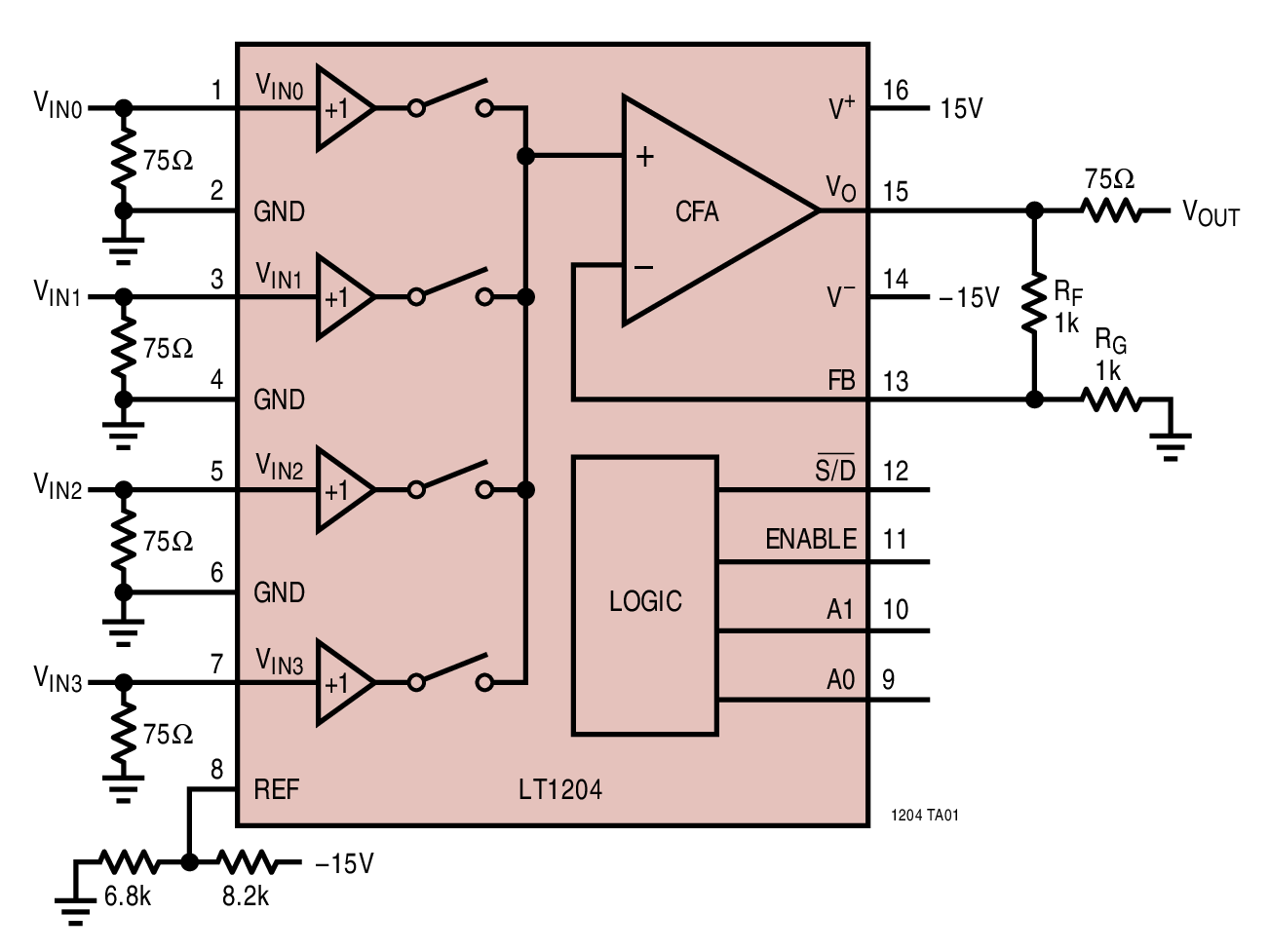

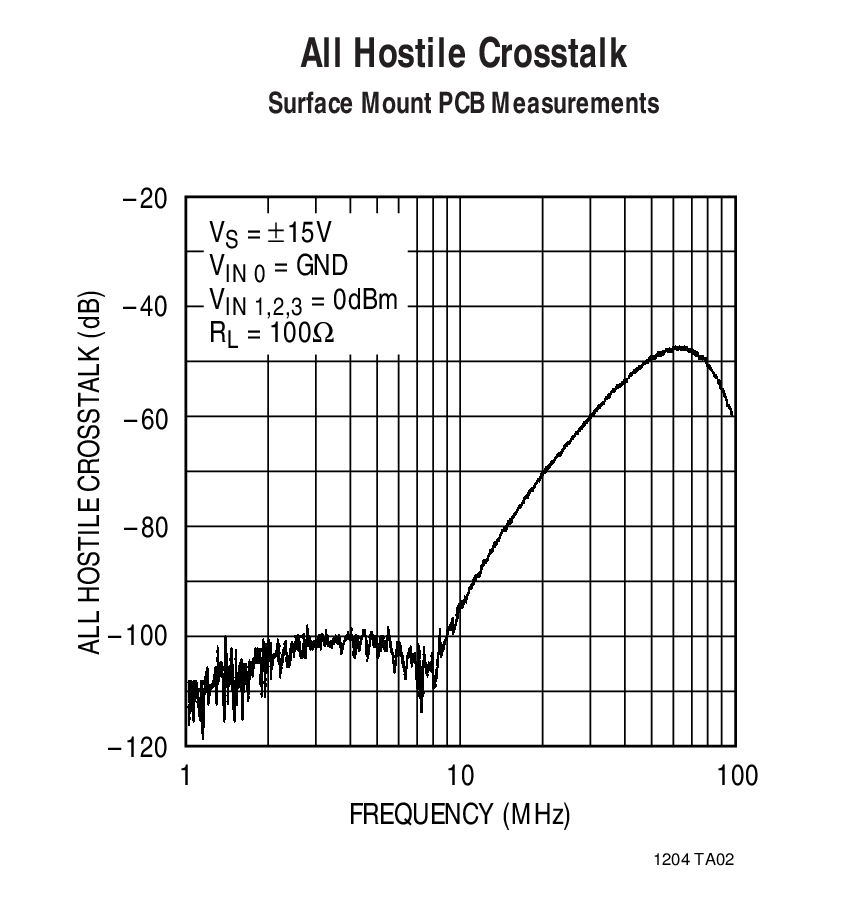

LT1204 - 典型应用图例：
LT1204典型应用图例一
LT1204典型应用图例二

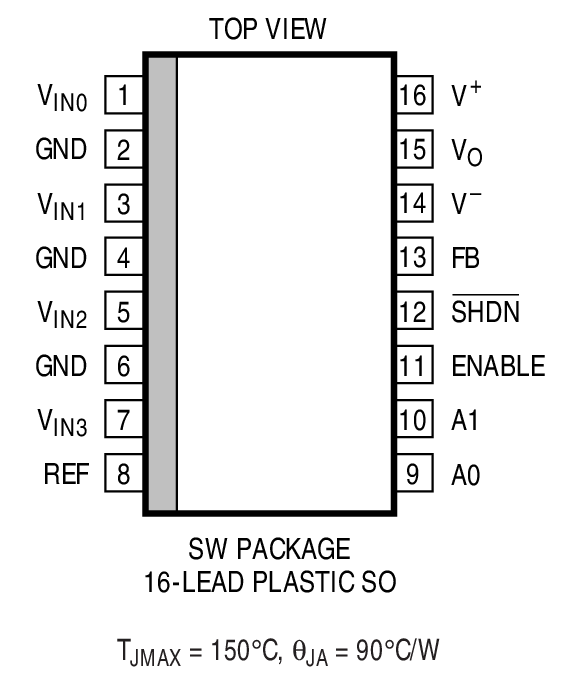

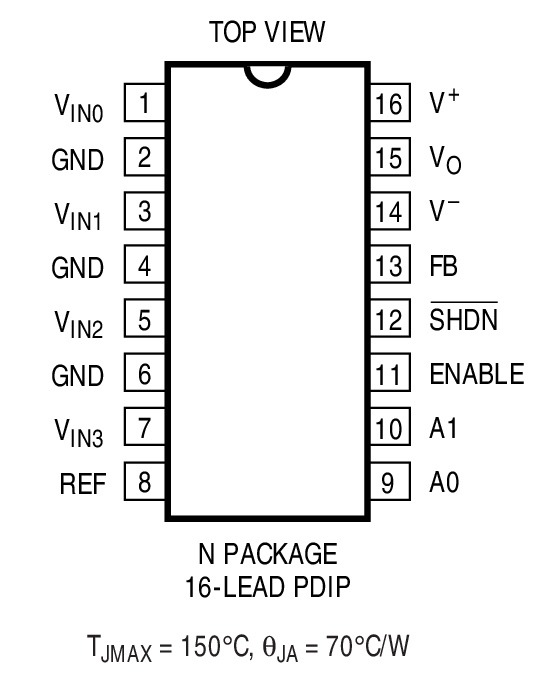

LT1204 - 封装图解：
LT1204封装图解一
LT1204封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1204介绍

LT1204 - LT1204是4-Input Video Multiplexer with 75MHz Current Feedback Amplifier

LT1204是LINEAR凌力尔特公司的一款高速放大器产品，LT1204是LT1204是4-Input Video Multiplexer with 75MHz Current Feedback Amplifier，本站介绍了LT1204的封装应用图解、特点和优点、功能等，并给出了与LT1204相关的LINEAR元器件型号供参考。

LT1204 - LT1204是4-Input Video Multiplexer with 75MHz Current Feedback Amplifier - 高速放大器 - 信号调理 - 凌力尔特

LT1204 - 4-Input Video Multiplexer with 75MHz Current Feedback Amplifier

LT1204 - 4-Input Video Multiplexer with 75MHz Current Feedback Amplifier - Linear Technology（凌力尔特）

功能描述
The LT®1204 is a 4-input video multiplexer designed to drive 75 ohms cables and easily expand into larger routing systems. Wide bandwidth, high slew rate, and low differential gain and phase make the LT1204 ideal for broadcast quality signal routing. Channel separation and disable isolation are greater than 90dB up to 10MHz. The channel-to-channel output switching transient is only 40mVP-P, with a 50ns duration, making the transition imperceptible on high quality monitors.A unique feature of the LT1204 is its ability to expand into larger routing matrices. This is accomplished by a patent pending circuit that bootstraps the feedback resistors in the disable condition, raising the true output impedance of the circuit. The effect of this feature is to eliminate cable misterminations in large systems.The large input and output signal levels supported by the LT1204 when operated on ±15V supplies make it ideal for general purpose analog signal selection and multiplexing. A shutdown feature reduces the supply current to 1.5mA.
特点
  • 0.1dB Gain Flatness > 30MHz
  • Channel Separation at 10MHz: 90dB
  • Input 40mV Switching Transient, Input Referred
  • ?3dB Bandwidth, AV = 2, RL = 150 ohms: 75MHz
  • Channel-to-Channel Switching Time: 120ns
  • Easy to Expand for More Inputs
  • Large Input Range: ±6V
  • 0.04% Differential Gain, RL = 150 ohms
  • 0.06? Differential Phase, RL = 150 ohms
  • High Slew Rate: 1000V/µs
  • Output Swing, RL = 400 ohms: ±13V
  • Wide Supply Range: ±5V to ±15V
    • 应用
  • Broadcast Quality Video Multiplexing
  • Large Matrix Routing
  • Medical Imaging
  • Large Amplitude Signal Multiplexing
  • Programmable Gain Amplifiers
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1204CN N-16 C $6.00 $4.80
    LT1204CN#PBF N-16 C $6.00 $4.80
    LT1204CSW SW-16 C $6.50 $5.25
    LT1204CSW#PBF SW-16 C $6.50 $5.25
    LT1204CSW#TR SW-16 C $5.31
    LT1204CSW#TRPBF SW-16 C $5.31
