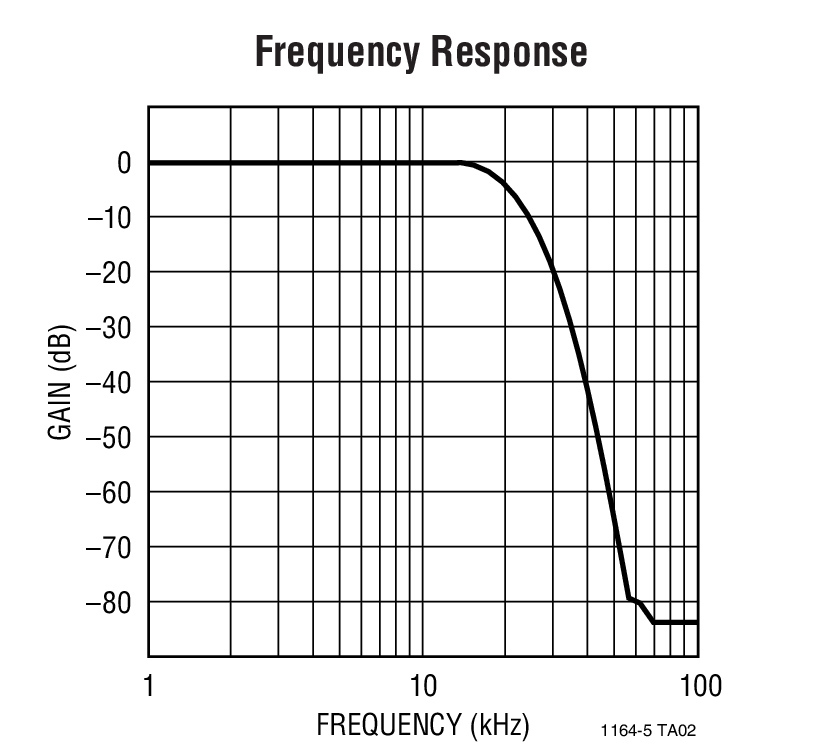

LTC1164-5典型应用图例一

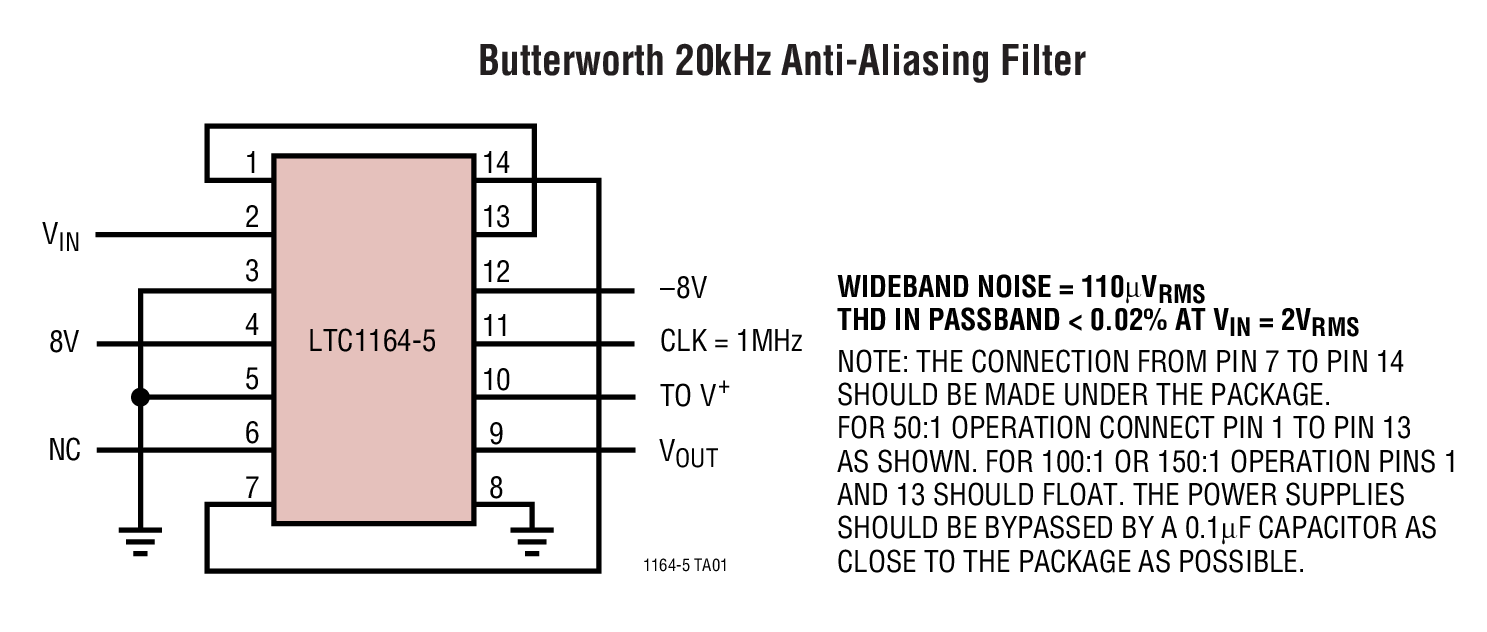

LTC1164-5典型应用图例二
LTC1164-5 - 封装图解：

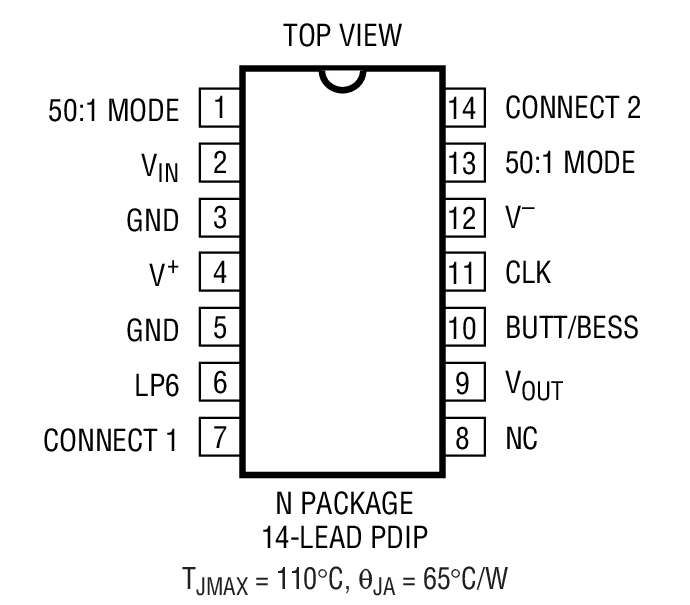

LTC1164-5封装图解一

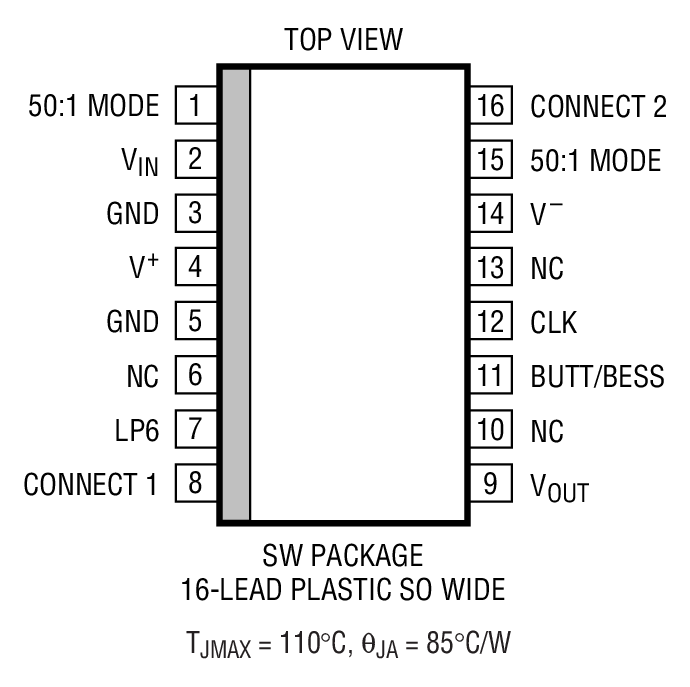

LTC1164-5封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1164-5介绍

LTC1164-5 - LTC1164-5是Low Power 8th Order Pin Selectable Butterworth or Bessel Lowpass Filter

LTC1164-5是LINEAR凌力尔特公司的一款低通滤波器产品，LTC1164-5是LTC1164-5是Low Power 8th Order Pin Selectable Butterworth or Bessel Lowpass Filter，本站介绍了LTC1164-5的封装应用图解、特点和优点、功能等，并给出了与LTC1164-5相关的LINEAR元器件型号供参考。

LTC1164-5 - LTC1164-5是Low Power 8th Order Pin Selectable Butterworth or Bessel Lowpass Filter - 低通滤波器 - 信号调理 - 凌力尔特

LTC1164-5 - Low Power 8th Order Pin Selectable Butterworth or Bessel Lowpass Filter

LTC1164-5 - Low Power 8th Order Pin Selectable Butterworth or Bessel Lowpass Filter - Linear Technology（凌力尔特）

功能描述

The H (Metal Can), J (Ceramic), and K (Metal Can) Packages From Linear Technology Are Now Obsolete

Low power operation is achieved without compromising noise or distortion performance. With ±5V supplies and 10kHz cutoff frequency, the operating signal-to-noise ratio is 86dB and the THD throughout the passband is 0.015%. Under the same conditions, a 77dB signal-to-noise ratio and distortion is obtained with a single 5V supply while the clock feedthrough is kept below the noise level. The maximum signal-to-noise ratio is 92dB.

The LTC1164-5 approximates an 8th order Butterworth response with a clock-to-cutoff frequency ratio of 100:1 (Pin 10 to V) or 50:1 double-sampled (Pin 10 to V+ and Pin 1 shorted to Pin 13). Double-sampling allows the input signal frequency to reach the clock frequency before any aliasing occurrence. An 8th order Bessel response can also be approximated with a clock-to-cutoff frequency ratio of 140:1 (Pin 10 to ground). With ±7.5V supply, ±5V supply and single 5V supply, the maximum clock frequency of the LTC1164-5 is 1.5MHz, 1MHz, and 1MHz respectively. The LTC1164-5 is pin-compatible with the LTC1064-2 and LTC-1064-3.

?

特点
  • Pin Selectable Butterworth or Bessel Response
  • 4mA Supply Current with ±5V Supplies
  • fCUTOFF up to 20kHz
  • 100μVRMS Wideband Noise
  • THD <0.02% (50:1, VS = ±7.5V, VIN = 2VRMS)
  • Operates with a Single 5V Supply (1VRMS Input Range)
  • 60μVRMS Clock Feedthrough (Single 5V Supply)
  • Operates up to ±8V Supplies
  • TTL/CMOS-Compatible Clock Input
  • No External Components
  • Available in 14-Pin DIP and 16-Pin SO Wide Packages
    • 应用
  • Anti-Aliasing Filters
  • Battery-Operated Instruments
  • Telecommunications Filters
  • Smoothing Filters
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1164-5CN N-14 C $13.35 $10.80
    LTC1164-5CN#PBF N-14 C $13.35 $10.80
    LTC1164-5CSW SW-16 C $18.35 $14.85
    LTC1164-5CSW#PBF SW-16 C $18.35 $14.85
    LTC1164-5CSW#TR SW-16 C $14.91
    LTC1164-5CSW#TRPBF SW-16 C $14.91
