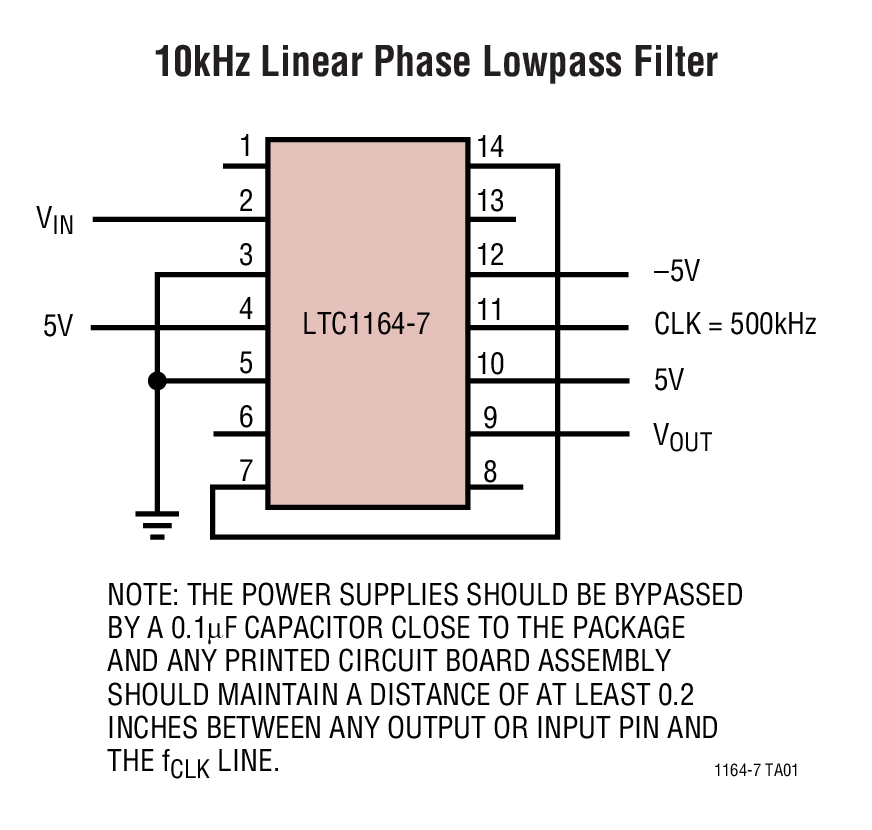

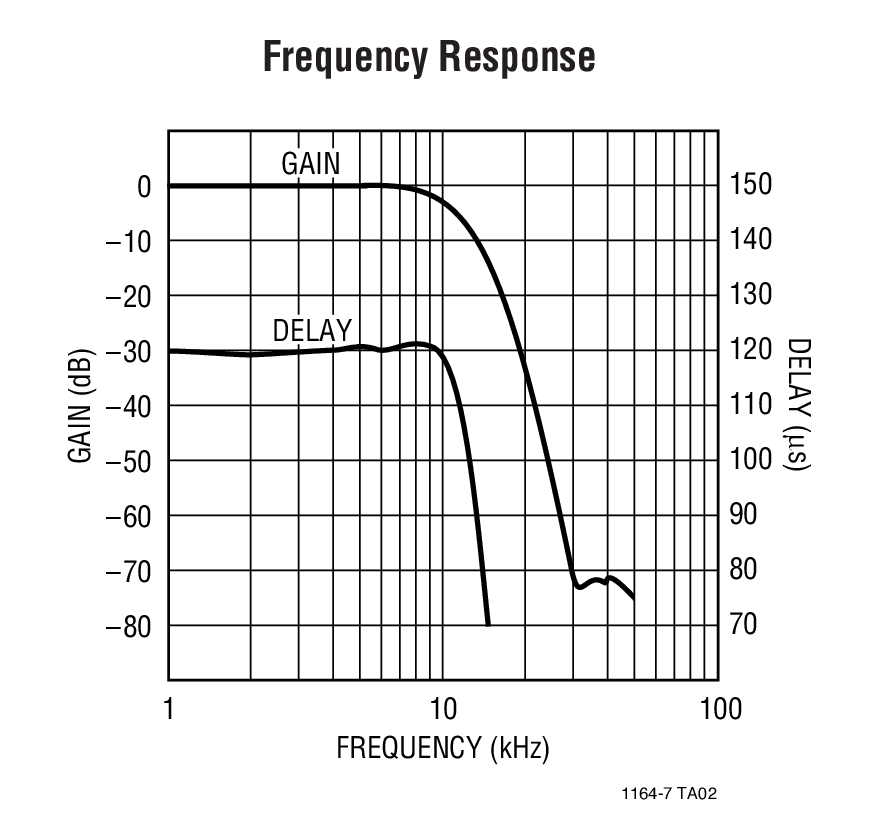

LTC1164-7 - 典型应用图例：

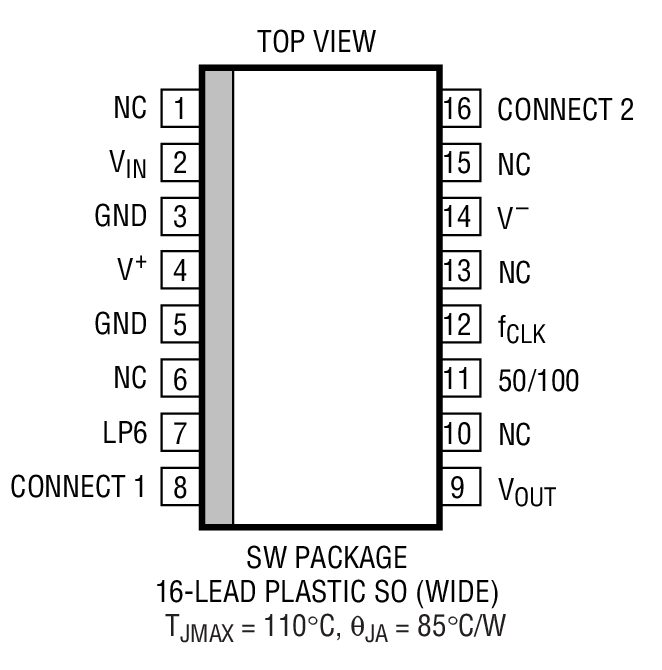

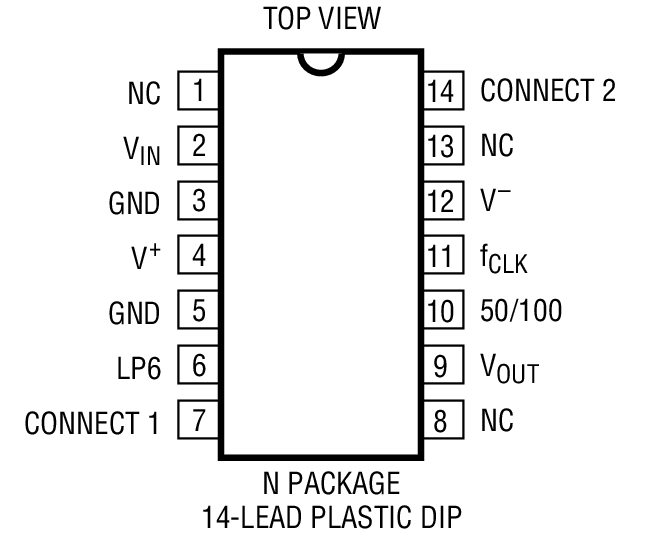

LTC1164-7 - 封装图解：

LTC1164-7 - LTC1164-7是Low Power, Linear Phase 8th Order Lowpass Filter

LTC1164-7是Linear公司的一款低通滤波器产品，LTC1164-7是Low Power, Linear Phase 8th Order Lowpass Filter，本站介绍了LTC1164-7的封装应用图解、特点和优点、功能等，并给出了与LTC1164-7相关的凌力尔特元器件型号供参考。

LTC1164-7 - Low Power, Linear Phase 8th Order Lowpass Filter

LTC1164-7 - Low Power, Linear Phase 8th Order Lowpass Filter - Linear Technology（凌力尔特）

功能描述

Low power is achieved without sacrificing dynamic range. With single 5V supply, the S/N + THD is up to 75dB. Optimum 91dB S/N is obtained with ±7.5V supplies.

The clock-to-cutoff frequency ratio of the LTC1164-7 can be set to 50:1 (pin 10 to V + ) or 100:1 (pin 10 to V - ).

When the filter operates at the clock-to-cutoff frequency ratio of 50:1, the input is double-sampled to lower the risk of aliasing.

The LTC1164-7 is pin-compatible with the LTC1064-X series and LTC1264-7.

特点

Better Than Bessel Roll-Off

fCUTOFF up to 20kHz, Single 5V Supply

ISUPPLY = 2.5mA (Typ), Single 5V Supply

75dB THD + Noise with Single 5V Supply

Phase and Group Delay Response Fully Tested

Transient Response with No Ringing

Wide Dynamic Range

No External Components Needed

Available in 14-Lead N and 16-Lead SW Packages

应用

Data Communication Filters

Time Delay Networks

Phase Matched Filters

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1164-7CN	N-14	C	$13.35	$10.80
LTC1164-7CN#PBF	N-14	C	$13.35	$10.80
LTC1164-7CSW	SW-16	C	$18.35	$14.85
LTC1164-7CSW#PBF	SW-16	C	$18.35	$14.85
LTC1164-7CSW#TR	SW-16	C		$14.91
LTC1164-7CSW#TRPBF	SW-16	C		$14.91
