当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LTC1064-2
LTC1064-2技术文档下载：
LTC1064-2技术文档产品手册下载
LTC1064-2 - 典型应用图例：

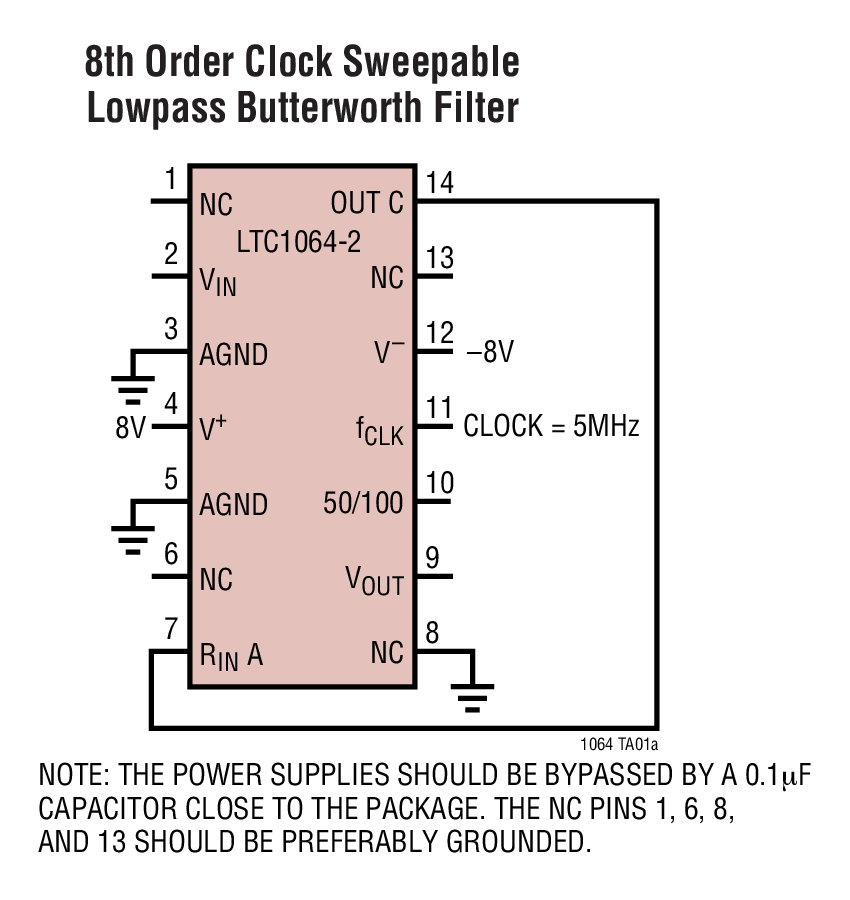

LTC1064-2典型应用图例一

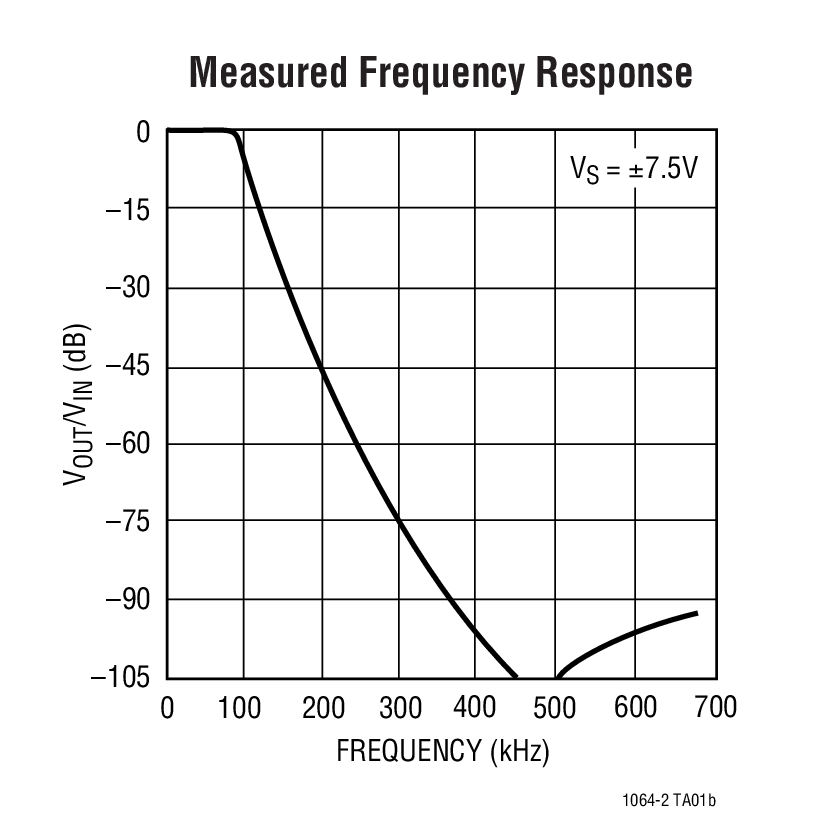

LTC1064-2典型应用图例二
LTC1064-2 - 封装图解：

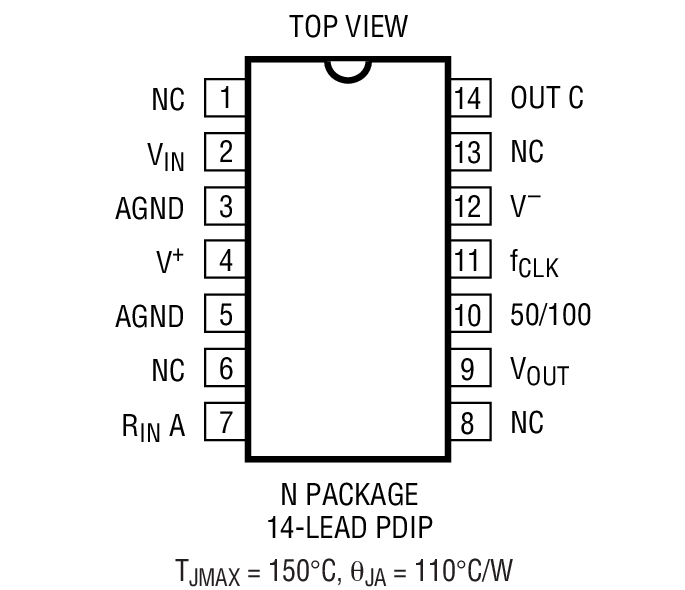

LTC1064-2封装图解一

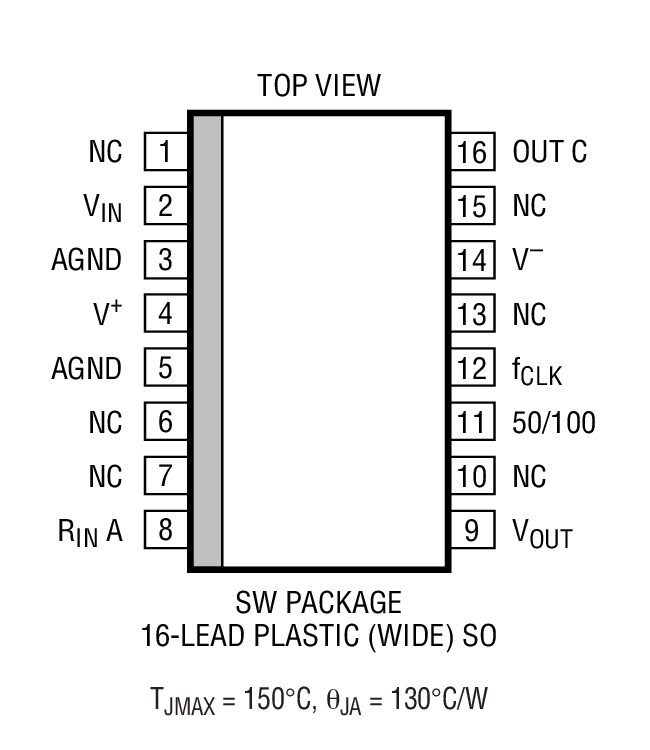

LTC1064-2封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1064-2介绍

LTC1064-2 - LTC1064-2是Low Noise, High Frequency, 8th Order Butterworth Lowpass Filter

LTC1064-2是LINEAR凌力尔特公司的一款低通滤波器产品，LTC1064-2是LTC1064-2是Low Noise, High Frequency, 8th Order Butterworth Lowpass Filter，本站介绍了LTC1064-2的封装应用图解、特点和优点、功能等，并给出了与LTC1064-2相关的LINEAR元器件型号供参考。

LTC1064-2 - LTC1064-2是Low Noise, High Frequency, 8th Order Butterworth Lowpass Filter - 低通滤波器 - 信号调理 - 凌力尔特

LTC1064-2 - Low Noise, High Frequency, 8th Order Butterworth Lowpass Filter

LTC1064-2 - Low Noise, High Frequency, 8th Order Butterworth Lowpass Filter - Linear Technology（凌力尔特）

功能描述

The LTC1064-2 is a monolithic 8th order lowpass Butterworth filter, which provides a maximally flat passband. The attenuation slope is 48dB/octave and the maximum attenuation is in excess of 80dB. An external TTL or CMOS clock programs the filter's cutoff frequency. The clock to cutoff frequency ratio is 100:1 (Pin 10 at V) or 50:1 (Pin 10 at V+). The maximum cutoff frequency is 140kHz. No external components are needed.

The LTC1064-2 features low wideband noise and low harmonic distortion even for input voltages up to 3VRMS. In fact the LTC1064-2 overall performance competes with equivalent multiple op amp RC active realizations. The LTC1064-2 is available in a 14-pin DIP or 16-pin surface mounted SW package. The LTC1064-2 is fabricated using LTC's enhanced analog CMOS Si-gate process.

The LTC1064-2 is pin compatible with the LTC1064-1.

特点
  • 8th Order Filter in a 14-Pin Package
  • 140kHz Maximum Corner Frequency
  • No External Components
  • 50:1 and 100:1 Clock to Cutoff Frequency Ratio
  • 80μVRMS Total Wideband Noise
  • 0.03% THD or Better
  • Operates from ±2.37V to ±8V Power Supplies
    • 应用
  • Antialiasing Filters
  • Smoothing Filters
  • Tracking High Frequency Lowpass Filters
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1064-2CN N-14 C $13.35 $10.80
    LTC1064-2CN#PBF N-14 C $13.35 $10.80
    LTC1064-2CSW SW-16 C $18.35 $14.85
    LTC1064-2CSW#PBF SW-16 C $18.35 $14.85
    LTC1064-2CSW#TR SW-16 C $14.91
    LTC1064-2CSW#TRPBF SW-16 C $14.91
