当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LTC1063
LTC1063技术文档下载：
LTC1063技术文档产品手册下载
LTC1063 - 典型应用图例：

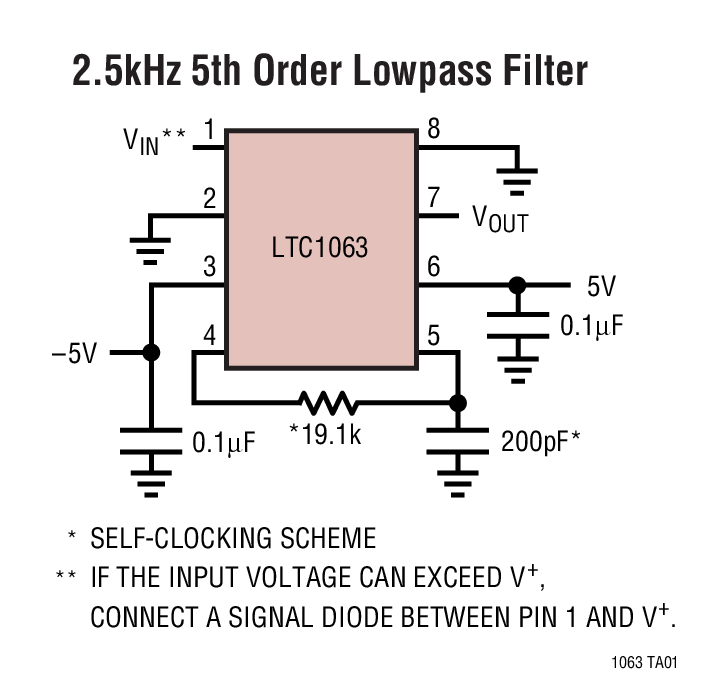

LTC1063典型应用图例一

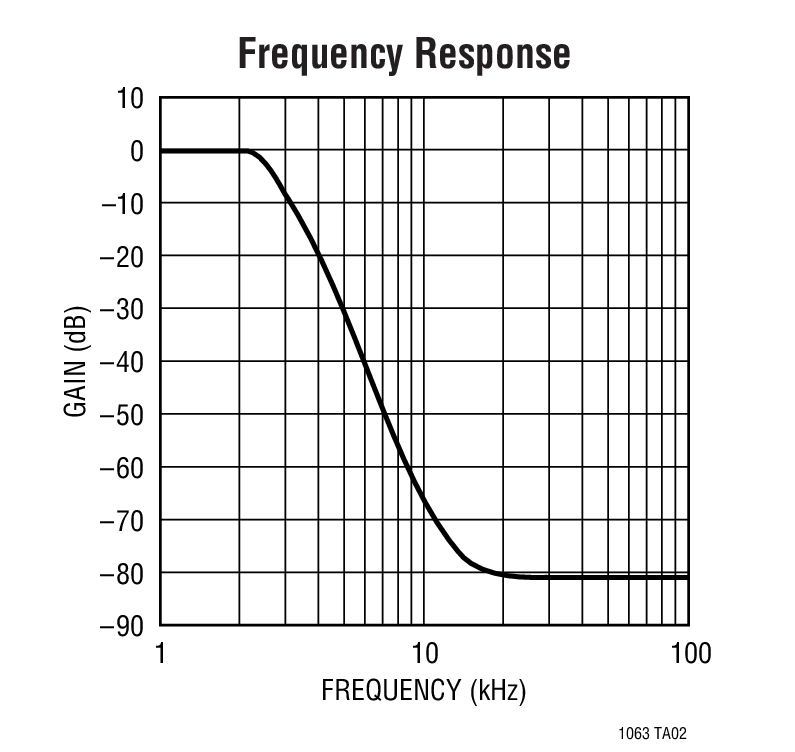

LTC1063典型应用图例二
LTC1063 - 封装图解：

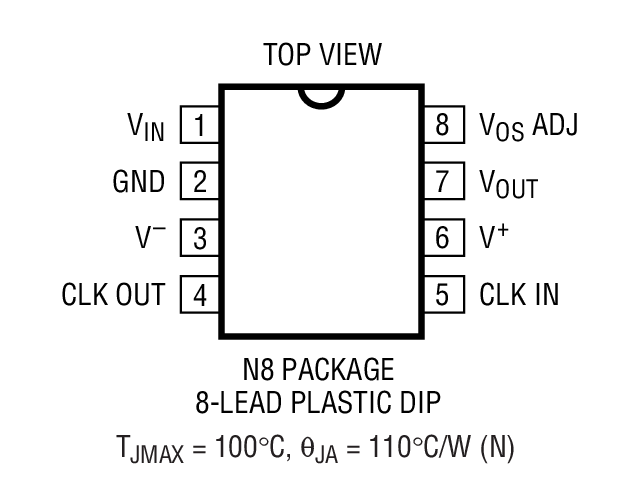

LTC1063封装图解一

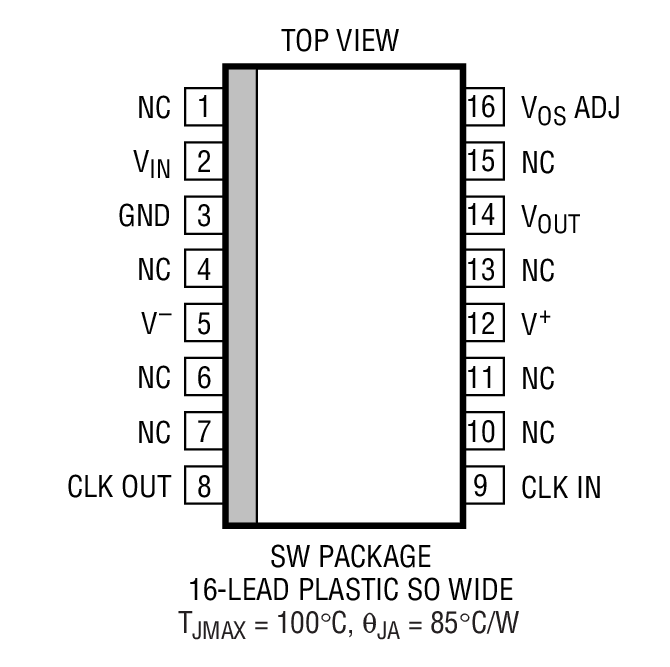

LTC1063封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LTC1063介绍

LTC1063 - LTC1063是DC Accurate, Clock-Tunable 5th Order Butterworth Lowpass Filter

LTC1063是LINEAR凌力尔特公司的一款低通滤波器产品，LTC1063是LTC1063是DC Accurate, Clock-Tunable 5th Order Butterworth Lowpass Filter，本站介绍了LTC1063的封装应用图解、特点和优点、功能等，并给出了与LTC1063相关的LINEAR元器件型号供参考。

LTC1063 - LTC1063是DC Accurate, Clock-Tunable 5th Order Butterworth Lowpass Filter - 低通滤波器 - 信号调理 - 凌力尔特

LTC1063 - DC Accurate, Clock-Tunable 5th Order Butterworth Lowpass Filter

LTC1063 - DC Accurate, Clock-Tunable 5th Order Butterworth Lowpass Filter - Linear Technology（凌力尔特）

功能描述

The filter cutoff frequency is controlled either by an internal or external clock.The clock-to-cut off frequency ratio is 100:1. The on-board clock is power supply independent, and it is programmed via an external RC. The 50μVRMS clock feed through is considerably reduced over existing monolithic filters.

The LTC1063 wideband noise is 95μVRMS, and it can process large AC input signals with low distortion. With ±7.5V supplies, for instance, the filter handles up to 4VRMS (92dB S/N ratio) while the standard 1kHz THD is below 0.02%; 80dB dynamic ranges (S/N +THD) is ob-tained with input levels between 1VRMS and 2.3VRMS.

The LTC1063 is available in 8-pin miniDIP and 16-pin SO wide packages. For a linear phase response, see LTC1065 data sheet.

?

特点
  • Clock-Tunable Cutoff Frequency
  • 1mV DC Offset (Typical)
  • 80dB CMRR (Typical)
  • Internal or External Clock
  • 50mVRMS Clock Feedthrough
  • 100:1 Clock-to-Cutoff Frequency Ratio
  • 95μVRMS Total Wideband Noise
  • 0.01% THD at 2VRMS Output Level
  • 50kHz Maximum Cutoff Frequency
  • Cascadable for Faster Roll-Off
  • Operates from ±2.375 to ±8V Power Supplies
  • Self-Clocking with 1 RC
  • Available in 8-Pin DIP and 16-Pin SO Wide Packages
    • 应用
  • Strain Gauge Amplifiers
  • Anti-Aliasing Filters
  • Low Level Filtering
  • Digital Voltmeters
  • 60Hz Lowpass Filters
  • Smoothing Filters
  • Reconstruction Filters
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LTC1063CN8 N-8 C $6.70 $5.50
    LTC1063CN8#PBF N-8 C $6.70 $5.50
    LTC1063CSW SW-16 C $7.20 $5.90
    LTC1063CSW#PBF SW-16 C $7.20 $5.90
    LTC1063CSW#TR SW-16 C $5.96
    LTC1063CSW#TRPBF SW-16 C $5.96
