当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LT1529
LT1529技术文档下载：
LT1529技术文档产品手册下载
LT1529 - 典型应用图例：

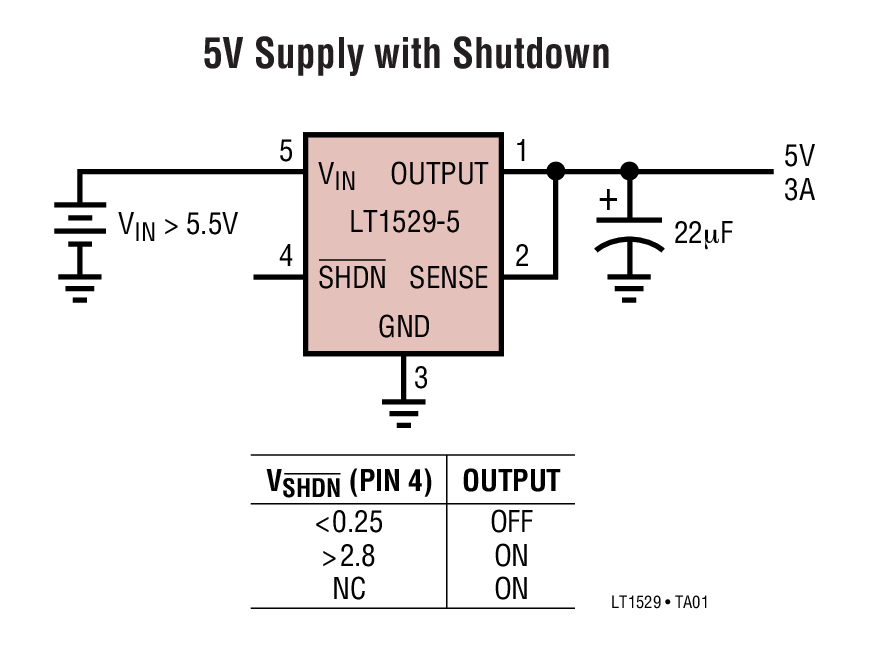

LT1529典型应用图例一

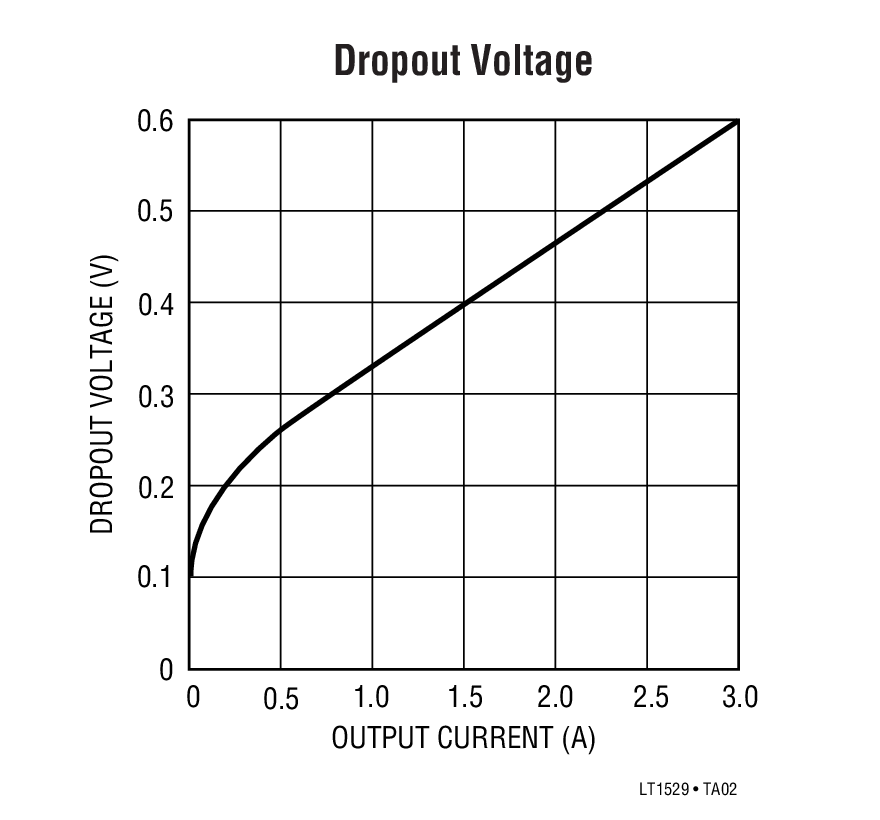

LT1529典型应用图例二
LT1529 - 封装图解：

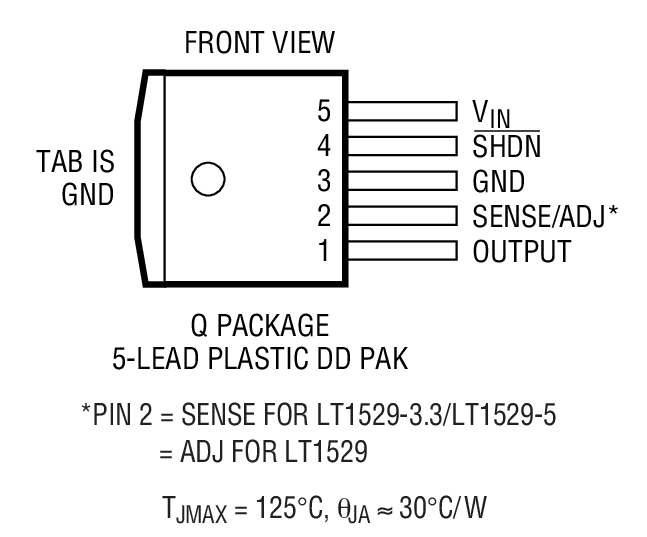

LT1529封装图解一

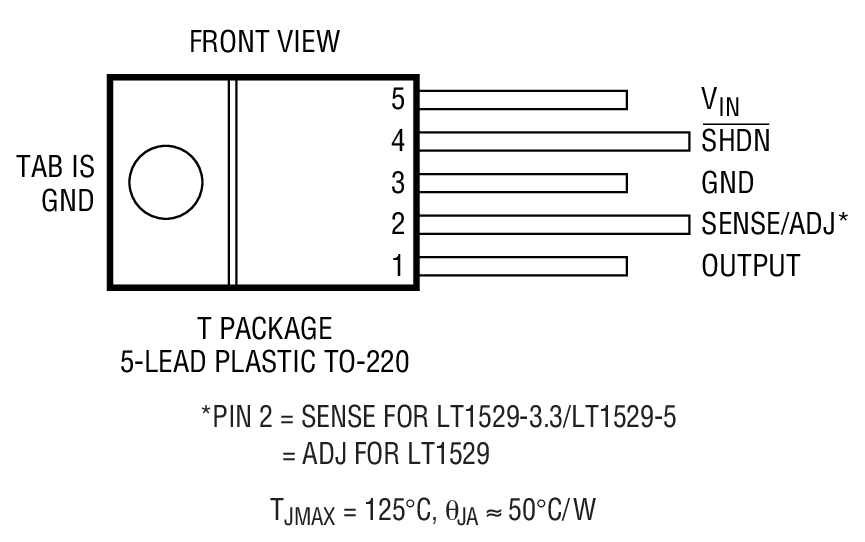

LT1529封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1529介绍

LT1529 - LT1529是3A Low Dropout Regulators with Micropower Quiescent Current and Shutdown

LT1529是LINEAR凌力尔特公司的一款正稳压器产品，LT1529是LT1529是3A Low Dropout Regulators with Micropower Quiescent Current and Shutdown，本站介绍了LT1529的封装应用图解、特点和优点、功能等，并给出了与LT1529相关的LINEAR元器件型号供参考。

LT1529 - LT1529是3A Low Dropout Regulators with Micropower Quiescent Current and Shutdown - 正稳压器 - 电源管理 - 凌力尔特

LT1529 - 3A Low Dropout Regulators with Micropower Quiescent Current and Shutdown

LT1529 - 3A Low Dropout Regulators with Micropower Quiescent Current and Shutdown - Linear Technology（凌力尔特）

功能描述
The LT?1529/LT1529-3.3/LT1529-5 are 3A low dropout regulators with micropower quiescent current and shutdown. The devices are capable of supplying 3A of output current with a dropout voltage of 0.6V. Designed for use in battery-powered systems, the low quiescent current, 50μA operating and 16μA in shutdown, make them an ideal choice. The quiescent current is well controlled; it does not rise in dropout as it does with many other low dropout PNP regulators.Other features of the LT1529 /LT1529-3.3/LT1529-5 include the ability to operate with small output capacitors. They are stable with only 3.3μF on the output while most older devices require between 10μF and 100μF for stability. Small ceramic capacitors can be used, enhancing manufacturabiltiy. Also the input may be connected to voltages lower than the output voltage, including negative voltages, without reverse current flow from output to input. This makes the LT1529/LT1529-3.3/LT1529-5 ideal for backup power situations where the output is held high and the input is at ground or reversed. Under these conditions, only 16μA will flow from the OUTPUT pin to ground. The devices are available in 5-lead TO-220 and 5-lead DD packages.
特点
  • Dropout Voltage: 0.6V at Iout = 3A
  • Output Current: 3A
  • Quiescent Current: 50µA
  • No Protection Diodes Needed
  • Adjustable Output from 3.8V to 14V
  • 3.3V and 5V Fixed Output Voltages
  • Controlled Quiescent Current in Dropout
  • Shutdown IQ = 16µA
  • Stable with 3.3µF Output Capacitor
  • Reverse Battery Protection
  • No Reverse Current
  • Thermal Limiting
    • 应用
  • High Efficiency Regulator
  • Regulator for Battery-Powered Systems
  • Post Regulator for Switching Supplies
  • 5V to 3.3V Logic Regulator
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1529CQ DDPAK-5 C $4.21 $3.30
    LT1529CQ-3.3 DDPAK-5 C $4.21 $3.30
    LT1529CQ-3.3#PBF DDPAK-5 C $4.21 $3.30
    LT1529CQ-3.3#TR DDPAK-5 C $3.42
    LT1529CQ-3.3#TRPBF DDPAK-5 C $3.42
    LT1529CQ-5 DDPAK-5 C $4.21 $3.30
    LT1529CQ-5#PBF DDPAK-5 C $4.21 $3.30
    LT1529CQ-5#TR DDPAK-5 C $3.42
    LT1529CQ-5#TRPBF DDPAK-5 C $3.42
    LT1529CQ#PBF DDPAK-5 C $4.21 $3.30
    LT1529CQ#TR DDPAK-5 C $3.42
    LT1529CQ#TRPBF DDPAK-5 C $3.42
    LT1529CT TO-220 C $3.86 $3.00
    LT1529CT-3.3 TO-220 C $3.86 $3.00
    LT1529CT-3.3#06PBF TO-220 C $3.86 $3.00
    LT1529CT-3.3#PBF TO-220 C $3.86 $3.00
    LT1529CT-5 TO-220 C $3.86 $3.00
    LT1529CT-5#06 TO-220 C $3.86 $3.00
    LT1529CT-5#06PBF TO-220 C $3.86 $3.00
    LT1529CT-5#30PBF TO-220 C $4.36 $3.45
    LT1529CT-5#PBF TO-220 C $3.86 $3.00
    LT1529CT#06 TO-220 C $3.86 $3.00
    LT1529CT#06PBF TO-220 C $3.86 $3.00
    LT1529CT#PBF TO-220 C $3.86 $3.00
    LT1529IQ DDPAK-5 I $4.79 $3.80
    LT1529IQ-3.3 DDPAK-5 I $4.79 $3.80
    LT1529IQ-3.3#PBF DDPAK-5 I $4.79 $3.80
    LT1529IQ-3.3#TR DDPAK-5 I $3.92
    LT1529IQ-3.3#TRPBF DDPAK-5 I $3.92
    LT1529IQ-5 DDPAK-5 I $4.79 $3.80
    LT1529IQ-5#PBF DDPAK-5 I $4.79 $3.80
    LT1529IQ-5#TR DDPAK-5 I $3.92
    LT1529IQ-5#TRPBF DDPAK-5 I $3.92
    LT1529IQ#PBF DDPAK-5 I $4.79 $3.80
    LT1529IQ#TR DDPAK-5 I $3.92
    LT1529IQ#TRPBF DDPAK-5 I $3.92
    LT1529IT TO-220 I $4.10 $3.45
    LT1529IT-3.3 TO-220 I $4.36 $3.45
    LT1529IT-3.3#PBF TO-220 I $4.36 $3.45
    LT1529IT-5 TO-220 I $4.36 $3.45
    LT1529IT-5#PBF TO-220 I $4.36 $3.45
    LT1529IT#06PBF TO-220 I $4.10 $3.45
    LT1529IT#PBF TO-220 I $4.36 $3.45
