LTC1197L - LTC1197L是10-Bit, 500ksps ADCs in MSOP with Auto Shutdown

LTC1197L是LINEAR凌力尔特公司的一款通用型 SAR ADC产品，LTC1197L是LTC1197L是10-Bit, 500ksps ADCs in MSOP with Auto Shutdown，本站介绍了LTC1197L的封装应用图解、特点和优点、功能等，并给出了与LTC1197L相关的LINEAR元器件型号供参考。

LTC1197L - LTC1197L是10-Bit, 500ksps ADCs in MSOP with Auto Shutdown - 通用型 SAR ADC - 数据转换 - 凌力尔特

LTC1197L - 10-Bit, 500ksps ADCs in MSOP with Auto Shutdown

LTC1197 - 10-Bit, 500ksps ADCs in MSOP with Auto Shutdown - Linear Technology（凌力尔特）

功能描述

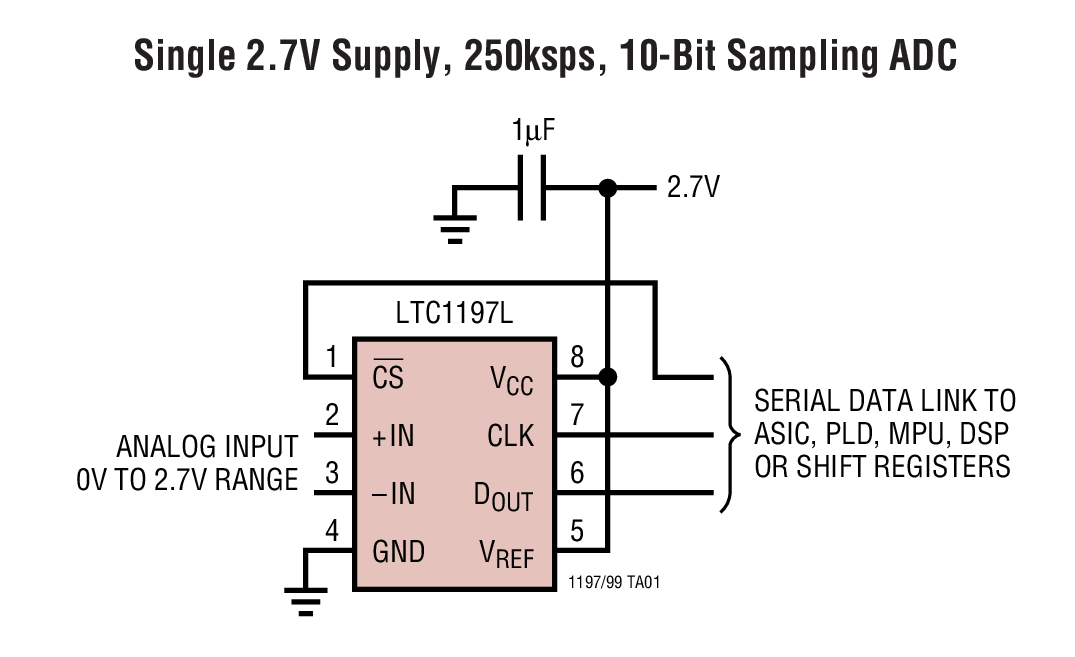

The LTC?1197/LTC1197L/LTC1199/LTC1199L are 10-bit A/D converters with sampling rates up to 500kHz. They have 2.7V (L) and 5V versions and are offered in 8-pin MSOP and SO packages. Power dissipation is typically only 2.2mW at 2.7V (25mW at 5V) during full speed operation. The automatic power down reduces supply current linearly as sample rate is reduced. These 10-bit, switched-capacitor, successive approximation ADCs include a sample-and-hold. The LTC1197/LTC1197L have a differential analog input with an adjustable reference pin. The LTC1199/LTC1199L offer a software-selectable 2-channel MUX.

The 3-wire serial I/O, MSOP and SO-8 packages, 2.7V operation and extremely high sample rate-to-power ration make these ADCs ideal choices for compact, low power high speed systems.

These circuits can be used in ratiometric applications or with external references. The high impedance analog inputs and the ability to operate with reduced spans below 1V full scale (LTC1197/LTC1197L) allow direct connection to signal sources in may applications, eliminating the need for gain stages.

特点

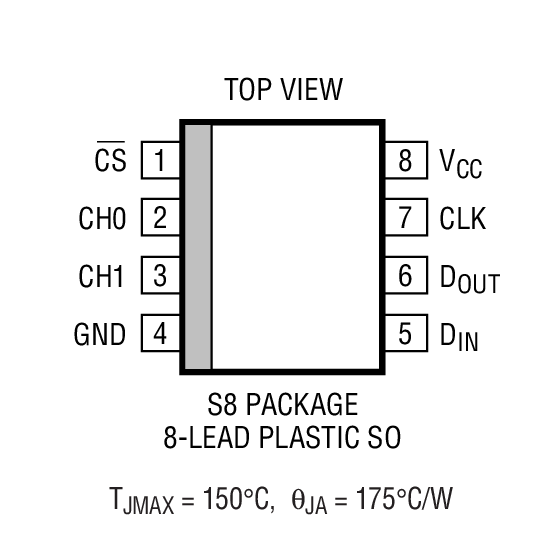

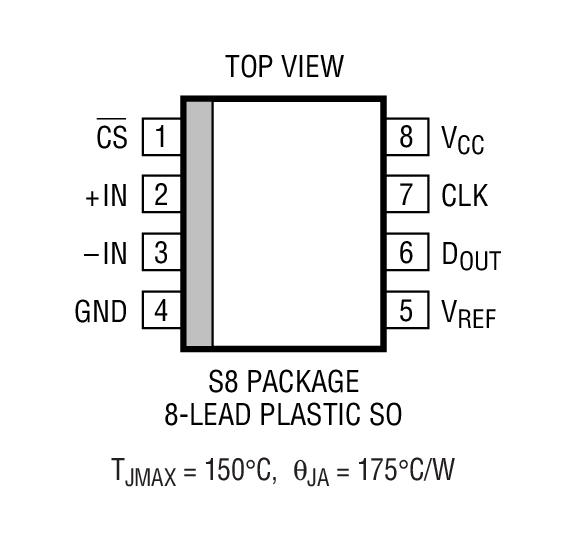

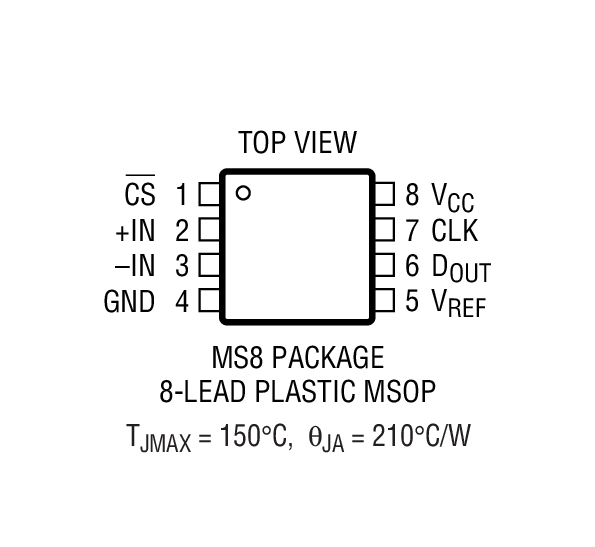

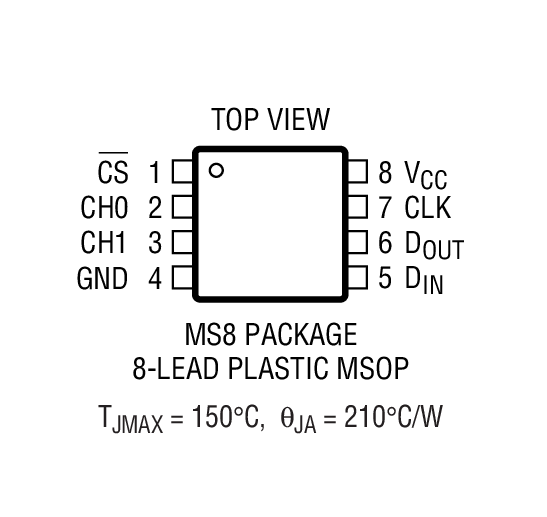

8-Pin MSOP and SO Packages

10-Bit Resolution at 500ksps

Single Supply: 5V or 3V

Low Power at Full Speed: 25mW Typ at 5V 2.2mW Typ at 2.7V

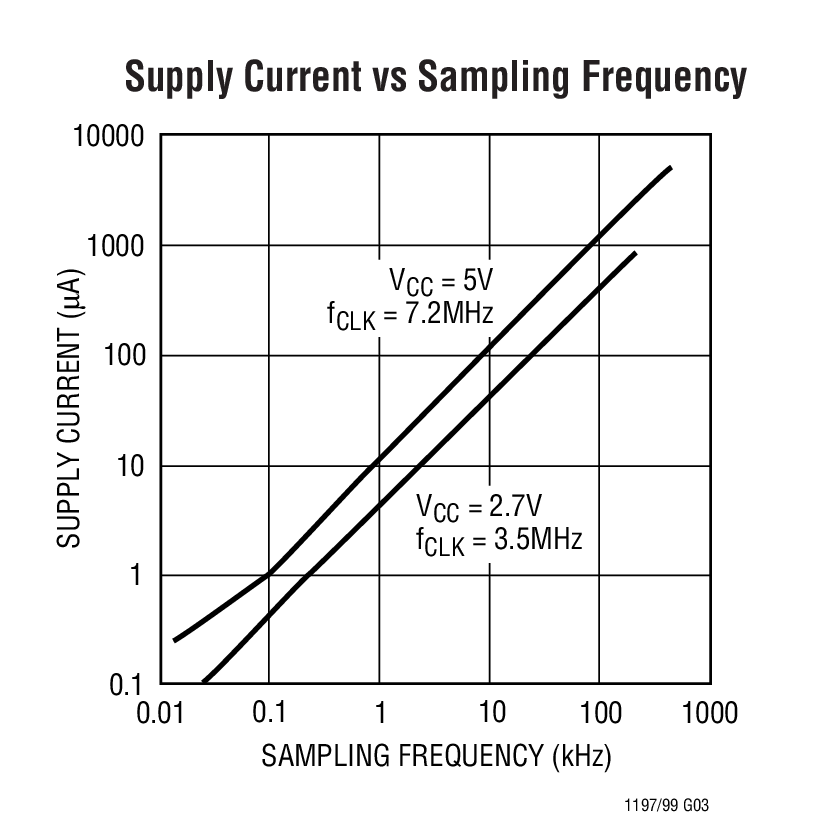

Auto Shutdown Reduces Power Linearly at Lower Sample Rates

10-Bit Upgrade to 8-Bit LTC1196/LTC1198

SPI and MICROWIRETM Compatible Serial I/O

Low Cost

应用

High Speed Data Acquisition

Portable or Compact Instrumentation

Low Power or Battery-Operated Instrumentation

以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）

器件型号	封装	温度	价格 (以 1 ~ 99 片为批量)	价格 (以 1000 片为批量)
LTC1197CMS8	MS-8	C	$3.40	$2.75
LTC1197CMS8#PBF	MS-8	C	$3.40	$2.75
LTC1197CMS8#TR	MS-8	C		$2.81
LTC1197CMS8#TRPBF	MS-8	C		$2.81
LTC1197CS8	SO-8	C	$3.00	$2.45
LTC1197CS8#PBF	SO-8	C	$3.00	$2.45
LTC1197CS8#TR	SO-8	C		$2.51
LTC1197CS8#TRPBF	SO-8	C		$2.51
LTC1197IMS8	MS-8	I	$3.75	$3.05
LTC1197IMS8#PBF	MS-8	I	$3.75	$3.05
LTC1197IMS8#TR	MS-8	I		$3.11
LTC1197IMS8#TRPBF	MS-8	I		$3.11
LTC1197IS8	SO-8	I	$3.25	$2.60
LTC1197IS8#PBF	SO-8	I	$3.25	$2.60
LTC1197IS8#TR	SO-8	I		$2.66
LTC1197IS8#TRPBF	SO-8	I		$2.66
LTC1197LCMS8	MS-8	C	$3.40	$2.75
LTC1197LCMS8#PBF	MS-8	C	$3.40	$2.75
LTC1197LCMS8#TR	MS-8	C		$2.81
LTC1197LCMS8#TRPBF	MS-8	C		$2.81
LTC1197LCS8	SO-8	C	$3.00	$2.45
LTC1197LCS8#PBF	SO-8	C	$3.00	$2.45
LTC1197LCS8#TR	SO-8	C		$2.51
LTC1197LCS8#TRPBF	SO-8	C		$2.51
LTC1197LIMS8	MS-8	I	$3.75	$3.05
LTC1197LIMS8#PBF	MS-8	I	$3.75	$3.05
LTC1197LIMS8#TR	MS-8	I		$3.11
LTC1197LIMS8#TRPBF	MS-8	I		$3.11
LTC1197LIS8	SO-8	I	$3.25	$2.60
LTC1197LIS8#PBF	SO-8	I	$3.25	$2.60
LTC1197LIS8#TR	SO-8	I		$2.66
LTC1197LIS8#TRPBF	SO-8	I		$2.66
