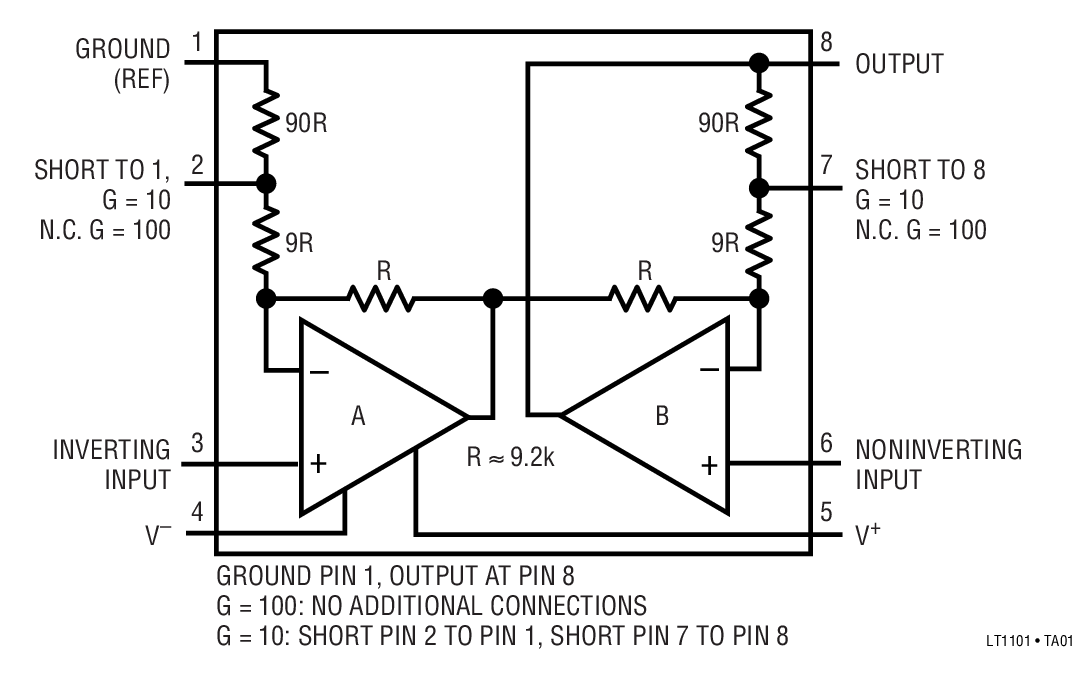

LT1101典型应用图例一

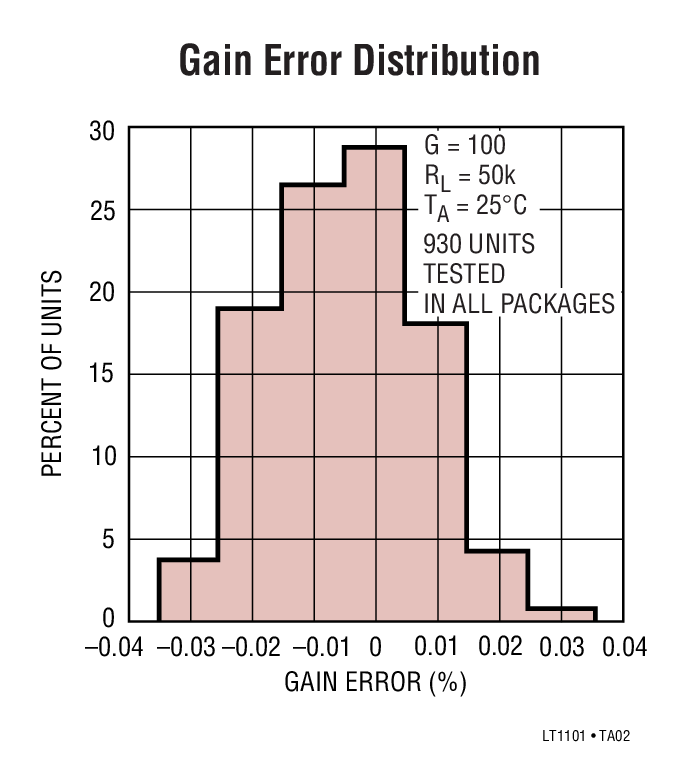

LT1101典型应用图例二
LT1101 - 封装图解：

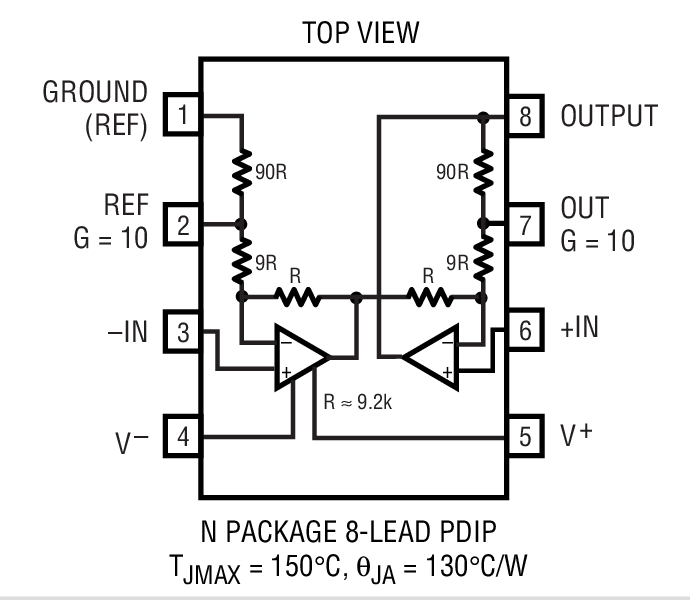

LT1101封装图解一

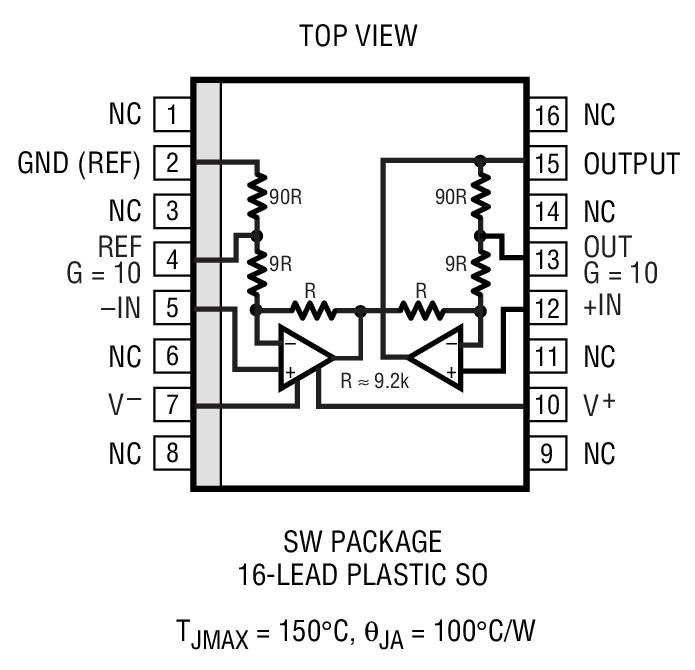

LT1101封装图解二
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1101介绍

LT1101 - LT1101是Precision, Micropower, Single Supply Instrumentation Amplifier (Fixed Gain = 10 or 100)

LT1101是LINEAR凌力尔特公司的一款精准放大器产品，LT1101是LT1101是Precision, Micropower, Single Supply Instrumentation Amplifier (Fixed Gain = 10 or 100)，本站介绍了LT1101的封装应用图解、特点和优点、功能等，并给出了与LT1101相关的LINEAR元器件型号供参考。

LT1101 - LT1101是Precision, Micropower, Single Supply Instrumentation Amplifier (Fixed Gain = 10 or 100) - 精准放大器 - 信号调理 - 凌力尔特

LT1101 - Precision, Micropower, Single Supply Instrumentation Amplifier (Fixed Gain = 10 or 100)

LT1101 - Precision, Micropower, Single Supply Instrumentation Amplifier (Fixed Gain = 10 or 100) - Linear Technology（凌力尔特）

功能描述

The LT?1101 establishes the following milestones: (1) It is the first micropower instrumentation amplifier, (2) It is the first single supply instrumentation amplifier, (3) It is the first instrumentation amplifier to feature fixed gains of 10 and/or 100 in low cost, space-saving 8-lead packages.

The LT1101 is completely self-contained: no external gain setting resistor is required. The LT1101 combines its micropower operation (75μA supply current) with again error of 0.008%, gain linearity of 3ppm, gain drift of 1ppm/°C. The output is guaranteed to drive a 2k load to ?10V with excellent gain accuracy.

Other precision specifications are also outstanding: 50μV input offset voltage, 130pA input offset current, and low drift (0.4μV/°C and 0.7pA/°C). In addition, unlike other instrumentation amplifiers, there is no output offset voltage contribution to total error.

A full set of specifications are provided with ±15V dual supplies and for single 5V supply operation. The LT1101 can be operated from a single lithium cell or two Ni-Cad batteries. Battery voltage can drop as low as 1.8V, yet the LT1101 still maintains its gain accuracy. In single supply applications, both input and output voltages swing to within a few millivolts of ground. The output sinks current while swinging to ground?no external, power consuming pull down resistors are needed.

特点
  • Gain Error: 0.04% Max
  • Gain Non-Linearity: 0.0008% (8ppm) Max
  • Gain Drift: 4ppm/°C Max
  • Supply Current: 105µA Max
  • Offset Voltage: 160µV Max
  • Offset Voltage Drift: 0.4μV/°C Typ
  • Offset Current: 600pA Max
  • CMRR, G=100: 100dB Min
  • 0.1Hz to 10Hz Noise: 0.9μVp-p: 2.3pAp-p Typ
  • Gain Bandwidth Product: 250kHz Min
  • Single or Dual Supply Operation
  • Surface Mount Package Available
    • 应用
  • Differential Signal Amplification in Presence of Common-Mode Voltage
  • Micropower Bridge Transducer Amplifier-Thermocouples-Strain Gauges-Thermistors
  • Differential Voltage to Current Converter
  • Transformer Coupled Amplifier
  • 4mA-20mA Bridge Transmitter
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1101ACN8 N-8 C $8.17 $6.60
    LT1101ACN8#PBF N-8 C $8.17 $6.60
    LT1101AIN8 N-8 I $10.17 $8.35
    LT1101AIN8#PBF N-8 I $10.17 $8.35
    LT1101CN8 N-8 C $5.83 $4.75
    LT1101CN8#PBF N-8 C $5.83 $4.75
    LT1101IN8 N-8 I $7.25 $5.95
    LT1101IN8#PBF N-8 I $7.25 $5.95
    LT1101ISW SW-16 I $8.65 $6.90
    LT1101ISW#PBF SW-16 I $8.65 $6.90
    LT1101ISW#TR SW-16 I $6.96
    LT1101ISW#TRPBF SW-16 I $6.96
    LT1101SW SW-16 C $7.00 $5.70
    LT1101SW#PBF SW-16 C $7.00 $5.70
    LT1101SW#TR SW-16 C $5.76
    LT1101SW#TRPBF SW-16 C $5.76
