当前位置：凌力尔特代理 > > 凌力尔特芯片 >> LT1211
LT1211技术文档下载：
LT1211技术文档产品手册下载
LT1211 - 典型应用图例：

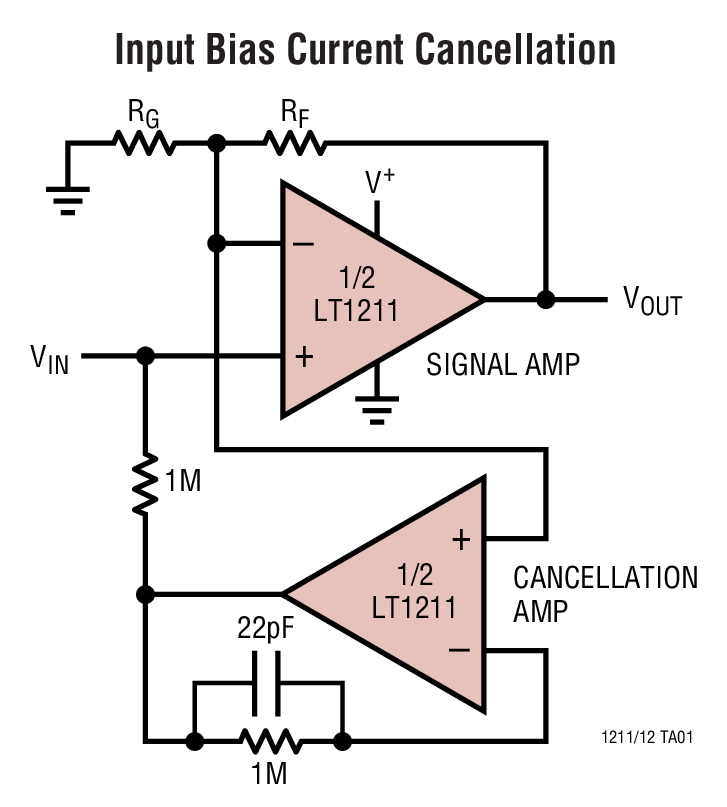

LT1211典型应用图例一

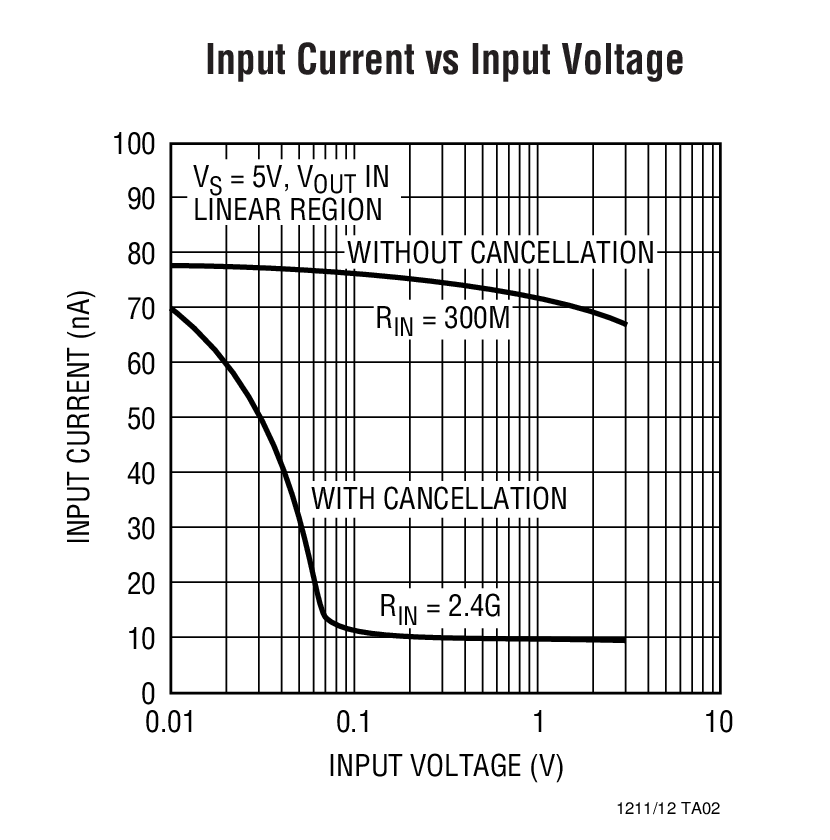

LT1211典型应用图例二
LT1211 - 封装图解：

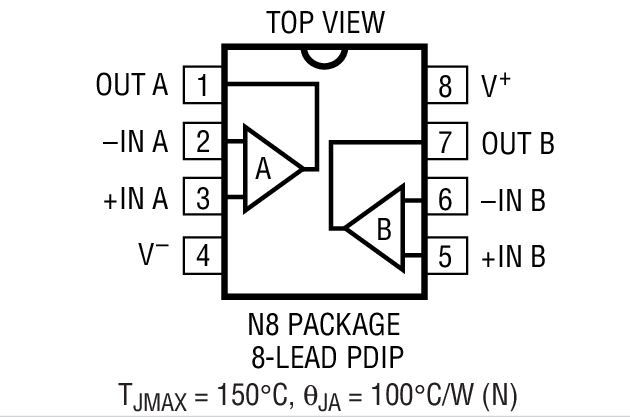

LT1211封装图解一

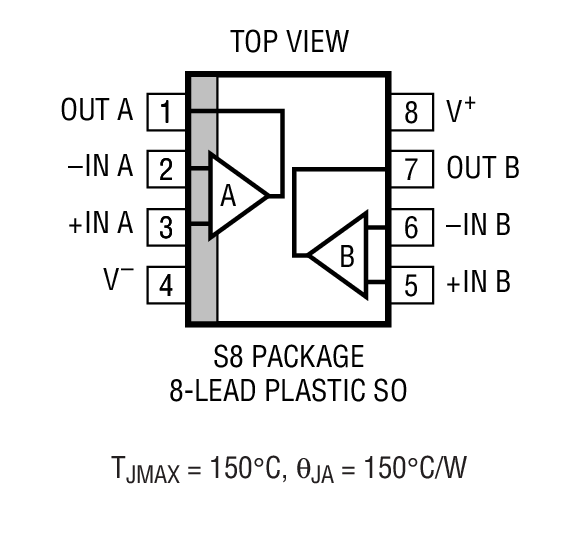

LT1211封装图解二

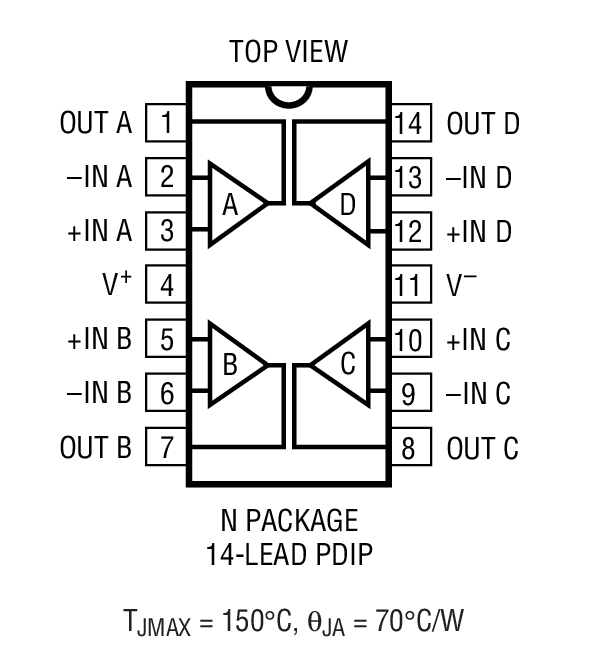

LT1211封装图解三
LT1211封装图解四
LINEAR凌力尔特芯片：
承诺原装正品
专营LINEAR凌力尔特，真正优化您的供应链
LINEAR产品 - LT1211介绍

LT1211 - LT1211是14MHz, 7V/μs, Single Supply Dual and Quad Precision Op Amps

LT1211是LINEAR凌力尔特公司的一款精准放大器产品，LT1211是LT1211是14MHz, 7V/μs, Single Supply Dual and Quad Precision Op Amps，本站介绍了LT1211的封装应用图解、特点和优点、功能等，并给出了与LT1211相关的LINEAR元器件型号供参考。

LT1211 - LT1211是14MHz, 7V/μs, Single Supply Dual and Quad Precision Op Amps - 精准放大器 - 信号调理 - 凌力尔特

LT1211 - 14MHz, 7V/μs, Single Supply Dual and Quad Precision Op Amps

LT1211 - 14MHz, 7V/μs, Single Supply Dual and Quad Precision Op Amps - Linear Technology（凌力尔特）

功能描述

Most H (Metal Can), J (Ceramic), and K (Metal Can) Packages from Linear Technology Are Now Obsolete

Download complete datasheet for Details

The LT1211 is a dual, single supply precision op amp with a 14MHz gain-bandwidth product and a 7V/µs slew rate. The LT1212 is a quad version of the same amplifier. The DC precision of the LT1211/LT1212 eliminates trims in most systems while providing high frequency performance not usually found in single supply amplifiers.

The LT1211/LT1212 will operate on any supply greater than 2.5V and less than 36V total. These amplifiers are specified on single 3.3V, single 5V and ±15V supplies, and only require 1.3mA of quiescent supply current per amplifier. The inputs can be driven beyond the supplies without damage or phase reversal of the output. The minimum output drive is 20mA, ideal for driving low impedance loads. Note:For applications requiring higher slew rate, see the LT1213/LT1214 and LT1215/LT1216 data sheets.

特点
  • Slew Rate 7V/µs Typ
  • Gain-Bandwidth Product: 14MHz Typ
  • Fast Settling to 0.01%2V Step to 200µV 900ns Typ10V Step to 1mV 2.2µs Typ
  • Excellent DC Precision in All PackagesInput Offset Voltage 275µV MaxInput Offset Voltage Drift 6µV/°Input Offset Current: 30nA MaxInput Bias Current: 125nA MaxOpen-Loop Gain: 1200V/mV Min
  • Single Supply OperationInput Voltage Range Includes GroundOutput Swings to Ground While Sinking Current
  • Low Input Noise Voltage: 12nV/rt Hz Typ
  • Low Input Noise Current: 0.2pA/rt Hz Typ
  • Specified on 3.3V, 5V and ±15V
  • Large Output Drive Current: 20mA Min
  • Low Supply Current per Amplifier: 1.8mA Max
  • Dual in 8-Pin DIP and SO8
  • Quad in 14-Pin DIP and NARROW SO16
  • Note: For applications requiring higher slew rate, see the LT1213/LT1214 and LT1215/LT1216 data sheets.
    • 应用
  • 2.5V Full-Scale 12-Bit Systems: VOS </= 0.45LSB
  • 10V Full-Scale 16-Bit Systems: VOS </= 1.8LSB
  • Active Filters
  • Photo Diode Amplifiers
  • DAC Current-to-Voltage Amplifiers
  • Battery-Powered Systems
    • 以下列出了不同封装及包装形式的具体型号,并标出了直接在linear官网上订货的价格（美元）
    器件型号 封装 温度 价格 (以 1 ~ 99 片为批量) 价格 (以 1000 片为批量)
    LT1211ACN8 N-8 C $5.75 $4.60
    LT1211ACN8#PBF N-8 C $5.75 $4.60
    LT1211CN8 N-8 C $3.25 $2.85
    LT1211CN8#PBF N-8 C $3.25 $2.85
    LT1211CS8 SO-8 C $3.45 $3.02
    LT1211CS8#PBF SO-8 C $3.45 $3.02
    LT1211CS8#TR SO-8 C $3.07
    LT1211CS8#TRPBF SO-8 C $3.07
    LT1211IN8 N-8 I $4.00 $3.30
    LT1211IN8#PBF N-8 I $4.00 $3.30
    LT1211IS8 SO-8 I $4.30 $3.50
    LT1211IS8#PBF SO-8 I $4.30 $3.50
    LT1211IS8#TR SO-8 I $3.56
    LT1211IS8#TRPBF SO-8 I $3.56
    LT1211MJ8 CERDIP-8 M $39.30
